SPOT FRAME D68

Choose your product version

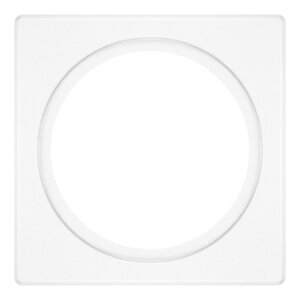

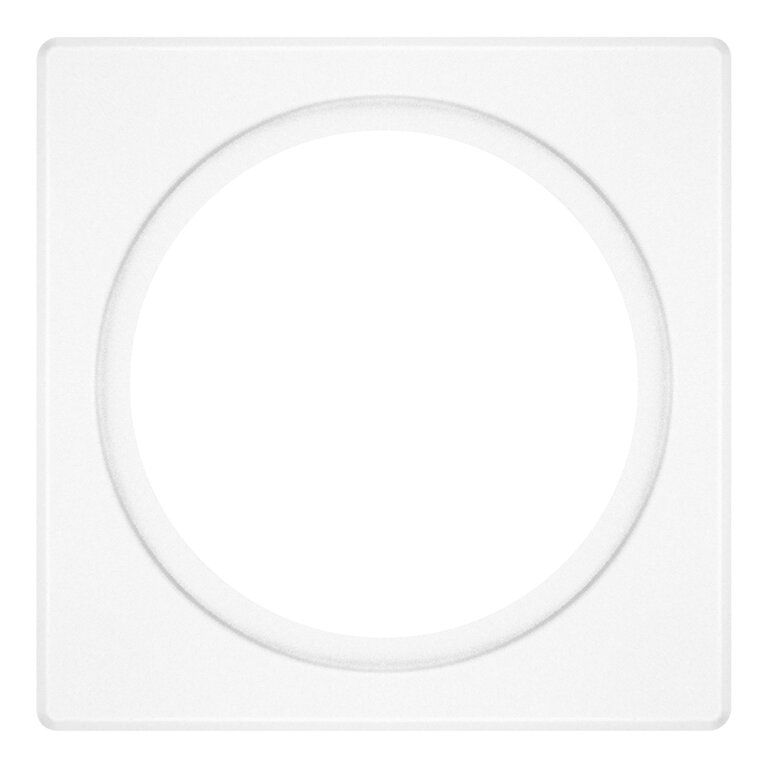

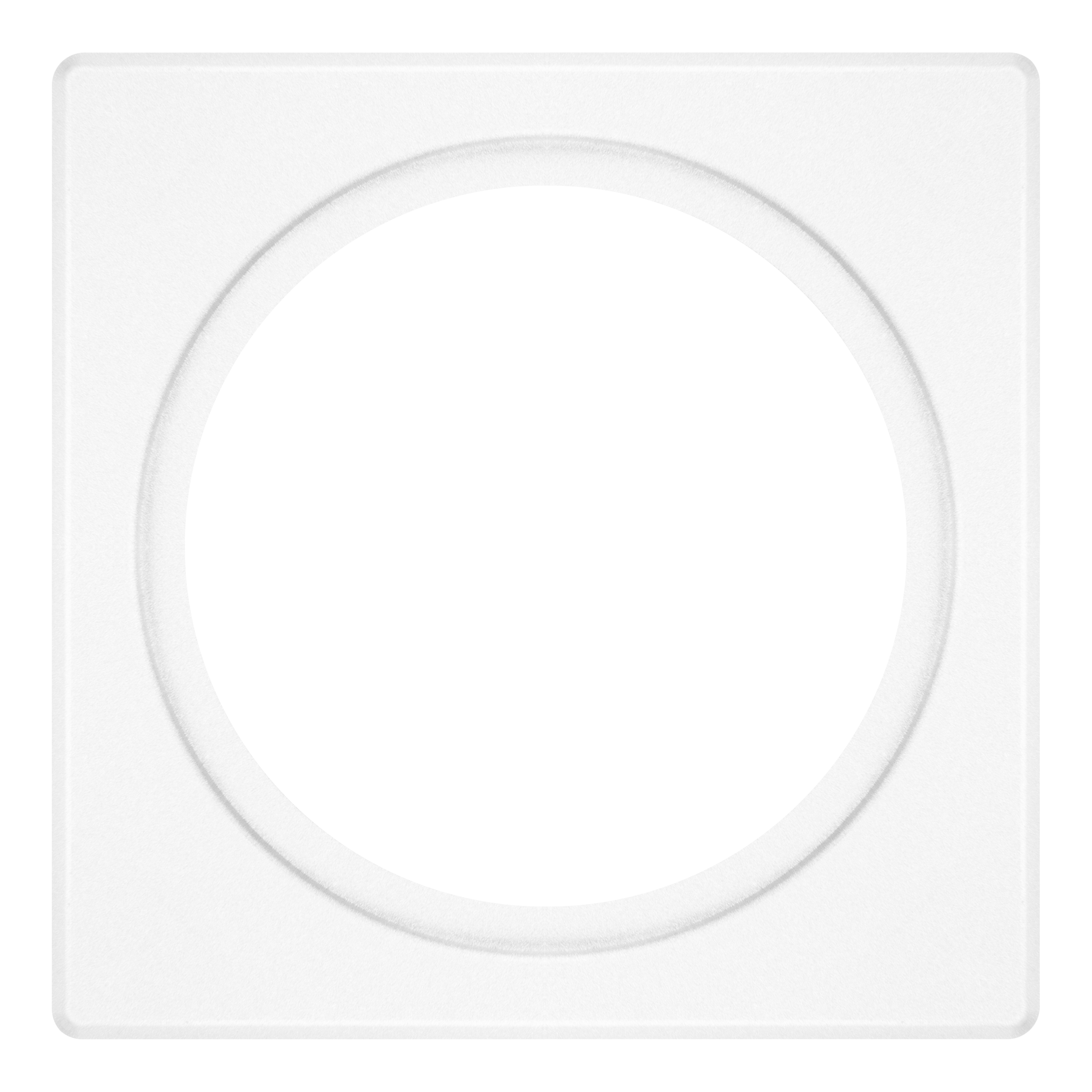

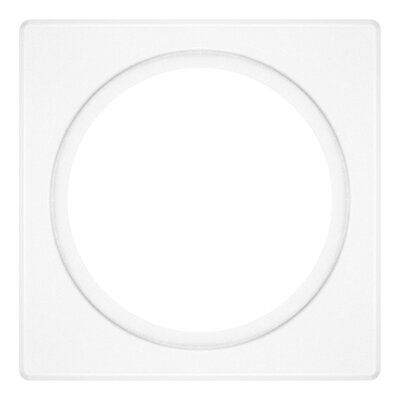

SPOT FRAME 100X100 1X D68 WT

Product benefits
  • Frame enables the change of the design from round to square shape

PRODUCT DETAILS

Dimensions & Weight

Length 100 mm
Height 4 mm
Width 100 mm
Product weight 55.00 g

Materials & Colors

Product color White
Body material Steel

Application & Mounting

Ambient temperature range -20…+40 °C
Mounting type Recessed
Mounting location Ceiling
Replaceable light source No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), Tripnehyl Phosphate (115-86-6), Formaldehyde (25214-70-4), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Frame enables the change of the design from round to square shape
Areas of application
  • General illumination
  • Hotel rooms and corridors
  • Bars, restaurants
  • Accent lighting
  • Galleries, museums
  • Residential interiors
Product features
  • Steel-sheet housing

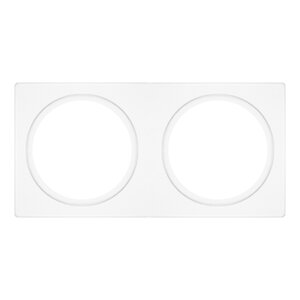

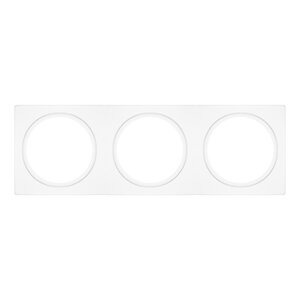

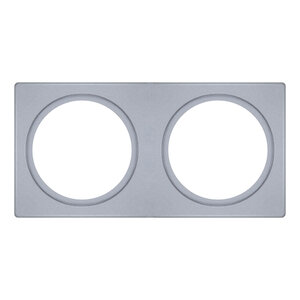

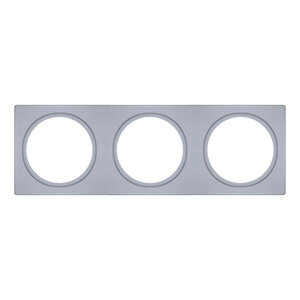

  • Available in 3 different sizes

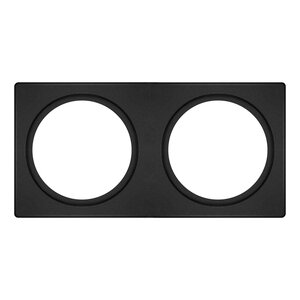

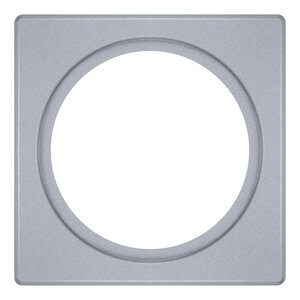

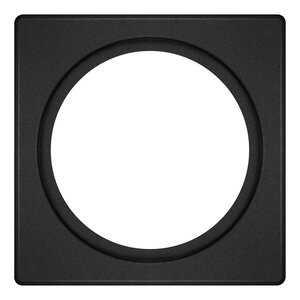

  • Available in 3 different colors: white, black and silver
  • Suitable only for LEDVANCE SPOT GEN 2 with 68 mm cut-out in recessed ceilings
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854459863 BAG
1
120 mm x 115 mm x 2 mm 56.00 g 0.03 dm³
4099854459870 Shipping box
20
128 mm x 123 mm x 98 mm 1155.00 g 1.54 dm³
4099854459887 Shipping box
160
265 mm x 255 mm x 205 mm 9690.00 g 13.85 dm³
EAN STK number ELDAS number
4099854459863 4161009 941904160
