SPOT COMBO FIRE RATED FIX MS

Choose your product version

FPFIX V 6W MS827 DIM IP65 WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SP CBO FPFIX V 6W MS827 DIM IP65 WT 6 W / 4 W 25000 60 ° 650 lm / 610 lm / 580 lm / 460 lm / 440 lm / 420 lm Yes


SP CBO FPFIX V 6W MS827 DIM IP65 WT

Product benefits
  • Easy color temperature adjustment via switch on the front of the spot
  • Highly versatile due to selectable power steps (Multi Lumen) on the front of the luminaire
  • Can be covered with most insulating materials
  • Fire-rated: Designed and tested to meet fire rating standards (in certain fire rated ceilings)
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 6 W / 4 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 34.000 mA
Inrush current 1.36 A
Inrush current time Th50 200 µs
Max. number of luminaires per miniature circuit breaker B16 281
Max. number of luminaires per miniature circuit breaker C10 237
Max. number of luminaires per miniature circuit breaker C16 380
Power factor λ 0.70
Total harmonic distortion <95 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 650 lm / 610 lm / 580 lm / 460 lm / 440 lm / 420 lm
Luminous efficacy 110 lm/W / 105 lm/W / 100 lm/W
Color temperature 2700 K / 3000 K / 4000 K / 6000 K
Light color (designation) Warm White, Cool White, Cool Daylight
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 60 °

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
6 W 6000 K 650 lm 110 lm/W
6 W 4000 K 650 lm 110 lm/W
6 W 3000 K 610 lm 105 lm/W
6 W 2700 K 580 lm 100 lm/W
4 W 6000 K 460 lm 110 lm/W
4 W 4000 K 460 lm 110 lm/W
4 W 3000 K 440 lm 105 lm/W
4 W 2700 K 420 lm 100 lm/W

Dimensions & Weight

Diameter 86.00 mm
Height 33.00 mm
Product weight 187.00 g
Cable length 110 mm

Materials & Colors

Product color Black
Housing color Black
RAL Color (most similar) RAL 9003
Body material Plastic|METAL
Cover material Plastic
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Plug-In connection
Type of protection IP65/IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming PHASE CUT
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 70 mm
Mounting depth 33 mm
Adjustable No
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 18 mA
ECG - Output ripple current < 5 %

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00048-V01.01-EN

Additional product data

Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy color temperature adjustment via switch on the front of the spot
  • Highly versatile due to selectable power steps (Multi Lumen) on the front of the luminaire
  • Can be covered with most insulating materials
  • Fire-rated: Designed and tested to meet fire rating standards (in certain fire rated ceilings)
Areas of application
  • Direct replacement for recessed spotlights with halogen lamps
  • General illumination
  • Hotel rooms and corridors
  • Bars, restaurants
  • Residential interiors
Product features
  • Adjustable color temperature (Multi Color): 2700 K, 3000 K, 4000 K, 6000 K
  • Version with Multi Lumen function available: power steps selectable
  • Type of protection: IP65 (room side)
  • Housing material: iron
  • Ring material: plastic
Equipment / Accessories
  • Already equipped with white round ring
  • Additional cover rings separately available in round shape and in different colors
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854459894 Folding box
1		 110 mm x 110 mm x 72 mm 232.00 g 0.87 dm³
4099854459900 Shipping box
45		 566 mm x 346 mm x 259 mm 11140.00 g 50.72 dm³
Product image Product name EAN
SP CBO FP RING FIX ROUND BK 4099854459993
SP CBO FP RING FIX ROUND BN 4099854460050

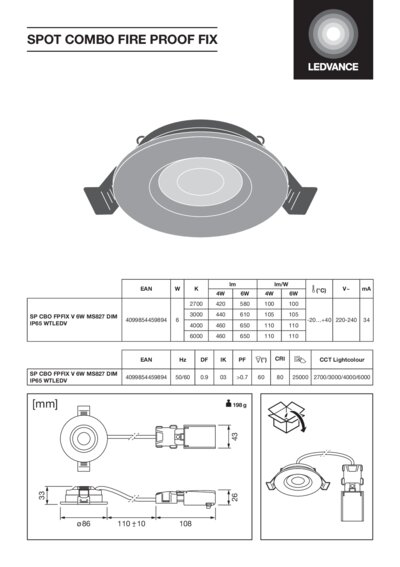

User instruction / safety instructions
SP CBO FPFIX V 6W MS82 7 DIM IP65 PDF (3.36 MB)
Legal information

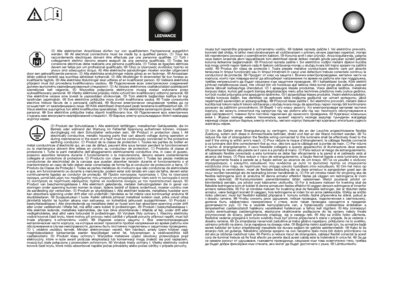

Safety insert G1122184 4 PDF (165.78 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

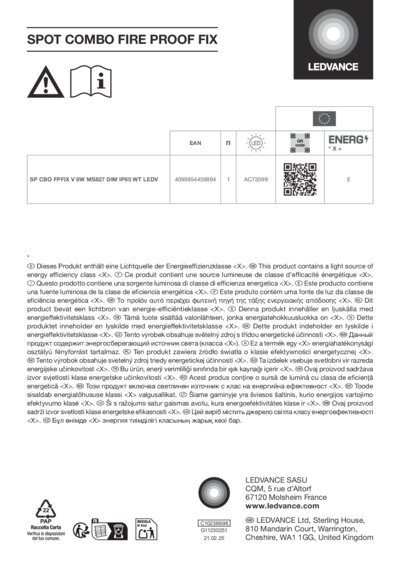

Legal information
SP CBO FPFIX V 6W MS82 7 DIM IP65 WTLEDV PDF (2.19 MB)

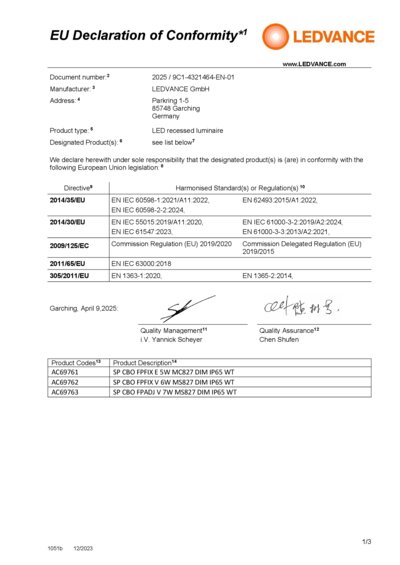

Declarations of conformity
SP CBO PDF (275.94 KB)

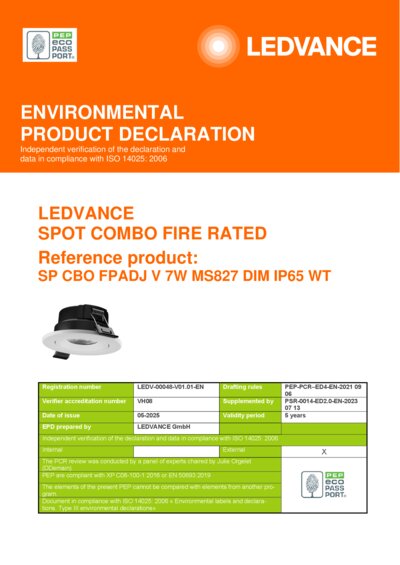

EPD
EPD EN SPOT COMBO FIRE PROOF PDF (644.42 KB)

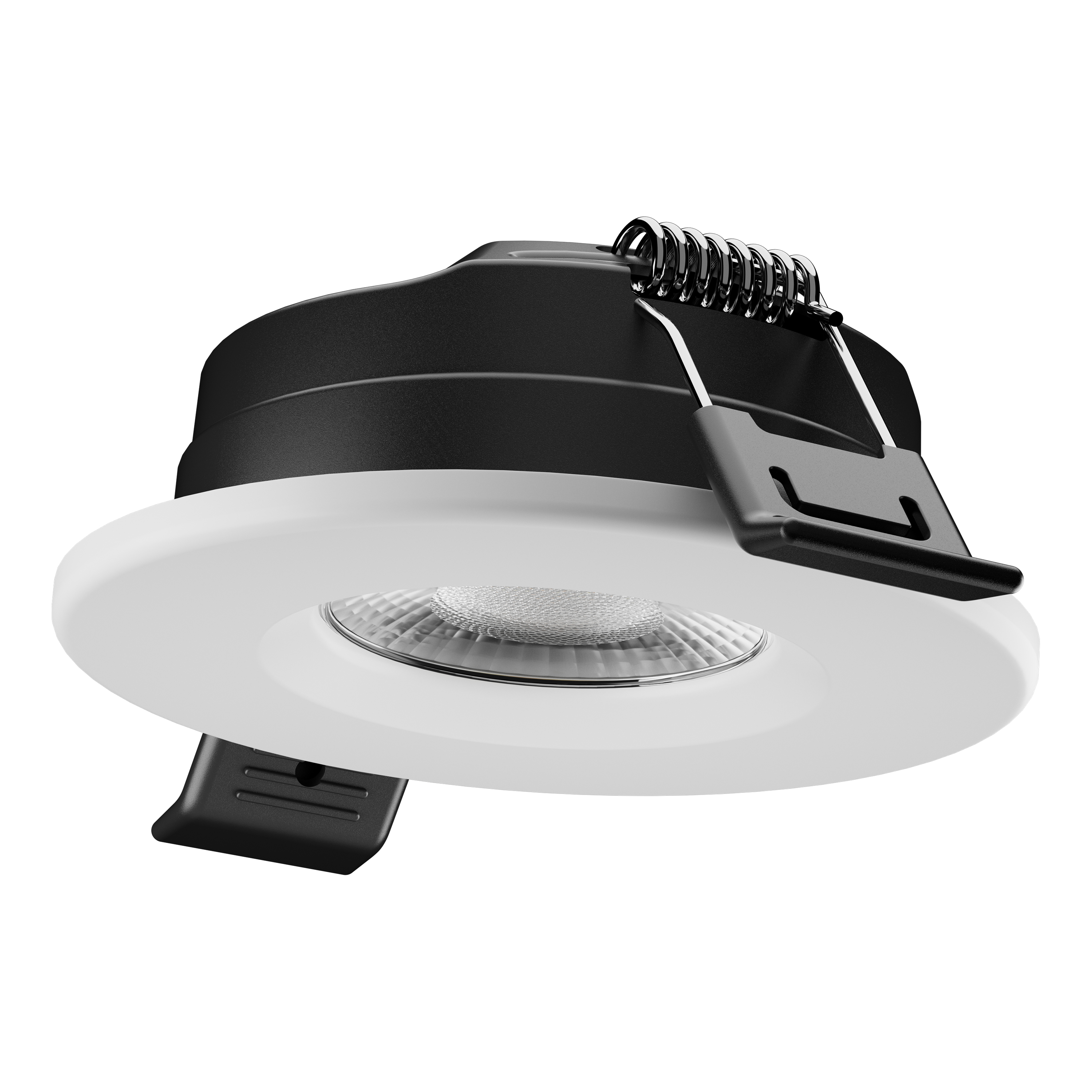

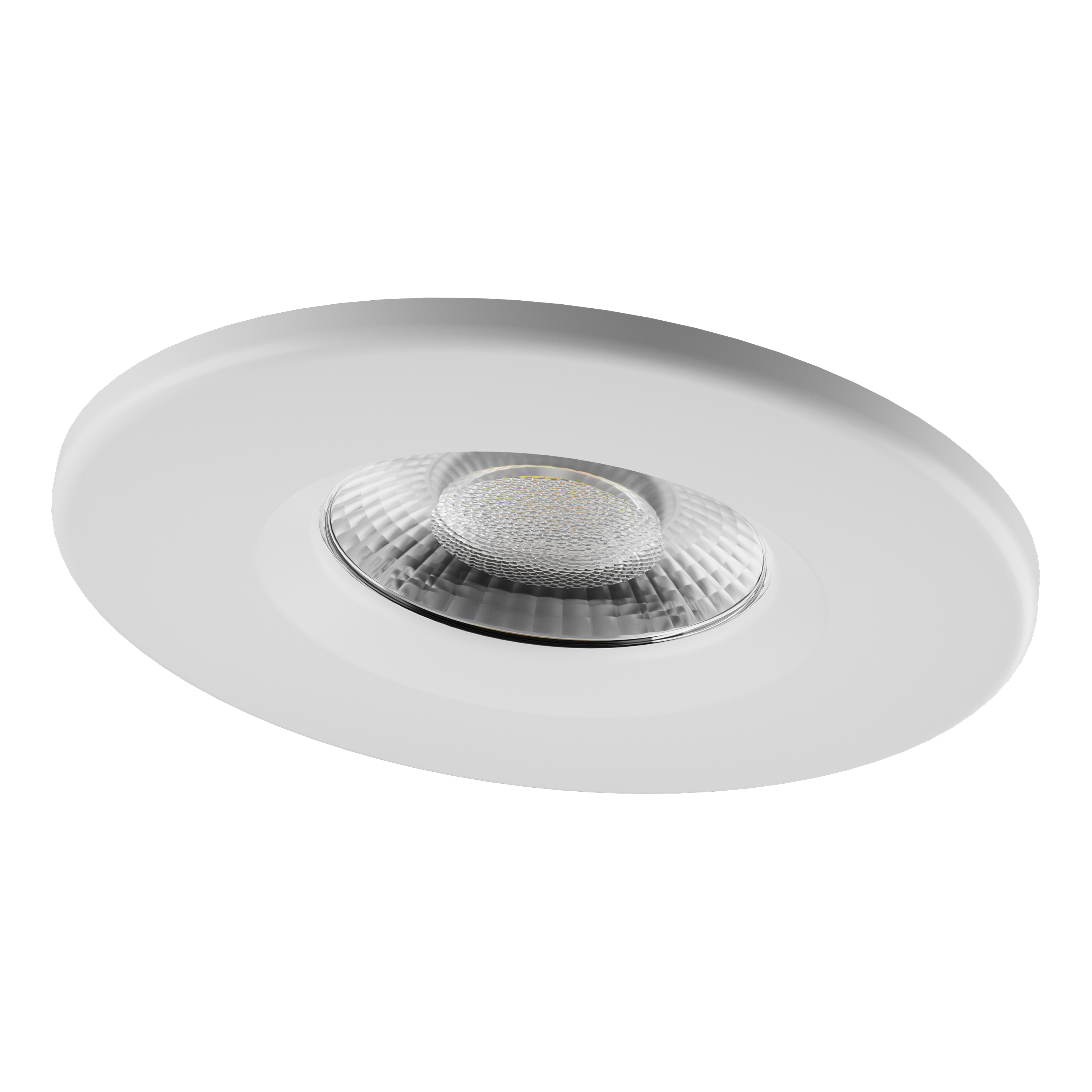

Product image: white background, diagonal
SP CBO FPFIX V 6W MS82 7 DIM IP65 WT JPG (1.36 MB)

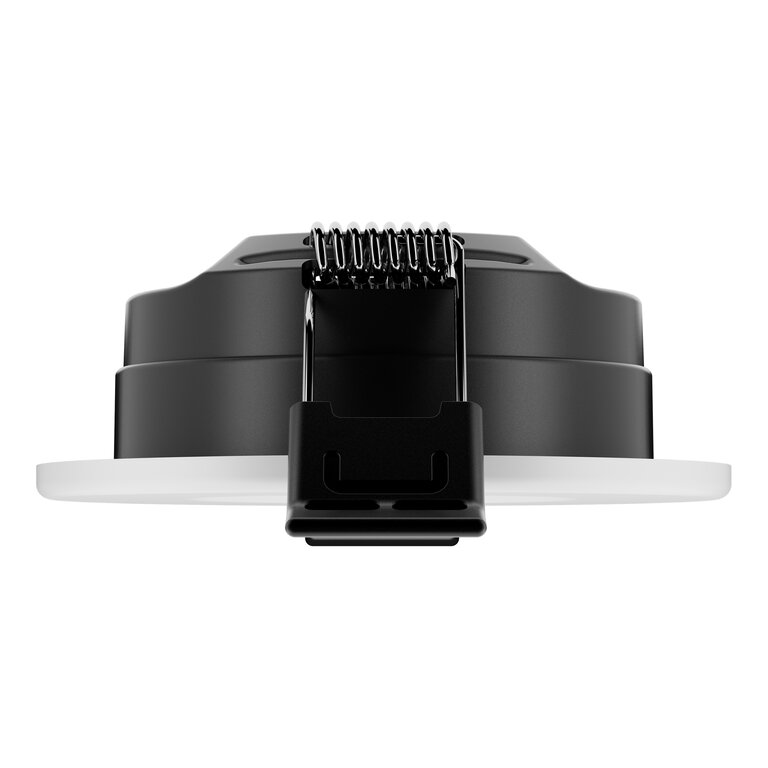

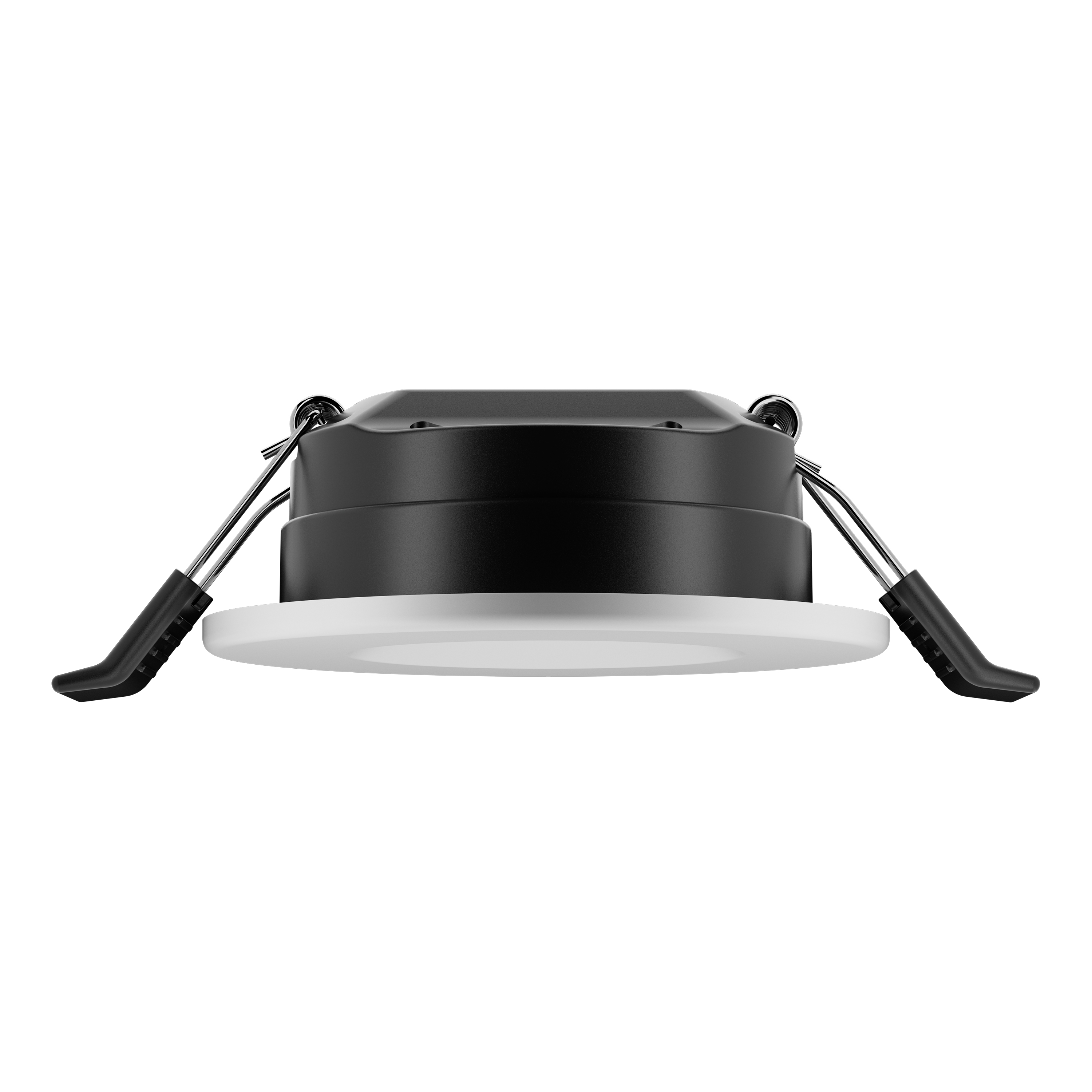

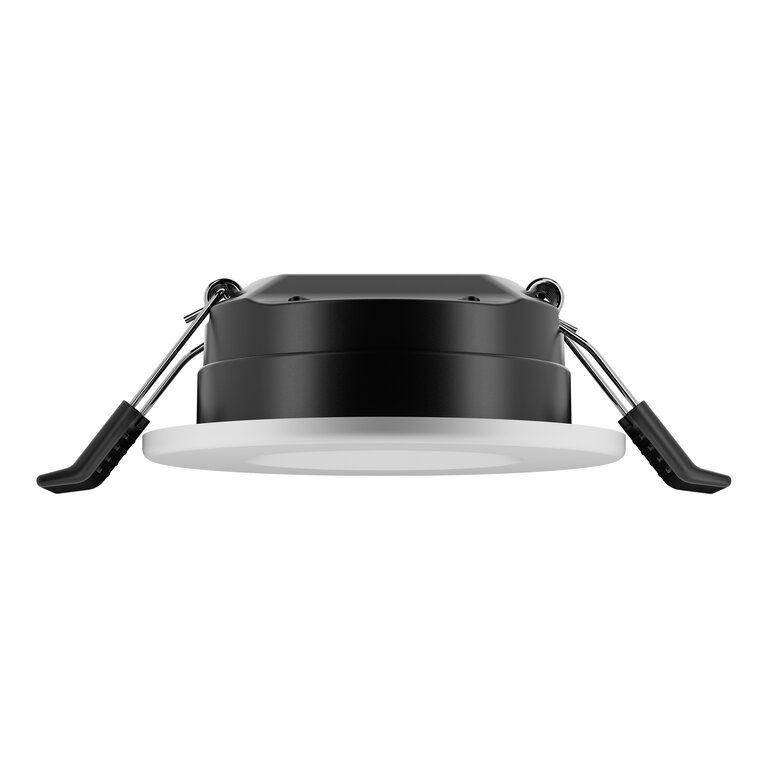

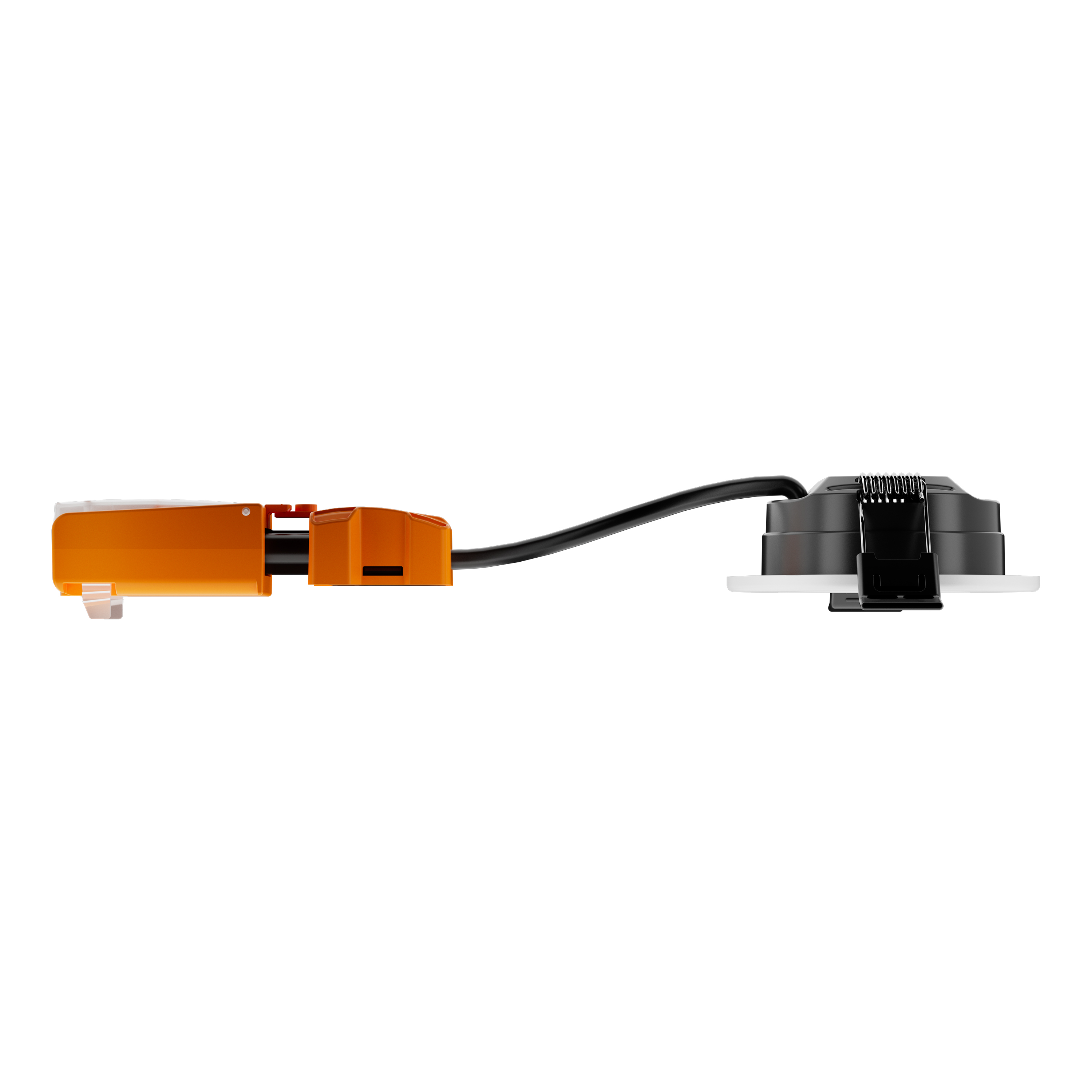

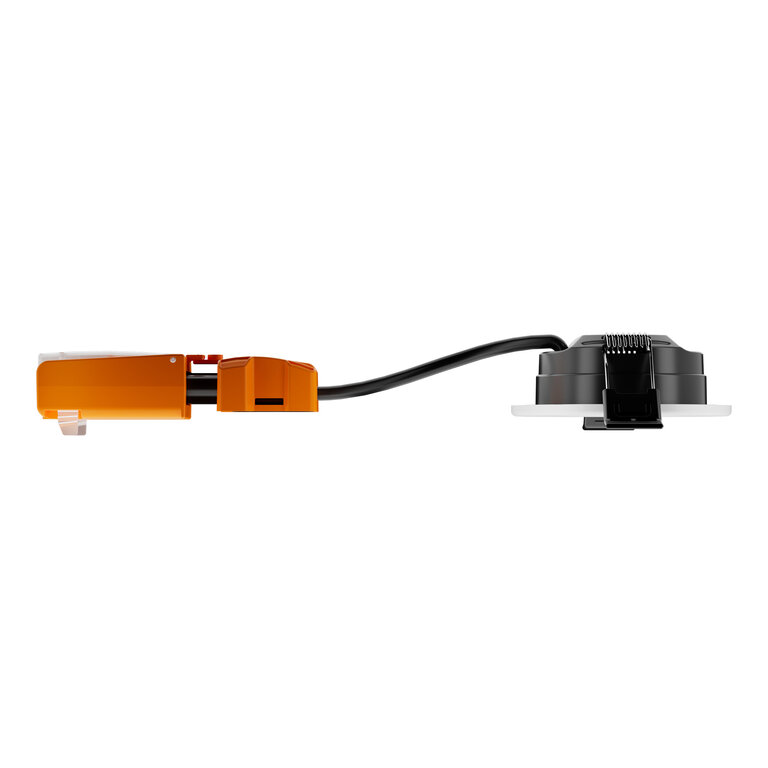

Product image: white background, horizontal
SP CBO FPFIX V 6W MS82 7 DIM IP65 WT JPG (1.15 MB)
Product image: white background, horizontal, alternative image
SP CBO FPFIX V 6W MS82 7 DIM IP65 WT JPG (872.72 KB)
Product image: white background, horizontal, alternative image
SP CBO FPFIX V 6W MS82 7 DIM IP65 WT JPG (1.53 MB)

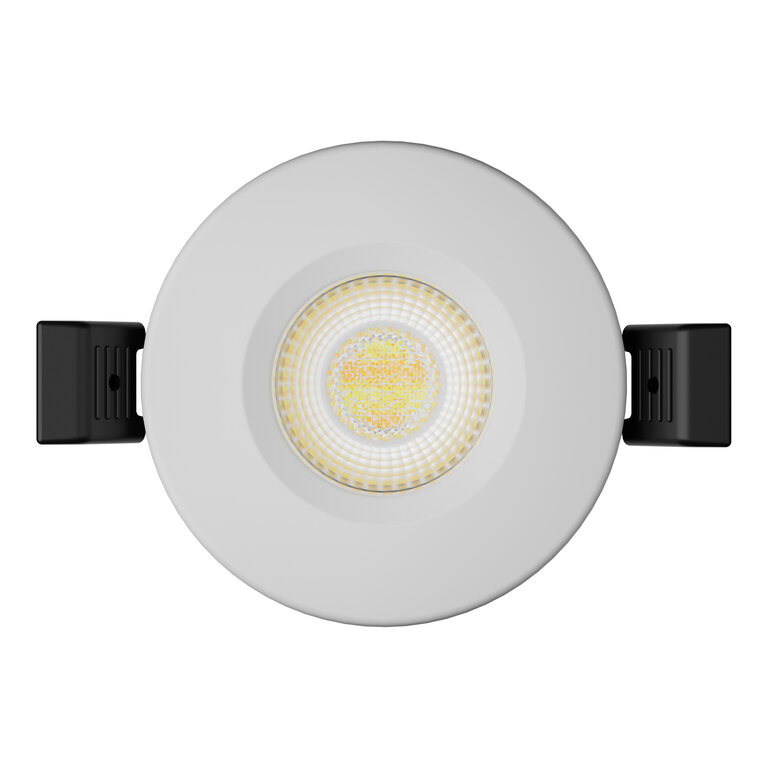

Product image: white background, upright
SP CBO FPFIX V 6W MS82 7 DIM IP65 WT JPG (1.96 MB)

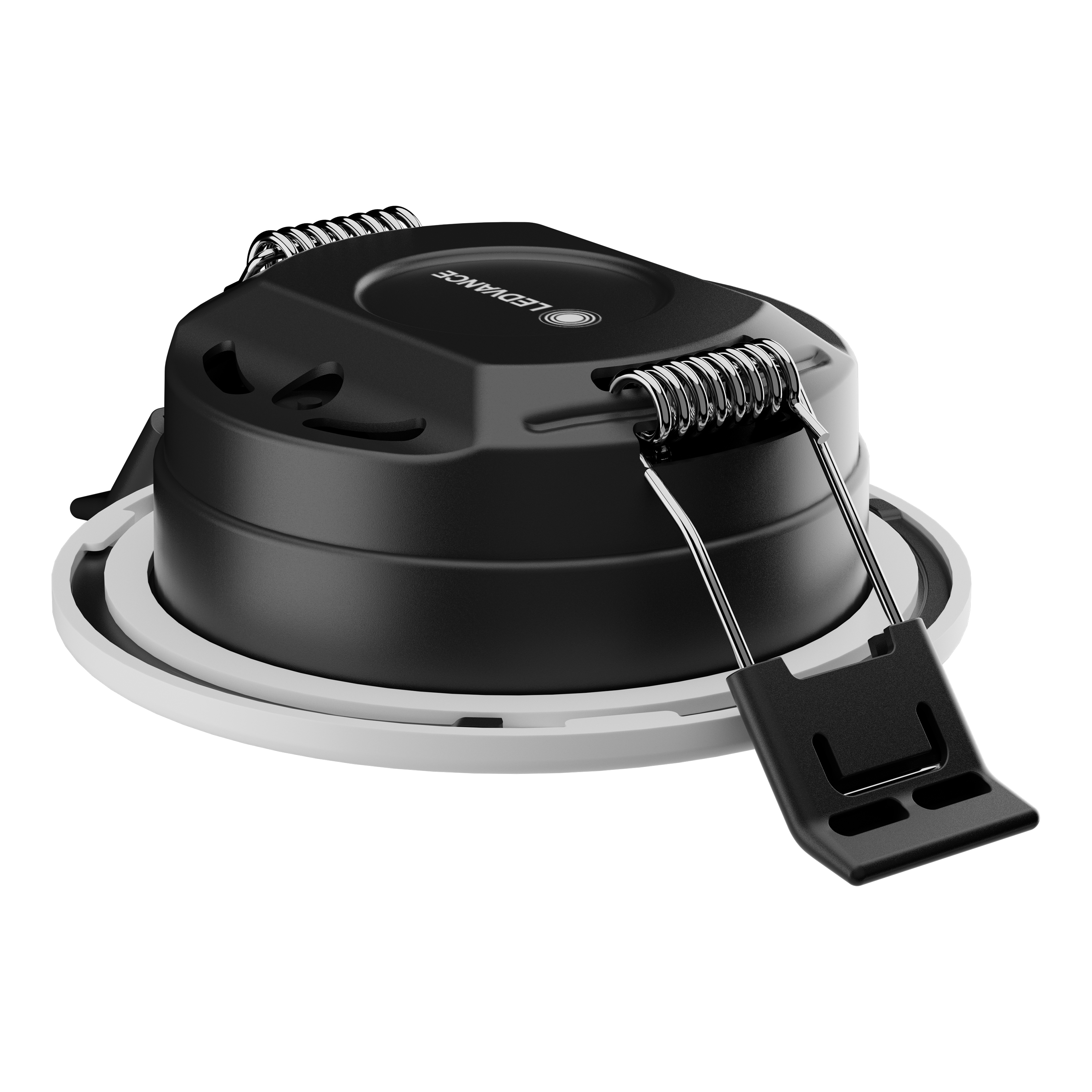

Product image: white background, spacial
SP CBO FPFIX V 6W MS82 7 DIM IP65 WT JPG (1.83 MB)
Product line drawing with letters
SP CBO FPFIX V 6W MS82 7 DIM IP65 WT SVG (61.72 KB)
Product line drawing with numbers
SP CBO FPFIX V 6W MS82 7 DIM IP65 WT SVG (66.04 KB)
Product line drawing - technical
SP CBO FPFIX V 6W MS82 7 DIM IP65 WT SVG (58.91 KB)
IES file (IES)
SP CBO FPFIX V 6W MS82 7 DIM IP65 WT IES (3.26 KB)
IES file (IES)
SP CBO FPFIX V 6W MS83 0 DIM IP65 WT IES (3.26 KB)
IES file (IES)
SP CBO FPFIX V 6W MS84 0 DIM IP65 WT IES (3.26 KB)
IES file (IES)
SP CBO FPFIX V 6W MS86 0 DIM IP65 WT IES (3.26 KB)
LDT file (Eulumdat)
SP CBO FPFIX V 6W MS82 7 DIM IP65 WT LDT (2.55 KB)
LDT file (Eulumdat)
SP CBO FPFIX V 6W MS83 0 DIM IP65 WT LDT (2.9 KB)
LDT file (Eulumdat)
SP CBO FPFIX V 6W MS84 0 DIM IP65 WT LDT (2.91 KB)
LDT file (Eulumdat)
SP CBO FPFIX V 6W MS86 0 DIM IP65 WT LDT (2.92 KB)

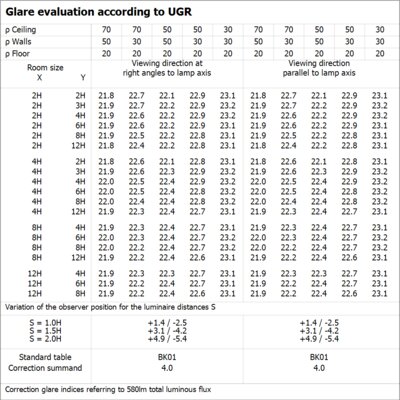

UGR file (UGR table)
SP CBO FPFIX V 6W MS82 7 DIM IP65 WT PNG (55.83 KB)
UGR file (UGR table)
SP CBO FPFIX V 6W MS83 0 DIM IP65 WT PNG (55.35 KB)

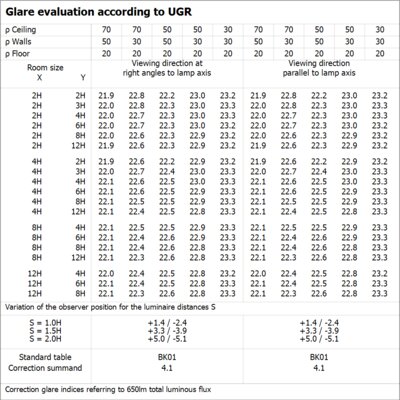

UGR file (UGR table)
SP CBO FPFIX V 6W MS84 0 DIM IP65 WT PNG (55.13 KB)
UGR file (UGR table)
SP CBO FPFIX V 6W MS86 0 DIM IP65 WT PNG (55.44 KB)
Light distribution curve type cone
SP CBO FPFIX V 6W MS82 7 DIM IP65 WT SVG (11.42 KB)
Light distribution curve type cone
SP CBO FPFIX V 6W MS83 0 DIM IP65 WT SVG (11.42 KB)
Light distribution curve type cone
SP CBO FPFIX V 6W MS84 0 DIM IP65 WT SVG (11.42 KB)
Light distribution curve type cone
SP CBO FPFIX V 6W MS86 0 DIM IP65 WT SVG (11.42 KB)
Light distribution curve type polar
SP CBO FPFIX V 6W MS82 7 DIM IP65 WT SVG (17.79 KB)
Light distribution curve type polar
SP CBO FPFIX V 6W MS83 0 DIM IP65 WT SVG (17.79 KB)
Light distribution curve type polar
SP CBO FPFIX V 6W MS84 0 DIM IP65 WT SVG (17.79 KB)
Light distribution curve type polar
SP CBO FPFIX V 6W MS86 0 DIM IP65 WT SVG (17.4 KB)
BIM Revit 3D
SP CBO FPFIX 5W ZIP (1.35 MB)
CAD STEP 3D
SP CBO FPFIX 6W STEP (3.01 MB)
Tender documents
SPOT COMBO FIRE RATED FIX MS FPFIX V 6W MS82 7 DIM IP65 WT-en TXT (2.41 KB)
Video
Fire Rated Spotlights UK MP4 (224.2 MB)
EAN STK number ELDAS number UK Org
4099854459894 4161018 941403290 438119149
