STREETLIGHT FLEX LARGE RW35ST

Choose your product version

P 110W 727 WAL

P 110W 730 WAL

P 110W 740 WAL

P 158W 727 WAL

P 158W 730 WAL

P 158W 740 WAL

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SL FLEX LA RW35ST P 110W 727 WAL 110.00 W 100000 35 ° x 135 ° 15200 lm No
SL FLEX LA RW35ST P 110W 730 WAL 110.00 W 100000 35 ° x 135 ° 16350 lm No
SL FLEX LA RW35ST P 110W 740 WAL 110.00 W 100000 35 ° x 135 ° 16650 lm No
SL FLEX LA RW35ST P 158W 727 WAL 158.00 W 100000 35 ° x 135 ° 21000 lm No
SL FLEX LA RW35ST P 158W 730 WAL 158.00 W 100000 35 ° x 135 ° 23200 lm No
SL FLEX LA RW35ST P 158W 740 WAL 158.00 W 100000 35 ° x 135 ° 23900 lm No


SL FLEX LA RW35ST P 110W 727 WAL

Product benefits
  • Durable design and highest quality component selection for long lasting performance
  • Quick and easy wiring, due to tool-free housing opening and push button terminal
  • High light uniformity
  • 3 light colors available, perfectly suited to illuminate highly diverse surroundings
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Automatic mains disconnection when opening the housing
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 110.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 528 mA
Inrush current 65 A
Inrush current time Th50 220 µs
Max. number of luminaires per miniature circuit breaker B16 8
Max. number of luminaires per miniature circuit breaker C10 9
Max. number of luminaires per miniature circuit breaker C16 17
Power factor λ > 0.90
Total harmonic distortion < 10 %
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 15200 lm
Luminous efficacy 138 lm/W
Color temperature 2700 K
Light color (designation) Warm White
Color rendering index Ra 70
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 35 ° x 135 °

Dimensions & Weight

Length 617.00 mm
Height 90.00 mm
Width 300.00 mm
Product weight 7700.00 g

Materials & Colors

Product color White aluminum
Housing color White aluminum
RAL Color (most similar) RAL 9006
Body material Aluminum
Cover material Tempered glass
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -40…+50 °C
Temperature range at storage -30…+80 °C
Type of connection Screwless terminal
Type of protection IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Post top
Mounting location Pole
Application environment Outdoor
Adjustable Yes
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 100000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 560 mA
ECG - Output ripple current ≤ 10 %

Certificates & Standards

Standards CE, ENEC, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00023-V01.01-EN
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Durable design and highest quality component selection for long lasting performance
  • Quick and easy wiring, due to tool-free housing opening and push button terminal
  • High light uniformity
  • 3 light colors available, perfectly suited to illuminate highly diverse surroundings
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Automatic mains disconnection when opening the housing
  • 5 years guarantee
Areas of application
  • Outdoor use (IP66)
  • M-, C- and P-class roads acc. to EN 13201
  • Parking
  • Public areas
  • Industry
Product features
  • Light distribution with great depth
  • Very long lifetime (L90/B10): Up to 100,000 h (at 25 °C)
  • Spigot for 48-60 mm poles included
  • Additional reduction for 42 mm and adapter for 76 mm poles available separately
  • Adjustable spigot for both side-entry and post-top installation
  • +/- 15° tilt angle adjustment without opening the housing
  • High luminous efficacy: up to 151 lm/W
  • Operating temperature: -40...50 °C
  • High surge protection: up to 10 kV (L/N-GND)
  • Push fit terminal for a quick and easy electrical connection
  • Protection class: II
Equipment / Accessories
  • Spigot for 42 and 76 mm poles available separately
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075552425 Shipping box
1		 678 mm x 378 mm x 227 mm 8735.00 g 58.18 dm³
Product image Product name EAN
SL FLEX SPIGOT 76MM WAL 4058075552531
SL FLEX REDUCTION 60 TO 42MM WAL 4058075552579
User instruction / safety instructions
SL FLEX WAL PDF (5.51 MB)
Legal information
LSI SL FLEX LA P PDF (2.41 MB)
Legal information
Legal insert SL FLEX W AL PDF (2.88 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Safety Insert G1121881 0 PDF (244.72 KB)
Declarations of conformity
SL FLEX MD PDF (272.98 KB)
EPD
EPD EN STREETLIGHT FLE X PDF (709.02 KB)
Product image: white background, diagonal
SL FLEX LA P RV WAL JPG (801.05 KB)
Product image: white background, horizontal
SL FLEX LA P RV WAL JPG (856.63 KB)
Product image: white background, upright
SL FLEX LA P RV WAL JPG (552.58 KB)
Product image: white background, spacial
SL FLEX LA P RV WAL JPG (1.09 MB)
Product line drawing with letters
SL FLEX MD P WAL SVG (34.06 KB)
Product line drawing with numbers
SL FLEX LA P RV WAL SVG (38.51 KB)
Product line drawing - technical
SL FLEX LA P RV WAL SVG (32.05 KB)

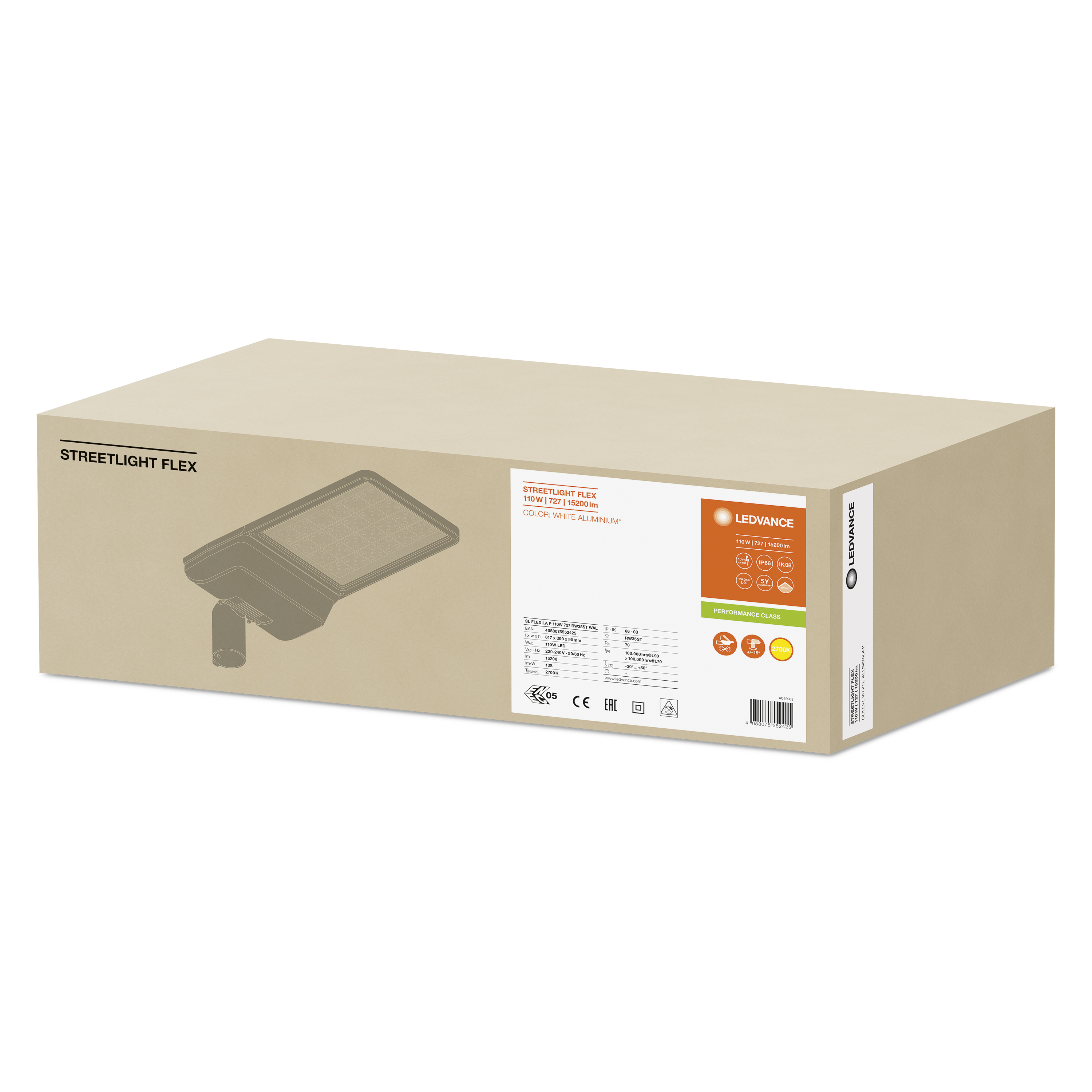

Packaging image, spacial
Streetlight Flex LA Mi Ch JPG (1.58 MB)
Catalog info 1
SL FLEX 1 SVG (28.7 KB)
Catalog info 1
SL FLEX P WALL SVG (23.69 KB)
Catalog info 2
SL FLEX P WALL SVG (20.46 KB)
Catalog info 3
SL FLEX P WALL SVG (104.59 KB)
Catalog info 4
SL FLEX P WALL SVG (70.21 KB)
Catalog info 5
SL FLEX P WALL SVG (37.08 KB)
IES file (IES)
SL FLEX LA P 110W 727 RW35ST WAL IES (50.57 KB)
LDT file (Eulumdat)
SL FLEX LA P 110W 727 RW35ST WAL LDT (62.18 KB)
ULD file (DIALux)
SL FLEX LA P 110W 727 ULD (316.93 KB)
ROLF file (RELUX)
SL FLEX LA P 110W 727 ROLF (430.19 KB)
Light distribution curve type polar
SL FLEX LA P 110W 727 RW35ST WAL SVG (17.43 KB)
BIM Revit 3D
SL FLEX LA ZIP (4.84 MB)
CAD STEP 3D
SL_FLEX_LA STEP (13.3 MB)
Tender documents
STREETLIGHT FLEX LARGE RW35ST P 110W 727 WAL -EN TXT (2.07 KB)
EAN STK number EFO number ELDAS number UK Org
4058075552425 4529751 3503524 941700120 432965399
