STREETLIGHT AREA SMALL RV20ST

Choose your product version

30W 727 RV20ST GY

30W 730 RV20ST GY

30W 740 RV20ST GY

30W 765 RV20ST GY

45W 727 RV20ST GY

45W 730 RV20ST GY

45W 740 RV20ST GY

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SL AREA SPD SM V 30W 727 RV20ST GY 30.00 W 100000 58° x 160° 3900 lm No
SL AREA SPD SM V 30W 730 RV20ST GY 30.00 W 100000 58° x 160° 3900 lm No
SL AREA SPD SM V 30W 740 RV20ST GY 30.00 W 100000 58° x 160° 4050 lm No
SL AREA SPD SM V 30W 765 RV20ST GY 30.00 W 100000 58° x 160° 4050 lm No
SL AREA SPD SM V 45W 727 RV20ST GY 45.00 W 100000 58° x 160° 5850 lm No
SL AREA SPD SM V 45W 730 RV20ST GY 45.00 W 100000 58° x 160° 5850 lm No
SL AREA SPD SM V 45W 740 RV20ST GY 45.00 W 100000 58° x 160° 6075 lm No


SL AREA SPD SM V 30W 727 RV20ST GY

Product benefits
  • Functional and minimalistic design
  • Low maintenance and operation costs due to long lifetime of LED
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 30.00 W
Nominal voltage 100…240 V
Mains frequency 50…60 Hz
Nominal current 135.000 mA
Inrush current 8.9 A
Inrush current time Th50 100 µs
Max. number of luminaires per miniature circuit breaker B16 88
Max. number of luminaires per miniature circuit breaker C10 55
Max. number of luminaires per miniature circuit breaker C16 40
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Surge capability (L-N) 10 kV
Surge capability (L/N-Ground) 10 kV
Operating mode Integrated LED driver

Photometrical data

Luminous flux 3900 lm
Luminous efficacy 130 lm/W
Color temperature 2700 K
Light color (designation) Warm White
Color rendering index Ra 70
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 58° x 160°

Dimensions & Weight

Length 448.00 mm
Height 73.00 mm
Width 172.00 mm
Product weight 1450.00 g
Cable length 500 mm

Materials & Colors

Product color Gray
Housing color Gray
RAL Color (most similar) RAL 7015
Body material Aluminum
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -30…+80 °C
Type of connection Cable, 3-pole
Type of protection IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Side entry|post top
Mounting location Pole
Application environment Outdoor
Adjustable Yes
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 88000 h 1)
Lifespan L90/B10 at 25 °C 44000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 160 mA
ECG - Output ripple current < 5 %

Certificates & Standards

Standards CE, REACH, RoHS, ENEC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Functional and minimalistic design
  • Low maintenance and operation costs due to long lifetime of LED
  • 5 years guarantee
Areas of application
  • Outdoor use (IP66)
  • M-, C- and P-class roads acc. to EN 13201
  • Car parks
  • Area lighting
Product features
  • Light distributions optimized for streets of similar width to the pole height
  • Spigot included, suitable for 48…60 mm diameter poles
  • Adjustable spigot for both side-entry and post-top installation

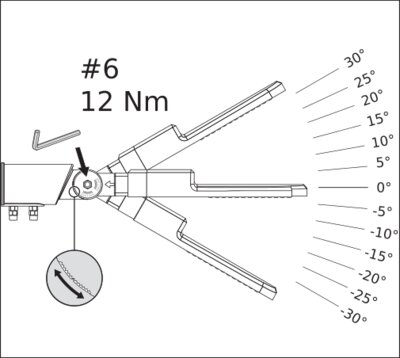

  • +/- 30° tilt angle adjustment without opening the housing
  • High luminous efficacy: up to 135 lm/W
  • Operating temperature: -30...50 °C
  • High surge protection: up to 10 kV (L/N-PE)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854030277 Folding box
1		 368 mm x 117 mm x 170 mm 1788.00 g 7.32 dm³
4099854030284 Shipping box
4		 493 mm x 211 mm x 347 mm 7153.00 g 36.10 dm³
User instruction / safety instructions

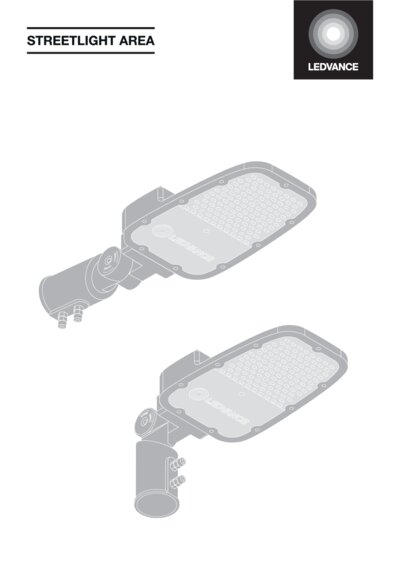

UI SL AREA V PDF (4.44 MB)
Legal information

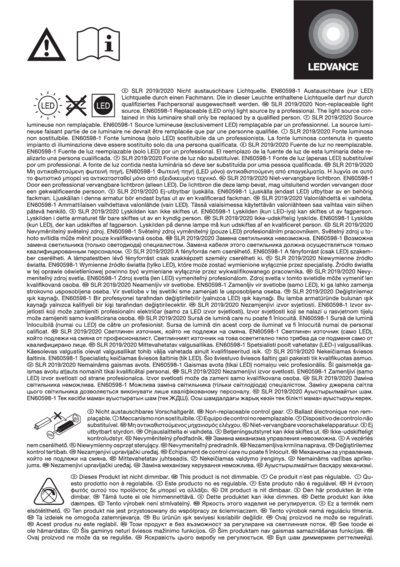

Legal Insert SL AREA S PD PDF (3.18 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information

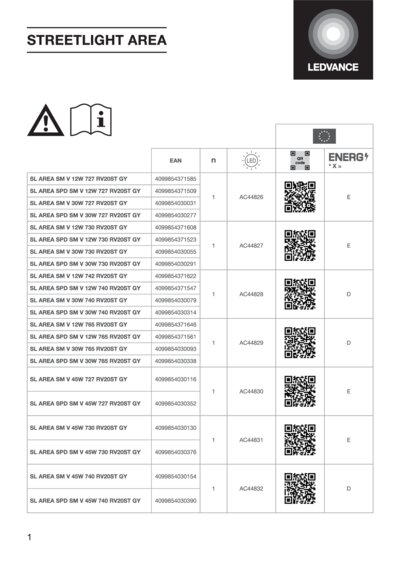

SL AREA PDF (989.13 KB)
Declarations of conformity

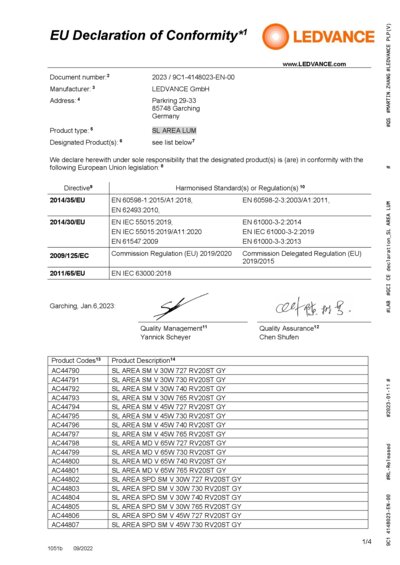

CE Declaration SL AREA PDF (261.28 KB)
Certificates

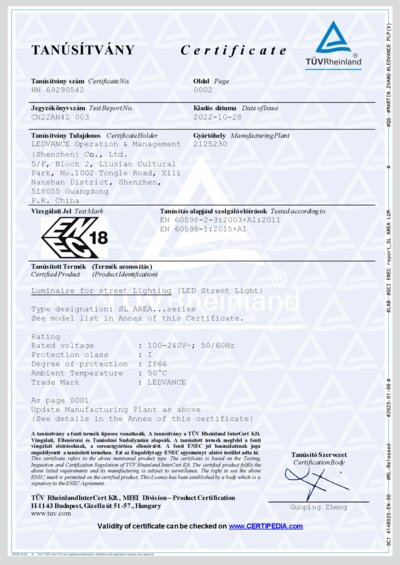

ENEC Certificate SL AR EA PDF (1.82 MB)

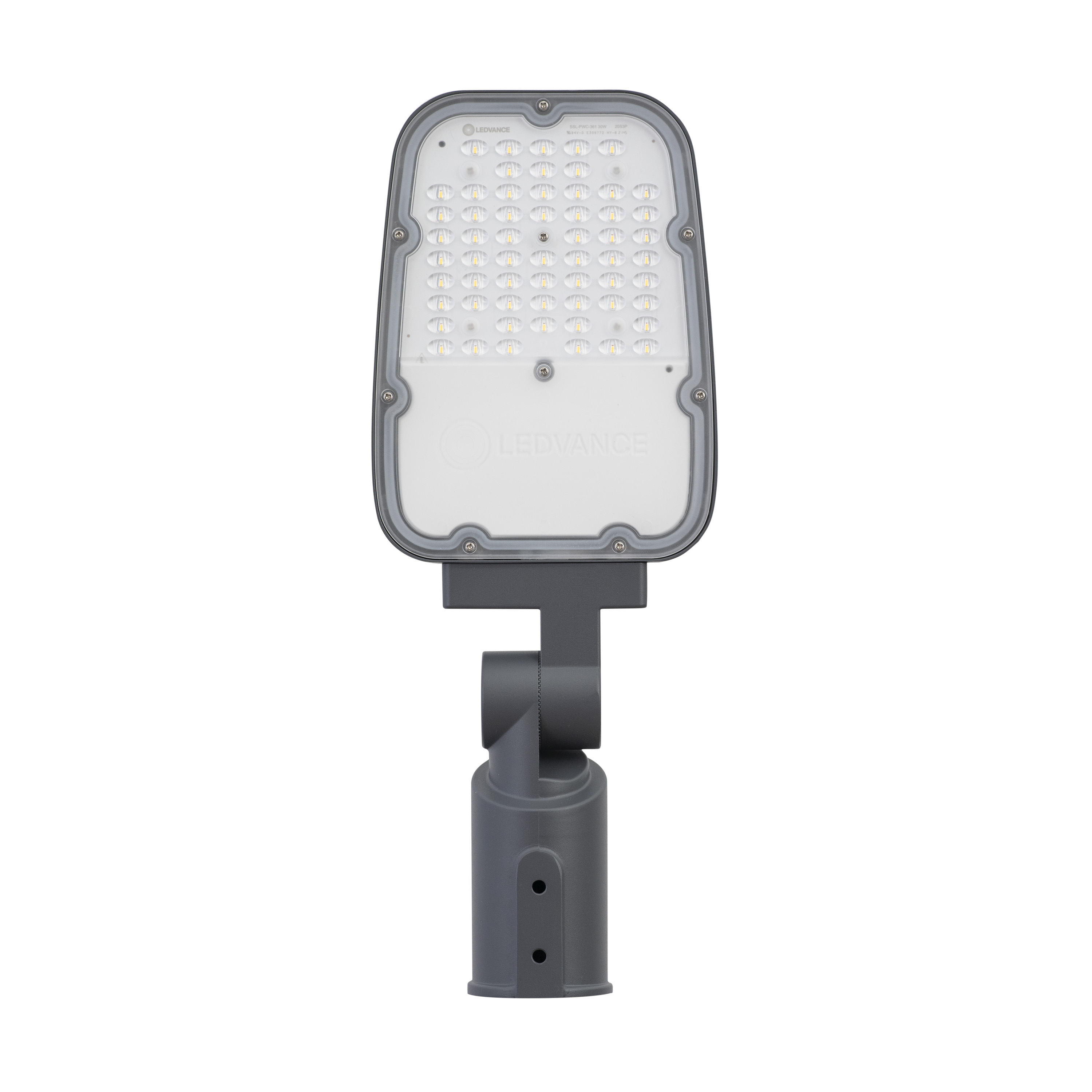

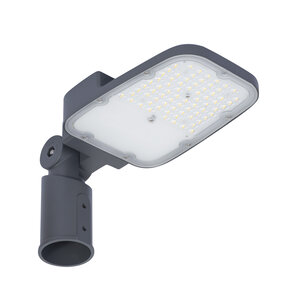

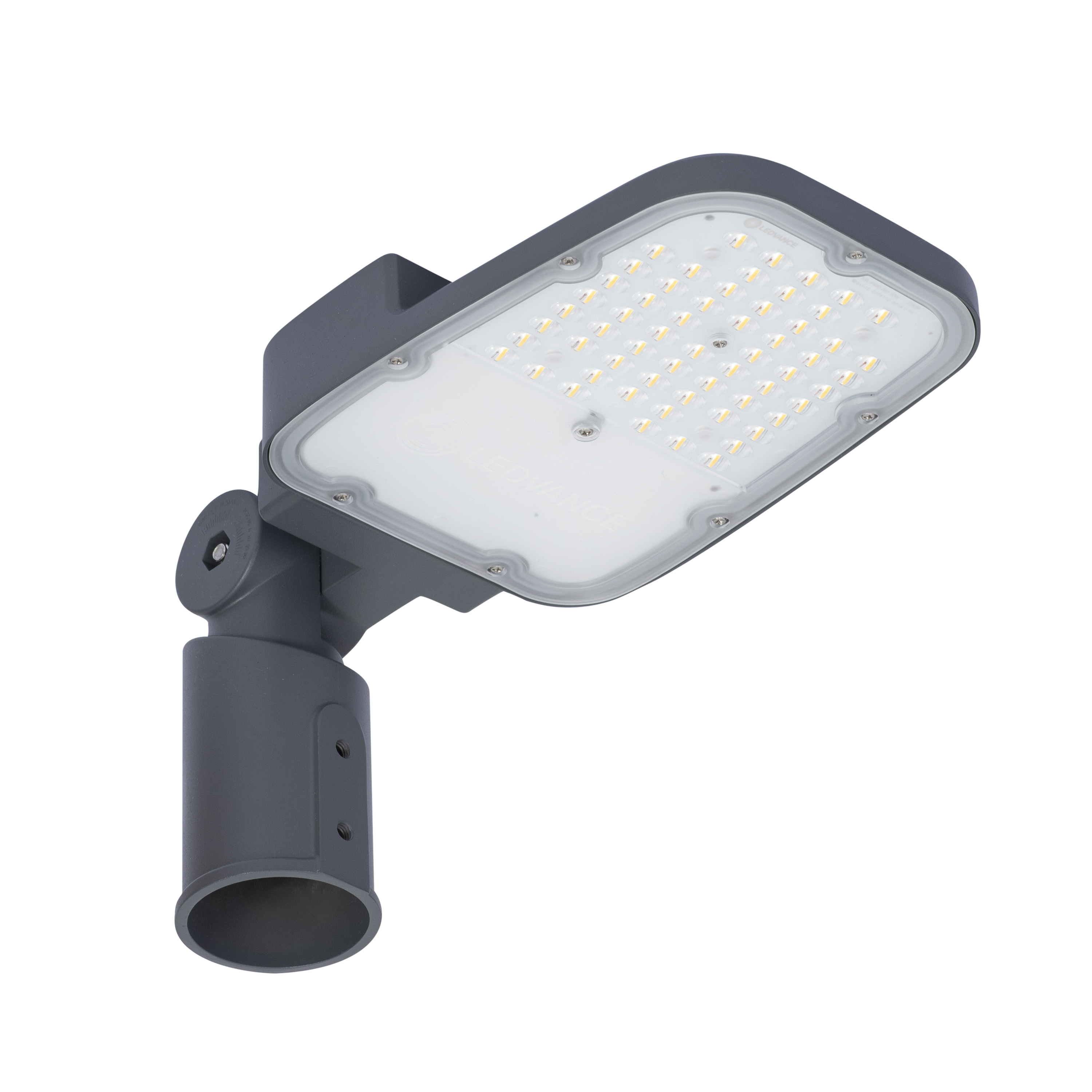

Product image: white background, diagonal
SL AREA 30W JPG (596.91 KB)

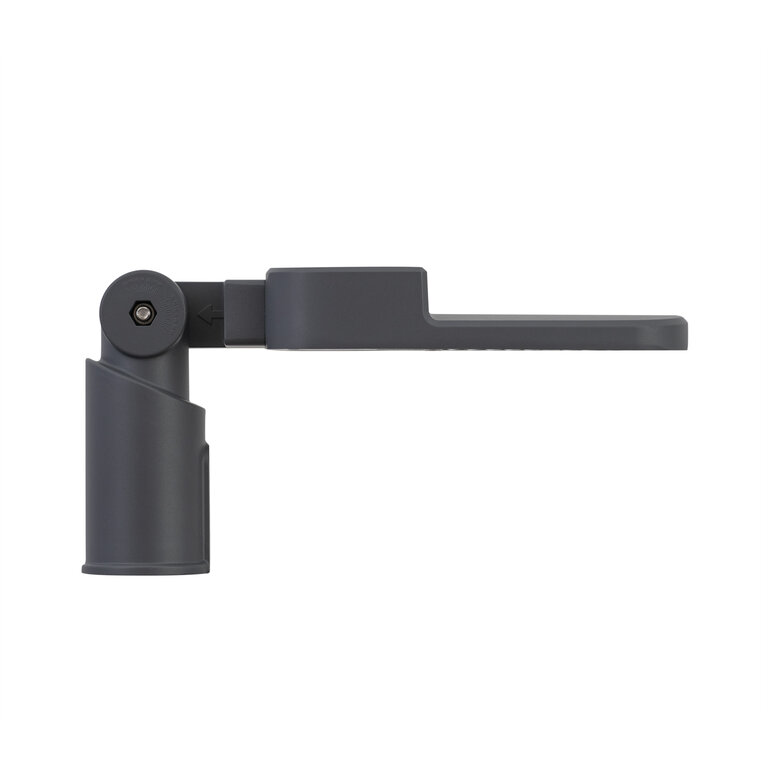

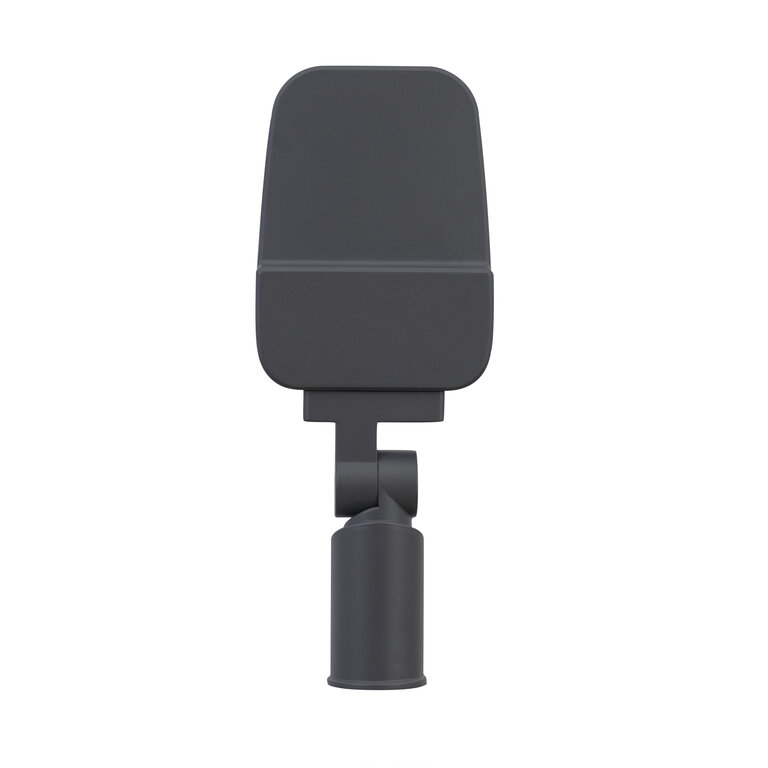

Product image: white background, upright
SL AREA 30W JPG (532.83 KB)

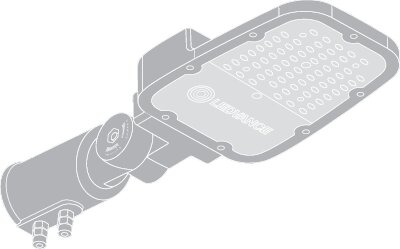

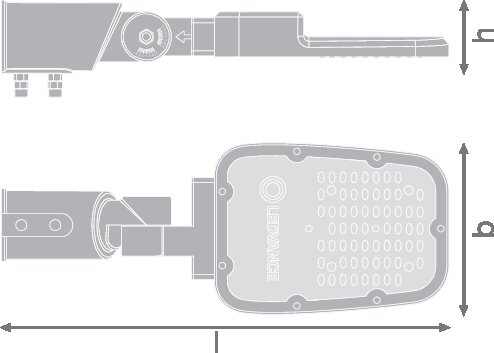

Product line drawing with letters
SL AREA 30W EPS (1.66 MB)
Product line drawing with numbers
SL AREA 30W EPS (1.69 MB)

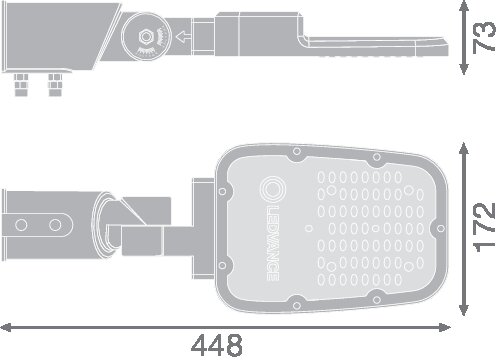

Product line drawing - technical
SL AREA 30W EPS (1.48 MB)
Catalog info 5
SL AREA SPD PNG (57.33 KB)
IES file (IES)
SL AREA SPD SM V 30W 7 27 RV20ST GY IES (135.45 KB)
LDT file (Eulumdat)
SL AREA SPD SM V 30W 7 27 RV20ST GY LDT (90.36 KB)
ULD file (DIALux)
SL AREA SPD SMV 30W 72 7 RV ULD (191.49 KB)

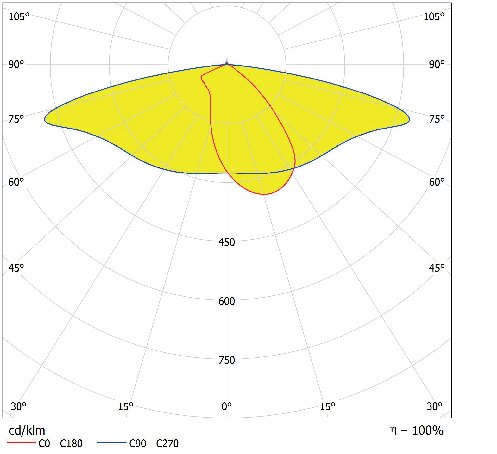

Light distribution curve type polar
SL AREA 30W EPS (4.46 MB)
Tender documents
STREETLIGHT AREA SMALL RV20ST 30W 727 RV20ST GY-en TXT (1.45 KB)

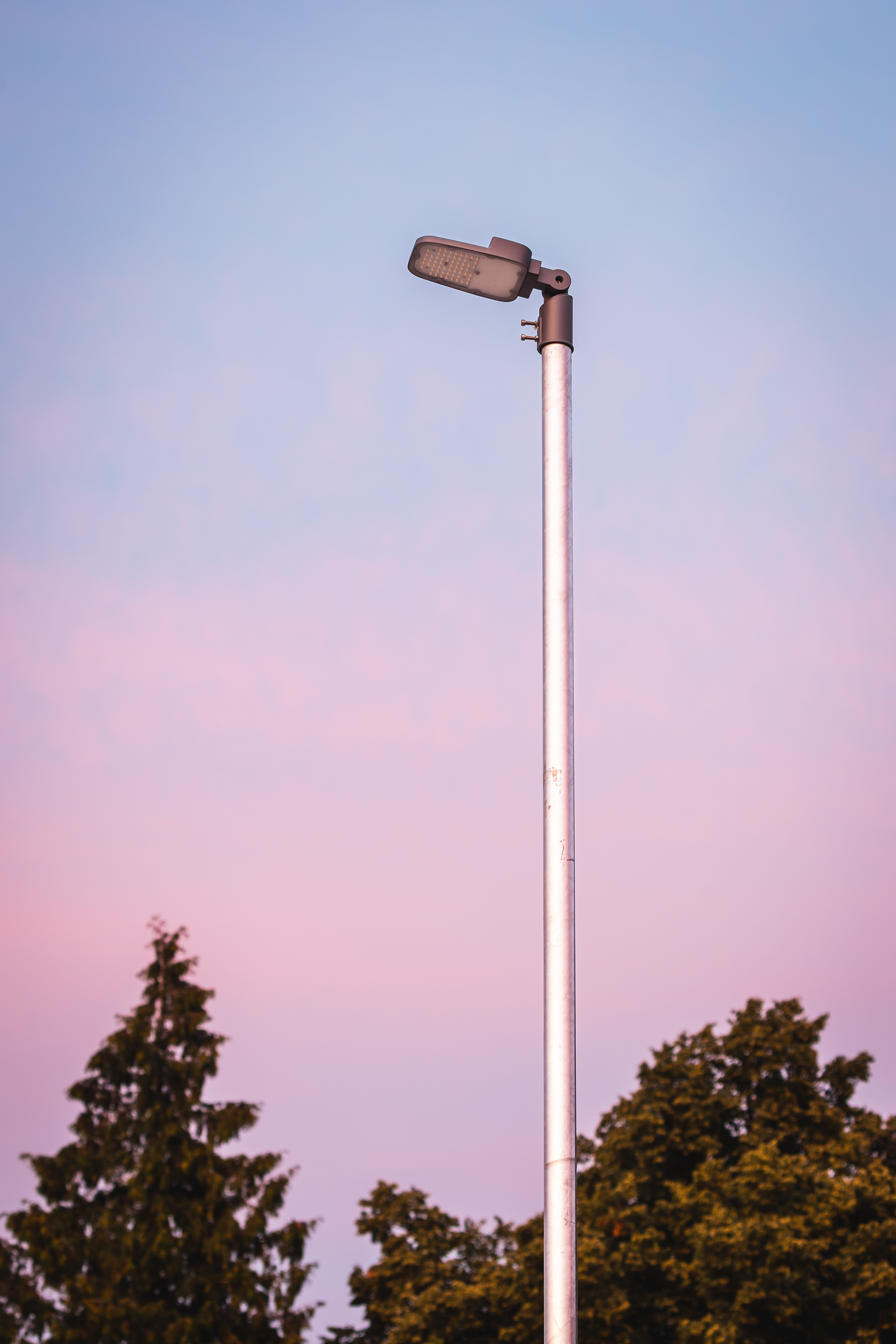

Application pictures
Streetlighting Case St udy Tuchomerice 2 JPG (1.27 MB)
EAN STK number EFO number UK Org
4099854030277 4529890 3503542 436486890
