Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| SL AREA SPD XL V 150W 727 RV35ST GY | 150.00 W | 100000 | 155° x 69° | 19500 lm | No |
| SL AREA SPD XL V 150W 730 RV35ST GY | 150.00 W | 100000 | 155° x 69° | 19500 lm | No |
| SL AREA SPD XL V 150W 740 RV35ST GY | 150.00 W | 100000 | 155° x 69° | 20250 lm | No |
| SL AREA SPD XL V 150W 765 RV35ST GY | 150.00 W | 100000 | 155° x 69° | 20250 lm | No |
| Nominal wattage | 150.00 W |
| Nominal voltage | 100…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 640.000 mA |
| Inrush current | 8.9 A |
| Inrush current time Th50 | 400 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 17 |
| Max. number of luminaires per miniature circuit breaker C10 | 11 |
| Max. number of luminaires per miniature circuit breaker C16 | 18 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 19500 lm |
| Luminous efficacy | 130 lm/W |
| Color temperature | 2700 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 70 |
| Standard deviation of color matching | < 5 sdcm |
| Low flicker | Yes |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |

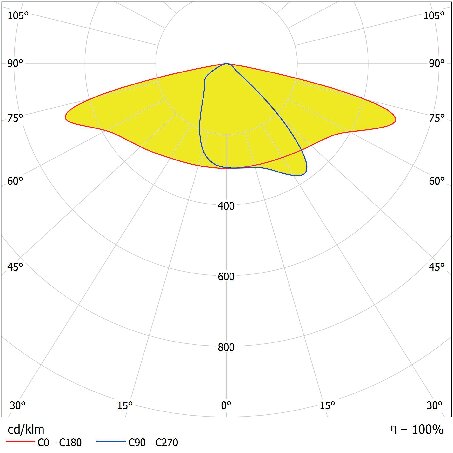

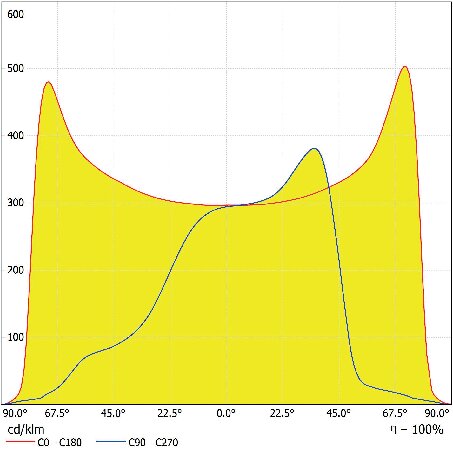

| Beam angle | 155° x 69° |

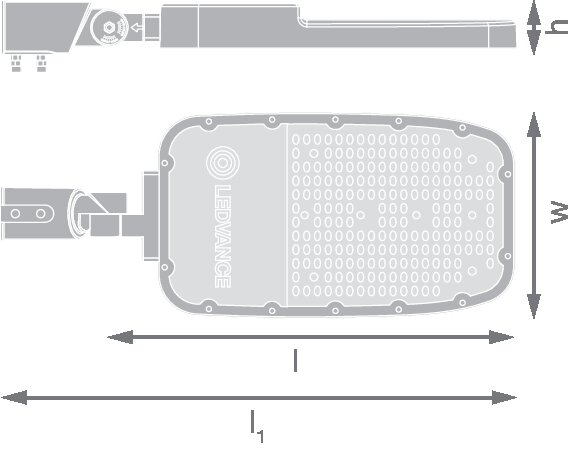

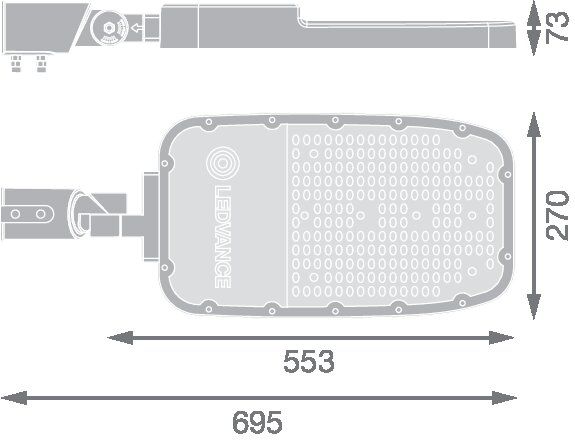

| Length | 553.00 mm |
| Height | 73.00 mm |
| Width | 270.00 mm |
| Product weight | 4150.00 g |
| Cable length | 500 mm |
| Product color | Gray |
| Housing color | Gray |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -30…+80 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Side entry|post top |
| Mounting location | Pole |
| Application environment | Outdoor |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 70000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 840 mA |
| ECG - Output ripple current | < 5 % |
| Type of connection for sensor/communication module | Other |

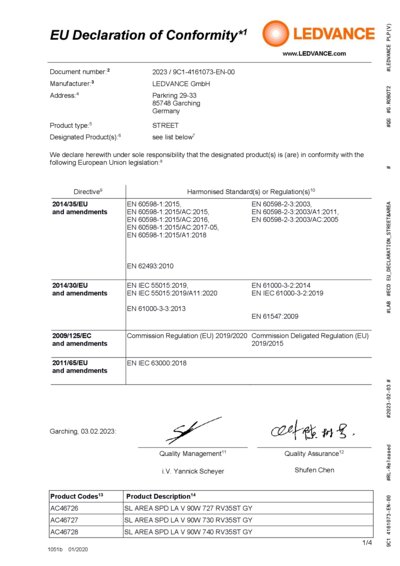

| Standards | CE, REACH, RoHS, ENEC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854079962 | Folding box 1 |
79 mm x 722 mm x 297 mm | 4315.00 g | 16.94 dm³ |
| 4099854079979 | Shipping box 2 |
741 mm x 316 mm x 185 mm | 9313.00 g | 43.32 dm³ |
| EAN | STK number | EFO number |
|---|---|---|
| 4099854079962 | 4529910 | 3503555 |
