TRACKLIGHT SPOT XR DALI

Choose your product version

NEW

30W 930 24DEG WT

NEW

30W 930 24DEG BK

NEW

30W 940 24DEG WT

NEW

30W 940 24DEG BK

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
TR SP XR DA V 30W 930 24DEG WT 30.00 W 25000 24 ° 3600 lm Yes
TR SP XR DA V 30W 930 24DEG BK 30.00 W 25000 24 ° 3600 lm Yes
TR SP XR DA V 30W 940 24DEG WT 30.00 W 25000 24 ° 3600 lm Yes
TR SP XR DA V 30W 940 24DEG BK 30.00 W 25000 24 ° 3600 lm Yes
NEW


TR SP XR DA V 30W 930 24DEG WT

Product benefits
  • Reflector easily replaceable thanks to bayonet catch and rubber suction pad
  • No distraction from the illuminated objects thanks to the reduced design
  • Low flicker light thanks to special electronic control gear
  • Good glare reduction (UGR ≤ 19)
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 30.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 750.000 mA
Inrush current 0.86 A
Inrush current time Th50 62 µs
Max. number of luminaires per miniature circuit breaker B16 94
Max. number of luminaires per miniature circuit breaker C10 58
Max. number of luminaires per miniature circuit breaker C16 94
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class I
Surge capability (L-N) 1000 V
Operating mode Integrated LED driver

Photometrical data

Luminous flux 3600 lm
Luminous efficacy 120 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 90
Standard deviation of color matching ≤3 sdcm
Luminous intensity 4100 cd
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 24 °
UGR < 20

Dimensions & Weight

Diameter 80.00 mm
Length 189.00 mm
Height 240.00 mm
Product weight 660.00 g

Materials & Colors

Product color White
Housing color White
RAL Color (most similar) RAL9003
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Adapter, 3-phase
Type of protection IP20/IP20
Protection class IK (shock resistance) IK02
Dimmable Yes
Type of dimming DALI
Mounting type Surface
Mounting location Mounting track
Application environment Indoor
Adjustable Yes
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 35000 h 1)
Lifespan L90/B10 at 25 °C 25000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 750 mA
ECG - Output ripple current < 3 %

Emergency lighting

Type of emergency operation test None

Certificates & Standards

Standards CE, ENEC, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from September 2025
Added function VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Reflector easily replaceable thanks to bayonet catch and rubber suction pad
  • No distraction from the illuminated objects thanks to the reduced design
  • Low flicker light thanks to special electronic control gear
  • Good glare reduction (UGR ≤ 19)
Areas of application
  • Direct replacement for luminaires using HID lamps
  • Accent lighting
  • Galleries, museums
  • Shops, changing rooms, shop windows
  • Hotels, restaurants
Product features
  • Compact tracklight spot with in-track DALI-2 driver
  • Rotation angle: 350°, tilt angle: 90°
  • Available with color temperature 3000 K or 4000 K
  • Color rendering index CRI 90
  • Initial color consistency: ≤ 3 SDCM
  • Equipped with reflectors with 24° beam angle
  • Durable die-cast aluminum housing
  • Available in matt white (like RAL9003), matt black (like RAL9005)
  • Luminaire efficacy: up to 120 lm/W
Equipment / Accessories
  • Accessory reflectors with 15°, 36° or 50° beam angle available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854616549 Folding box
1		 191 mm x 242 mm x 100 mm 806.00 g 4.62 dm³
4099854616556 Shipping box
4		 400 mm x 262 mm x 230 mm 3720.00 g 24.10 dm³
Product image Product name EAN
TR SP REFLECTOR V 30W 15DEG 4099854616846
TR SP REFLECTOR V 30W 36DEG 4099854616860
TR SP REFLECTOR V 30W 50DEG 4099854616884
User instruction / safety instructions
G11247137 TRACKLIGHT S POT XR DALI PDF (2.92 MB)
Legal information
Safety Insert G1121881 0 PDF (244.72 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

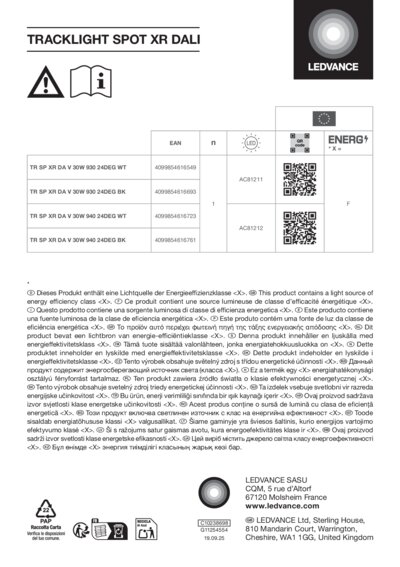

Legal information
LSI G11254554 TRACKLI GHT SPOT XR DALI PDF (2.17 MB)
Declarations of conformity
TRACKLIGHT SPOT PDF (386.2 KB)
Certificates
ENEC TR SP ZOOM PDF (346.62 KB)
EU Data Act
DALI LED Driver and Lu minaires PDF (469.42 KB)
Product image: white background, diagonal
TR SP XR DA V 30W 24DE G JPG (278.51 KB)
Product line drawing with letters
TR SP XR DA V 30W 24DE G SVG (26.07 KB)
Product line drawing with numbers
TR SP XR DA V 30W 24DE G SVG (29.57 KB)
Product line drawing - technical
TR SP XR DA V 30W 24DE G SVG (17.21 KB)
Catalog info 1
Tracklight Spot SVG (33.57 KB)
Catalog info 2
Catalog info - TR SP X R PNG (74.82 KB)
Catalog info 3
Tracklight Spot SVG (28.44 KB)
Catalog info 4
Tracklight Spot SVG (30.69 KB)
Catalog info 5
Tracklight Spot SVG (73.14 KB)
IES file (IES)
TR SP XR DA V 30W 930 WT 15D IES (7.43 KB)
IES file (IES)
TR SP XR DA V 30W 930 WT 24D IES (7.42 KB)
IES file (IES)
TR SP XR DA V 30W 930 WT 36D IES (7.43 KB)
IES file (IES)
TR SP XR DA V 30W 930 WT 50D IES (7.43 KB)
LDT file (Eulumdat)
TR SP XR DA V 30W 930 WT 15D LDT (6.55 KB)
LDT file (Eulumdat)
TR SP XR DA V 30W 930 WT 24D LDT (6.58 KB)
LDT file (Eulumdat)
TR SP XR DA V 30W 930 WT 36D LDT (6.61 KB)
LDT file (Eulumdat)
TR SP XR DA V 30W 930 WT 50D LDT (6.58 KB)

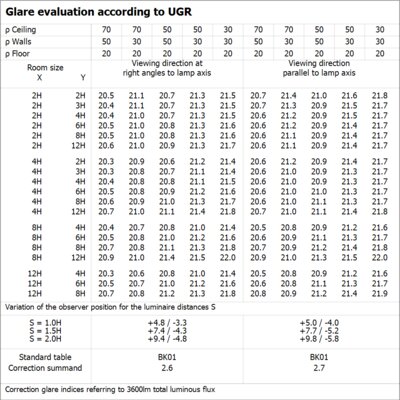

UGR file (UGR table)
TR SP XR DA V 30W 930 WT 15D PNG (59.92 KB)

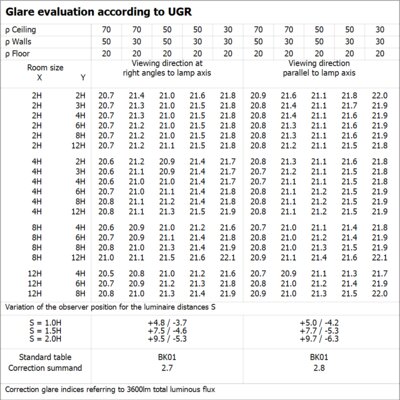

UGR file (UGR table)
TR SP XR DA V 30W 930 WT 24D PNG (60.06 KB)
UGR file (UGR table)
TR SP XR DA V 30W 930 WT 36D PNG (58.4 KB)
UGR file (UGR table)
TR SP XR DA V 30W 930 WT 50D PNG (60.19 KB)
Light distribution curve type cone
TR SP XR DA V 30W 930 WT 15D SVG (15.44 KB)
Light distribution curve type cone
TR SP XR DA V 30W 930 WT 24D SVG (15.45 KB)
Light distribution curve type cone
TR SP XR DA V 30W 930 WT 36D SVG (15.44 KB)
Light distribution curve type cone
TR SP XR DA V 30W 930 WT 50D SVG (15.43 KB)
Light distribution curve type polar
TR SP XR DA V 30W 930 WT 15D SVG (17 KB)
Light distribution curve type polar
TR SP XR DA V 30W 930 WT 24D SVG (17 KB)
Light distribution curve type polar
TR SP XR DA V 30W 930 WT 36D SVG (16.82 KB)
Light distribution curve type polar
TR SP XR DA V 30W 930 WT 50D SVG (18.11 KB)
BIM Revit 3D
Tracklight Spot Zoom D im ZIP (4.13 MB)
CAD STEP 3D
TL XR DA V 30W STEP (281.15 KB)
Tender documents
TRACKLIGHT SPOT XR DAL I 30W 930 24DEG WT-en TXT (1.68 KB)
EAN SEG number STK number
4099854616549 7404128 4161178
