TRACKLIGHT SPOT XR

Choose your product version

Coming soon

20W 930 24DEG WT

Coming soon

20W 930 24DEG BK

Coming soon

20W 940 24DEG WT

Coming soon

20W 940 24DEG BK

Coming soon

30W 930 24DEG WT

Coming soon

30W 930 24DEG BK

Coming soon

30W 940 24DEG WT

Coming soon

30W 940 24DEG BK

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
TR SP XR V 20W 930 24DEG WT 20.00 W 25000 15° / 24° / 36° / 50 ° 2400 lm No
TR SP XR V 20W 930 24DEG BK 20.00 W 25000 15° / 24° / 36° / 50 ° 2400 lm No
TR SP XR V 20W 940 24DEG WT 20.00 W 25000 15° / 24° / 36° / 50 ° 2400 lm No
TR SP XR V 20W 940 24DEG BK 20.00 W 25000 15° / 24° / 36° / 50 ° 2400 lm No
TR SP XR V 30W 930 24DEG WT 30.00 W 25000 15° / 24° / 36° / 50 ° 3600 lm No
TR SP XR V 30W 930 24DEG BK 30.00 W 25000 15° / 24° / 36° / 50 ° 3600 lm No
TR SP XR V 30W 940 24DEG WT 30.00 W 25000 15° / 24° / 36° / 50 ° 3600 lm No
TR SP XR V 30W 940 24DEG BK 30.00 W 25000 15° / 24° / 36° / 50 ° 3600 lm No
Coming soon


TR SP XR V 20W 930 24DEG WT

Product benefits
  • Reflector easily replaceable thanks to bayonet catch and rubber suction pad
  • No distraction from the illuminated objects thanks to the reduced design
  • Low flicker light thanks to special electronic control gear
  • Good glare reduction (UGR ≤ 19)
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 20.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 500.000 mA
Inrush current 0.72 A
Inrush current time Th50 54 µs
Max. number of luminaires per miniature circuit breaker B16 140
Max. number of luminaires per miniature circuit breaker C10 87
Max. number of luminaires per miniature circuit breaker C16 140
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class II
Surge capability (L-N) 1000 V
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2400 lm
Luminous efficacy 120 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 90
Standard deviation of color matching ≤3 sdcm
Luminous intensity 2600 cd
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 15° / 24° / 36° / 50 °
UGR < 19

Dimensions & Weight

Diameter 68.00 mm
Length 150.00 mm
Height 215.00 mm
Product weight 480.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Adapter, 3-phase
Type of protection IP20/IP20
Protection class IK (shock resistance) IK02
Dimmable No
Mounting type Surface
Mounting location Mounting track
Application environment Indoor
Adjustable Yes
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 500 mA
ECG - Output ripple current < 3 %

Emergency lighting

Type of emergency operation test None

Certificates & Standards

Standards CE, ENEC, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from September 2025

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Reflector easily replaceable thanks to bayonet catch and rubber suction pad
  • No distraction from the illuminated objects thanks to the reduced design
  • Low flicker light thanks to special electronic control gear
  • Good glare reduction (UGR ≤ 19)
Areas of application
  • Direct replacement for luminaires using HID lamps
  • Accent lighting
  • Galleries, museums
  • Shops, changing rooms, shop windows
  • Hotels, restaurants
Product features
  • Compact tracklight spot with in-track control gear
  • Rotation angle: 350°, tilt angle: 90°
  • Available with color temperature 3000 K or 4000 K
  • Color rendering index CRI 90
  • Initial color consistency: ≤ 3 SDCM
  • Equipped with reflectors with 24° beam angle
  • Durable die-cast aluminum housing
  • Available in matt white (like RAL9003), matt black (like RAL9005)
  • Luminaire efficacy: up to 120 lm/W
Equipment / Accessories
  • Accessory reflectors with 15°, 36° or 50° beam angle available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854616273 Folding box
1		 191 mm x 242 mm x 100 mm 626.00 g 4.62 dm³
4099854616280 Shipping box
4		 400 mm x 262 mm x 230 mm 3000.00 g 24.10 dm³
Product image Product name EAN
TR SP REFLECTOR V 20W 15DEG 4099854616785
TR SP REFLECTOR V 20W 50DEG 4099854616822
TR SP REFLECTOR V 20W 36DEG 4099854616808
User instruction / safety instructions
G11247140 TRACKLIGHT S POT XR PDF (2.88 MB)
Legal information
Safety Insert G1121881 0 PDF (244.72 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
TRACKLIGHT SPOT PDF (386.2 KB)

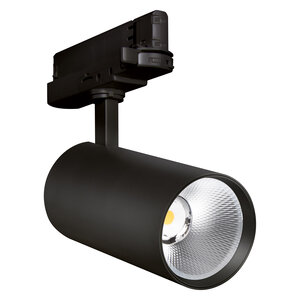

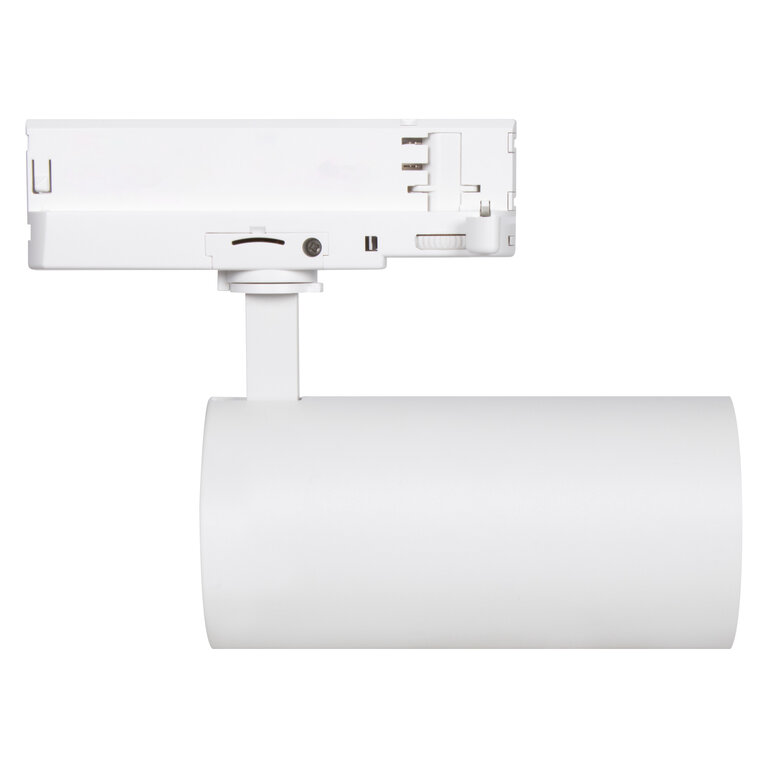

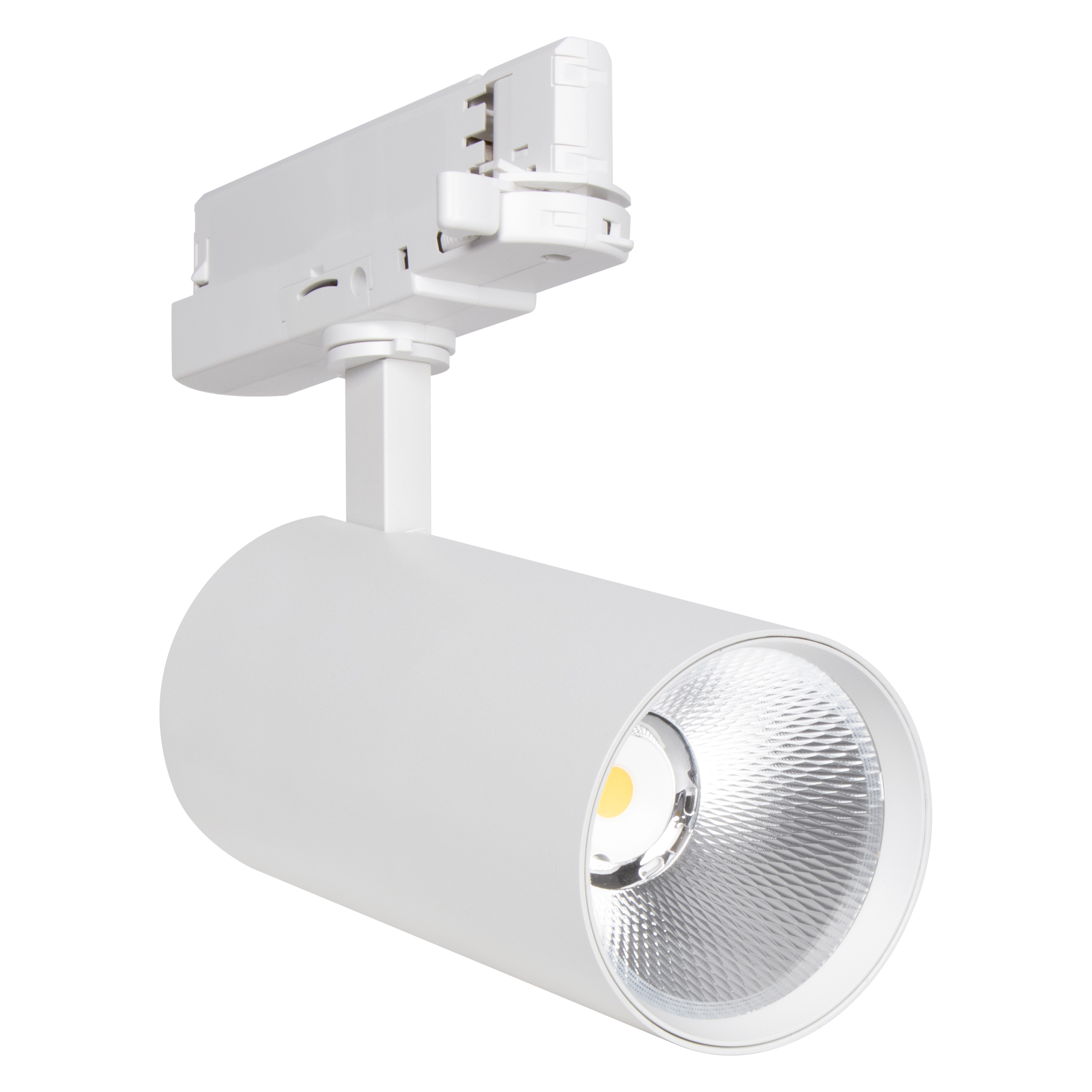

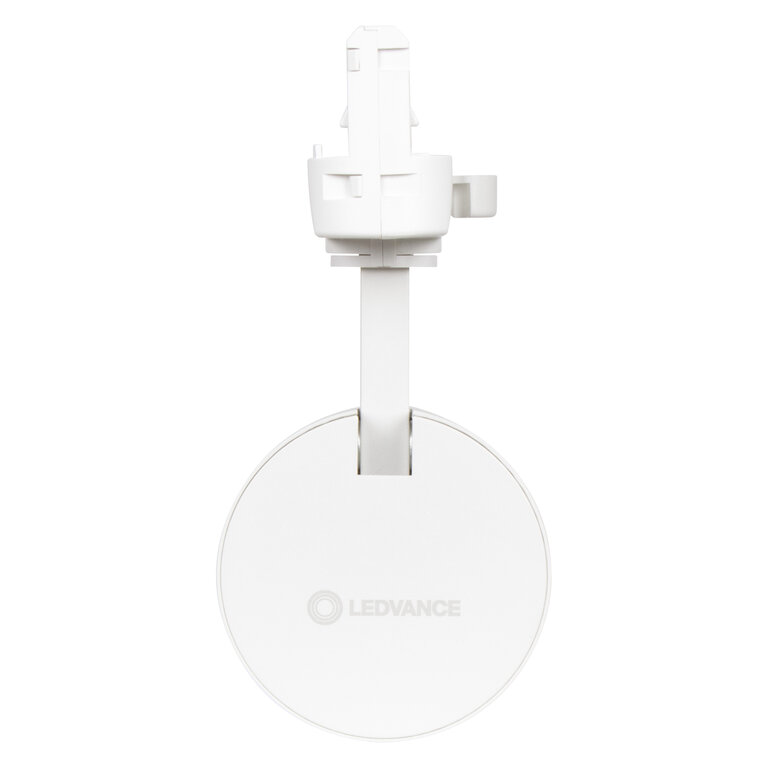

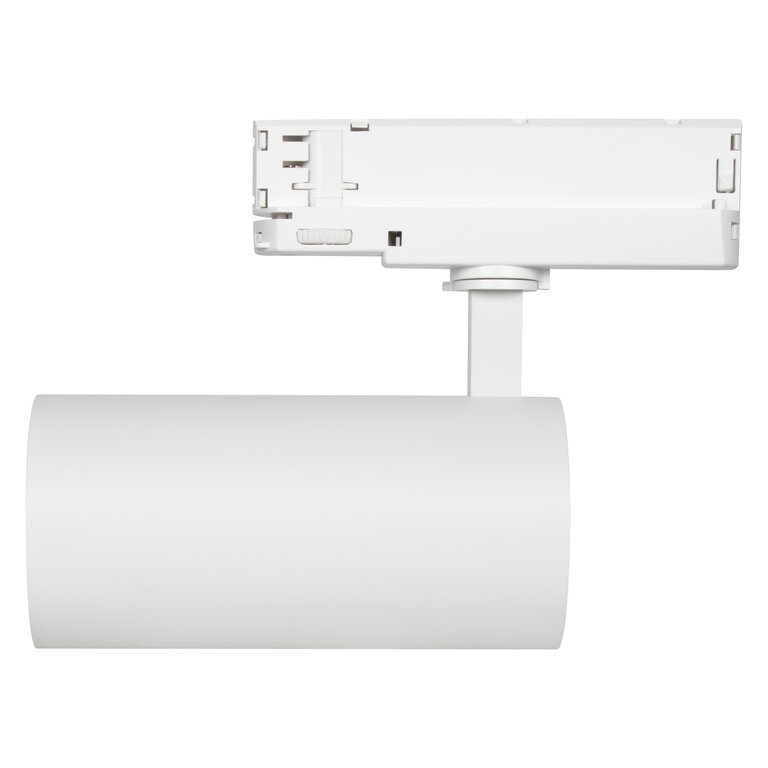

Product image: white background, diagonal
TR SP XR V 20W 24DEG JPG (443.6 KB)
Product line drawing with letters
TR SP XR V 20W 24DEG SVG (26.06 KB)
Product line drawing with numbers
TR SP XR V 20W 24DEG SVG (29.02 KB)
Product line drawing - technical
TR SP XR V 20W 24DEG SVG (17.2 KB)
Catalog info 1
Tracklight Spot SVG (33.57 KB)
Catalog info 3
Tracklight Spot SVG (28.44 KB)
Catalog info 4
Tracklight Spot SVG (30.69 KB)
Catalog info 5
Tracklight Spot SVG (73.14 KB)
IES file (IES)
TR SP XR V 20W 930 WT 15D IES (7.42 KB)
IES file (IES)
TR SP XR V 20W 930 WT 24D IES (7.42 KB)
IES file (IES)
TR SP XR V 20W 930 WT 36D IES (7.42 KB)
IES file (IES)
TR SP XR V 20W 930 WT 50D IES (7.42 KB)
LDT file (Eulumdat)
TR SP XR V 20W 930 WT 15D LDT (6.52 KB)
LDT file (Eulumdat)
TR SP XR V 20W 930 WT 24D LDT (6.48 KB)
LDT file (Eulumdat)
TR SP XR V 20W 930 WT 36D LDT (6.58 KB)
LDT file (Eulumdat)
TR SP XR V 20W 930 WT 50D LDT (6.54 KB)

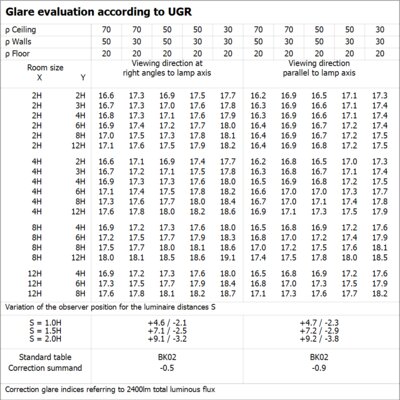

UGR file (UGR table)
TR SP XR V 20W 930 WT 15D PNG (60.63 KB)

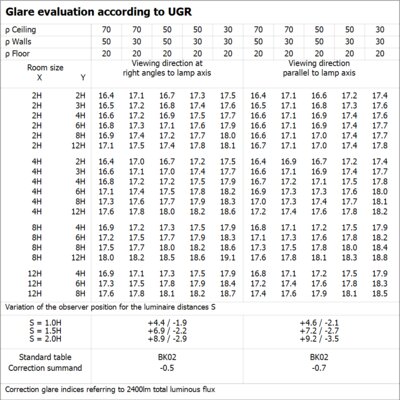

UGR file (UGR table)
TR SP XR V 20W 930 WT 24D PNG (59.43 KB)

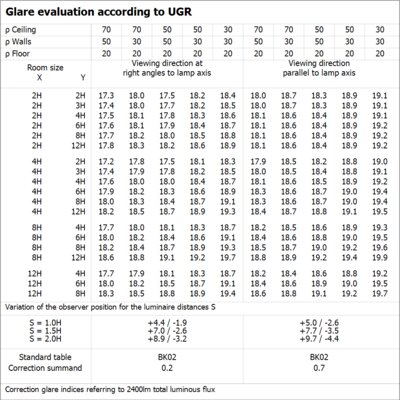

UGR file (UGR table)
TR SP XR V 20W 930 WT 36D PNG (60.55 KB)
UGR file (UGR table)
TR SP XR V 20W 930 WT 50D PNG (61.18 KB)
Light distribution curve type cone
TR SP XR V 20W 930 WT 15D SVG (15.44 KB)
Light distribution curve type cone
TR SP XR V 20W 930 WT 24D SVG (15.45 KB)
Light distribution curve type cone
TR SP XR V 20W 930 WT 36D SVG (15.44 KB)
Light distribution curve type cone
TR SP XR V 20W 930 WT 50D SVG (15.43 KB)
Light distribution curve type polar
TR SP XR V 20W 930 WT 15D SVG (14.48 KB)
Light distribution curve type polar
TR SP XR V 20W 930 WT 24D SVG (14.66 KB)
Light distribution curve type polar
TR SP XR V 20W 930 WT 36D SVG (14.48 KB)
Light distribution curve type polar
TR SP XR V 20W 930 WT 50D SVG (15.39 KB)
CAD STEP 3D
TL XR V 30W STEP (365.47 KB)
