Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| TR SP XR HE V 30W 930 24DEG WT | 30.00 W | 25000 | 24 ° | 4000 lm | No |
| TR SP XR HE V 30W 930 24DEG BK | 30.00 W | 25000 | 24 ° | 4000 lm | No |
| TR SP XR HE V 30W 940 24DEG WT | 30.00 W | 25000 | 24 ° | 4000 lm | No |
| TR SP XR HE V 30W 940 24DEG BK | 30.00 W | 25000 | 24 ° | 4000 lm | No |
| Nominal wattage | 30.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 800.000 mA |
| Inrush current | 0.86 A |
| Inrush current time Th50 | 62 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 88 |
| Max. number of luminaires per miniature circuit breaker C10 | 55 |
| Max. number of luminaires per miniature circuit breaker C16 | 88 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 15 % |
| Protection class | II |
| Surge capability (L-N) | 1000 V |
| Operating mode | Integrated LED driver |
| Luminous flux | 4000 lm |
| Luminous efficacy | 130 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 90 |
| Standard deviation of color matching | ≤5 sdcm |
| Luminous intensity | 5000 cd |
| Low flicker | Yes |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 24 ° |

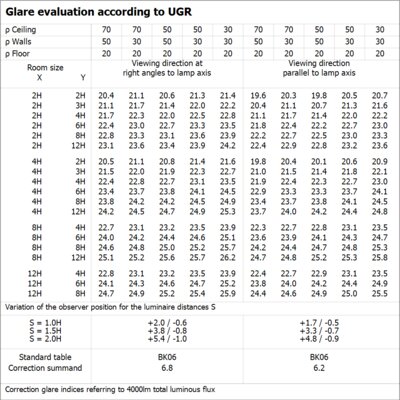

| UGR | < 20 |
| Diameter | 80.00 mm |
| Length | 150.00 mm |
| Height | 240.00 mm |
| Product weight | 640.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Adapter, 3-phase |
| Type of protection | IP20/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Mounting track |
| Application environment | Indoor |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 800 mA |
| ECG - Output ripple current | < 3 % |
| Type of emergency operation test | None |
| Standards | CE, ENEC, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Product remark | Available from September 2025 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854616440 | Folding box 1 |
191 mm x 242 mm x 100 mm | 786.00 g | 4.62 dm³ |
| 4099854616457 | Shipping box 4 |
400 mm x 262 mm x 230 mm | 3640.00 g | 24.10 dm³ |
