TRACKLIGHT SPECIAL FOOD LED

Choose your product version

Coming soon

30W 924 24DEG WT BREAD

Coming soon

30W 924 24DEG BK BREAD

Coming soon

30W 930 24DEG WT FRUIT

Coming soon

30W 930 24DEG BK FRUIT

Coming soon

30W 730 24DEG WT MEAT

Coming soon

30W 730 24DEG BK MEAT

Coming soon

30W 950 24DEG WT VEG

Coming soon

30W 950 24DEG BK VEG

Coming soon

30W 950 24DEG WT SEAFOOD

Coming soon

30W 950 24DEG BK SEAFOOD

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
TR SP XR V 30W 924 24DEG WT BREAD 30.00 W 25000 15° / 24° / 36° / 50 ° 2100 lm No
TR SP XR V 30W 924 24DEG BK BREAD 30.00 W 25000 15° / 24° / 36° / 50 ° 2100 lm No
TR SP XR V 30W 930 24DEG WT FRUIT 30.00 W 25000 15° / 24° / 36° / 50 ° 2250 lm No
TR SP XR V 30W 930 24DEG BK FRUIT 30.00 W 25000 15° / 24° / 36° / 50 ° 2250 lm No
TR SP XR V 30W 730 24DEG WT MEAT 30.00 W 25000 15° / 24° / 36° / 50 ° 1950 lm No
TR SP XR V 30W 730 24DEG BK MEAT 30.00 W 25000 15° / 24° / 36° / 50 ° 1950 lm No
TR SP XR V 30W 950 24DEG WT VEG 30.00 W 25000 15° / 24° / 36° / 50 ° 2700 lm No
TR SP XR V 30W 950 24DEG BK VEG 30.00 W 25000 15° / 24° / 36° / 50 ° 2700 lm No
TR SP XR V 30W 950 24DEG WT SEAFOOD 30.00 W 25000 15° / 24° / 36° / 50 ° 2700 lm No
TR SP XR V 30W 950 24DEG BK SEAFOOD 30.00 W 25000 15° / 24° / 36° / 50 ° 2700 lm No
Coming soon


TR SP XR V 30W 950 24DEG WT SEAFOOD

Product benefits
  • Specially tailored spectral distribution for food presentation only
  • Reflector easily replaceable thanks to bayonet catch and rubber suction pad
  • No distraction from the illuminated objects thanks to the reduced design
  • Low flicker light thanks to special electronic control gear
  • Good glare reduction (UGR ≤ 19)
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 30.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 750.000 mA
Inrush current 0.72 A
Inrush current time Th50 51 µs
Max. number of luminaires per miniature circuit breaker B16 94
Max. number of luminaires per miniature circuit breaker C10 58
Max. number of luminaires per miniature circuit breaker C16 94
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class II
Surge capability (L-N) 1000 V
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2700 lm
Luminous efficacy 95 lm/W
Color temperature 5000 K
Light color (designation) Cool White
Color rendering index Ra > 90
Standard deviation of color matching < 6 sdcm
Luminous intensity 2400 cd
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 15° / 24° / 36° / 50 °
UGR < 20

Dimensions & Weight

Diameter 80.00 mm
Length 150.00 mm
Height 240.00 mm
Product weight 620.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Adapter, 3-phase
Type of protection IP20/IP20
Protection class IK (shock resistance) IK02
Dimmable No
Mounting type Surface
Mounting location Mounting track
Application environment Indoor
Adjustable Yes
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 750 mA
ECG - Output ripple current < 3 %

Emergency lighting

Type of emergency operation test None

Certificates & Standards

Standards CE, ENEC, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from September 2025

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Specially tailored spectral distribution for food presentation only
  • Reflector easily replaceable thanks to bayonet catch and rubber suction pad
  • No distraction from the illuminated objects thanks to the reduced design
  • Low flicker light thanks to special electronic control gear
  • Good glare reduction (UGR ≤ 19)
Areas of application
  • Shops, supermarkets
  • Food presentation in e.g. butchers, bakeries, supermarkets or meat processors
  • Hotels, restaurants
Product features
  • Compact tracklight spot with in-track control gear
  • Rotation angle: 350°, tilt angle: 90°
  • Luminaire efficacy: up to 95 lm/W
  • Color rendering index CRI 90
  • Equipped with reflectors with 24° beam angle
  • Durable die-cast aluminum housing
  • Available in matt white (like RAL9003), matt black (like RAL9005)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854617805 Folding box
1		 191 mm x 242 mm x 100 mm 766.00 g 4.62 dm³
4099854617812 Shipping box
4		 400 mm x 262 mm x 230 mm 3560.00 g 24.10 dm³
User instruction / safety instructions
G11247140 TRACKLIGHT S POT XR PDF (2.88 MB)
Legal information
Safety Insert G1121881 0 PDF (244.72 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
TRACKLIGHT SPOT PDF (386.2 KB)
Product image: white background, diagonal
TR SP XR DA V 30W 24DE G JPG (278.51 KB)
Product line drawing with letters
TR SP XR V 30W 24DEG SVG (26.06 KB)
Product line drawing with numbers
TR SP XR V 30W 24DEG SVG (29.18 KB)
Product line drawing - technical
TR SP XR V 30W 24DEG SVG (17.2 KB)
Catalog info 1
Tracklight Spot SVG (33.57 KB)
Catalog info 3
Tracklight Spot SVG (28.44 KB)
Catalog info 4
Tracklight Spot SVG (30.69 KB)
Catalog info 5
Tracklight Spot SVG (73.14 KB)
IES file (IES)
TR SP XR V 30W 950 SEA FOOD WT 15D IES (7.43 KB)
IES file (IES)
TR SP XR V 30W 950 SEA FOOD WT 24D IES (7.43 KB)
IES file (IES)
TR SP XR V 30W 950 SEA FOOD WT 36D IES (7.43 KB)
IES file (IES)
TR SP XR V 30W 950 SEA FOOD WT 50D IES (7.43 KB)
LDT file (Eulumdat)
TR SP XR V 30W 950 SEA FOOD WT 15D LDT (6.58 KB)
LDT file (Eulumdat)
TR SP XR V 30W 950 SEA FOOD WT 24D LDT (6.6 KB)
LDT file (Eulumdat)
TR SP XR V 30W 950 SEA FOOD WT 36D LDT (6.63 KB)
LDT file (Eulumdat)
TR SP XR V 30W 950 SEA FOOD WT 50D LDT (6.61 KB)
UGR file (UGR table)
TR SP XR V 30W 950 SEA FOOD WT 15D PNG (58.62 KB)
UGR file (UGR table)

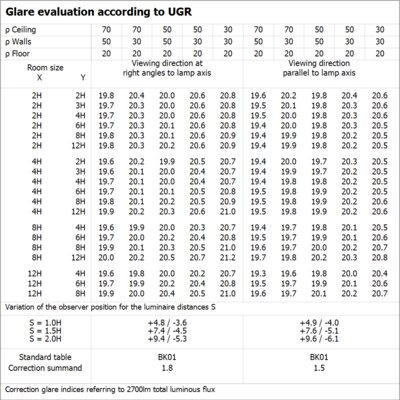

TR SP XR V 30W 950 SEA FOOD WT 24D PNG (60.38 KB)
UGR file (UGR table)

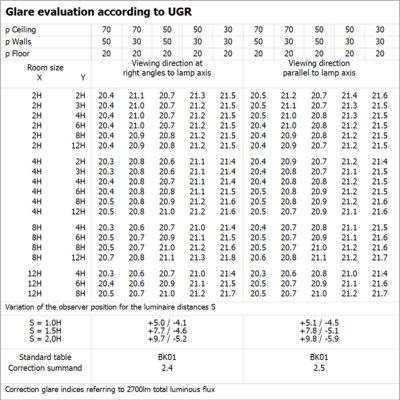

TR SP XR V 30W 950 SEA FOOD WT 36D PNG (58.71 KB)
