TRACKLIGHT SPOT ZOOM DIM

Choose your product version

Coming soon

20W 930 WT

Coming soon

20W 930 BK

Coming soon

20W 940 WT

Coming soon

20W 940 BK

Coming soon

30W 930 WT

Coming soon

30W 930 BK

Coming soon

30W 940 WT

Coming soon

30W 940 BK

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
TR SP ZOOM DIM P 20W 930 WT 20.00 W 25000 18 °…50 ° 2400 lm / 2000 lm Yes
TR SP ZOOM DIM P 20W 930 BK 20.00 W 25000 18 °…50 ° 2400 lm / 2000 lm Yes
TR SP ZOOM DIM P 20W 940 WT 20.00 W 25000 18 °…50 ° 2400 lm / 2000 lm Yes
TR SP ZOOM DIM P 20W 940 BK 20.00 W 25000 18 °…50 ° 2400 lm / 2000 lm Yes
TR SP ZOOM DIM P 30W 930 WT 30.00 W 25000 18 °…50 ° 3600 lm / 3000 lm Yes
TR SP ZOOM DIM P 30W 930 BK 30.00 W 25000 18 °…50 ° 3600 lm / 3000 lm Yes
TR SP ZOOM DIM P 30W 940 WT 30.00 W 25000 18 °…50 ° 3600 lm / 3000 lm Yes
TR SP ZOOM DIM P 30W 940 BK 30.00 W 25000 18 °…50 ° 3600 lm / 3000 lm Yes
Coming soon


TR SP ZOOM DIM P 20W 930 WT

Product benefits
  • Dimmable 3-phase tracklight spot with mechanical zoom lense
  • No distraction from the illuminated objects thanks to the reduced design
  • Low flicker light thanks to special electronic control gear
  • Good glare reduction (UGR ≤ 19)
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 20.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 500.000 mA
Inrush current 0.56 A
Inrush current time Th50 49 µs
Max. number of luminaires per miniature circuit breaker B16 140
Max. number of luminaires per miniature circuit breaker C10 87
Max. number of luminaires per miniature circuit breaker C16 140
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class I
Surge capability (L-N) 1000 V
Surge capability (L/N-Ground) 2000 V
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2400 lm / 2000 lm 1)
Luminous efficacy 120 lm/W / 100 lm/W 2)
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 90
Standard deviation of color matching ≤3 sdcm
Luminous intensity 2700 cd
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 18 °…50 °
UGR < 24

1) 2400lm@50° , 2000lm@18°
2) 120lm/W@50° , 100lm/W@18°

Dimensions & Weight

Diameter 72.00 mm
Length 189.00 mm
Height 256.00 mm
Product weight 720.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Adapter, 3-phase
Type of protection IP20/IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming 1-10V
Mounting type Surface
Mounting location Mounting track
Application environment Indoor
Adjustable Yes
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 25000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 500 mA
ECG - Output ripple current < 3 %

Emergency lighting

Type of emergency operation test None

Certificates & Standards

Standards CE, ENEC, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from September 2025

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Dimmable 3-phase tracklight spot with mechanical zoom lense
  • No distraction from the illuminated objects thanks to the reduced design
  • Low flicker light thanks to special electronic control gear
  • Good glare reduction (UGR ≤ 19)
Areas of application
  • Direct replacement for luminaires using HID lamps
  • Accent lighting
  • Galleries, museums
  • Shops, changing rooms, shop windows
  • Hotels, restaurants
Product features
  • Mechanical zoom lens with a beam angle of 18° to 50°

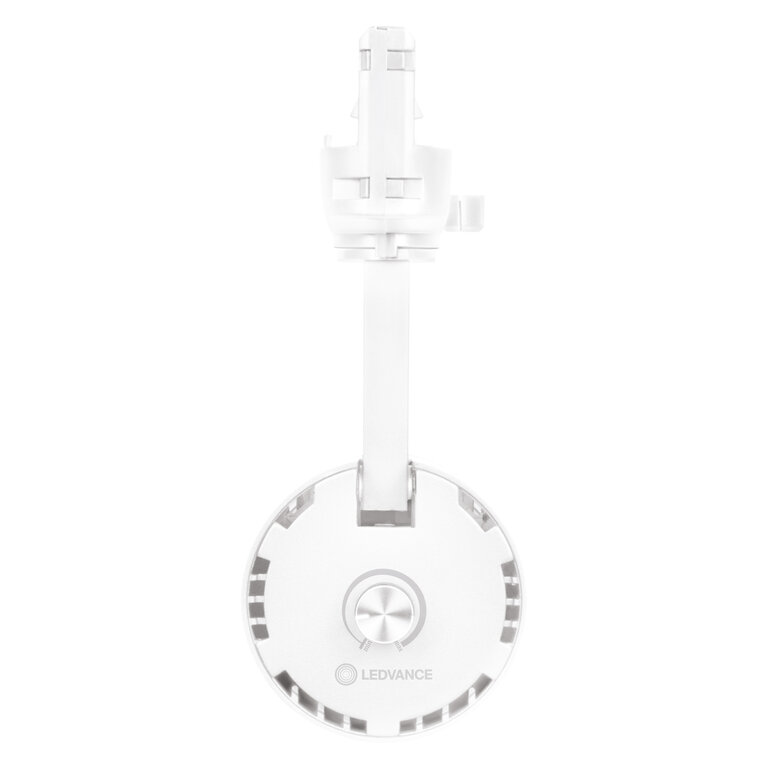

  • Dimmable (3% - 100%) via potentiometer directly on each luminaire
  • Color rendering index CRI 90
  • Initial color consistency: ≤ 3 SDCM
  • Rotation angle: 350°, tilt angle: 90°
  • Durable die-cast aluminum housing

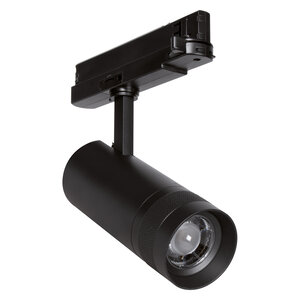

  • Available in matt white (like RAL9003), matt black (like RAL9005)
  • Luminaire efficacy: up to 120 lm/W
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854615924 Folding box
1		 211 mm x 247 mm x 100 mm 881.00 g 5.21 dm³
4099854615931 Shipping box
4		 440 mm x 267 mm x 230 mm 4060.00 g 27.02 dm³

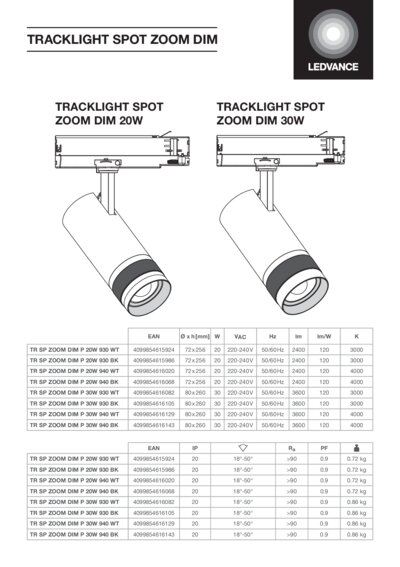

User instruction / safety instructions
G11247142 TRACKLIGHT S POT ZOOM DIM PDF (2.76 MB)

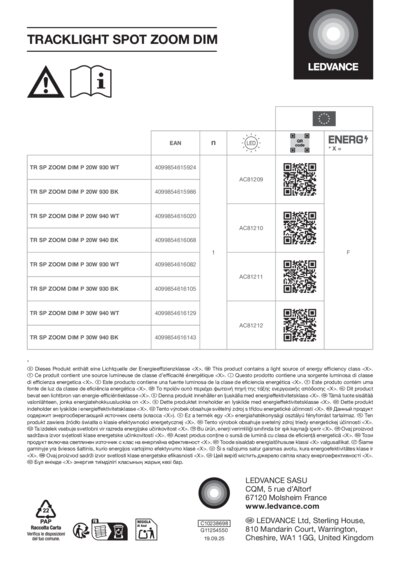

Legal information
Safety Insert G1121881 0 PDF (244.72 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
TRACKLIGHT SPOT PDF (386.2 KB)

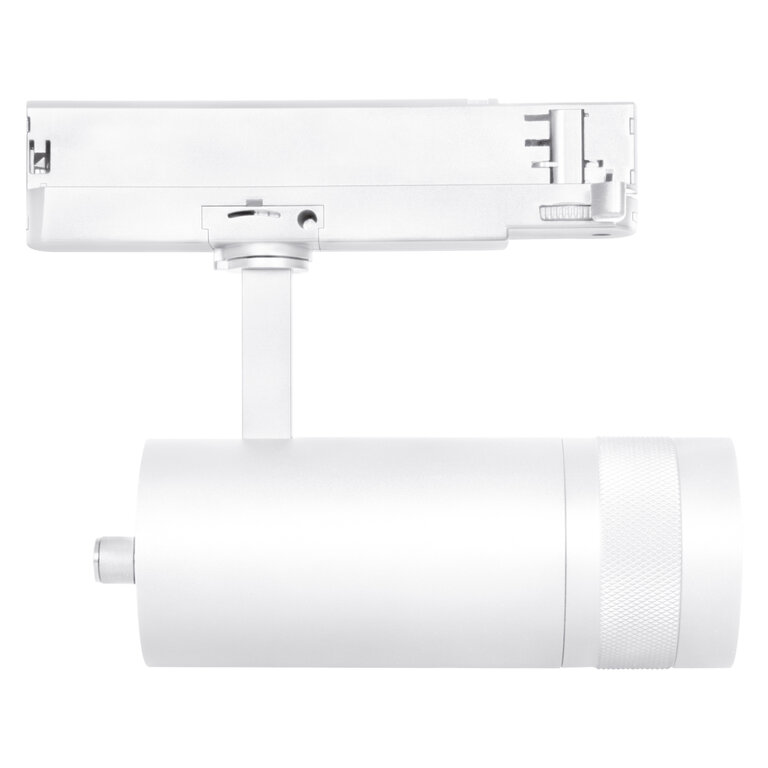

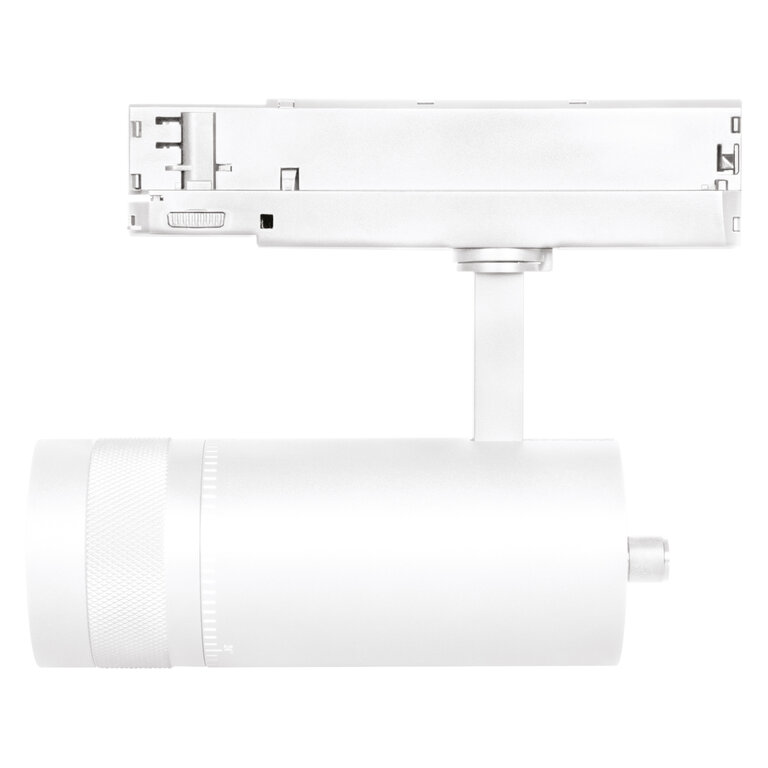

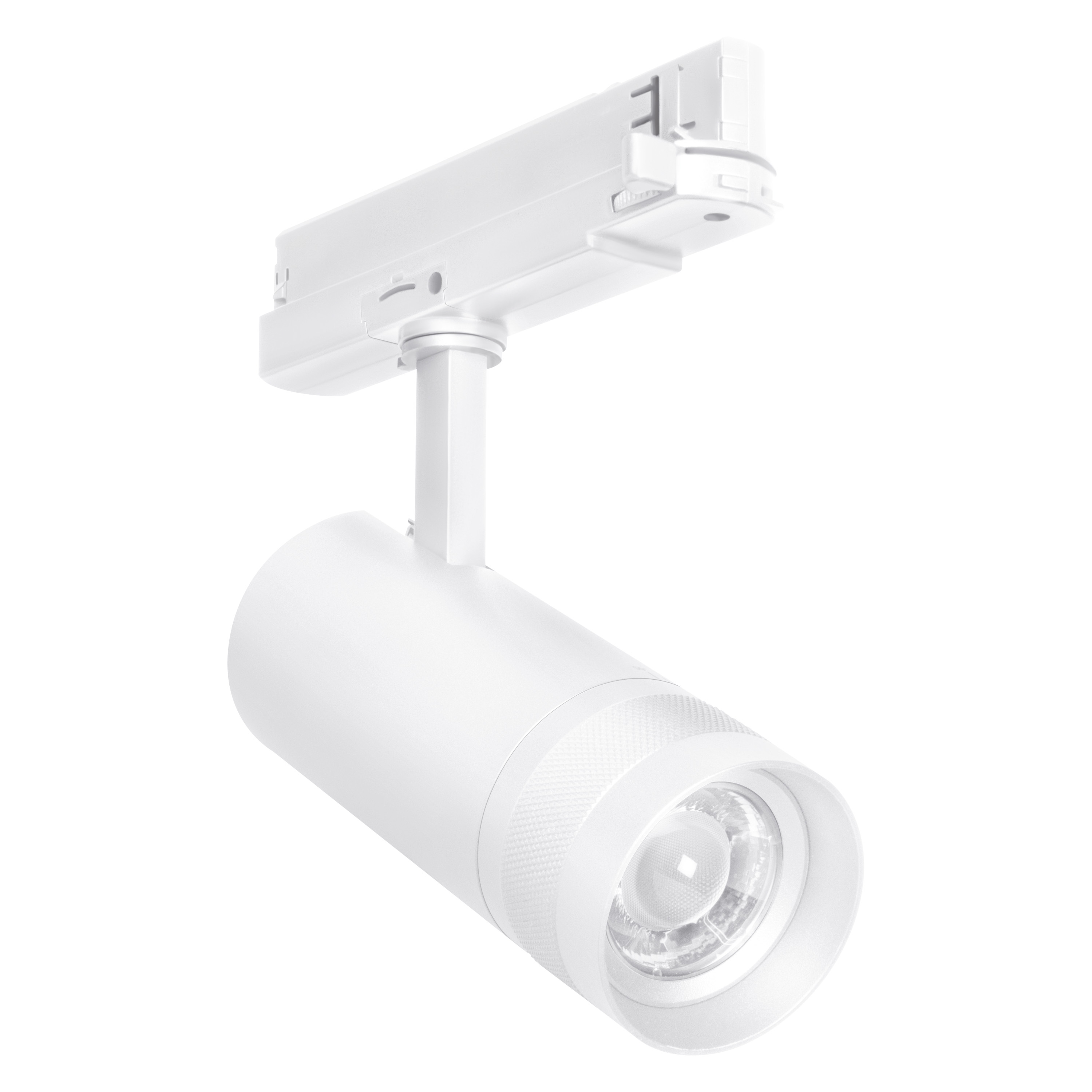

Product image: white background, upright
TR SP ZOOM DIM P JPG (299.63 KB)
Product line drawing with letters
TR SP ZOOM DIM P SVG (30.95 KB)
Product line drawing with numbers
TR SP ZOOM DIM P SVG (34.8 KB)
Product line drawing - technical
TR SP ZOOM DIM P SVG (22.08 KB)

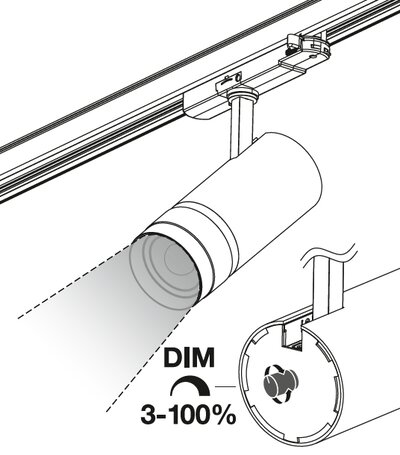

Catalog info 5
Tracklight Spot SVG (73.14 KB)
IES file (IES)
TR SP ZOOM DIM P 20W 9 30 WT 18D IES (7.42 KB)
IES file (IES)
TR SP ZOOM DIM P 20W 9 30 WT 50D IES (7.42 KB)
LDT file (Eulumdat)
TR SP ZOOM DIM P 20W 9 30 WT 18D LDT (6.46 KB)
LDT file (Eulumdat)
TR SP ZOOM DIM P 20W 9 30 WT 50D LDT (6.51 KB)
UGR file (UGR table)
TR SP ZOOM DIM P 20W 9 30 WT 18D PNG (58.47 KB)
UGR file (UGR table)
TR SP ZOOM DIM P 20W 9 30 WT 50D PNG (60.8 KB)
Light distribution curve type cone
TR SP ZOOM DIM P 20W 9 30 WT 18D SVG (10.56 KB)
Light distribution curve type cone
TR SP ZOOM DIM P 20W 9 30 WT 50D SVG (15.43 KB)
Light distribution curve type polar
TR SP ZOOM DIM P 20W 9 30 WT 18D SVG (14.48 KB)
Light distribution curve type polar
TR SP ZOOM DIM P 20W 9 30 WT 50D SVG (15.39 KB)
CAD STEP 3D
TL ZOOM DIM 20W STEP (302.72 KB)
