TRUSYS UNIVERSAL DALI

Choose your product version

NEW

50W 840 VW OP DALI

75W 840 W CL DALI

NEW

50W 840 W CL DALI

75W 840 N CL DALI

NEW

50W 840 N CL DALI

75W 840 VN CL DALI

NEW

50W 840 VN CL DALI

NEW

75W 840 VW OP DALI

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
TRUSYS UNIV P 50W 840 VW OP DALI 50.00 W 50000 120 ° 8150 lm Yes
TRUSYS UNIV P 75W 840 W CL DALI 75.00 W 50000 90 ° 12750 lm Yes
TRUSYS UNIV P 50W 840 W CL DALI 50.00 W 50000 90 ° 9000 lm Yes
TRUSYS UNIV P 75W 840 N CL DALI 75.00 W 50000 60 ° 12750 lm Yes
TRUSYS UNIV P 50W 840 N CL DALI 50.00 W 50000 60 ° 9000 lm Yes
TRUSYS UNIV P 75W 840 VN CL DALI 75.00 W 50000 30 ° 12750 lm Yes
TRUSYS UNIV P 50W 840 VN CL DALI 50.00 W 50000 30 ° 9000 lm Yes
TRUSYS UNIV P 75W 840 VW OP DALI 75.00 W 50000 120 ° 12220 lm Yes
NEW


TRUSYS UNIV P 50W 840 VW OP DALI

Product benefits

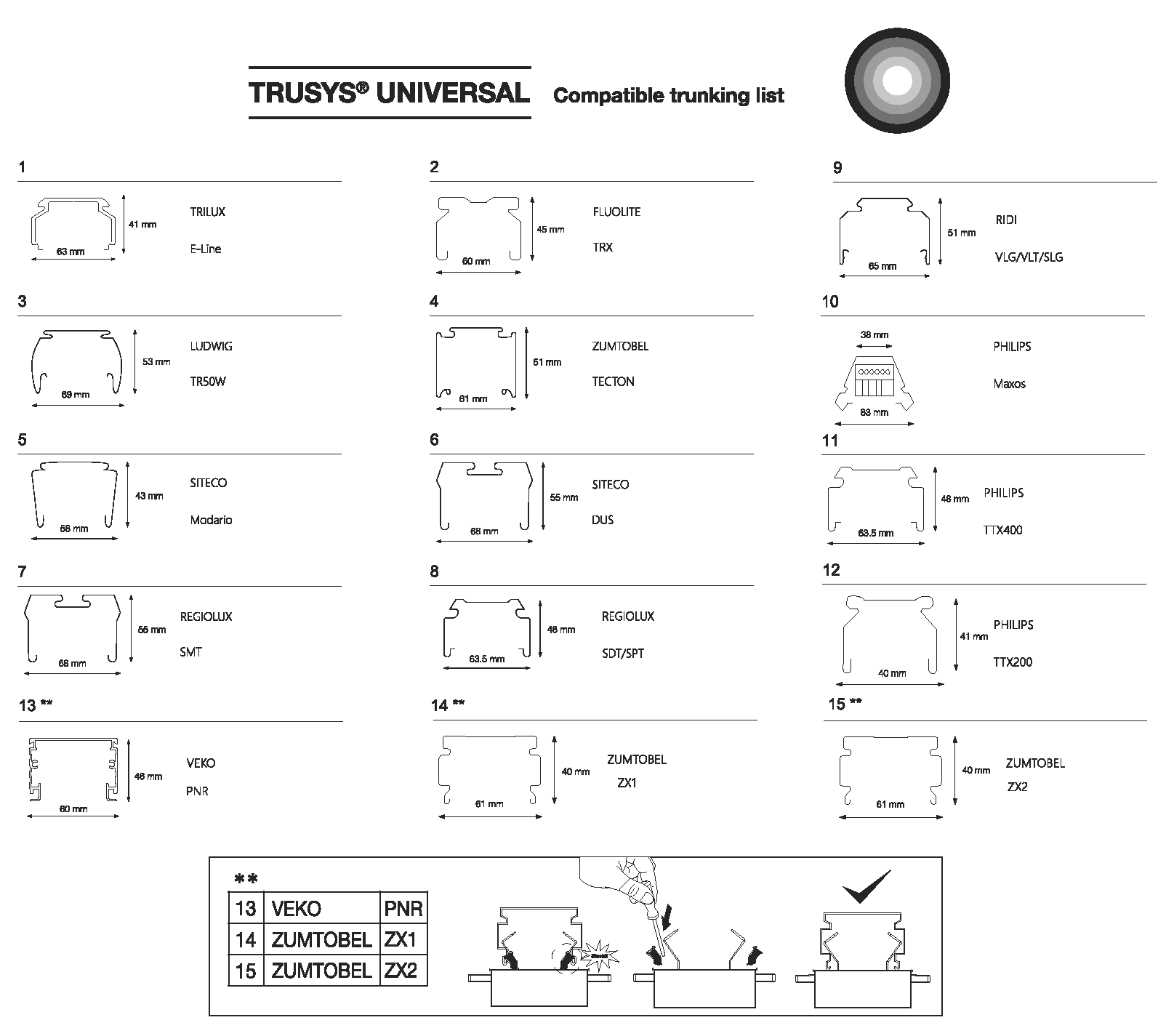

  • The solution for refurbishment: universal fitting to existing trunking luminaire system

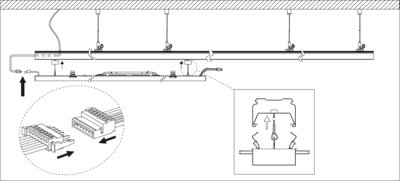

  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 50.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 230.000 mA
Inrush current 20.75 A
Inrush current time Th50 266 µs

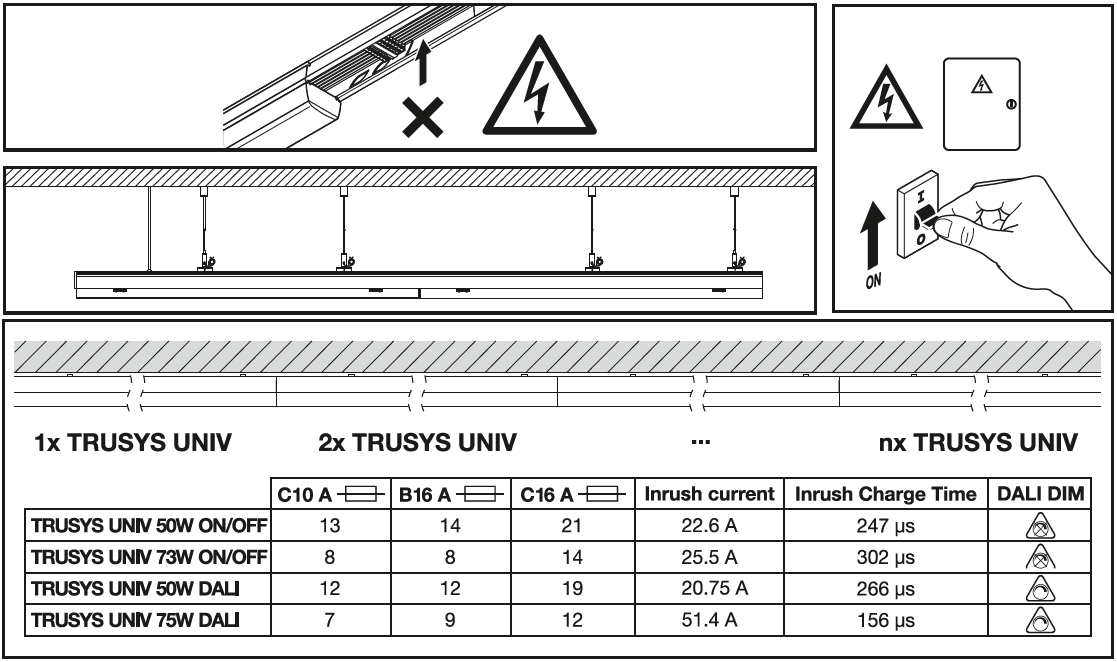

Max. number of luminaires per miniature circuit breaker B16 12
Max. number of luminaires per miniature circuit breaker C10 12
Max. number of luminaires per miniature circuit breaker C16 19
Power factor λ ≥0.90
Total harmonic distortion < 15 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 8150 lm
Luminous efficacy 163 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching < 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 120 °

Dimensions & Weight

Length 1504.00 mm
Height 35.00 mm
Width 68.00 mm
Product weight 1710.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -40…+80 °C
Type of connection Plug-In connection
Type of protection IP20
Protection class IK (shock resistance) IK02
Dimmable Yes
Type of dimming DALI2
Mounting type Surface/Suspended
Mounting location Mounting rail
Application environment Indoor
Adjustable No
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 120000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 54000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 550 mA
ECG - Output ripple current < 5 %

Emergency lighting

Type of Emergency Lighting (EL) EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test None
Wattage in emergency operation mode 7.5 W
Luminous flux in emergency operation mode 1230 lm

Certificates & Standards

Standards CE, CB, UKCA, ENEC, TÜV, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from June 2025
Added function VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), N,N-Dimethylformamide (68-12-2)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • The solution for refurbishment: universal fitting to existing trunking luminaire system
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
Areas of application
  • Direct replacement for luminaires with compact fluorescent lamps
  • Industry halls, high rack warehouse, hardware stores
  • Discounters, supermarkets
Product features
  • IoT-ready DALI-2 driver
  • Beam angles: 120° (VW), 90° (W), 60° (N), 30° (VN)
  • Click into place solution with smart click buttons
  • Luminous efficacy: up to 180 lm/W
  • Lifetime (L80/B10): up to 100,000 h (at 25 °C)
  • Initial color consistency: ≤ 3 SDCM
Equipment / Accessories
  • Various accessories available
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854496820 Folding box
1		 80 mm x 1,525 mm x 93 mm 2040.00 g 11.35 dm³
4099854496837 Shipping box
4		 1,545 mm x 335 mm x 122 mm 9640.00 g 63.14 dm³
Product image Product name Product brand Product component type GTIN
MANUAL CONTROL UNIT SELECT DALI-2 LEDVANCE Light control 4058075837485
MANUAL CONTROL UNIT SELECT DALI-2 TW LEDVANCE Light control 4058075837508
MANUAL CONTROL UNIT SELECT DALI-2 EXCHANGEABLE COVER TW LEDVANCE Light control 4058075837522
MANUAL CONTROL UNIT TOUCH DALI-2 TW LEDVANCE Light control 4058075837560
MANUAL CONTROL UNIT TOUCH DALI-2 LEDVANCE Light control 4058075837546
PUSH CONTROL UNIT FLUSH MOUNT DALI-2 TW LEDVANCE Light control 4058075837584
SURFACE MOUNT FRAME LEDVANCE Light control 4058075843561
PUSHBUTTON COUPLER DALI-2 LEDVANCE Light control 4058075837607
FLEX CONTROL UNIT IOT DALI-2 HCL TW LEDVANCE Light control 4058075841888
FLEX CONTROL UNIT FLUSH MOUNT DALI-2 TW LEDVANCE Light control 4058075841901
FLEX CONTROL UNIT DALI-2 TW LEDVANCE Light control 4058075843844
FLEX CONTROL UNIT REAL-TIME-CLOCK DALI-2 HCL TW LEDVANCE Light control 4058075841925
SENSOR DALI-2 LIGHT/PRESENCE-6 INFRARED CEILING INTEGRATION LEDVANCE Light control 4058075837621
SENSOR DALI-2 LIGHT/PRESENCE-8 INFRARED CEILING INTEGRATION LEDVANCE Light control 4058075841949
SENSOR DALI-2 LIGHT/PRESENCE-40X5 INFRARED CEILING INTEGRATION LEDVANCE Light control 4058075843868
SENSOR DALI-2 LIGHT/PRESENCE-24 INFRARED CEILING MOUNTING LEDVANCE Light control 4058075843882
SENSOR CEILING MOUNTING KIT LEDVANCE Light control 4058075843905

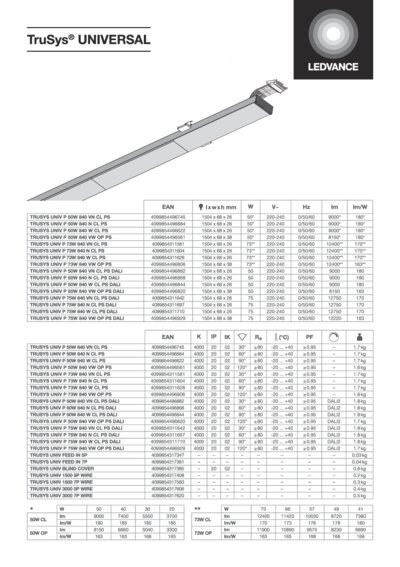

User instruction / safety instructions
UI TRUSYS UNIVERSAL PDF (4.01 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Legal insert PDF (843.77 KB)
Legal information
Safety Insert G1120549 7 PDF (178.17 KB)
Declarations of conformity

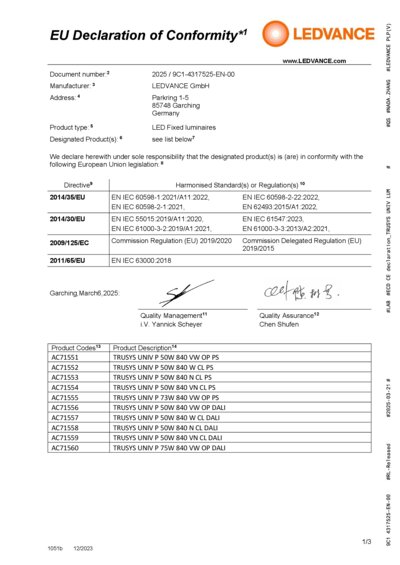

CE declaration TRUSYS UNIVERSAL PDF (299.52 KB)

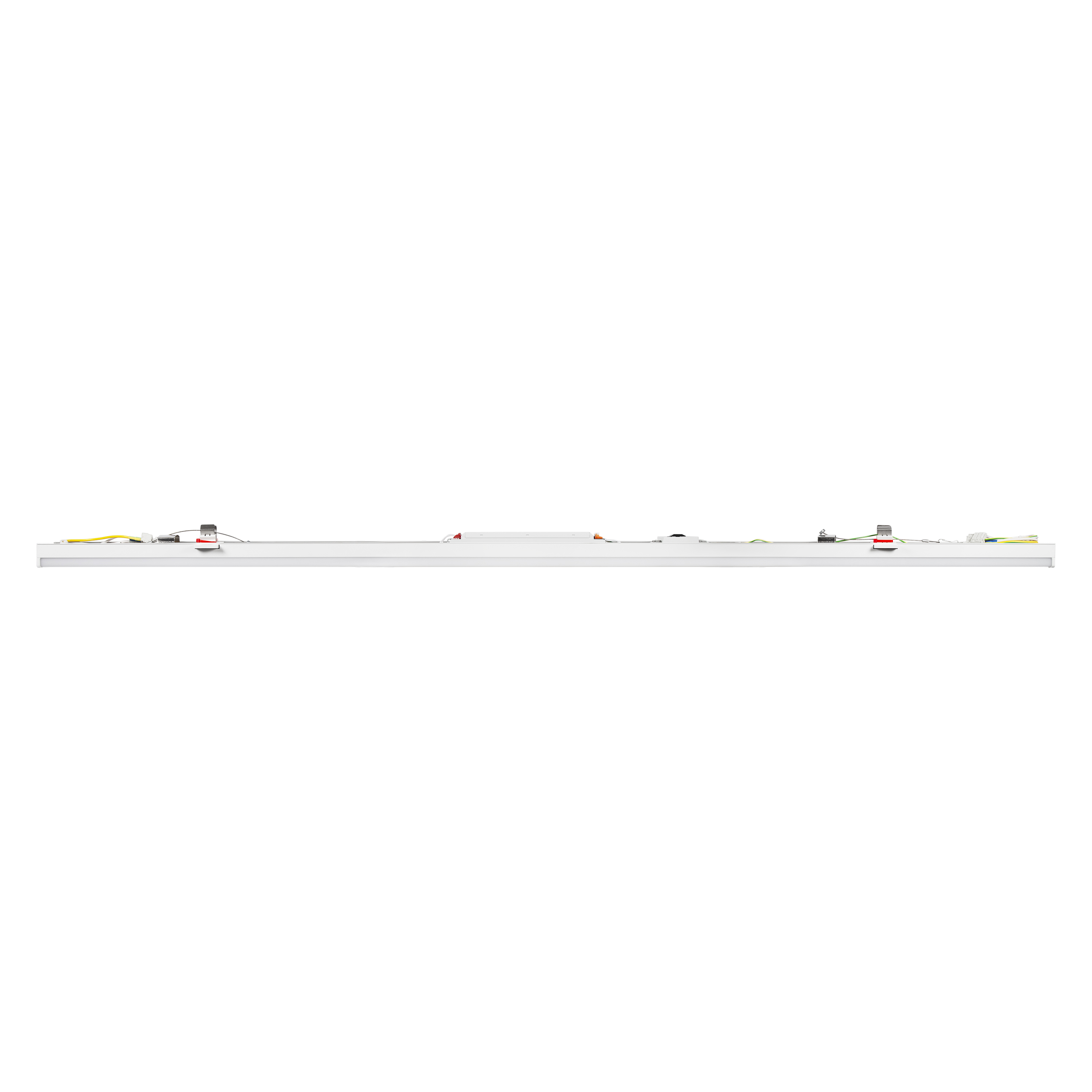

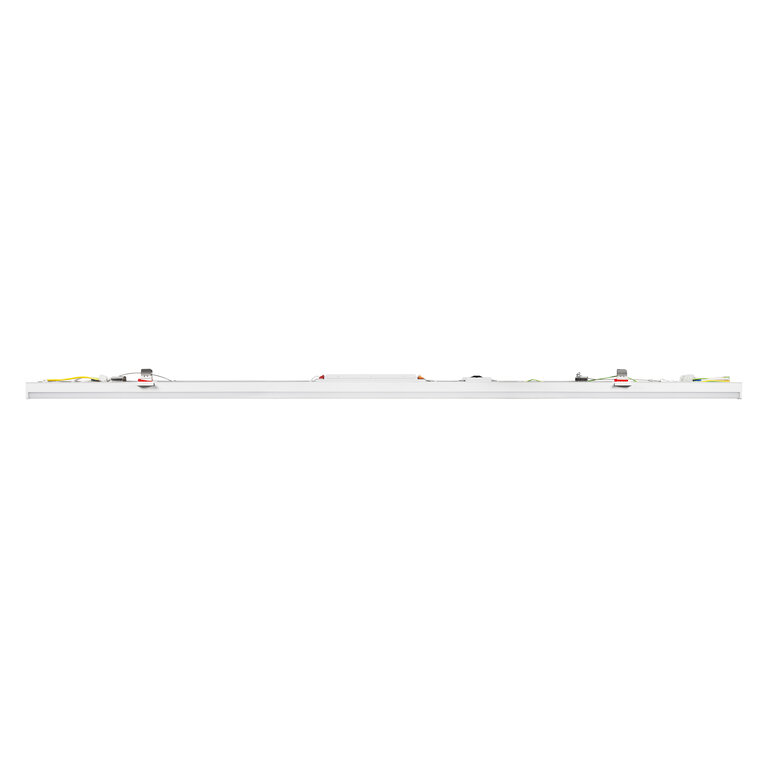

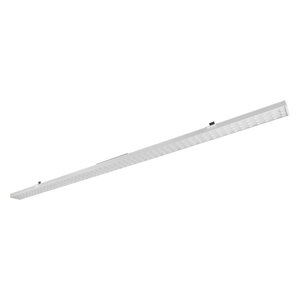

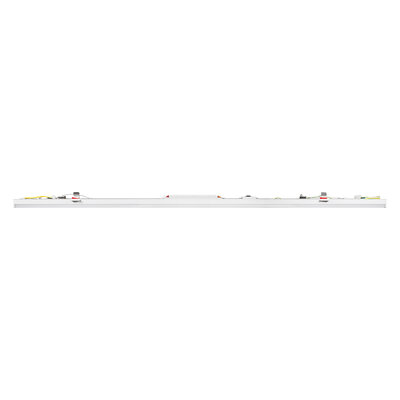

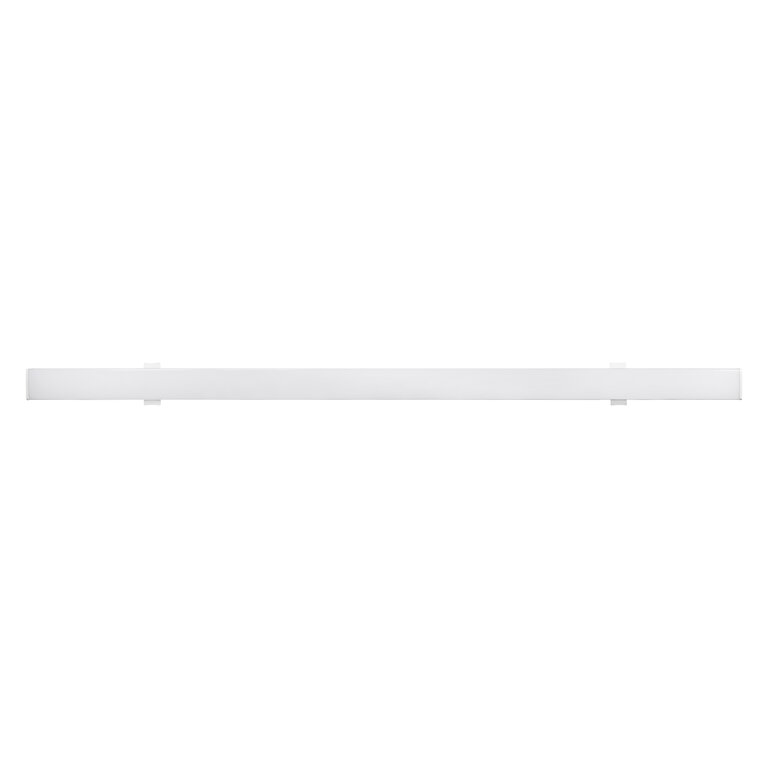

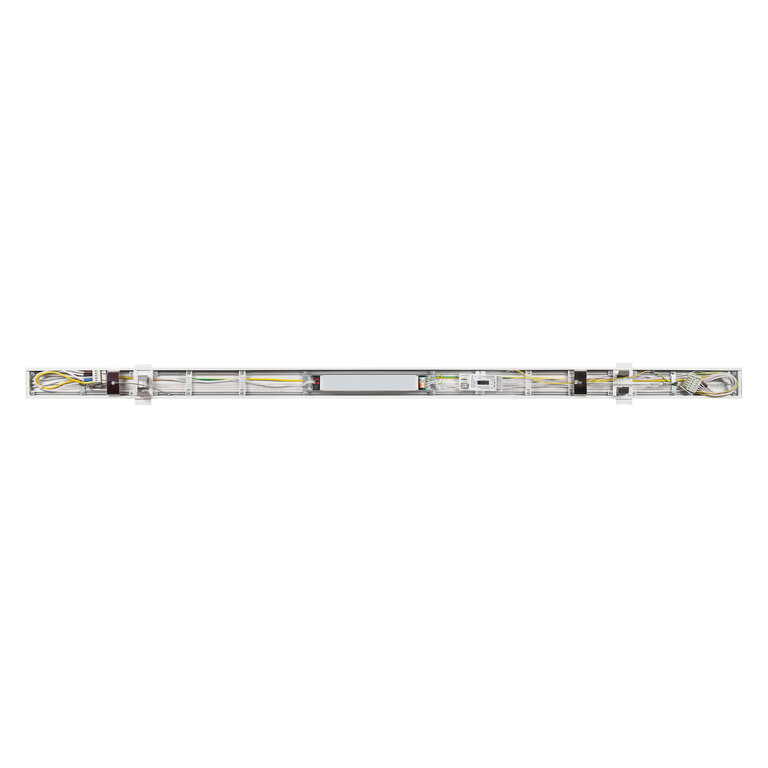

Product image: white background, upright
TRUSYS UNIVERSAL OPAL JPG (710.21 KB)

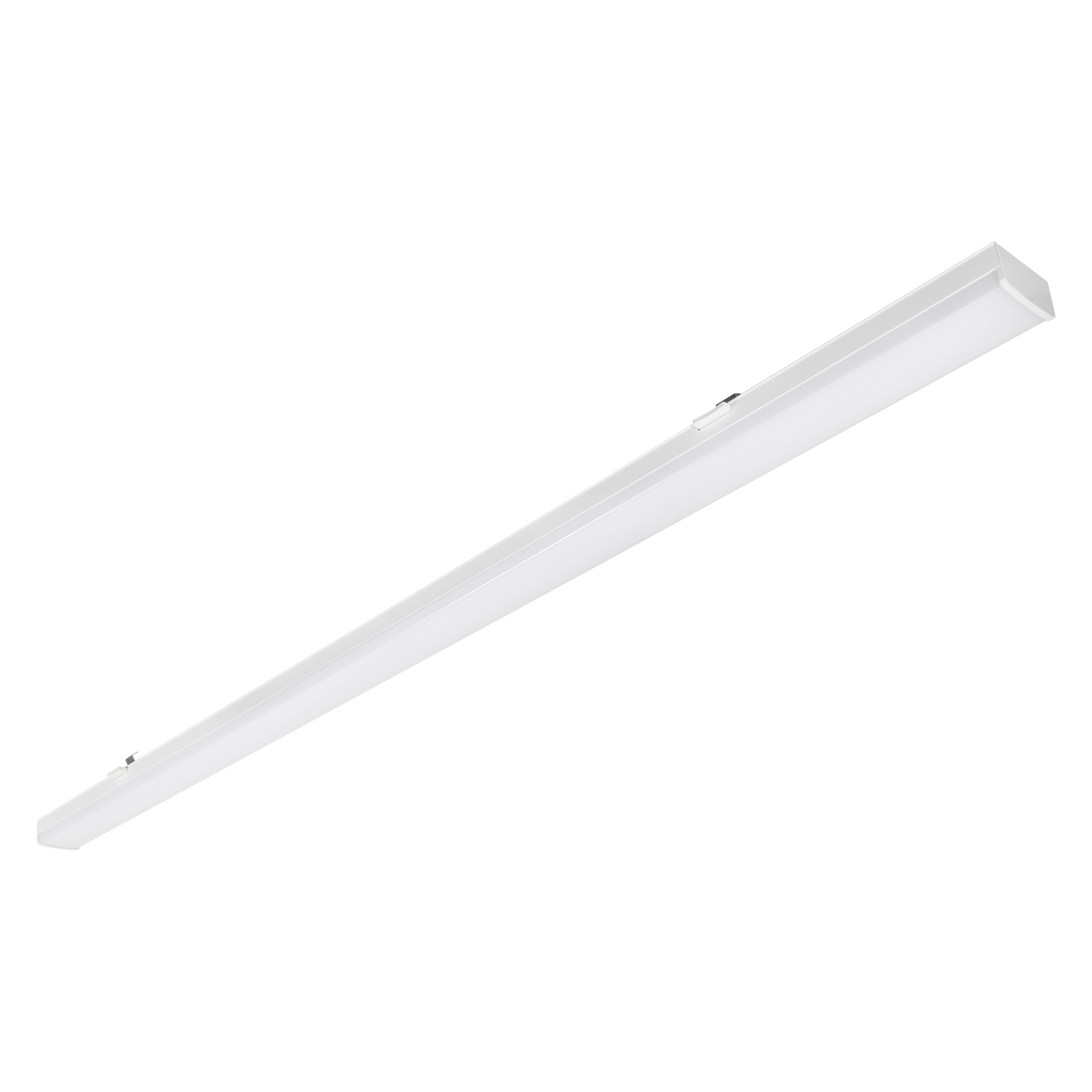

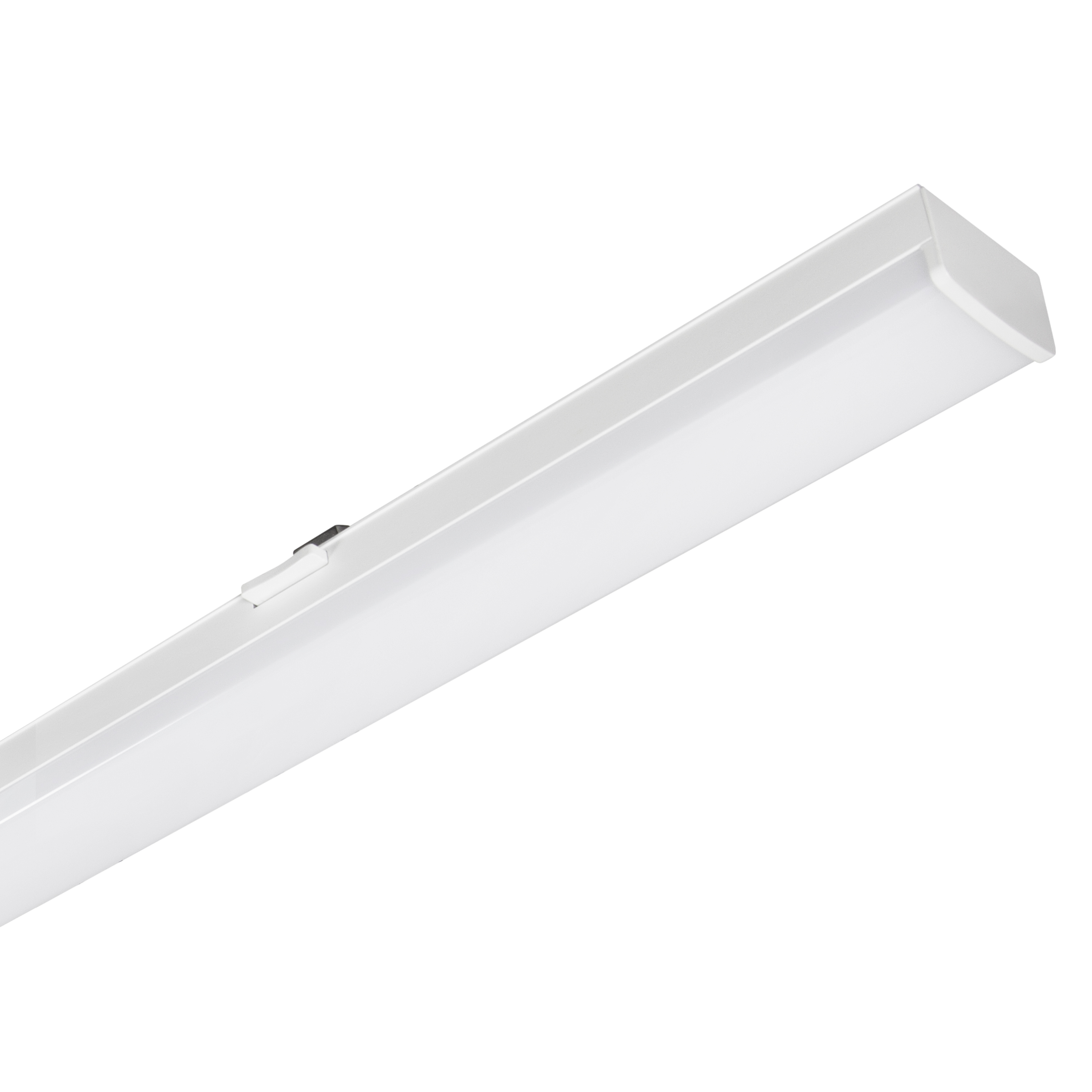

Product image: white background, spacial
TRUSYS UNIVERSAL OPAL JPG (959.78 KB)
Product image: white background, spacial
TRUSYS UNIVERSAL OPAL JPG (783.65 KB)
Product line drawing with letters
TRUSYS UNIVERSAL OPAL SVG (21.41 KB)
Product line drawing with numbers
TRUSYS UNIVERSAL OPAL SVG (28.31 KB)
Product line drawing - technical
TRUSYS UNIVERSAL OPAL SVG (17.82 KB)

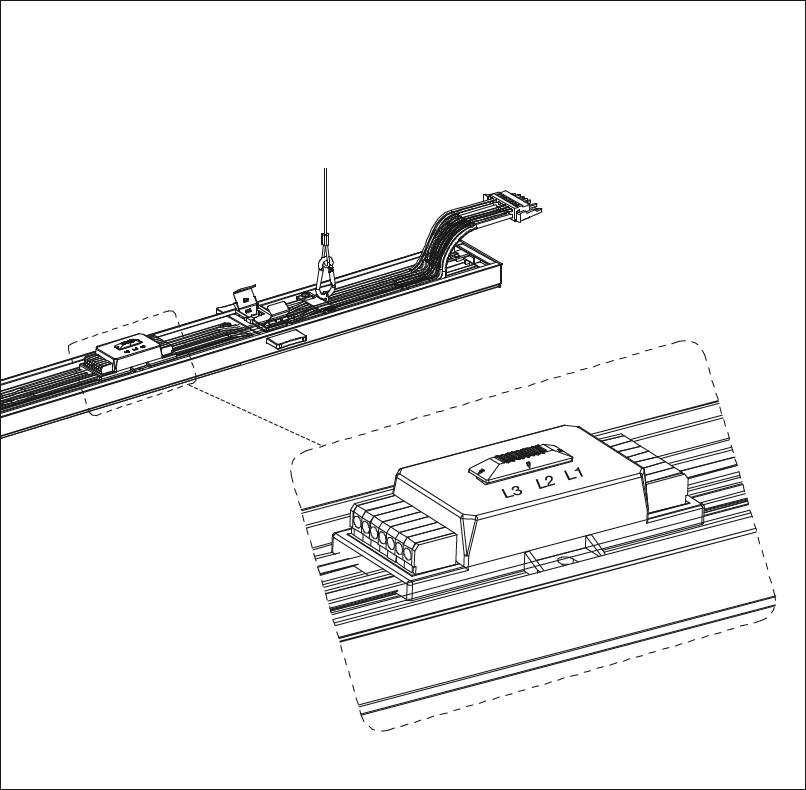

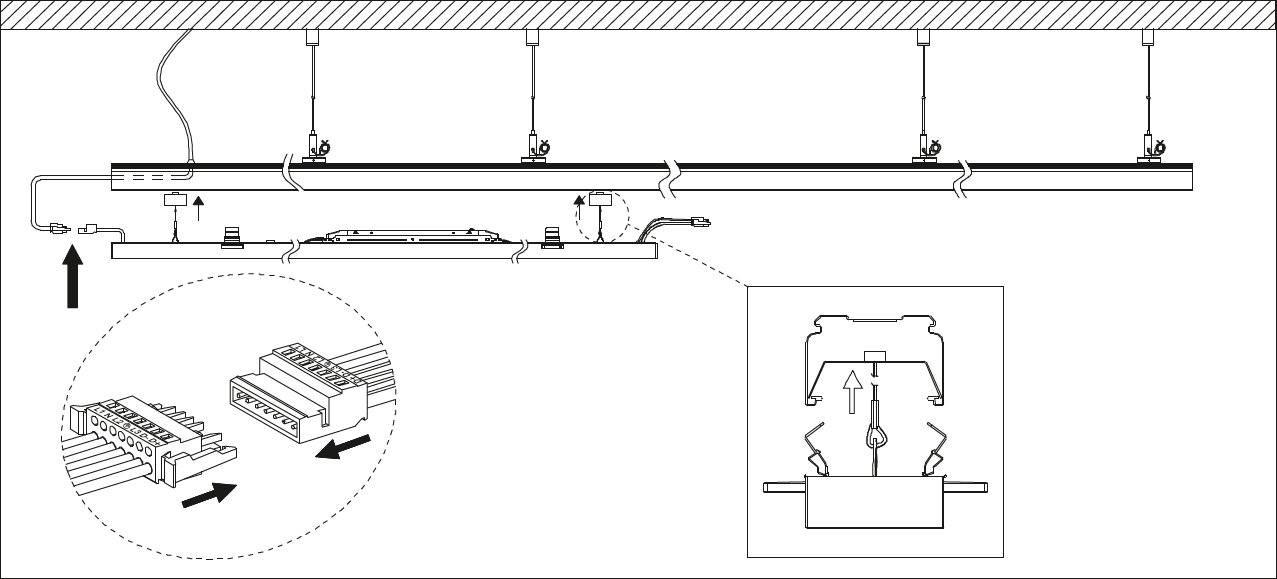

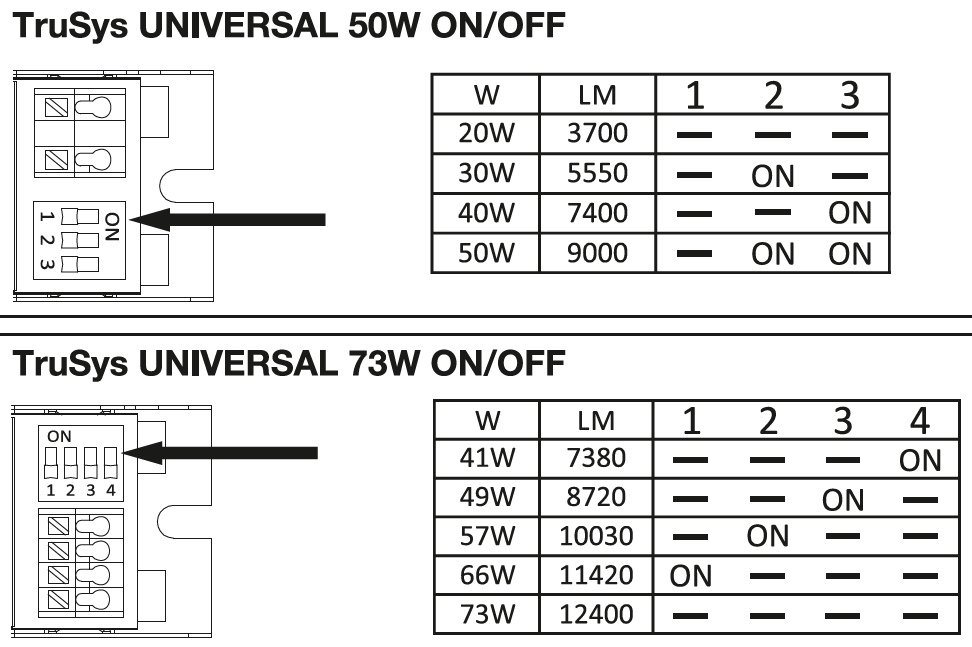

Catalog info 1
TRUSYS UNIVERSAL P PNG (44.57 KB)
Catalog info 2
TRUSYS UNIVERSAL P PNG (53.9 KB)
Catalog info 3
TRUSYS UNIVERSAL P PNG (100.15 KB)
Catalog info 4
TRUSYS UNIVERSAL P PNG (62.01 KB)
Catalog info 5
TRUSYS UNIVERSAL P PNG (76 KB)
IES file (IES)
TRUSYS UNIV P 50W 840 VW OP DALI IES (14.43 KB)
LDT file (Eulumdat)
TRUSYS UNIV P 50W 840 VW OP DALI LDT (11.62 KB)

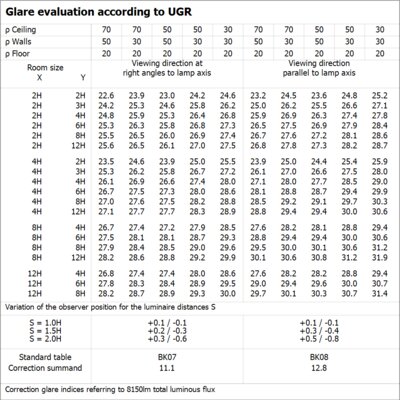

UGR file (UGR table)
TRUSYS UNIV P 50W 840 VW OP DALI PNG (62.3 KB)
Light distribution curve type cone
TRUSYS UNIV P 50W 840 VW OP DALI SVG (11.43 KB)
Light distribution curve type polar
TRUSYS UNIV P 50W 840 VW OP DALI SVG (19.99 KB)
BIM Revit 3D
TruSys Universal ZIP (3.77 MB)
CAD STEP 3D
TRUSYS UNIV OP STEP (924.29 KB)
Tender documents
TRUSYS UNIVERSAL DALI 50W 840 VW OP DALI-en TXT (1.76 KB)
EAN ELDAS number
4099854496820 941323010
