TRUSYS UNIVERSAL

Choose your product version

NEW

50W 840 VW OP PS

73W 840 W CL PS

NEW

50W 840 W CL PS

73W 840 N CL PS

NEW

50W 840 N CL PS

73W 840 VN CL PS

NEW

50W 840 VN CL PS

NEW

73W 840 VW OP PS

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
TRUSYS UNIV P 50W 840 VW OP PS 50 W / 40 W / 30 W / 20 W 50000 120 ° 8150 lm / 6600 lm / 5040 lm / 3300 lm No
TRUSYS UNIV P 73W 840 W CL PS 73 W / 66 W / 57 W / 49 W / 41 W 50000 90 ° 12400 lm / 11420 lm / 10030 lm / 8720 lm / 7380 lm No
TRUSYS UNIV P 50W 840 W CL PS 50 W / 40 W / 30 W / 20 W 50000 90 ° 9000 lm / 7400 lm / 5550 lm / 3700 lm No
TRUSYS UNIV P 73W 840 N CL PS 73 W / 66 W / 57 W / 49 W / 41 W 50000 60 ° 12400 lm / 11420 lm / 10030 lm / 8720 lm / 7380 lm No
TRUSYS UNIV P 50W 840 N CL PS 50 W / 40 W / 30 W / 20 W 50000 60 ° 9000 lm / 7400 lm / 5550 lm / 3700 lm No
TRUSYS UNIV P 73W 840 VN CL PS 73 W / 66 W / 57 W / 49 W / 41 W 50000 30 ° 12400 lm / 11420 lm / 10030 lm / 8720 lm / 7380 lm No
TRUSYS UNIV P 50W 840 VN CL PS 50 W / 40 W / 30 W / 20 W 50000 30 ° 9000 lm / 7400 lm / 5550 lm / 3700 lm No
TRUSYS UNIV P 73W 840 VW OP PS 73 W / 66 W / 57 W / 49 W / 41 W 50000 120 ° 11900 lm / 10890 lm / 9575 lm / 8230 lm / 6890 lm No
NEW


TRUSYS UNIV P 50W 840 VW OP PS

Product benefits
  • The solution for refurbishment: universal fitting to existing trunking luminaire system
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 50 W / 40 W / 30 W / 20 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 230mA / 180mA / 135mA / 90 mA
Inrush current 22.6 A
Inrush current time Th50 247 µs
Max. number of luminaires per miniature circuit breaker B16 14
Max. number of luminaires per miniature circuit breaker C10 13
Max. number of luminaires per miniature circuit breaker C16 21
Power factor λ ≥0.90
Total harmonic distortion < 15 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 8150 lm / 6600 lm / 5040 lm / 3300 lm
Luminous efficacy 163 lm/W / 165 lm/W / 168 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching < 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 120 °

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
50 W 4000 K 8150 lm 163 lm/W
40 W 4000 K 6600 lm 165 lm/W
30 W 4000 K 5040 lm 168 lm/W
20 W 4000 K 3300 lm 165 lm/W

Dimensions & Weight

Length 1504.00 mm
Height 35.00 mm
Width 68.00 mm
Product weight 1570.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -40…+80 °C
Type of connection Plug-In connection
Type of protection IP20
Protection class IK (shock resistance) IK02
Dimmable No
Mounting type Surface/Suspended
Mounting location Mounting rail
Application environment Indoor
Adjustable No
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 120000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 54000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 500mA / 400mA / 300mA / 200 mA
ECG - Output ripple current < 5 %

Emergency lighting

Type of Emergency Lighting (EL) EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test None
Wattage in emergency operation mode 50 W
Luminous flux in emergency operation mode 8150 lm

Certificates & Standards

Standards CE, CB, UKCA, ENEC, TÜV, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from June 2025
Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), N,N-Dimethylformamide (68-12-2)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • The solution for refurbishment: universal fitting to existing trunking luminaire system
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Industry halls, high rack warehouse, hardware stores
  • Discounters, supermarkets
Product features
  • Multi Lumen function: power steps selectable
  • Beam angles: 120° (VW), 90° (W), 60° (N), 30° (VN)
  • Click into place solution with smart click buttons
  • Luminous efficacy: up to 185 lm/W
  • Lifetime (L80/B10): up to 100,000 h (at 25 °C)
  • Initial color consistency: ≤ 3 SDCM
Equipment / Accessories
  • Various accessories available
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854496561 Folding box
1		 80 mm x 1,525 mm x 93 mm 1900.00 g 11.35 dm³
4099854496578 Shipping box
4		 1,545 mm x 335 mm x 122 mm 9260.00 g 63.14 dm³
User instruction / safety instructions
UI TRUSYS UNIVERSAL PDF (4.01 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Legal insert PDF (843.77 KB)
Legal information
Safety Insert G1120549 7 PDF (178.17 KB)
Declarations of conformity
CE declaration TRUSYS UNIVERSAL PDF (299.52 KB)

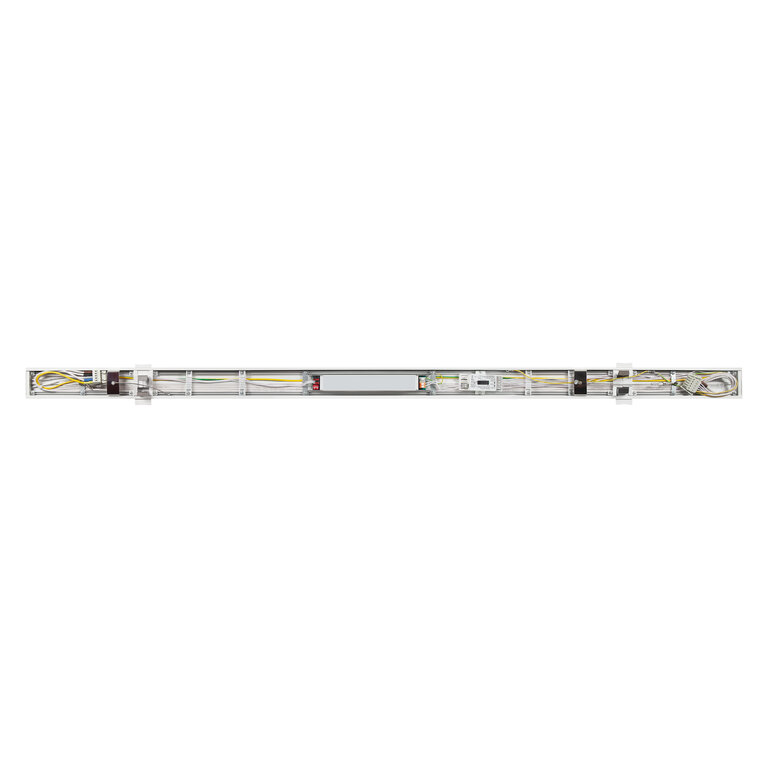

Product image: white background, upright
TRUSYS UNIVERSAL OPAL JPG (710.21 KB)
Product image: white background, spacial
TRUSYS UNIVERSAL OPAL JPG (959.78 KB)
Product image: white background, spacial
TRUSYS UNIVERSAL OPAL JPG (783.65 KB)
Product line drawing with letters
TRUSYS UNIVERSAL OPAL SVG (21.41 KB)
Product line drawing with numbers
TRUSYS UNIVERSAL OPAL SVG (28.31 KB)
Product line drawing - technical
TRUSYS UNIVERSAL OPAL SVG (17.82 KB)
Catalog info 1
TRUSYS UNIVERSAL P PNG (44.57 KB)
Catalog info 2
TRUSYS UNIVERSAL P PNG (53.9 KB)
Catalog info 3
TRUSYS UNIVERSAL P PNG (100.15 KB)
Catalog info 4
TRUSYS UNIVERSAL P PNG (62.01 KB)
Catalog info 5
TRUSYS UNIVERSAL P PNG (76 KB)
IES file (IES)
TRUSYS UNIV P 50W 840 VW OP PS IES (14.43 KB)
LDT file (Eulumdat)
TRUSYS UNIV P 50W 840 VW OP PS LDT (11.62 KB)

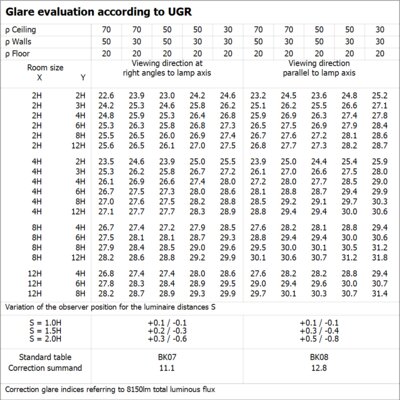

UGR file (UGR table)
TRUSYS UNIV P 50W 840 VW OP PS PNG (62.3 KB)
Light distribution curve type cone
TRUSYS UNIV P 50W 840 VW OP PS SVG (11.43 KB)
Light distribution curve type polar
TRUSYS UNIV P 50W 840 VW OP PS SVG (19.99 KB)
BIM Revit 3D
TruSys Universal ZIP (3.77 MB)
CAD STEP 3D
TRUSYS UNIV OP STEP (924.29 KB)
Tender documents
TRUSYS UNIVERSAL 50W 8 40 VW OP PS -en TXT (1.77 KB)
EAN ELDAS number
4099854496561 941322960
