URBAN VILLA ASYMMETRIC

Choose your product version

NEW

40W 722 A50X150

NEW

40W 730 A50X150

NEW

40W 722 A60X120

NEW

40W 730 A60X120

NEW

60W 722 A50X150

NEW

60W 730 A50X150

NEW

60W 722 A60X120

NEW

60W 730 A60X120

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
URBAN VLA P 40W 722 A50X150 40.00 W 50000 50° x 150 ° 4200 lm No
URBAN VLA P 40W 730 A50X150 40.00 W 50000 50° x 150 ° 4800 lm No
URBAN VLA P 40W 722 A60X120 40.00 W 50000 60 ° x 120 ° 4200 lm No
URBAN VLA P 40W 730 A60X120 40.00 W 50000 60 ° x 120 ° 4800 lm No
URBAN VLA P 60W 722 A50X150 60.00 W 50000 50° x 150 ° 6300 lm No
URBAN VLA P 60W 730 A50X150 60.00 W 50000 50° x 150 ° 7200 lm No
URBAN VLA P 60W 722 A60X120 60.00 W 50000 60 ° x 120 ° 6300 lm No
URBAN VLA P 60W 730 A60X120 60.00 W 50000 60 ° x 120 ° 7200 lm No
NEW


URBAN VLA P 40W 722 A50X150

Product benefits
  • Durable design and highest quality component selection for long lasting performance
  • Quick and easy wiring, due to tool-free housing opening and push button terminal
  • High light uniformity
  • 2 light colors available, perfectly suited to illuminate highly diverse surroundings
View all details

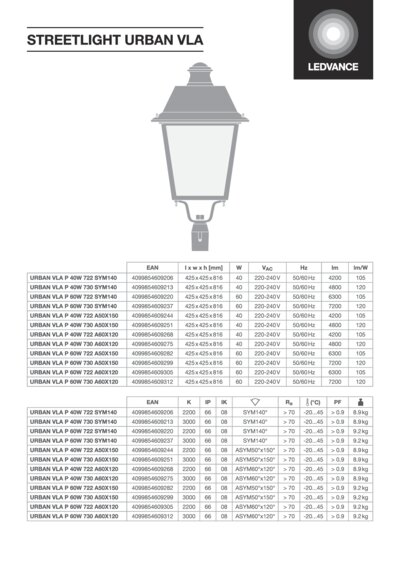

Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 40.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 179.000 mA
Inrush current 18.7 A
Inrush current time Th50 830 µs
Max. number of luminaires per miniature circuit breaker B16 7
Max. number of luminaires per miniature circuit breaker C10 8
Max. number of luminaires per miniature circuit breaker C16 12
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 4200 lm
Luminous efficacy 105 lm/W
Color temperature 2200 K
Light color (designation) Warm White
Color rendering index Ra > 70
Standard deviation of color matching < 6 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 50° x 150 °

Dimensions & Weight

Length 425.00 mm
Height 816.00 mm
Width 425.00 mm
Product weight 8900.00 g

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Temperature range at storage -20…+80 °C
Type of connection Screw terminal
Type of protection IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Post top
Mounting location Pole
Application environment Outdoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Lifespan L90/B10 at 25 °C 70000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 200…1050 mA
ECG - Output ripple current 5 %

Certificates & Standards

Standards CE, ENEC, EAC, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from September 2025

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Durable design and highest quality component selection for long lasting performance
  • Quick and easy wiring, due to tool-free housing opening and push button terminal
  • High light uniformity
  • 2 light colors available, perfectly suited to illuminate highly diverse surroundings
Areas of application
  • Outdoor use (IP66)
  • Parks
  • City center
  • Historical center
Product features
  • Very long lifetime (L70): up to 100,000 h (at 25 °C)
  • Aluminum low copper content: AC47100
  • 1000 hours salt mist spray test
  • Corrosion-resistant powder coating
  • Spigot for 60 mm poles included
  • DALI D4i drivers for smart city applications
  • Operating temperature: -20…45 °C
  • High surge protection: up to 20 kV (L/N-GND)
  • Type of protection: IP66
  • Protection class: II
Equipment / Accessories
  • Frosted glass available as separate accessory
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854609244 Shipping box
1		 452 mm x 452 mm x 680 mm 10647.00 g 138.93 dm³
Product image Product name EAN
URBAN VLA P SET GLASS FROSTED 4099854618642
User instruction / safety instructions
URBAN VLA P PDF (3.35 MB)
Legal information
Safety Insert G1121881 0 PDF (244.72 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

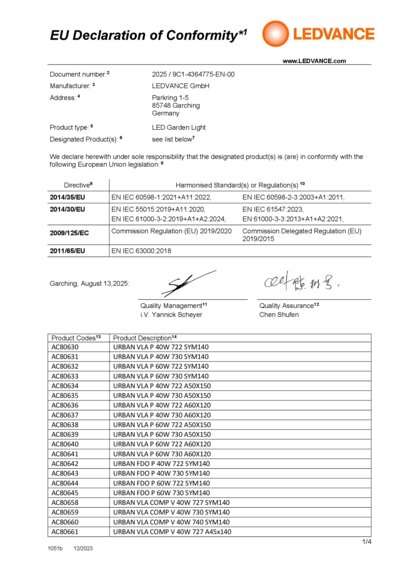

Declarations of conformity
URBAN series PDF (419.97 KB)

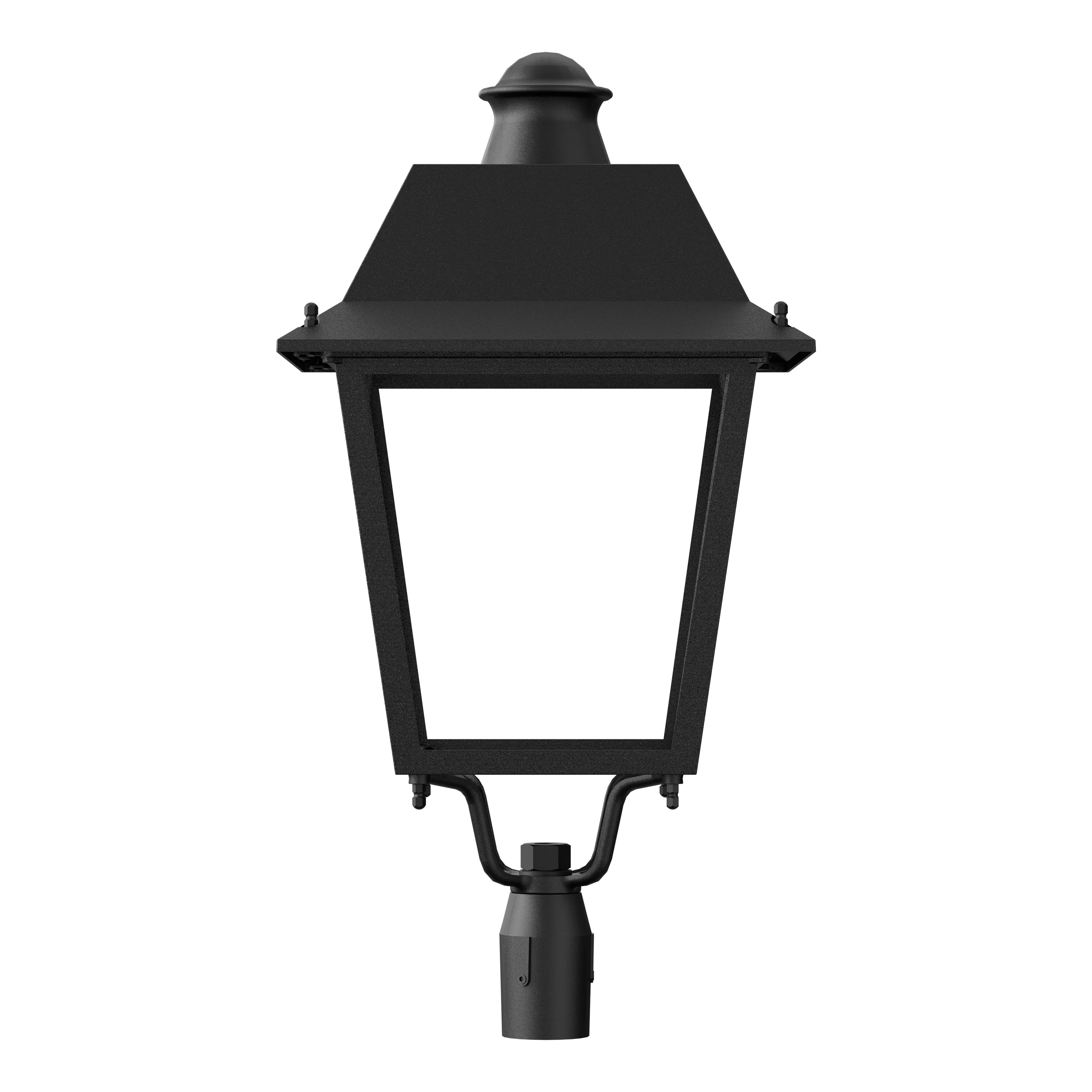

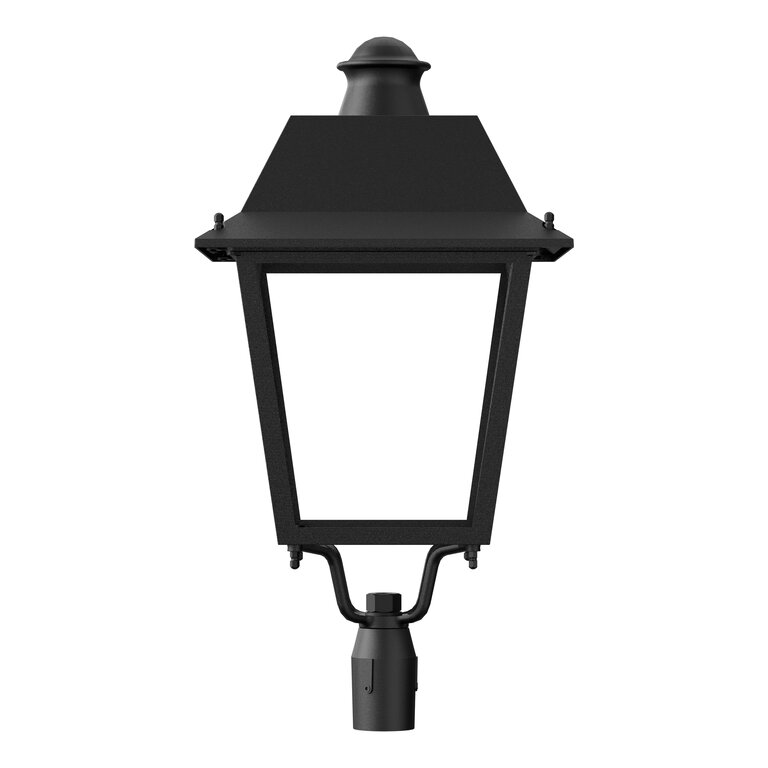

Product image: white background, upright
URBAN VLA P JPG (788.59 KB)

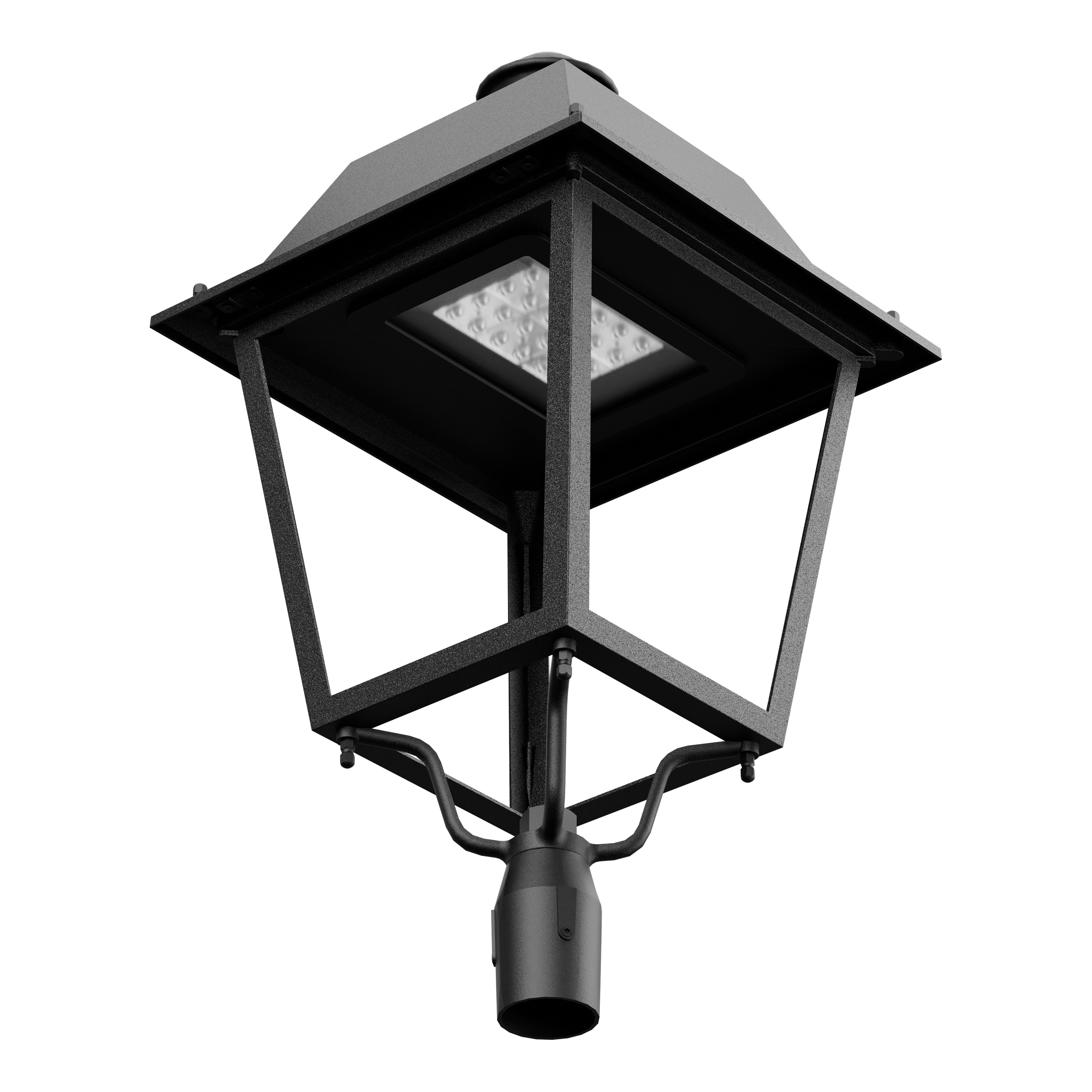

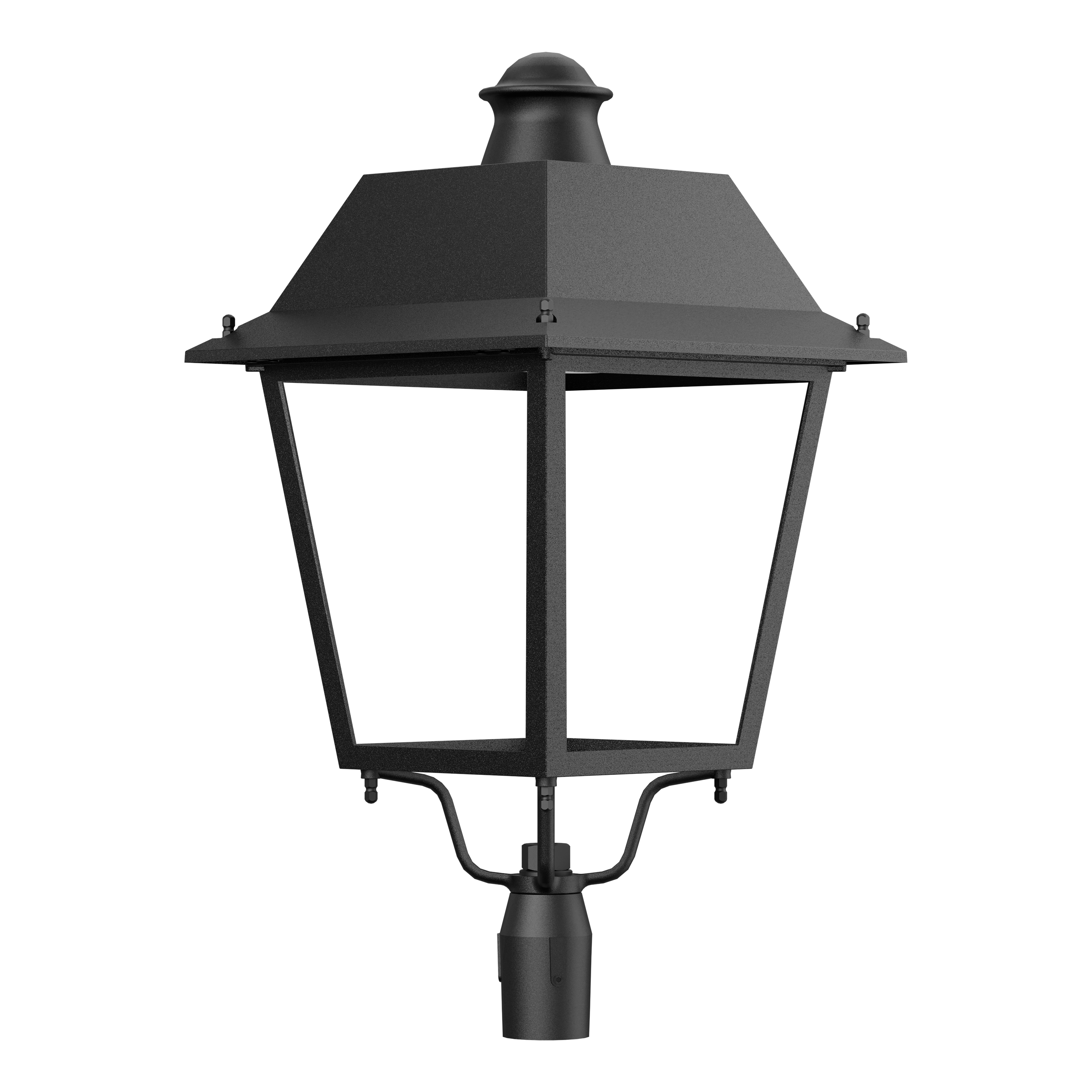

Product image: white background, upright, alternative image
URBAN VLA P JPG (1.19 MB)
Product image: white background, upright, alternative image
URBAN VLA P JPG (995.87 KB)

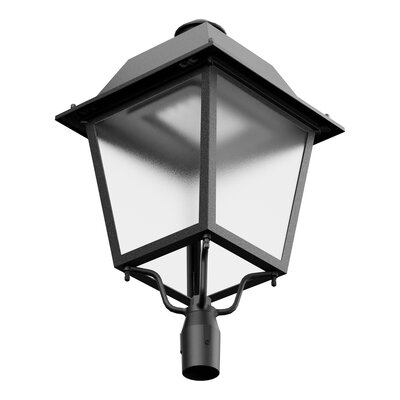

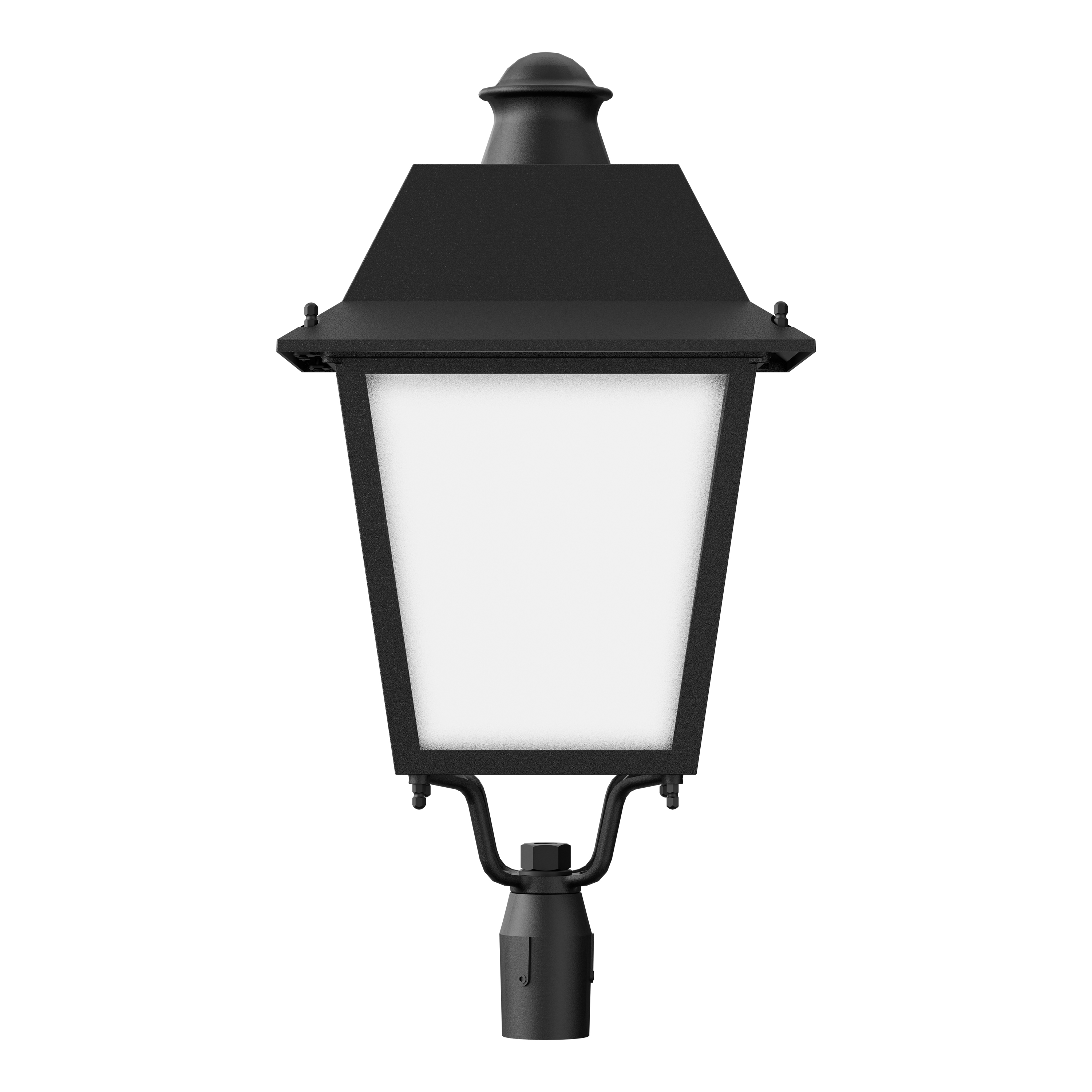

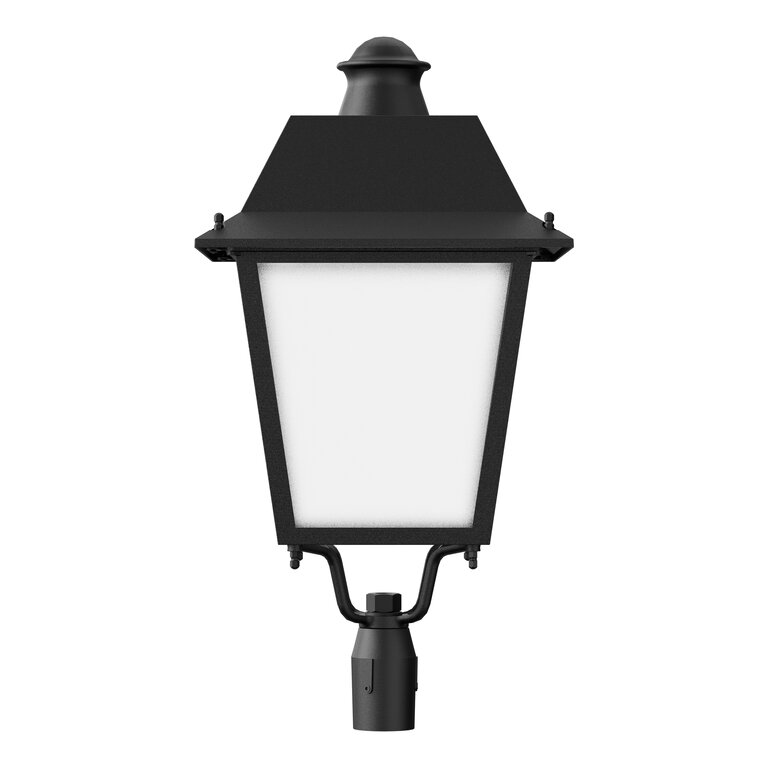

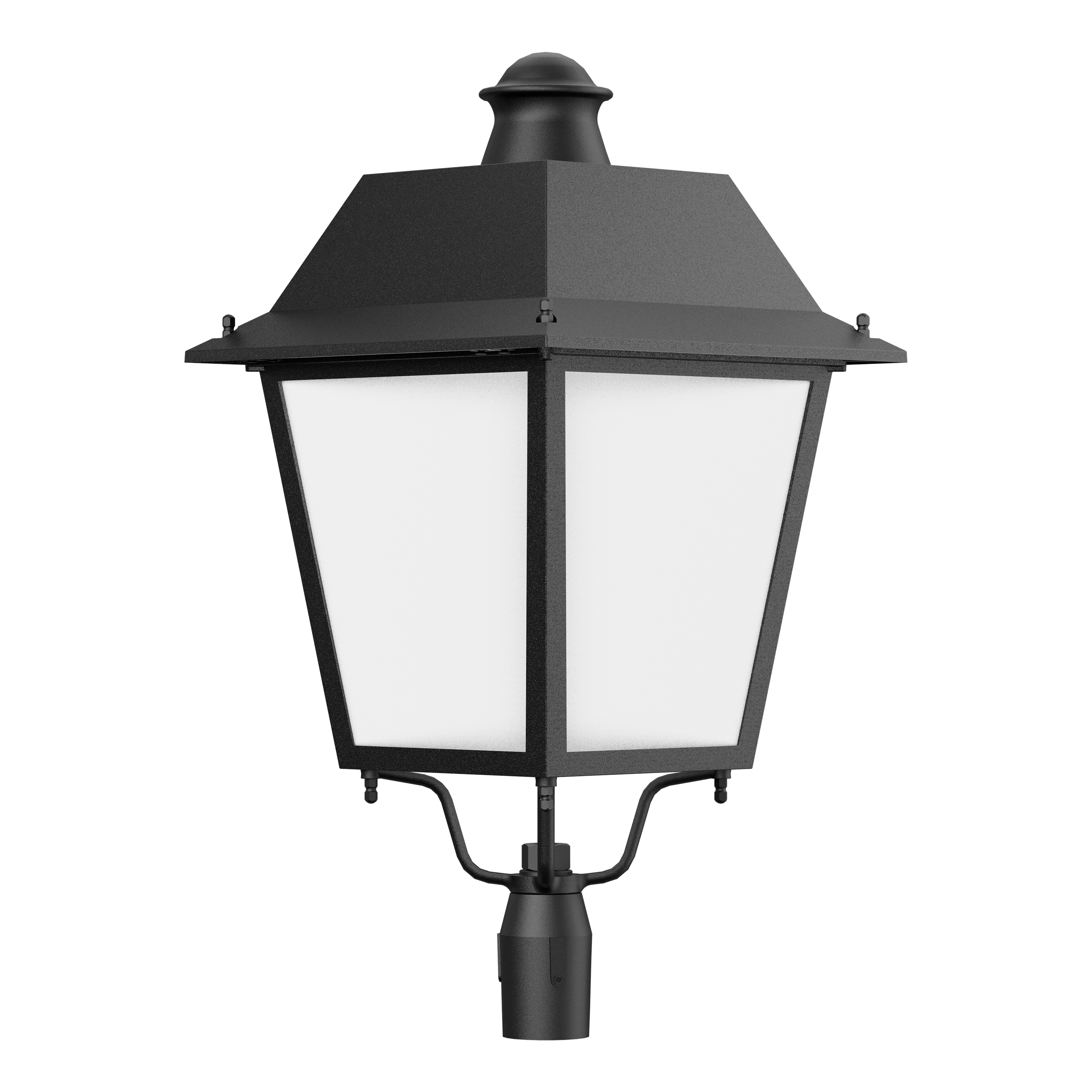

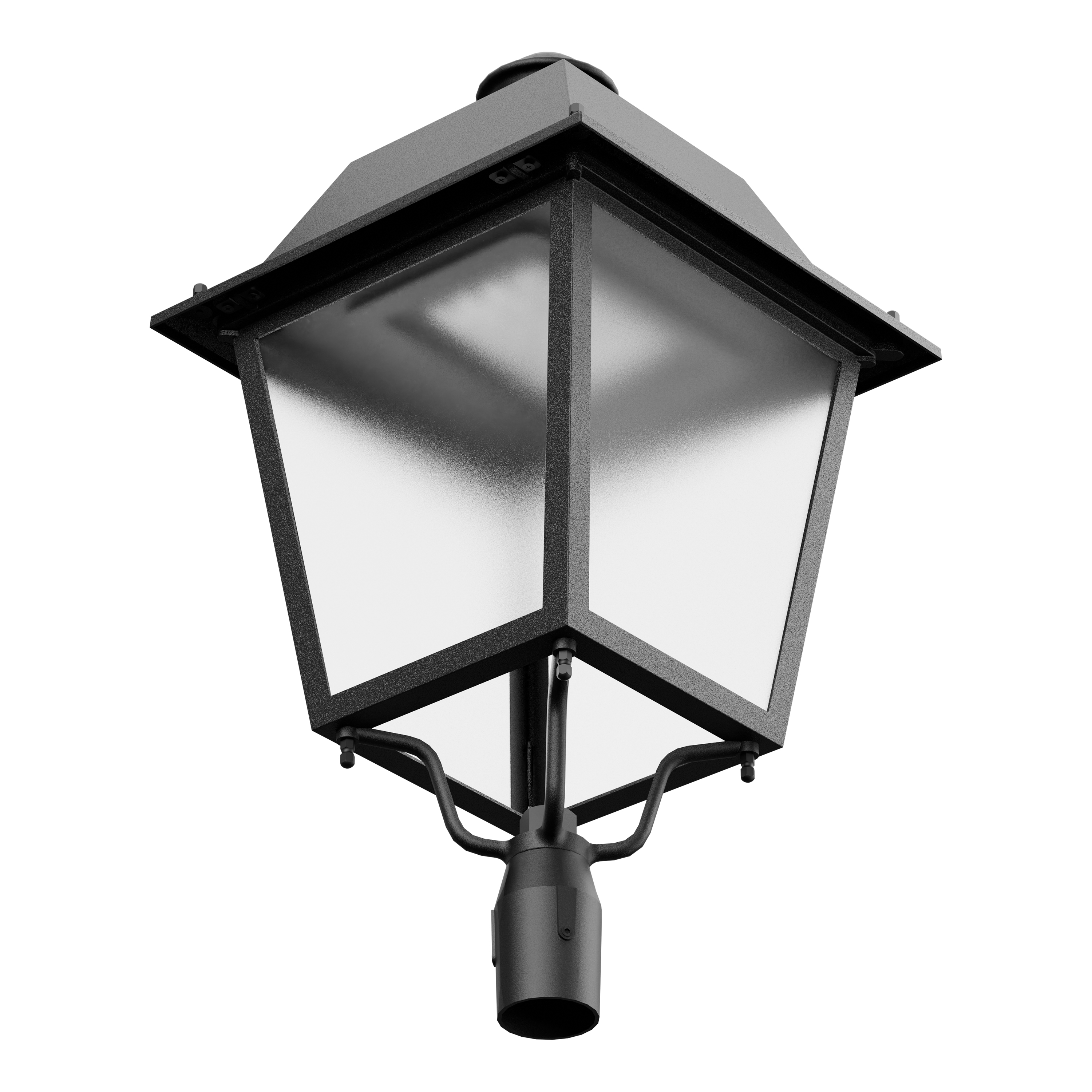

Product image: white background, with accessory, alternative image
