URBAN LANTERN ASYMMETRIC WITH CABLE

Choose your product version

Coming soon

6M V 29W ML 83040 GY

Coming soon

6M V 29W ML 83040 BK

Coming soon

7M V 59W ML 83040 GY

Coming soon

7M V 59W ML 83040 BK

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
UB LTRN ASYM 6M V 29W ML 83040 GY 29 W / 25 W / 20 W / 15 W 100000 165° x 65 ° 3945 lm / 3400 lm / 2720 lm / 2040 lm No
UB LTRN ASYM 6M V 29W ML 83040 BK 29 W / 25 W / 20 W / 15 W 100000 165° x 65 ° 3945 lm / 3400 lm / 2720 lm / 2040 lm No
UB LTRN ASYM 7M V 59W ML 83040 GY 59 W / 49 W / 42 W / 34 W 100000 165° x 65 ° 8200 lm / 6800 lm / 5840 lm / 4730 lm No
UB LTRN ASYM 7M V 59W ML 83040 BK 59 W / 49 W / 42 W / 34 W 100000 165° x 65 ° 8200 lm / 6800 lm / 5840 lm / 4730 lm No
Coming soon


UB LTRN ASYM 6M V 29W ML 83040 GY

Product benefits
  • Easy installation due to preassembled long cable
  • Highly versatile due to selectable CCT and power steps (Power Select - PS)
  • Low flicker light thanks to special electronic control gear
  • Energy savings thanks to system efficacy of up to 139 lm/W
  • Bright, robust and durable
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 29 W / 25 W / 20 W / 15 W
Nominal voltage 220…250 V
Mains frequency 50…60 Hz
Nominal current 70mA / 90mA / 110mA / 130 mA
Inrush current 25.8 A
Inrush current time Th50 330 µs
Max. number of luminaires per miniature circuit breaker B16 8
Max. number of luminaires per miniature circuit breaker C10 8
Max. number of luminaires per miniature circuit breaker C16 13
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class II
Surge capability (L-N) 6 kV
Operating mode Integrated LED driver

Photometrical data

Luminous flux 3945 lm / 3400 lm / 2720 lm / 2040 lm
Luminous efficacy 136 lm/W
Color temperature 3000 K / 4000 K
Light color (designation) Warm White, Cool White
Color rendering index Ra 80
Standard deviation of color matching 5 sdcm
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 165° x 65 °

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
29 W 4000K 3945 lm 136 lm/W
29 W 3000 K 3770 lm 130 lm/W
25 W 4000 K 3400 lm 136 lm/W
25 W 3000 K 3250 lm 130 lm/W
20 W 4000 K 2720 lm 136 lm/W
20 W 3000 K 2600 lm 130 lm/W
15 W 4000 K 2040 lm 136 lm/W
15 W 3000 K 1950 lm 130 lm/W

Dimensions & Weight

Diameter 395.00 mm
Height 417.00 mm
Product weight 4562.00 g
Cable length 6000 mm

Materials & Colors

Product color Gray
Housing color Gray
Body material Aluminum
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -35…+80 °C
Type of connection Cable, 3-pole
Type of protection IP66
Protection class IK (shock resistance) IK10
Dimmable No
Mounting type Post top
Mounting location Pole
Application environment Outdoor
Adjustable No
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 56000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 765…650…520…390 mA
ECG - Output ripple current < 20 %

Certificates & Standards

Standards CE, UKCA, EAC, ENEC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from October 2025
Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9), Perfluorobutane sulfonic acid (PFBS) and its salts, Tripnehyl Phosphate (115-86-6)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy installation due to preassembled long cable
  • Highly versatile due to selectable CCT and power steps (Power Select - PS)
  • Low flicker light thanks to special electronic control gear
  • Energy savings thanks to system efficacy of up to 139 lm/W
  • Bright, robust and durable
Areas of application
  • Replacement for luminaires with mercury vapor or metal halide lamps
  • Public areas
  • Parks
  • Residential areas
  • Pedestrian zones
  • Streets
Product features
  • Long preassembled connection cable included
  • Protection class: II
  • Lifetime (L80/B10): up to 100,000 h (at 25 °C)
  • Type of protection: IP66
  • Impact resistance: IK10
  • Asymmetric light distribution
Equipment / Accessories
  • Additional screws included for pole diameter of 42 mm
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854649868 Shipping box
1		 435 mm x 435 mm x 220 mm 4927.00 g 41.63 dm³
User instruction / safety instructions
URBAN LANTERN G1124537 1 PDF (4.56 MB)
Legal information

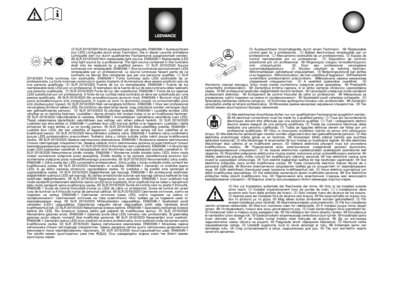

Safety Insert G1124438 8 PDF (243.91 KB)
Legal information
Legal Insert G11245621 PDF (843.45 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information

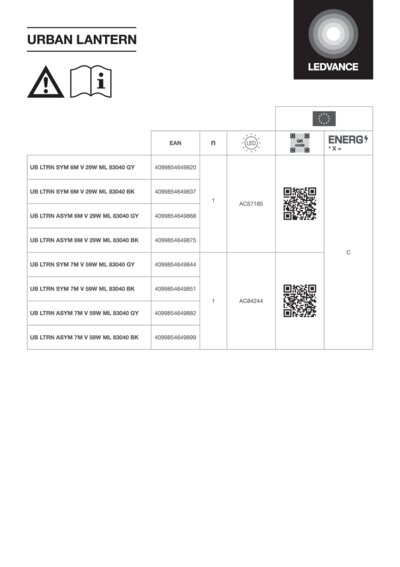

LSI Insert G11246562 U rban Lantern PDF (2.45 MB)
Declarations of conformity

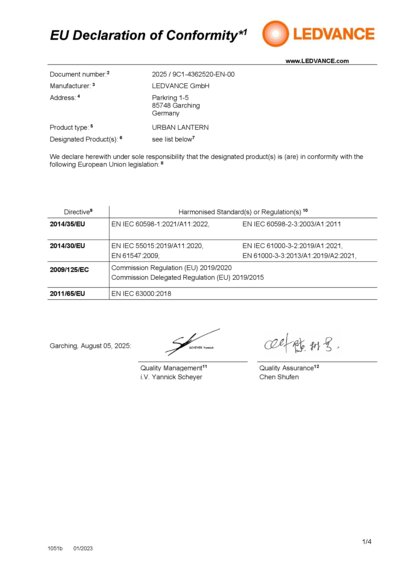

URBAN LANTERN PDF (392.84 KB)
Product image: white background, diagonal

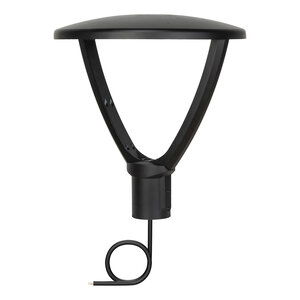

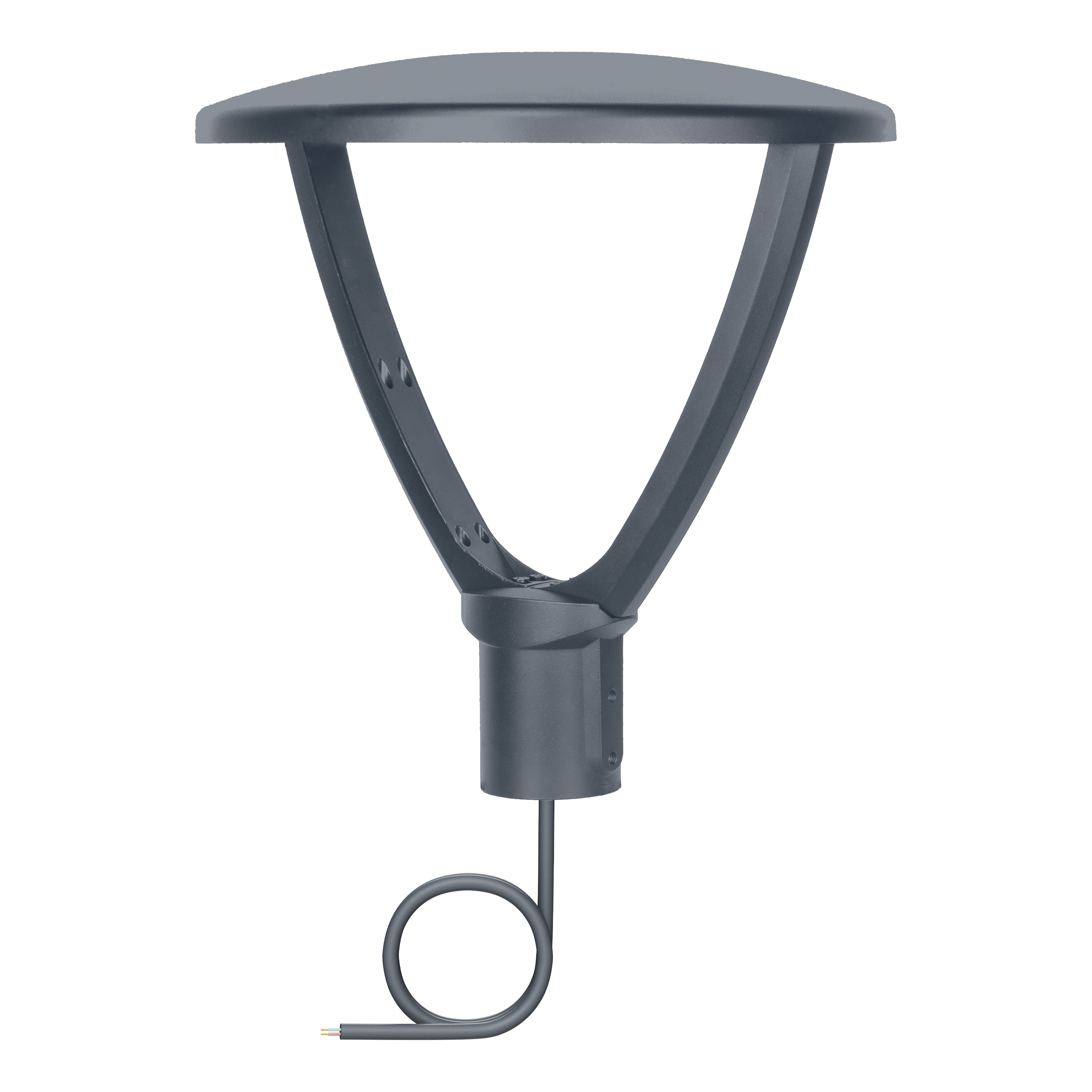

URBAN LANTERN GREY JPG (695.07 KB)
