URBAN WALLPACK

Choose your product version

NEW

20W ML 83040 GY

NEW

40W ML 830 GY

NEW

40W ML 840 GY

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
UB WALLPACK P 20W ML 83040 GY 20.00 W 55 ° x 135 ° 2300 lm / 2000 lm / 1800 lm / 1500 lm / 1260 lm No
UB WALLPACK P 40W ML 830 GY 40.00 W 55 ° x 135 ° No
UB WALLPACK P 40W ML 840 GY 40.00 W 55 ° x 135 ° No
NEW


UB WALLPACK P 20W ML 83040 GY

Product benefits
  • Decorative functional design for urban environment
  • Easy installation due to fast connector and anti-drop screws
  • Very compact shape with high efficiency
  • Multi Lumen: Brightness adjustment via dip switches on the driver
  • Easy cable entry either on the back or from the side of the luminaire
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 20.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 93mA / 78mA / 69mA / 57mA / 47 mA
Inrush current 32 A
Inrush current time Th50 160.8 µs
Max. number of luminaires per miniature circuit breaker B16 14
Max. number of luminaires per miniature circuit breaker C10 12
Max. number of luminaires per miniature circuit breaker C16 20
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2300 lm / 2000 lm / 1800 lm / 1500 lm / 1260 lm
Luminous efficacy 126 lm/W / 125 lm/W / 121 lm/W / 118 lm/W / 115 lm/W
Color temperature 3000 K / 4000 K
Light color (designation) Warm White…Cool White
Color rendering index Ra > 80
Standard deviation of color matching 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 55 ° x 135 °

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
20 W 4000 K 2300 lm 115 lm/W
20 W 3000 K 2200 lm 110 lm/W
17 W 4000 K 2000 lm 118 lm/W
17 W 3000 K 1920 lm 113 lm/W
15 W 4000 K 1800 lm 121 lm/W
15 W 3000 K 1740 lm 116 lm/W
12 W 4000 K 1500 lm 125 lm/W
12 W 3000 K 1440 lm 120 lm/W
10 W 4000 K 1260 lm 126 lm/W
10 W 3000 K 1210 lm 121 lm/W

Dimensions & Weight

Length 200.00 mm
Height 96.00 mm
Width 180.00 mm
Product weight 1450.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+45 °C
Temperature range at storage -30…+80 °C
Type of connection Screwless terminal
Type of protection IP66/IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface
Mounting location Wall
Application environment Outdoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 79000 h

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 500mA / 420mA / 360mA / 290mA / 230 mA
ECG - Output ripple current < 10 %

Emergency lighting

Luminous flux in emergency operation mode

Certificates & Standards

Standards CE, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from October 2025
Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Decorative functional design for urban environment
  • Easy installation due to fast connector and anti-drop screws
  • Very compact shape with high efficiency
  • Multi Lumen: Brightness adjustment via dip switches on the driver
  • Easy cable entry either on the back or from the side of the luminaire
Areas of application
  • Industry
  • Warehouses
  • Schools
  • Commercial buildings
Product features
  • High color consistency: ≤ 3 SDCM
  • Lifetime (L80/B10): up to 100,000 h (at 25 °C)
  • Multi Lumen function: power steps selectable
  • Multi Color function: 4000K and 3000K (20W version only)
  • Optics with wide beam angle of 55° x 135°
  • Ambient temperature in operation: -30…+45 °C
  • Daisy chaining possible
Equipment / Accessories
  • All required accessories included
  • Cable gland included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854592850 Shipping box
1		 257 mm x 257 mm x 139 mm 1910.00 g 9.18 dm³

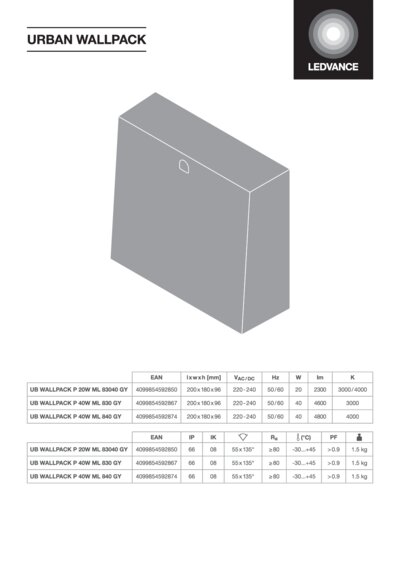

User instruction / safety instructions
G11244300 URBAN WALLPA CK PDF (2.85 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information

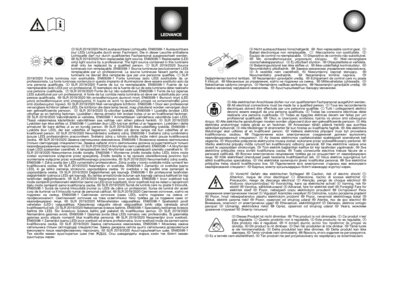

Safety Insert G1120549 7 PDF (178.17 KB)
Legal information

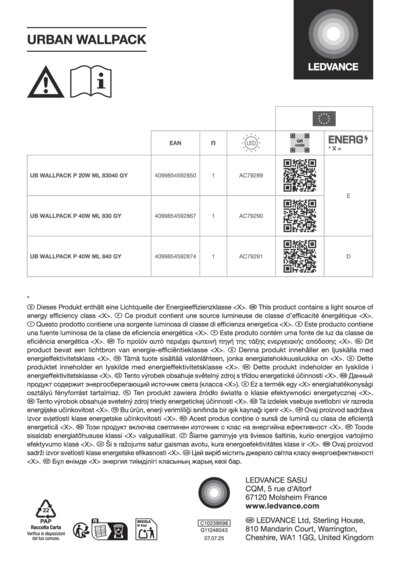

UB WALLPACK PDF (872.9 KB)
Legal information
UB WALLPACK PDF (2.46 MB)

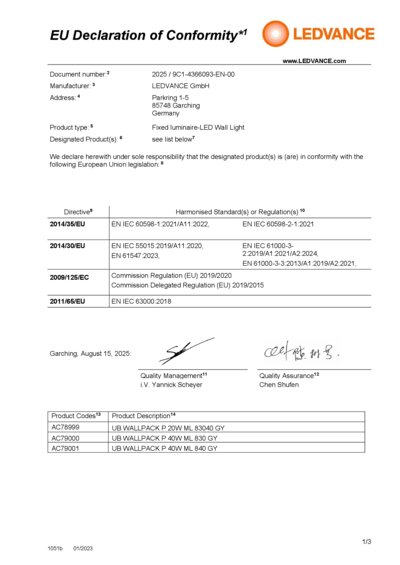

Declarations of conformity
LED Wall Light PDF (374.14 KB)

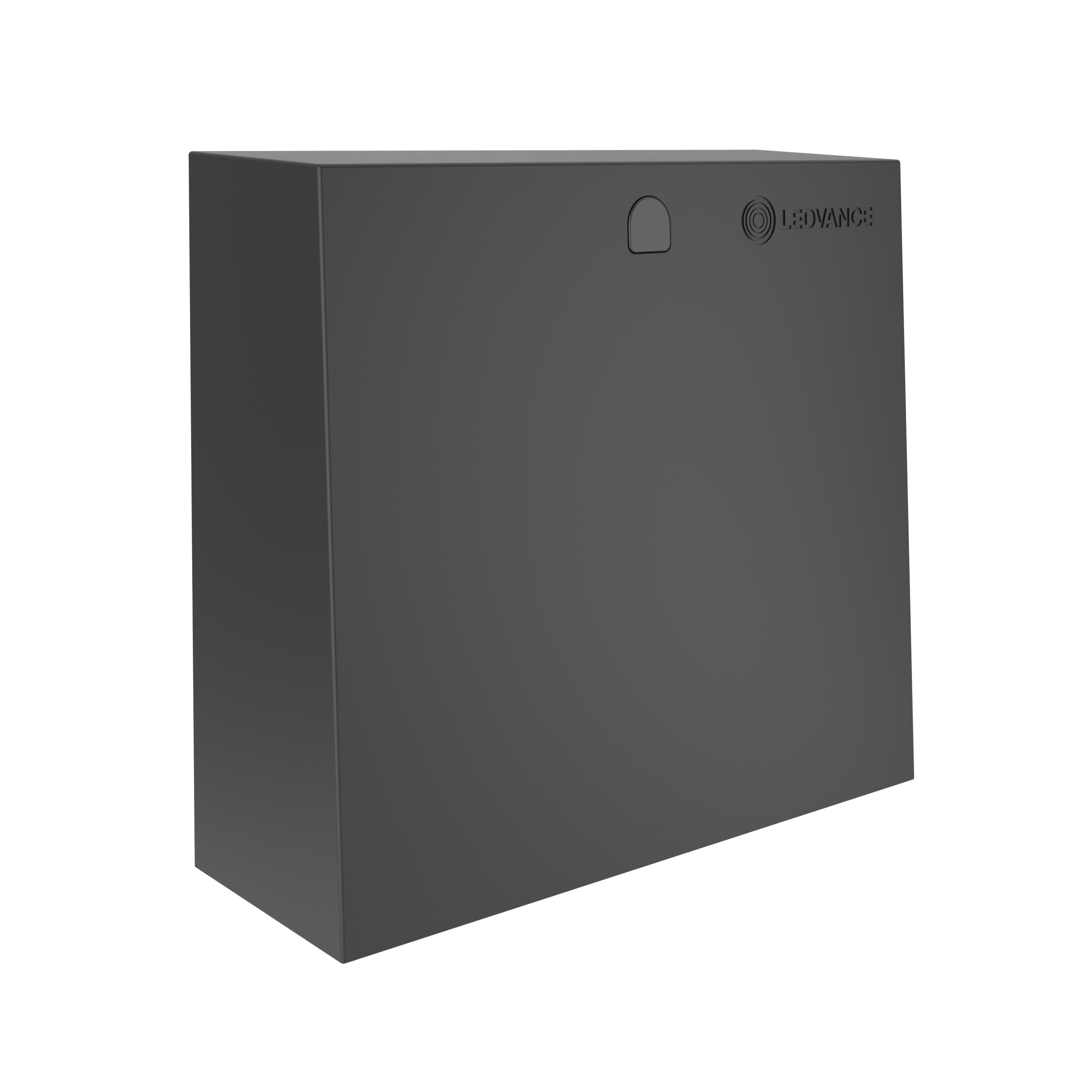

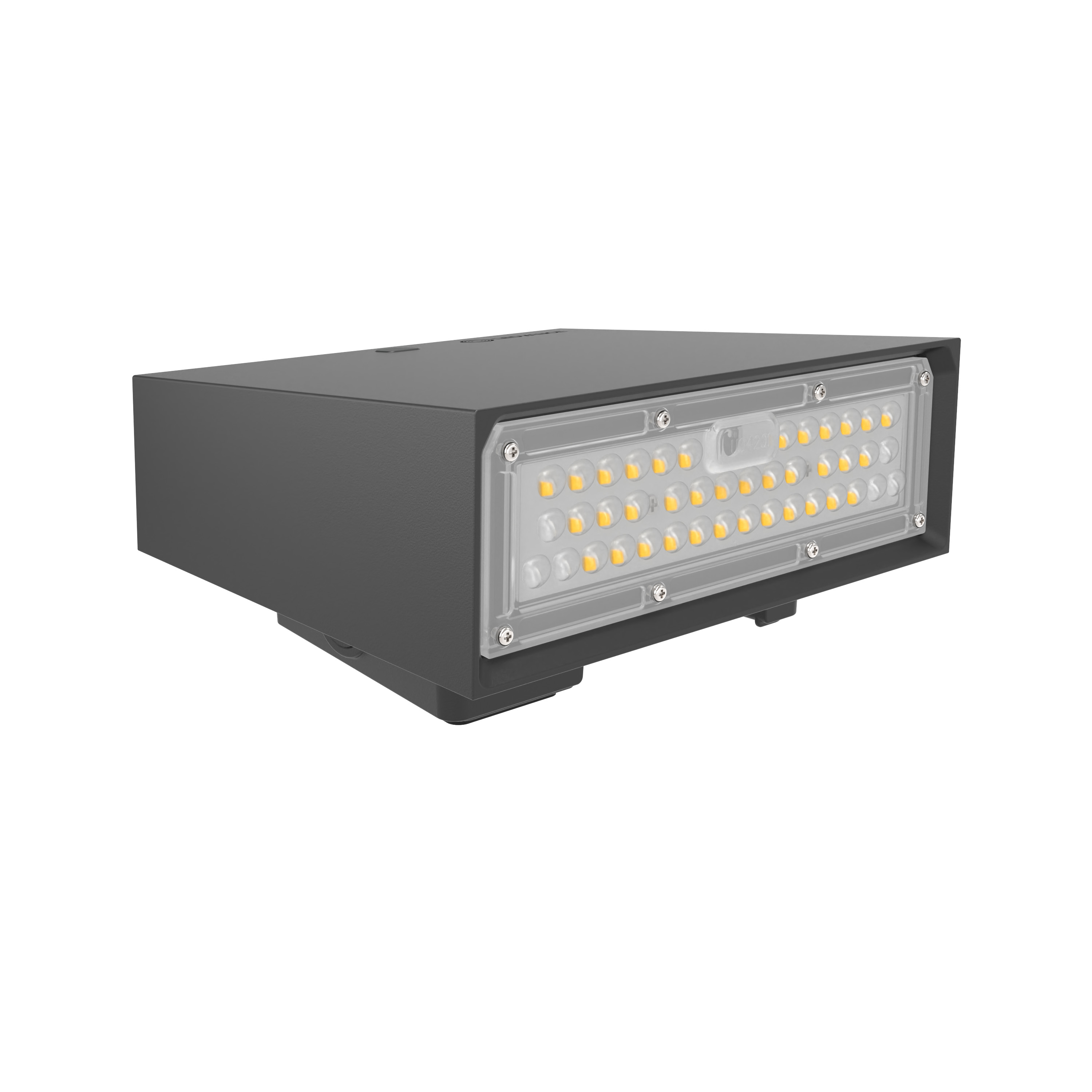

Product image: white background, diagonal
UB WALLPACK P LM GY JPG (428.56 KB)

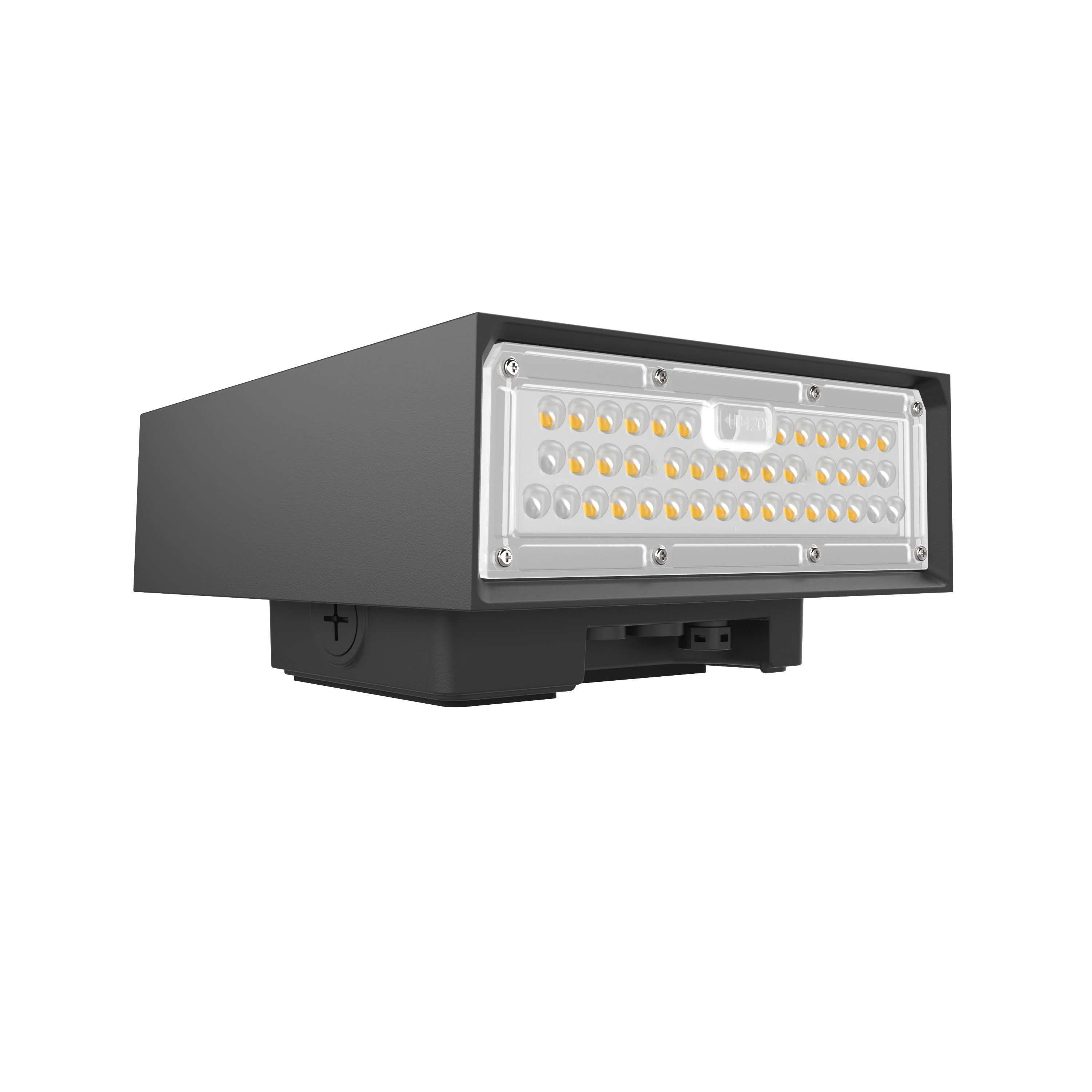

Product image: white background, diagonal, alternative image
UB WALLPACK P LM GY JPG (443.13 KB)

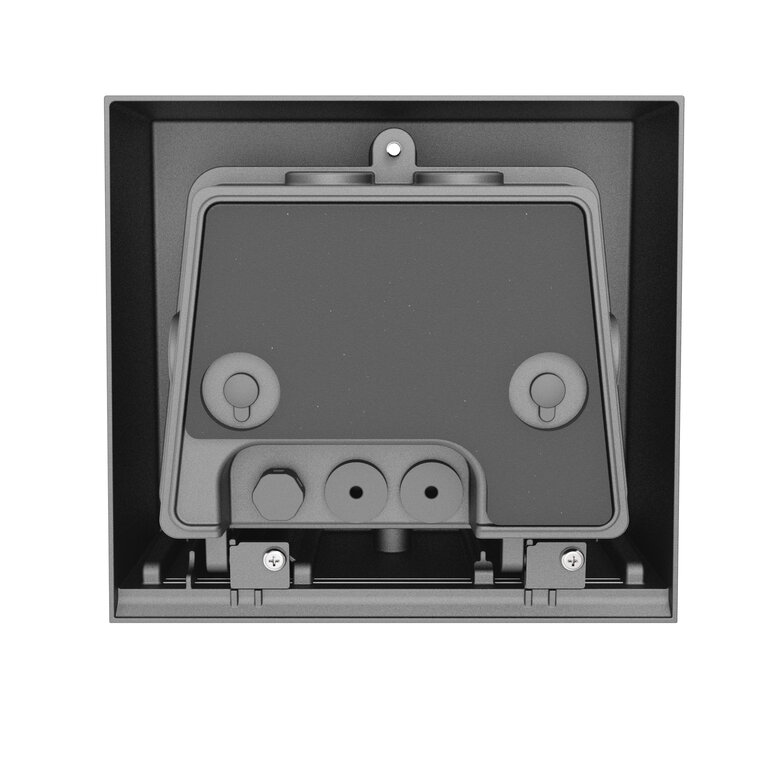

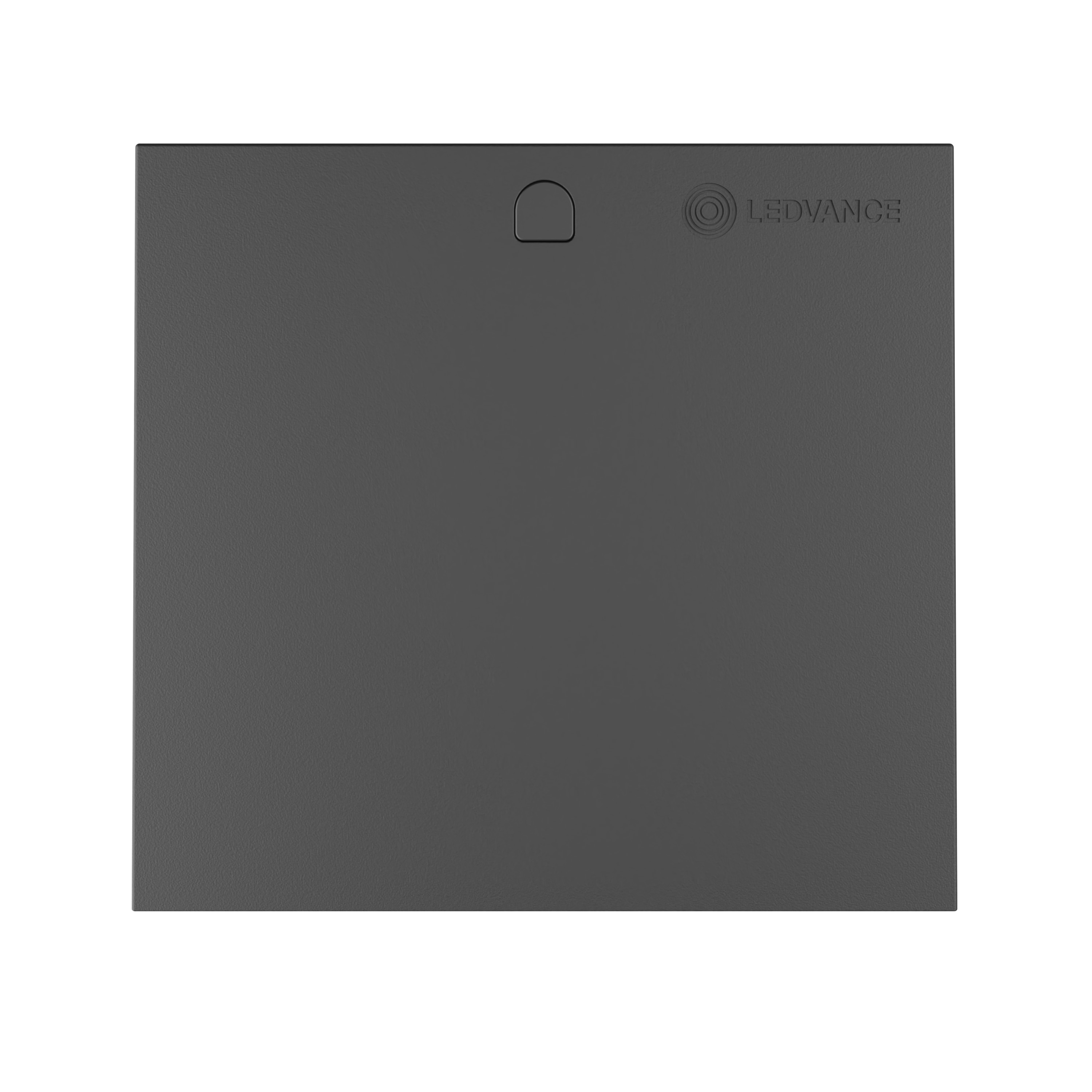

Product image: white background, upright
UB WALLPACK P LM GY JPG (641.49 KB)

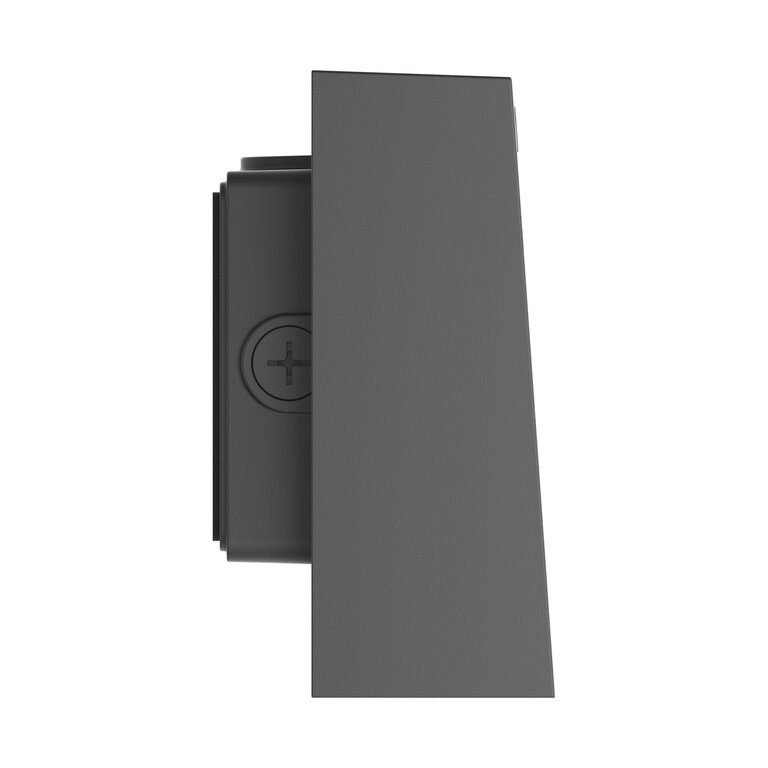

Product image: white background, upright, alternative image
UB WALLPACK P LM GY JPG (476.78 KB)
Product line drawing with letters
UB WALLPACK P SVG (15.77 KB)
Product line drawing with numbers
UB WALLPACK P SVG (19.13 KB)
Product line drawing - technical
UB WALLPACK P SVG (10.57 KB)
IES file (IES)
UB WALLPACK P 20W ML 8 40 GY LEDV IES (72.96 KB)
LDT file (Eulumdat)
UB WALLPACK P 20W ML 8 40 GY LEDV LDT (47.76 KB)
Light distribution curve type cone
UB WALLPACK P 20W ML 8 40 GY LEDV SVG (10.54 KB)
Light distribution curve type polar
UB WALLPACK P 20W ML 8 40 GY LEDV SVG (14.47 KB)
BIM Revit 3D
Urban Wallpack RFA (3.91 MB)
Tender documents
URBAN WALLPACK 20W ML 83040 GY-en TXT (2.24 KB)
EAN SEG number STK number
4099854592850 7706847 4544152
