Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

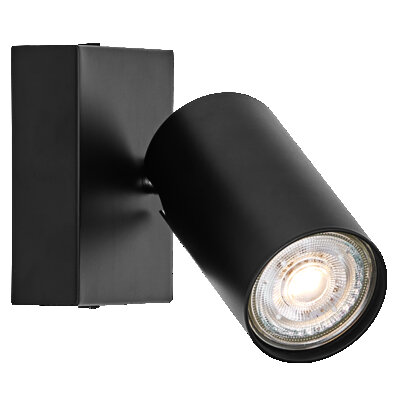

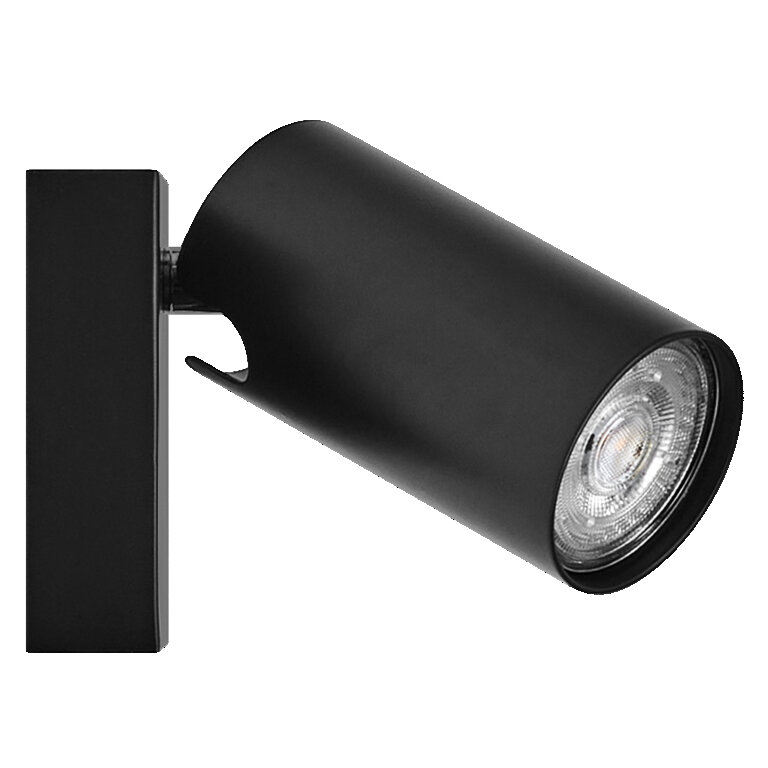

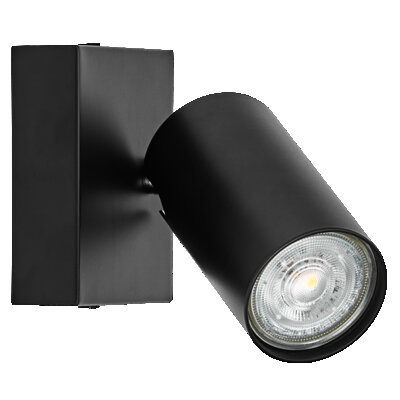

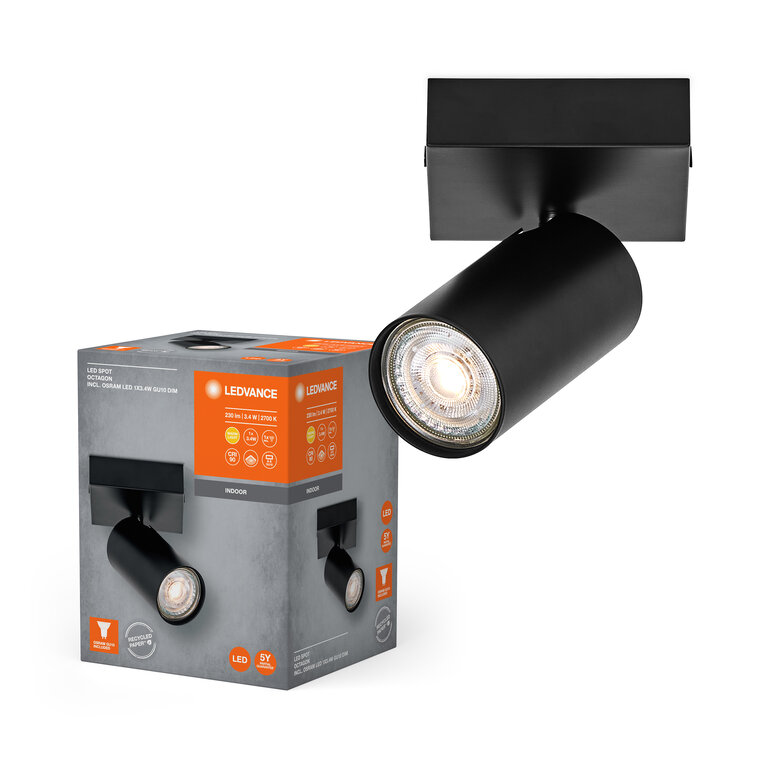

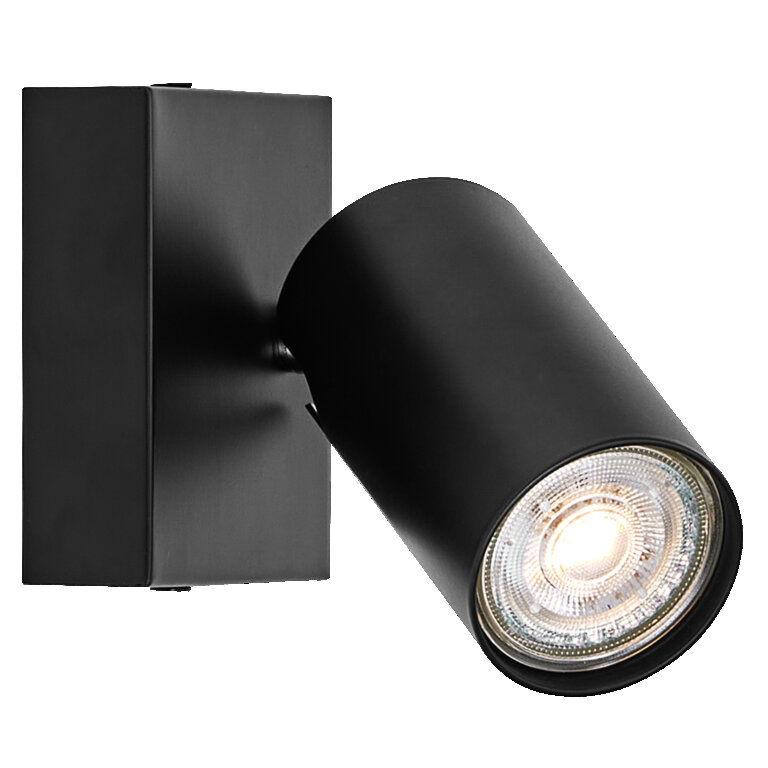

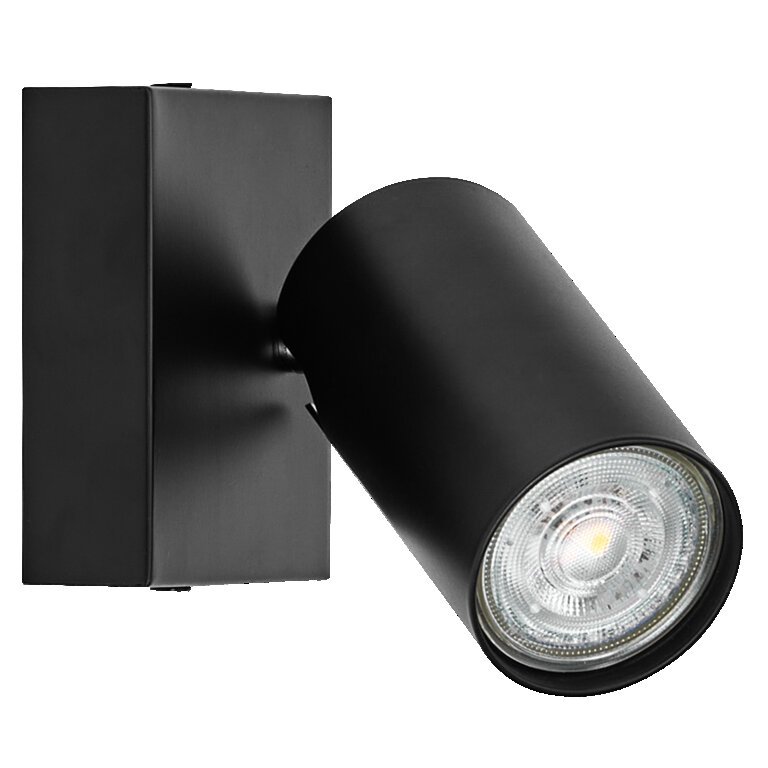

| LED Spot Octagon GU10 Black 1x3.4W 927 DIM | 3.40 W | 100000 | 36 ° | 230 lm | Yes |

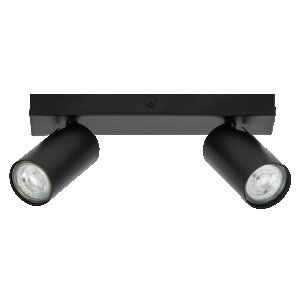

| LED Spot Octagon GU10 Black 2x3.4W 927 DIM | 6.80 W | 100000 | 36 ° | 460 lm | Yes |

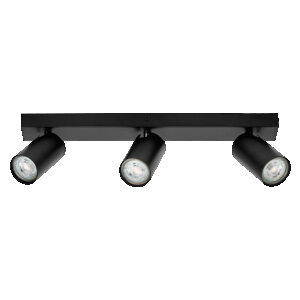

| LED Spot Octagon GU10 Black 3x3.4W 927 DIM | 10.20 W | 100000 | 36 ° | 690 lm | Yes |

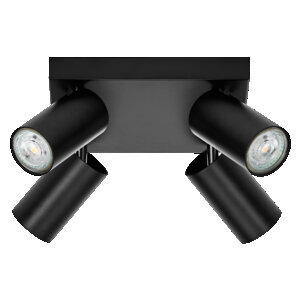

| LED Spot Octagon GU10 Black Plate 4x3.4W 927 DIM | 13.60 W | 100000 | 36 ° | 920 lm | Yes |

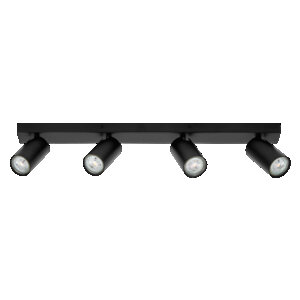

| LED Spot Octagon GU10 Black 4x3.4W 927 DIM | 13.60 W | 100000 | 36 ° | 920 lm | Yes |
| Nominal wattage | 3.40 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 17.000 mA |
| Inrush current | 0.9 A |
| Inrush current time Th50 | 600 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 152 |
| Max. number of luminaires per miniature circuit breaker C16 | 266 |
| Power factor λ | 0.70 |
| Total harmonic distortion | 66 % |
| Protection class | I |
| Operating mode | Mains voltage |
| Luminous flux | 230 lm |
| Total luminous flux of contained light sources | 230 lm |
| Luminous efficacy | 68 lm/W |
| Color temperature | 2700 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 90 |
| Standard deviation of color matching | 5 sdcm |
| Luminous intensity | 400 cd |
| Flickering metric (Pst LM) | <10 % |
| Stroboscope effect metric (SVM) | 0.3 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 36 ° |
| Length | 90.00 mm |
| Height | 105.00 mm |
| Width | 82.50 mm |
| Product weight | 270.00 g |
| Product color | Black |
| Housing color | Black |
| Body material | Steel |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+40 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Mounting type | Surface |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
| Holder designation | GU10 |
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Product remark | Maximum bulb wattage: 5 W LED |
| Number of illuminants | 1 |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

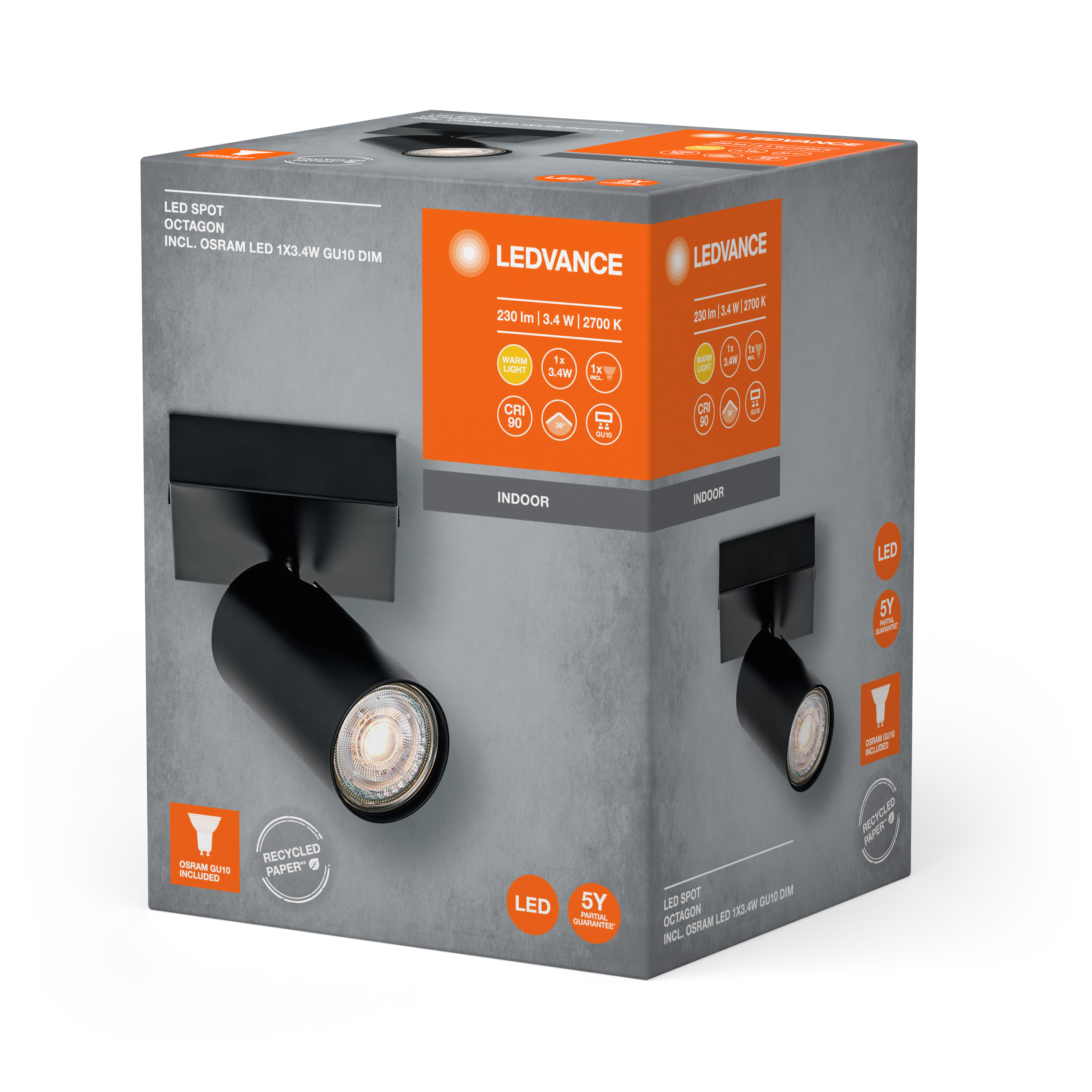

| 4058075828469 | Folding box 1 |
112 mm x 122 mm x 159 mm | 299.00 g | 2.17 dm³ |
| 4058075828476 | Shipping box 6 |
350 mm x 136 mm x 343 mm | 2117.00 g | 16.33 dm³ |
