Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

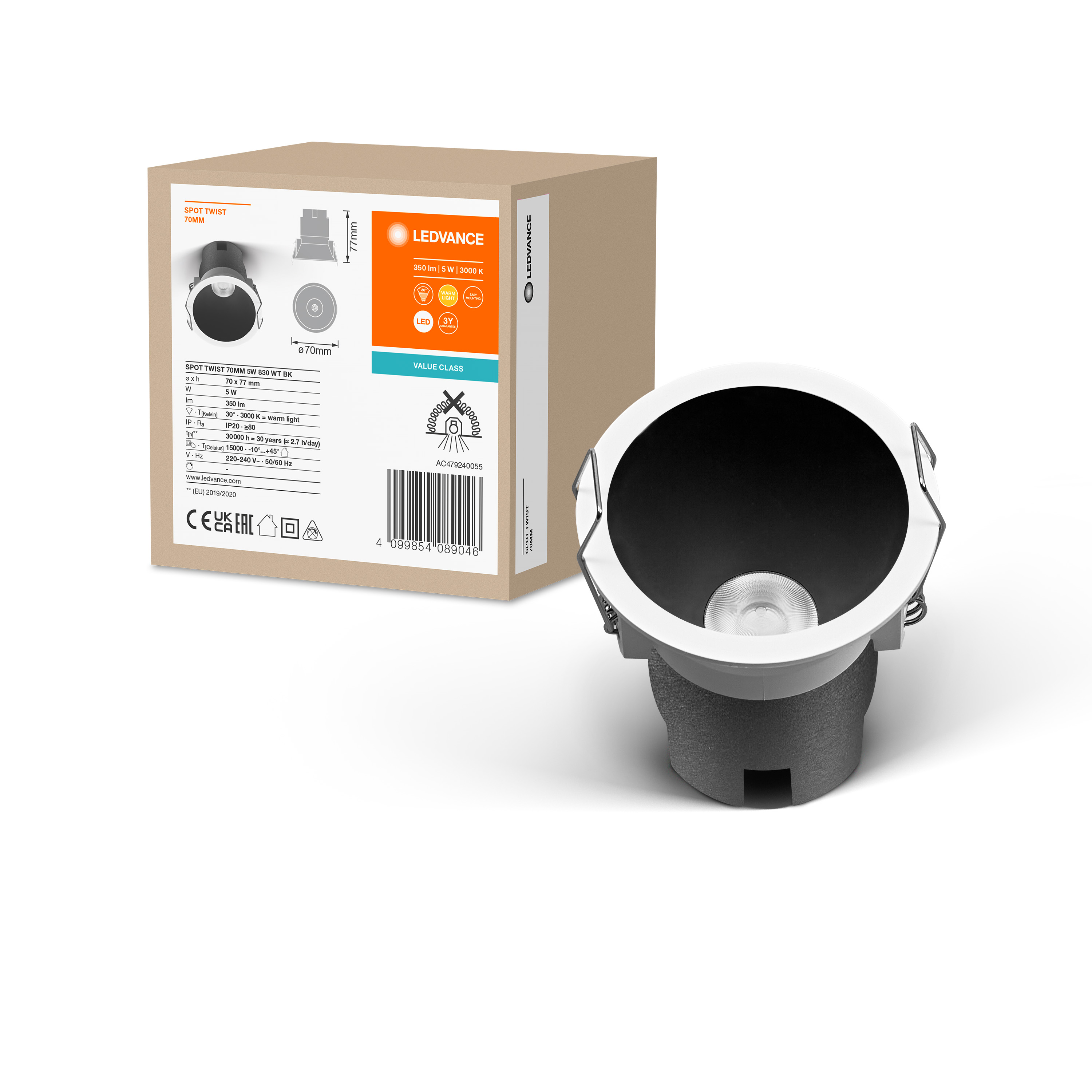

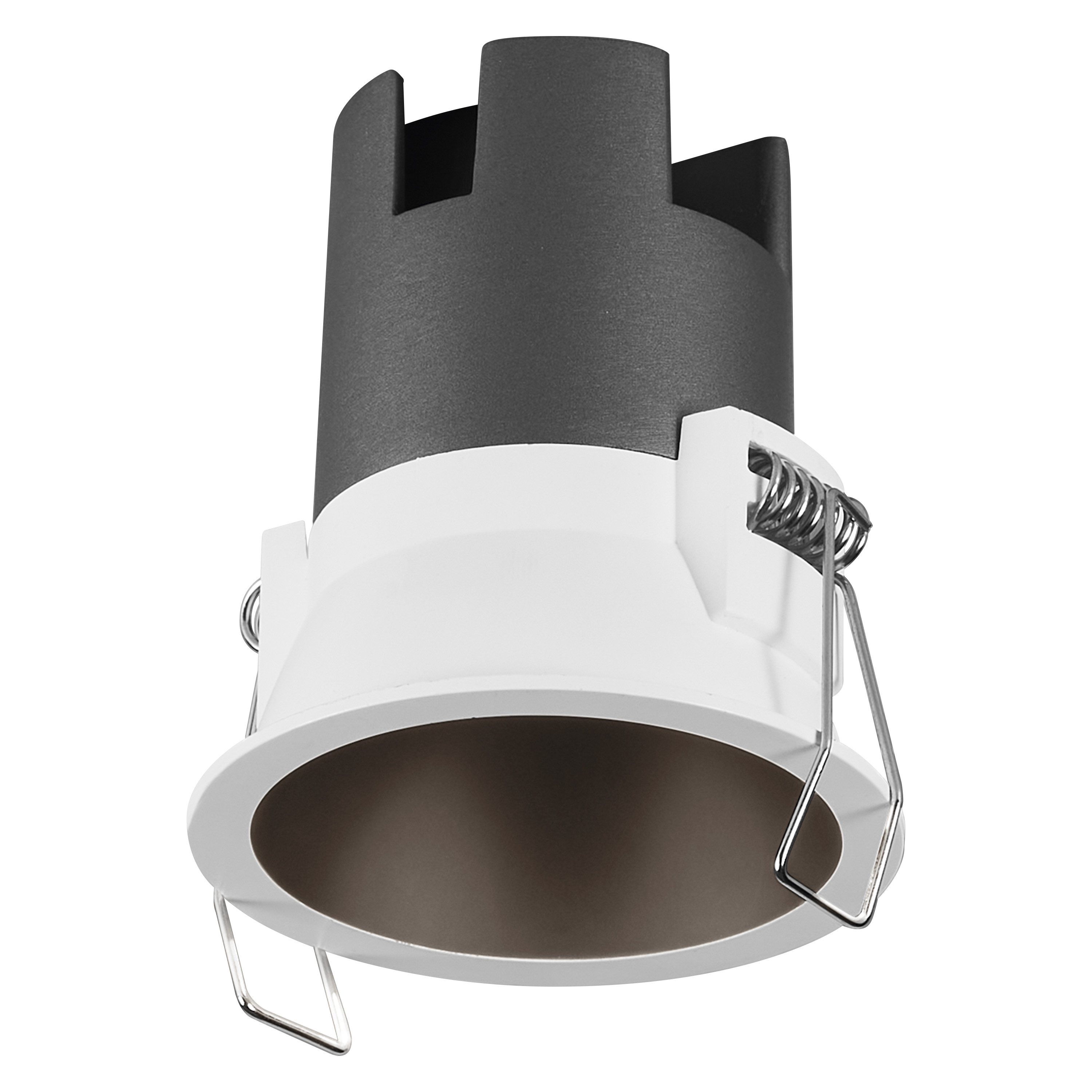

| Spot Twist 70mm 5W 3000K White Black | 5.00 W | 15000 | 30 ° | 350 lm | No |

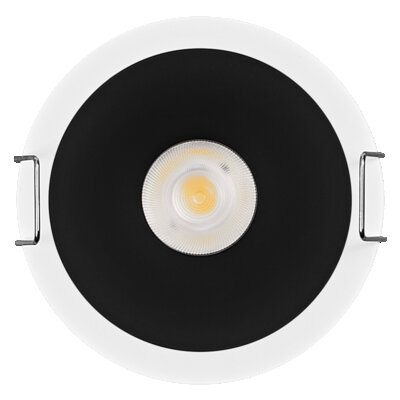

| Spot Twist 70mm 5W 4000K White Black | 5.00 W | 15000 | 30 ° | 350 lm | No |
| Spot Twist 70mm 5W 3000K White White | 5.00 W | 15000 | 30 ° | 400 lm | No |
| Spot Twist 70mm 5W 3000K White Silver | 5.00 W | 15000 | 30 ° | 400 lm | No |

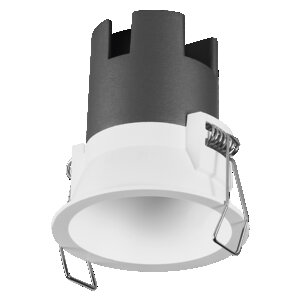

| Spot Twist 70mm 5W 4000K White White | 5.00 W | 15000 | 30 ° | 400 lm | No |
| Spot Twist 70mm 5W 4000K White Silver | 5.00 W | 15000 | 30 ° | 400 lm | No |
| Spot Twist 93mm 10W 3000K White Black | 10.00 W | 15000 | 30 ° | 700 lm | No |
| Spot Twist 93mm 10W 4000K White Black | 10.00 W | 15000 | 30 ° | 700 lm | No |
| Spot Twist 93mm 10W 3000K White White | 10.00 W | 15000 | 30 ° | 800 lm | No |
| Spot Twist 93mm 10W 3000K White Silver | 10.00 W | 15000 | 30 ° | 800 lm | No |
| Spot Twist 93mm 10W 4000K White Silver | 10.00 W | 15000 | 30 ° | 800 lm | No |

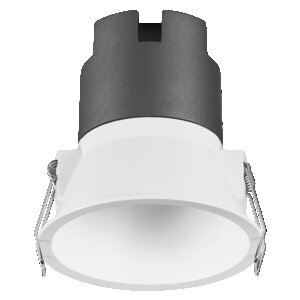

| Spot Twist 93mm 10W 4000K White White | 10.00 W | 15000 | 30 ° | 800 lm | No |
| Nominal wattage | 5.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 50.000 mA |
| Inrush current | < 15 A |
| Inrush current time Th50 | 10 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 250 |
| Max. number of luminaires per miniature circuit breaker C10 | 150 |
| Max. number of luminaires per miniature circuit breaker C16 | 250 |
| Power factor λ | ≥0.5 |
| Protection class | II |
| Operating mode | Mains voltage |
| Luminous flux | 350 lm |
| Luminous efficacy | 70 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Luminous intensity | 1050 |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0,4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 30 ° |
| Diameter | 70.00 mm |
| Height | 77.00 mm |
| Product weight | 155.00 g |
| Product color | White|Black |
| Housing color | White|Black |
| Body material | Aluminum|Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -10…+45 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal, 2-Pole (L,N) |
| Type of protection | IP20/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting diameter | 65 mm |
| Mounting depth | 100 mm |
| With light source | Yes |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 105 mA |
| ECG - Length | 82 mm |
| ECG - Width | 35 mm |
| ECG - Height | 25 mm |

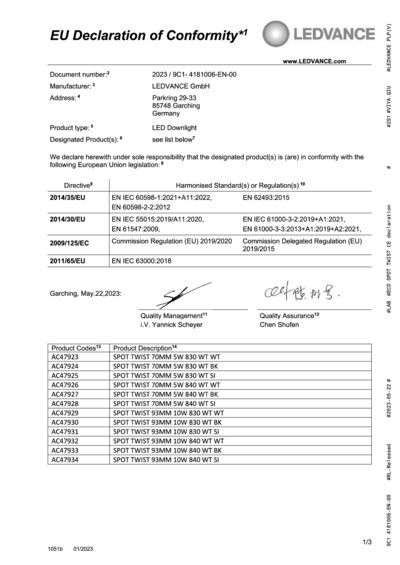

| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| Number of illuminants | empty |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

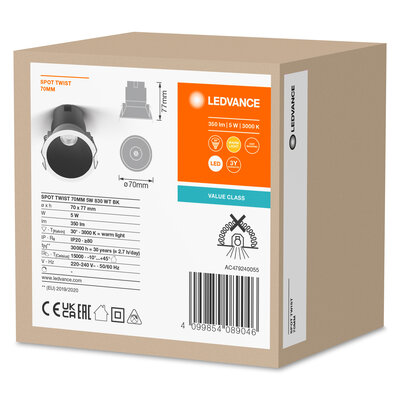

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854089046 | Folding box 1 |
89 mm x 104 mm x 104 mm | 194.00 g | 0.96 dm³ |
| 4099854089053 | Shipping box 20 |
530 mm x 230 mm x 205 mm | 4326.00 g | 24.99 dm³ |
