Choose your product version
| Product description | Nominal wattage | Beam angle | Luminous flux | Dimmable | |
|---|---|---|---|---|---|

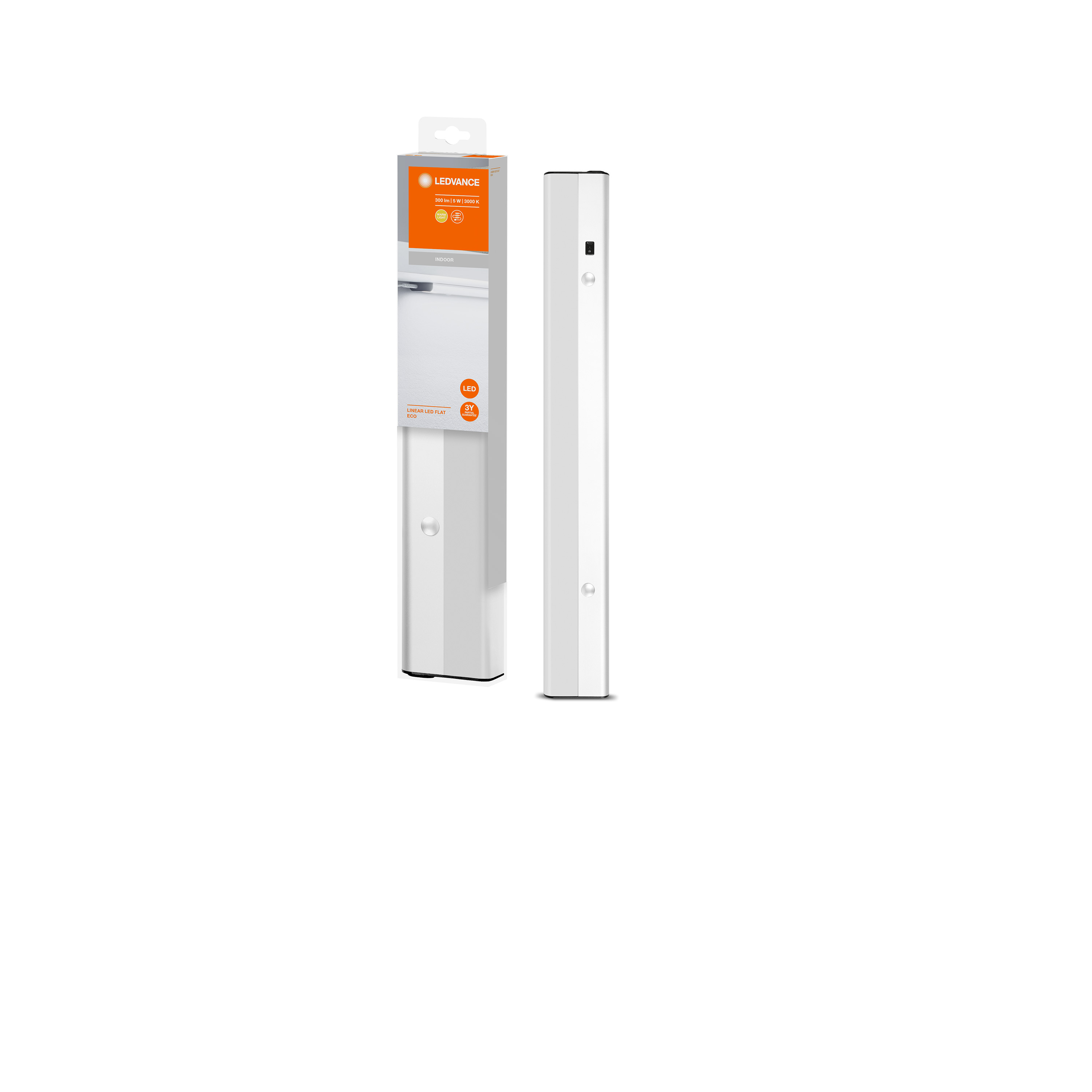

| Linear LED Flat Eco 6W 830 | 6.00 W | 120 ° | 300 lm | No | |
| Linear LED Flat Eco 6W 840 | 6.00 W | 120 ° | 320 lm | No | |
| Linear LED Flat Sensor 12W 830 | 12.00 W | 100000 | 120 ° | 760 lm | No |
| Linear LED Flat Sensor 12W 840 | 12.00 W | 100000 | 120 ° | 840 lm | No |
| Nominal wattage | 6.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 40.000 mA |
| Power factor λ | > 0.5 |
| Protection class | II |
| Luminous flux | 300 lm |
| Total luminous flux of contained light sources | 480 lm |
| Luminous efficacy | 64 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm white |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
| Length | 370.00 mm |
| Height | 22.00 mm |
| Width | 67.00 mm |
| Product weight | 325.00 g |
| Product color | Silver |
| Housing color | Silver |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |

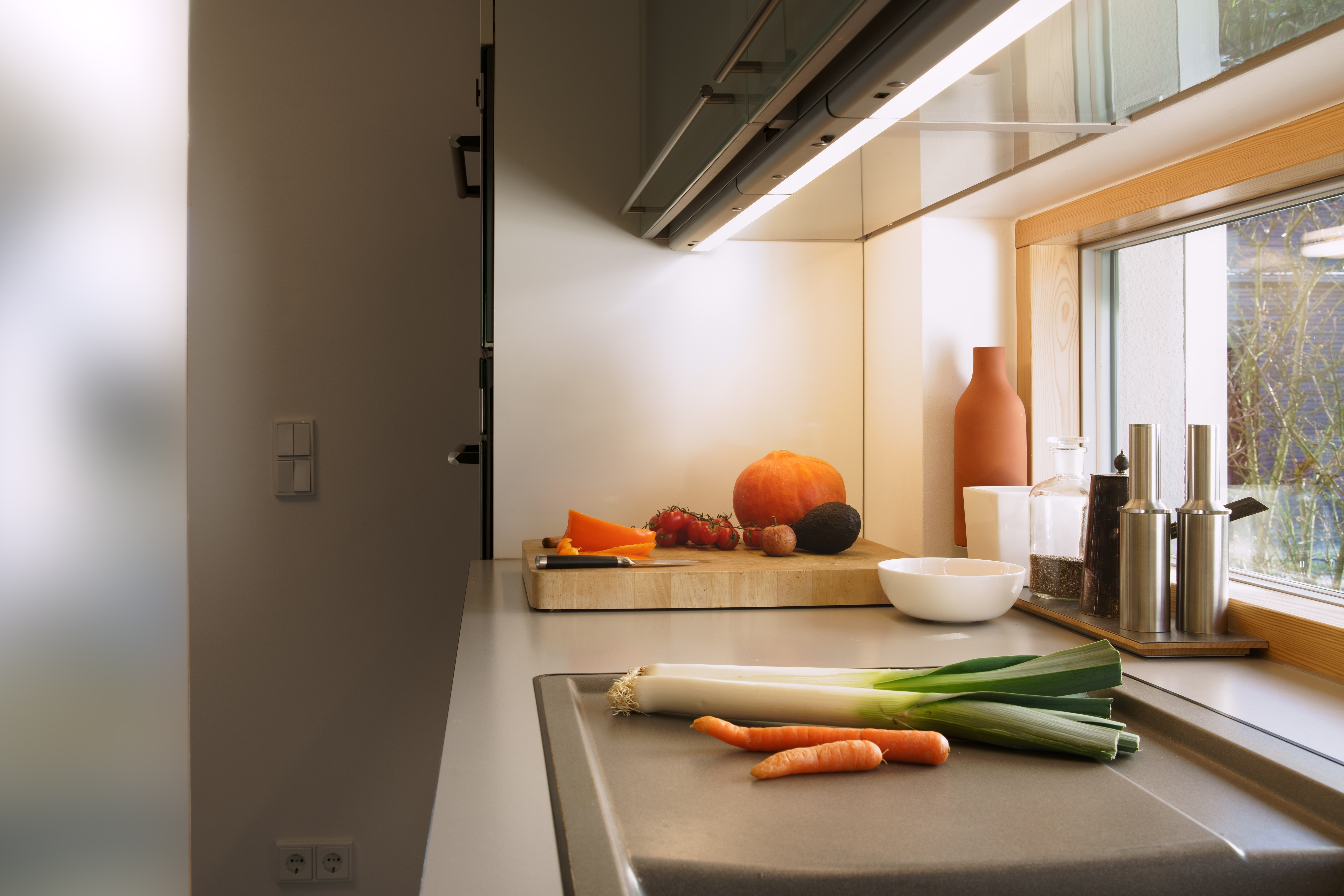

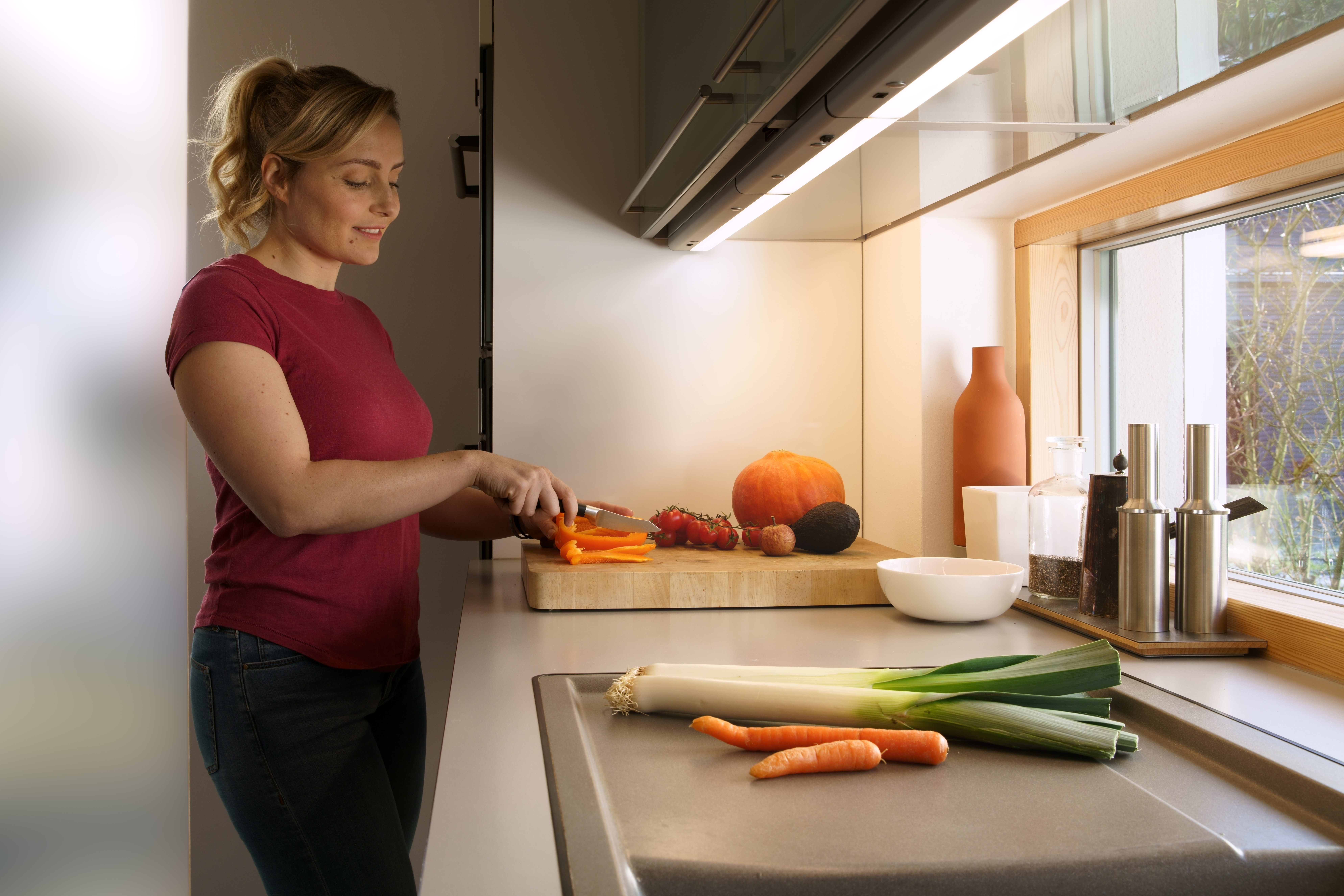

| Mounting location | Cabinet undersides |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 20000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

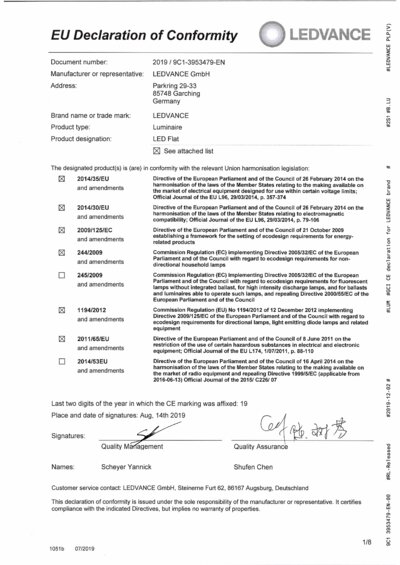

| Standards | CE, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854395826 | Folding box 1 |
49 mm x 80 mm x 415 mm | 426.00 g | 1.63 dm³ |
| 4099854395833 | Shipping box 8 |
430 mm x 215 mm x 185 mm | 3842.00 g | 17.10 dm³ |
