ENDURA CLASSIC LANTERN CYLINDER

Choose your product version

Cylinder E27 Wood

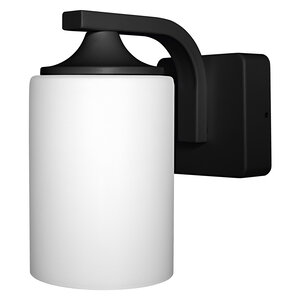

Cylinder E27 Black

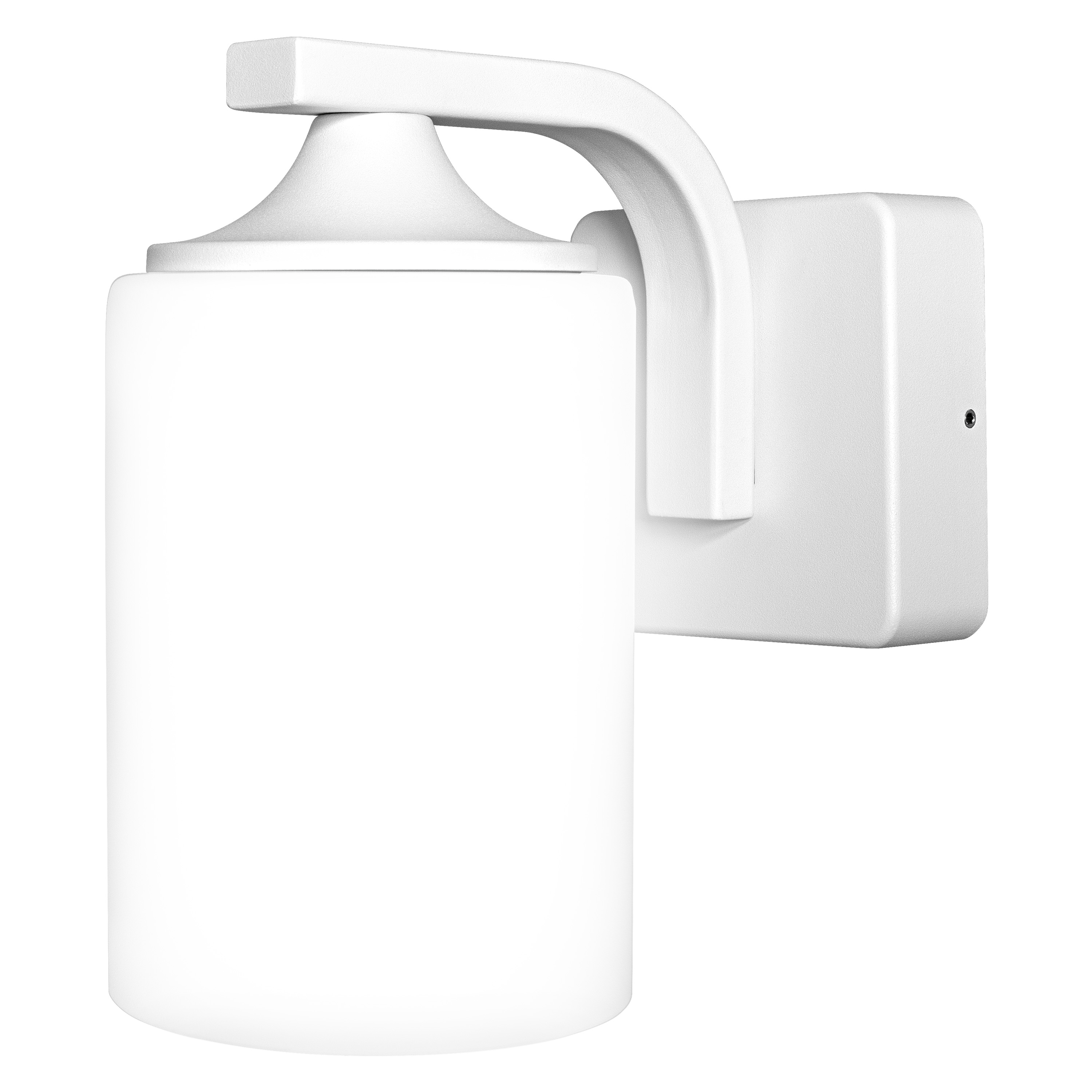

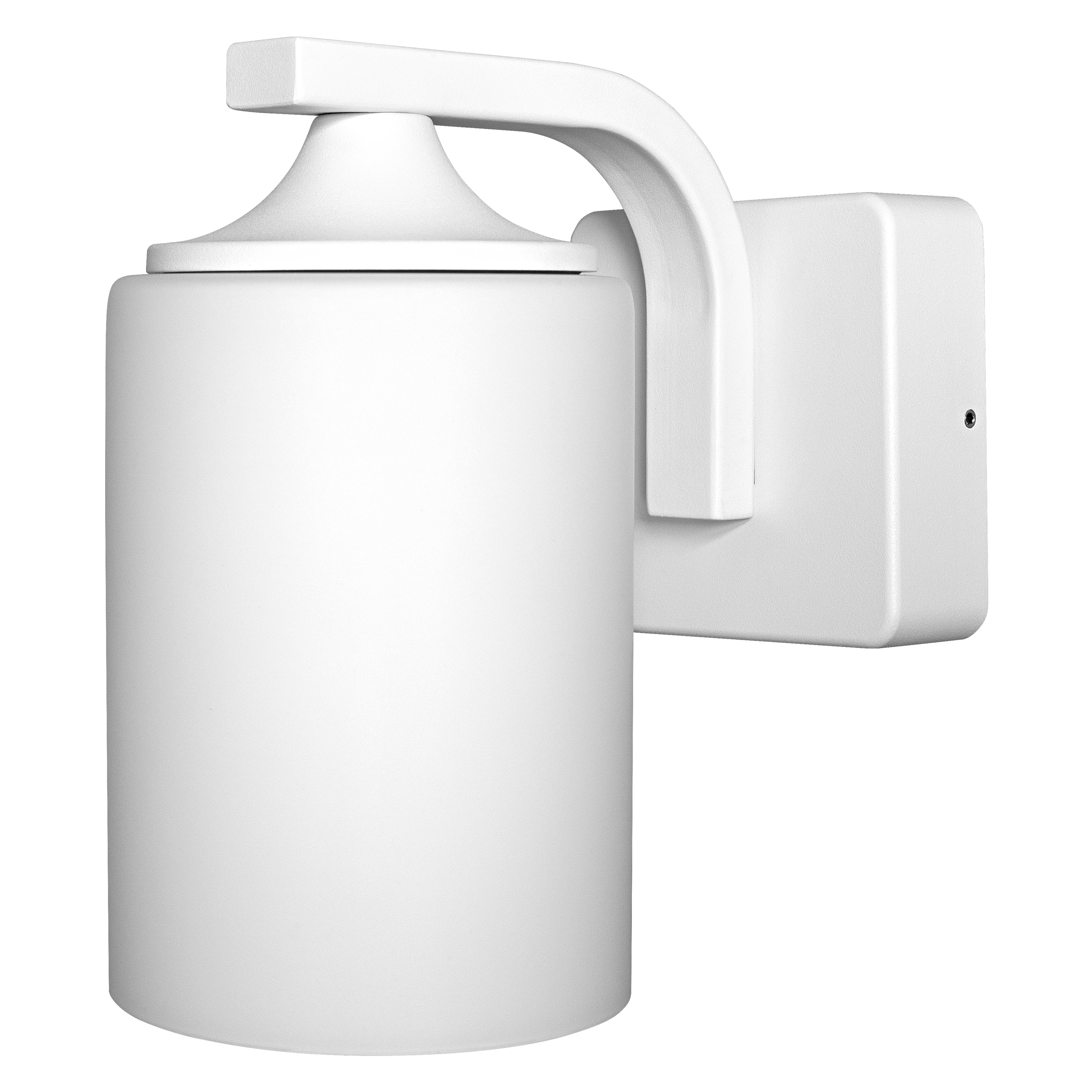

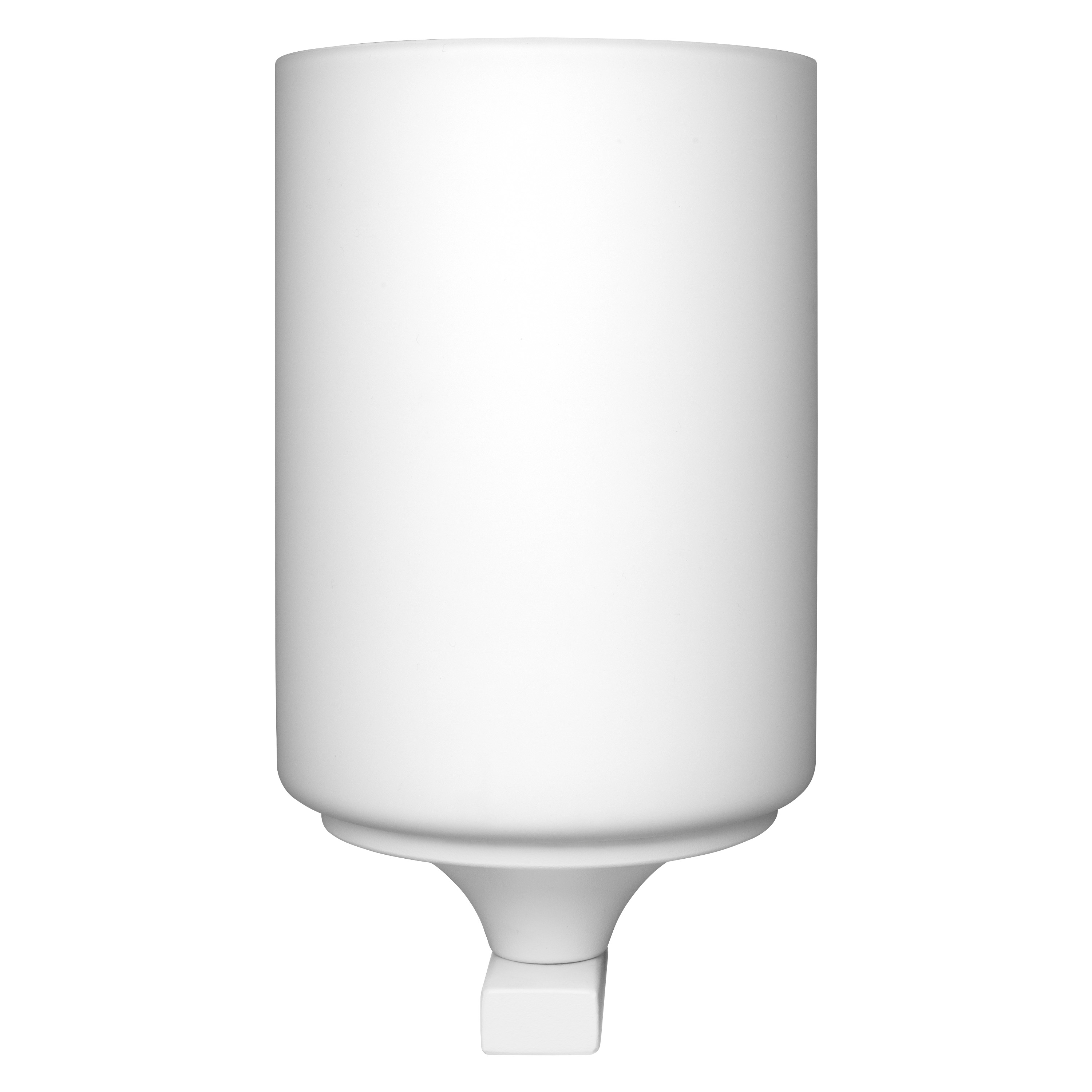

Cylinder E27 White

OVERVIEW

Product description Dimmable
ENDURA Classic Lantern Cylinder E27 Wood No
ENDURA Classic Lantern Cylinder E27 Black No
ENDURA Classic Lantern Cylinder E27 White No


ENDURA Classic Lantern Cylinder E27 Wood

Product benefits
  • High flexibility in the choice of the light source thanks to E27 socket
  • Easy and quick installation
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class I
Operating mode Mains voltage

Dimensions & Weight

Diameter 118.0 mm
Length 210.00 mm
Height 212.00 mm
Width 118.00 mm
Product weight 1200.00 g

Materials & Colors

Product color Wood decor
Housing color Wood decor
Body material Aluminum
Cover material Glass
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+40 °C
Type of connection Screw terminal
Type of protection IP43
Dimmable No
Mounting type Surface
Mounting location Wall
Application environment Outdoor
With light source No
Replaceable light source No
Holder designation E27

Certificates & Standards

Standards CE, EAC, UKCA
Luminaire with limited surface temperature, "D sign" No

Additional product data

Product remark Maximum bulb wattage: 60 W
Number of illuminants 1

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • High flexibility in the choice of the light source thanks to E27 socket
  • Easy and quick installation
Areas of application
  • Entrance lighting
  • Patios, balconies
Product features
  • Diffuser made of frosted glass
  • Die-cast aluminum housing
  • Type of protection: IP43
Equipment / Accessories
  • Complete mounting and connecting accessories included
  • No light sources included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075392625 Folding box
1		 242 mm x 152 mm x 243 mm 1375.00 g 8.94 dm³
4058075392632 Shipping box
4		 506 mm x 324 mm x 273 mm 6250.00 g 44.76 dm³

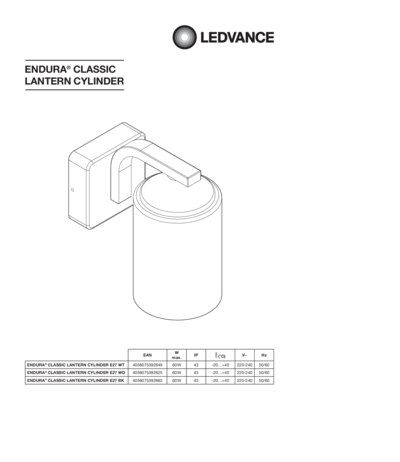

User instruction / safety instructions
ENDURA CLASSIC LANTERN CYLINDER PDF (643.5 KB)
Legal information
Legal insert I-Outdoor PDF (2.62 MB)

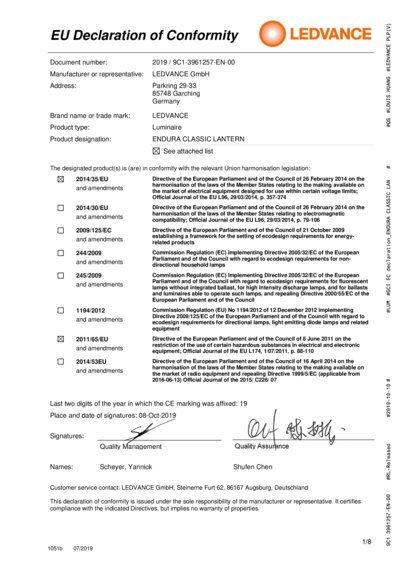

Declarations of conformity
ENDURA CLASSIC LANTERN CYL PDF (165.2 KB)

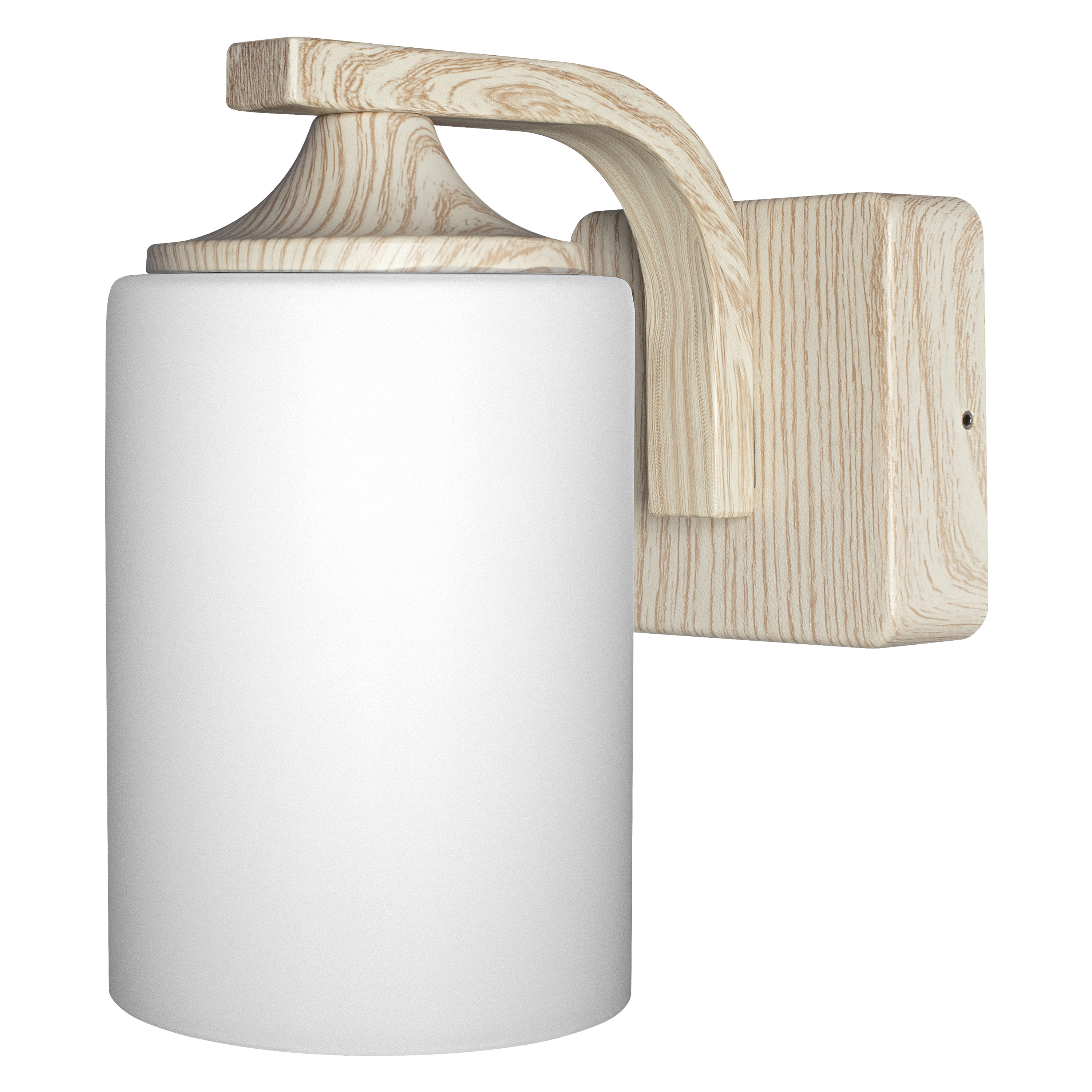

Product image: white background, upright
ENDURA CLASSIC LANTERN CYL E27 WD JPG (1.54 MB)

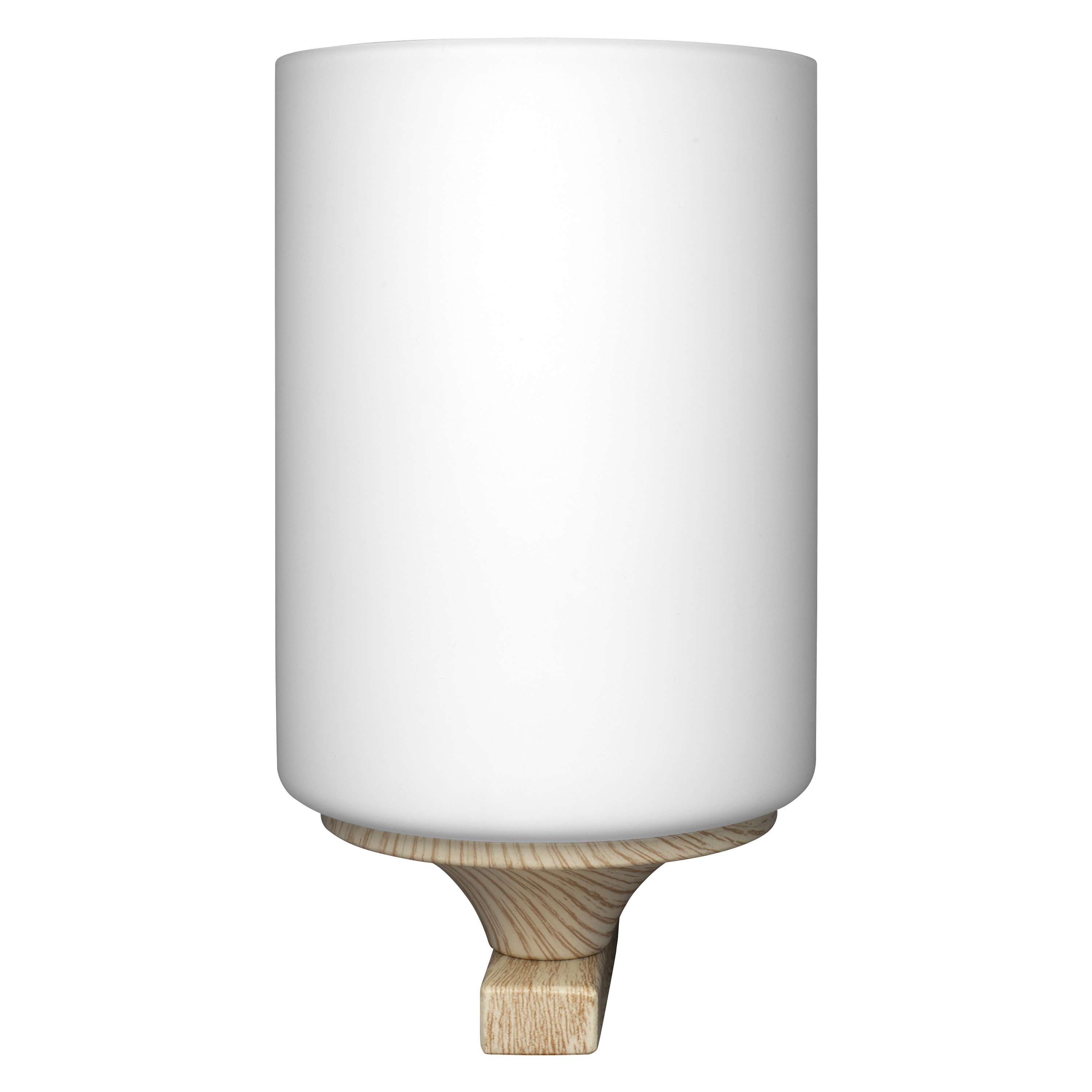

Product image: white background, upright, alternative image
ENDURA CLASSIC LANTERN CYL E27 WD JPG (630.48 KB)

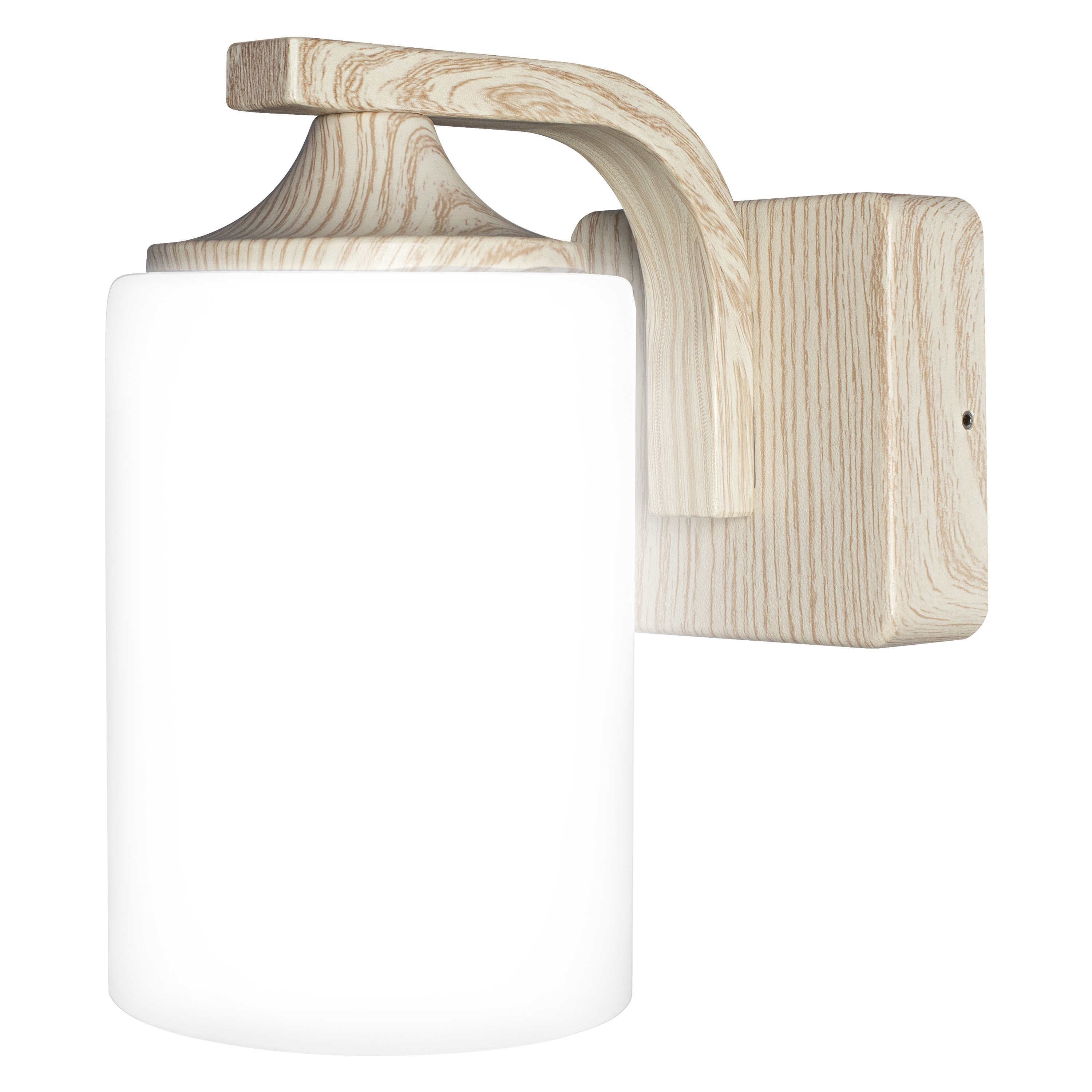

Product image: white background, upright, switched on
ENDURA CLASSIC LANTERN CYL E27 WD JPG (858.37 KB)
Product line drawing with letters
ENDURA CLASSIC LANTERN CYL E27 SVG (13.57 KB)
Product line drawing with numbers
ENDURA CLASSIC LANTERN CYL E27 SVG (13.68 KB)
Product line drawing, front, no dimensions
ENDURA CLASSIC LANTERN CYL E27 SVG (8.24 KB)

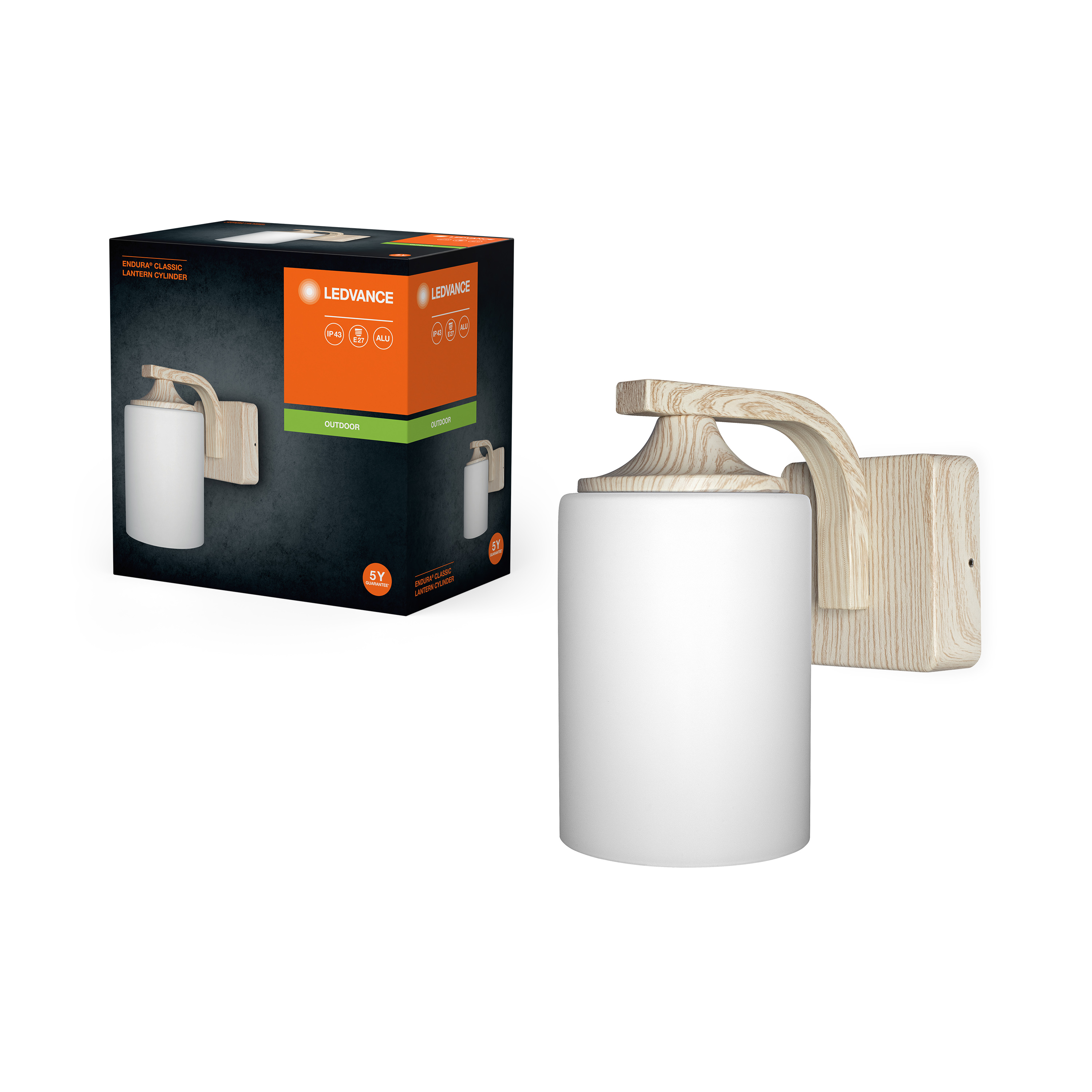

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC LANTERN CYL E27 WD MiPRC JPG (732.16 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC LANTERN CYL E27 WD MiPRC JPG (1.33 MB)

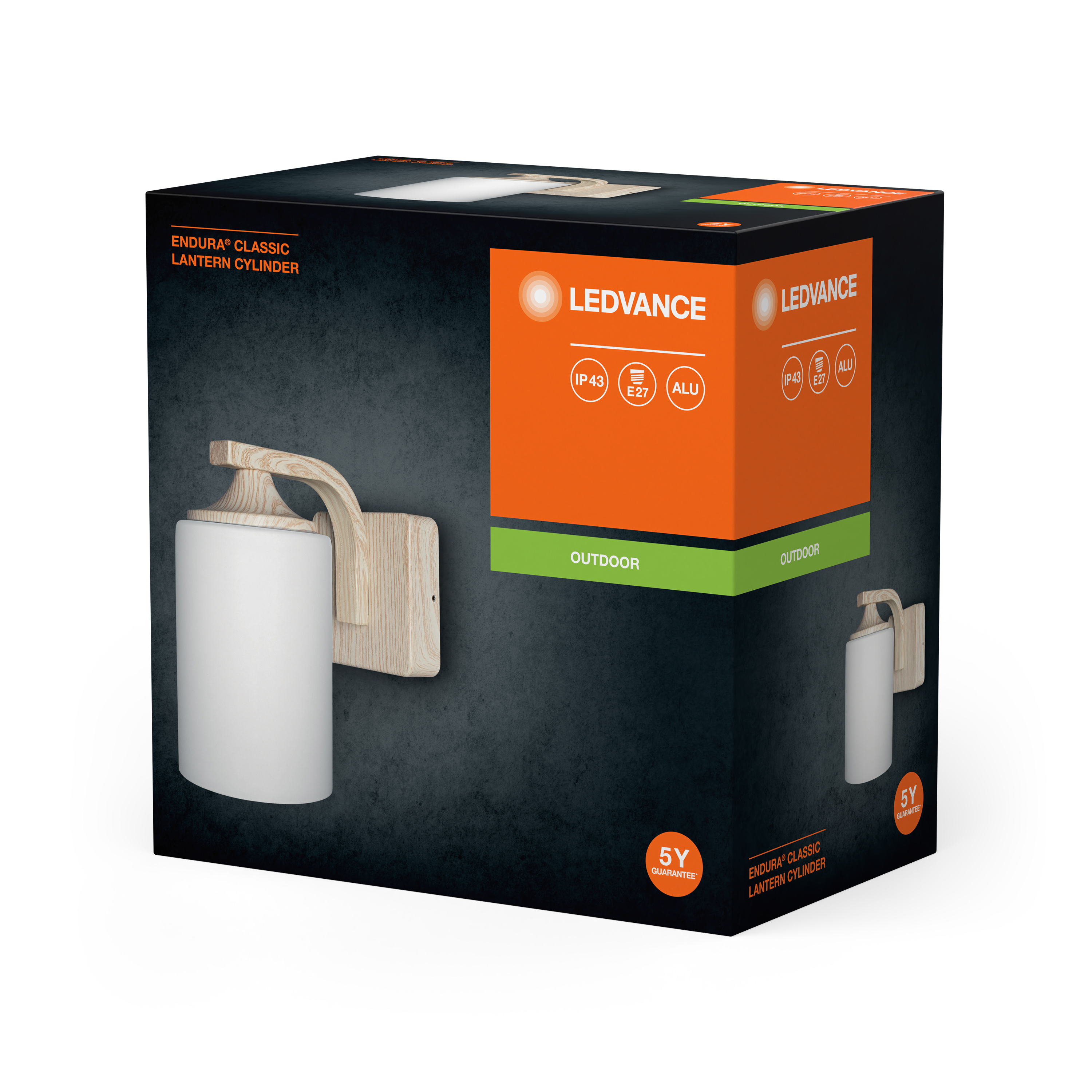

Packaging image, frontal
LUM_FC_EC_LANTERN_CYL_ E27_WD_MiPRC JPG (1.44 MB)
Packaging image, spacial
LUM_FC_EC_LANTERN_CYL_ E27_WD_MiPRC JPG (1.52 MB)

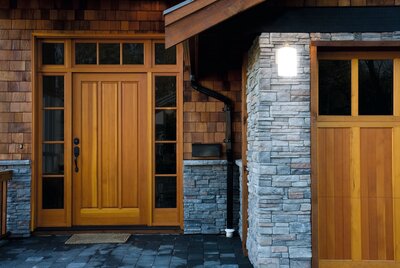

Application pictures
ENDURA CLASSIC LANTERN CYL WD TIF (26.18 MB)
EAN ELDAS number
4058075392625 941200030
