HYBRID INVERTER LOW VOLTAGE SINGLE PHASE

Choose your product version

3.6K F1-DC-WIET-CT

5K F1-DC-WIET-CT

8K F1-DC-WIET-CT

OVERVIEW

Product description
LHS-LV 3.6K F1-DC-WIET-CT
LHS-LV 5K F1-DC-WIET-CT

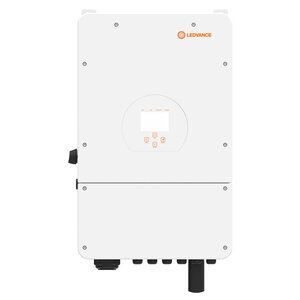

LHS-LV 8K F1-DC-WIET-CT


LHS-LV 3.6K F1-DC-WIET-CT

Product benefits
  • 10 years of product guarantee
  • Built-in color LCD touchscreen next to buttons
  • Supports storing energy directly from a diesel generator
  • Compatible with many energy storage systems manufacturers
  • Possible selection of different work modes
  • Inverter is powered by the grid or the battery and is independent of the PV panels
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Output phases Single phase
Max. input power DC 4.68 kW
Input voltage DC 370 V
MPP voltage 150-425 V
Max. input current DC 13 A
Max. input current DC per string input 13 A
Max. input current DC per MPP tracker 13 A
Max. short circuit current per MPPT 17 A
Number of independent MPPT inputs 2
String connections per MPPT input 1
Nominal output power AC 3.6 kW

Dimensions & Weight

Length 330 mm
Width 232 mm
Height 580 mm
Product weight 22500.000 g

Additional product data

Integrated DC switch Yes
Connection DC for battery Yes
Suitable for emergency power Yes
Charging controller integrated Yes
With data logging Yes
Wireless Yes
Display Standard
Ethernet Yes
Integrated transformer Yes
Type of connection MC4-Compatible
Temperature range in operation -25…+60 °C 1)
Ambient temperature range -40…+60 °C
Outdoor application No
Type of protection IP65
Product color White

1) > 45℃ derating

Efficiency

Maximum efficiency 97.60 %
European efficiency 96.50 %

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1) 1,3,5-Triazine-2,4,6-triamine (68649-66-1) Tetrabromobisphenol A (79-94-7) Dodecamethylcyclohexasiloxane [D6] (540-97-6) Bisphenol A (BPA) (80-05-7)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • 10 years of product guarantee
  • Built-in color LCD touchscreen next to buttons
  • Supports storing energy directly from a diesel generator
  • Compatible with many energy storage systems manufacturers
  • Possible selection of different work modes
  • Inverter is powered by the grid or the battery and is independent of the PV panels
Areas of application
  • Residential installations
Product features
  • Colorful touchable display LCD screen, IP65 protection degree
  • Cooling by natural convection
  • DC couple and AC couple to retrofit existing solar system
  • Max. charging and discharging current of 90 A, 120 A and 135 A
  • Support energy storage from diesel generator
  • 6 time period setting for battery charging and discharging
Equipment / Accessories
  • Mounting bracket included
  • Data logger included
  • Allen key included
  • Supplied with user manual
  • Additional battery connectors for the outlets on the inverter
  • Additional DC connectors for the outlets on the inverter
  • CT clamps included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854147944 Shipping box
1		 435 mm x 425 mm x 275 mm 27000.00 g 50.84 dm³
User instruction / safety instructions

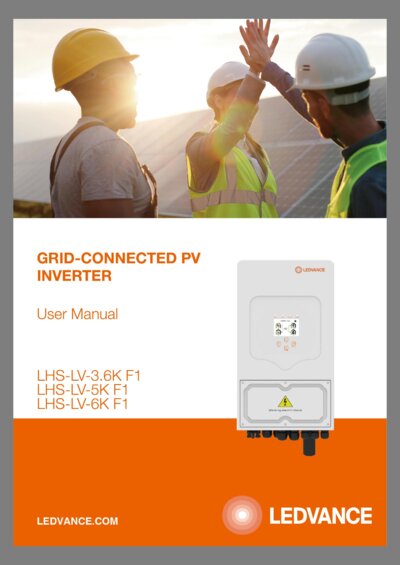

Single Phase Hybrid In verter 3.6-6K F1 PDF (7.49 MB)
Declarations of conformity

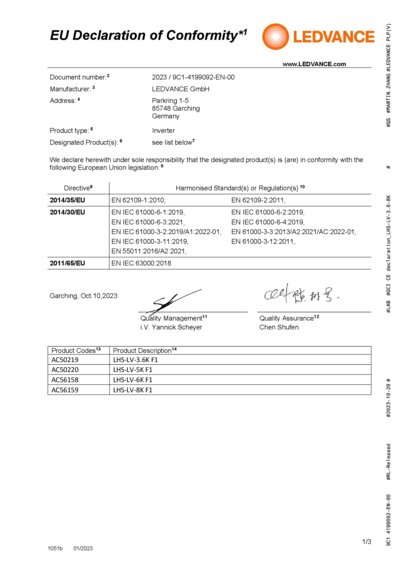

CE declaration_LHS-LV- 3.6-8K PDF (269.78 KB)
Product family datasheet

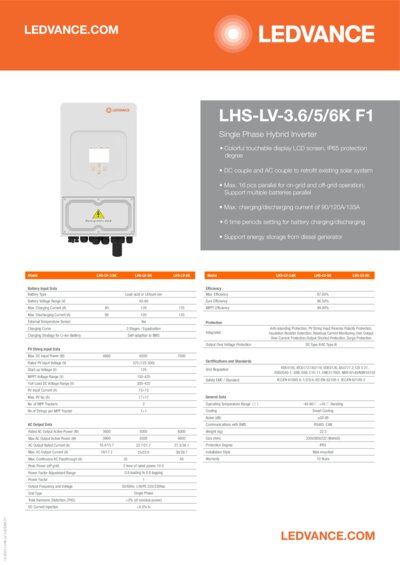

LHS LV 3.6-6K F1 PDF (132.26 KB)

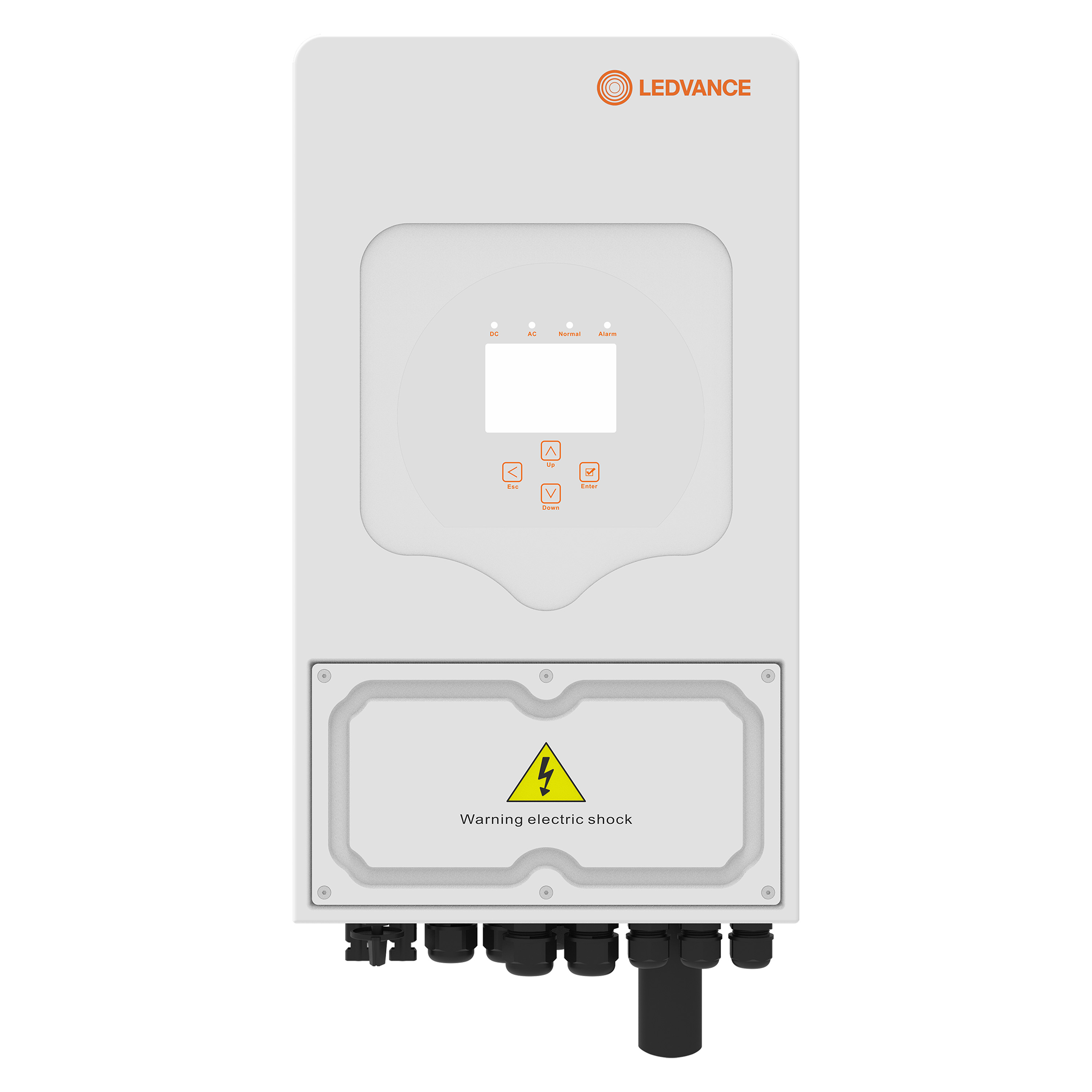

Product image: white background, upright
LHS LV 3.6-6K F1 JPG (485.41 KB)
Video

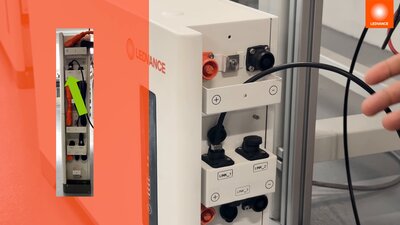

How to Connect a Low V oltage Battery to a Si ngle-Phase Hybrid Inve rter MP4 (117.24 MB)
Video
How to Commission LEDV ANCE Hybrid Inverter MP4 (170.67 MB)
