STRING INVERTER THREE PHASE COMFORT 50 - 60 K

STRING INVERTER THREE PHASE COMFORT 50 - 60 K

Choose your product version

50K F2-DC-AFCI-WIET

60K F2-DC-AFCI-WIET

OVERVIEW

Product description
LT 50K F2-DC-AFCI-WIET
LT 60K F2-DC-AFCI-WIET


LT 50K F2-DC-AFCI-WIET

Product benefits
  • 10 years of product guarantee
  • Built-in LCD display
  • Wide voltage range and low startup voltage
  • AFCI protection, proactively reduces fire risk
  • Level II surge protection on AC and DC side
  • Automatic voltage stabilization technology in weak grid conditions
  • Easy installation
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Output phases 3-phase
Max. input power DC 75 kW
Input voltage DC 600 V
MPP voltage 180 - 1000 V
Max. input current DC 32 A
Max. input current DC per string input 16 A
Max. input current DC per MPP tracker 32 A
Max. short circuit current per MPPT 40 A
Number of independent MPPT inputs 5
String connections per MPPT input 2
Nominal output power AC 50 kW
Power consumption <1 W

Dimensions & Weight

Length 691 mm
Width 338 mm
Height 578 mm
Product weight 54500.000 g

Additional product data

Integrated DC switch Yes
Connection DC for battery No
Suitable for emergency power No
Charging controller integrated No
With data logging Yes
Wireless Yes
Display Standard
Ethernet Yes
Integrated transformer No
Type of connection Staubli MC4
Temperature range in operation -25…+60 °C
Ambient temperature range -25…+60 °C
Outdoor application No
Type of protection IP66
Product color White

Efficiency

Maximum efficiency 98.70 %
European efficiency 98.30 %

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Bisphenol A (BPA) (80-05-7) Tetraboron disodium heptaoxide, hydrate (12267-73-1) Boric Acid Orthoboric acid, sodium salt (13840-56-7) Lead (7439-92-1) 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one (71868-10-5 ) Dodecamethylcyclohexasiloxane [D6] (540-97-6)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • 10 years of product guarantee
  • Built-in LCD display
  • Wide voltage range and low startup voltage
  • AFCI protection, proactively reduces fire risk
  • Level II surge protection on AC and DC side
  • Automatic voltage stabilization technology in weak grid conditions
  • Easy installation
Areas of application
  • Commercial and industrial installations
  • Utility installations
Product features
  • Smart fan cooling
  • Integrated DC switch
  • Protection rating: IP66
  • Original Stäubli MC4 connectors
Equipment / Accessories
  • Mounting bracket included
  • Data logger included
  • AC terminal cover included
  • Supplied with user manual
  • Additional DC connectors for the outlets on the inverter
  • Supplied with 16-pin COM connector and unlocking tool
  • Cross bolts and screws included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854168062 Shipping box
1		 855 mm x 755 mm x 446 mm 58436.00 g 287.90 dm³

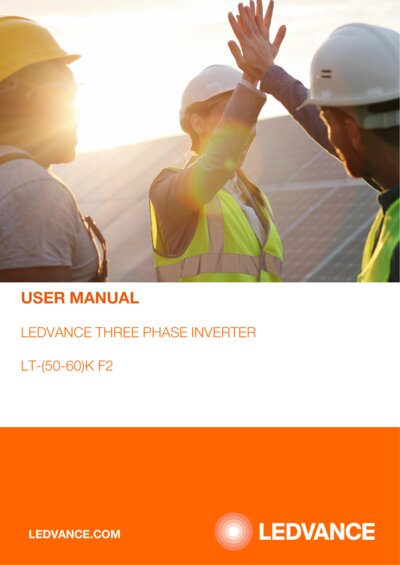

User Instruction / Safety Instructions
Three Phased String In verter 50-60K F2 User Manual PDF (4.63 MB)

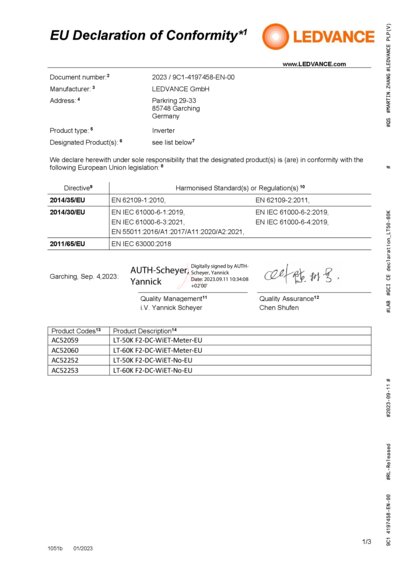

Declarations of conformity
CE declaration_LT50-60 K PDF (592.97 KB)

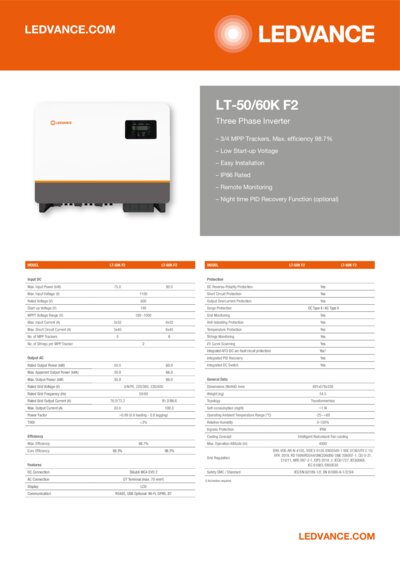

Product Family Datasheet
LT 50-50K F2 PDF (98.32 KB)

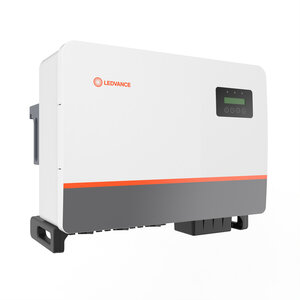

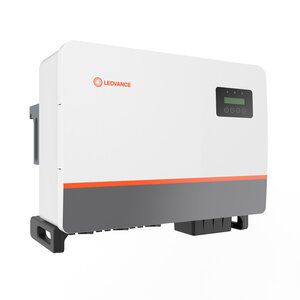

Product Image, Diagonal, White BG
LT-50K F2-DC-AFCI-WIET -MTR JPG (270.28 KB)

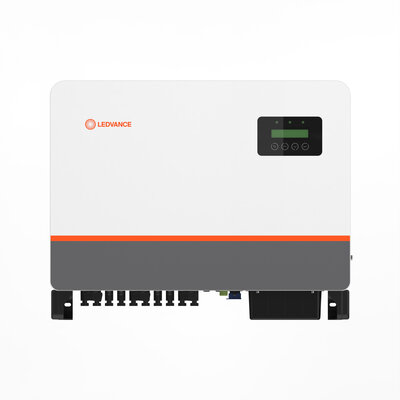

Product Image, Upright, White BG
LT-50K F2-DC-AFCI-WIET JPG (271.92 KB)
EAN SEG number STK number
4099854168062 2741832 8010053
