STRING INVERTER THREE PHASE COMFORT 80 - 110 K

STRING INVERTER THREE PHASE COMFORT 80 - 110 K

Choose your product version

80K F2-DC-AFCI-WIET

100K F2-DC-AFCI-PID-WIET

100K F2-DC-AFCI-WIET

110K F2-DC-AFCI-PID-WIET

110K F2-DC-AFCI-WIET

OVERVIEW

Product description
LT 80K F2-DC-AFCI-WIET
LT 100K F2-DC-AFCI-PID-WIET
LT 100K F2-DC-AFCI-WIET
LT 110K F2-DC-AFCI-PID-WIET
LT 110K F2-DC-AFCI-WIET


LT 80K F2-DC-AFCI-WIET

Product benefits
  • 10 years of product guarantee
  • Built-in LCD display
  • Wide voltage range and low startup voltage
  • AFCI protection, proactively reduces fire risk
  • Versions with PID available
  • Level II surge protection on AC and DC side
  • Automatic voltage stabilization technology in weak grid conditions
  • Easy installation
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Output phases 3-phase
Max. input power DC 120 kW
Input voltage DC 600 V
MPP voltage 160 - 1000 V
Max. input current DC 40 A
Max. input current DC per string input 20 A
Max. input current DC per MPP tracker 40 A
Max. short circuit current per MPPT 50 A
Number of independent MPPT inputs 6
String connections per MPPT input 2
Nominal output power AC 80 kW

Dimensions & Weight

Length 1065 mm
Width 363 mm
Height 585 mm
Product weight 77000.000 g

Additional product data

Integrated DC switch Yes
Connection DC for battery No
Suitable for emergency power No
Charging controller integrated No
With data logging Yes
Wireless Yes
Display Standard
Ethernet Yes
Integrated transformer No
Type of connection Staubli MC4
Temperature range in operation -30…+60 °C
Ambient temperature range -30…+60 °C
Outdoor application No
Type of protection IP66
Product color White

Efficiency

Maximum efficiency 98.50 %
European efficiency 98.00 %
Product benefits
  • 10 years of product guarantee
  • Built-in LCD display
  • Wide voltage range and low startup voltage
  • AFCI protection, proactively reduces fire risk
  • Versions with PID available
  • Level II surge protection on AC and DC side
  • Automatic voltage stabilization technology in weak grid conditions
  • Easy installation
Areas of application
  • Commercial and industrial installations
  • Utility installations
Product features
  • Smart fan cooling
  • Integrated DC switch
  • Protection rating: IP66
  • Original Stäubli MC4 connectors
Equipment / Accessories
  • Mounting bracket included
  • Data logger included
  • Supplied with user manual
  • Additional DC connectors for the outlets on the inverter
  • Fastening screws included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854167904 Shipping box
1		 1,350 mm x 700 mm x 505 mm 82400.00 g 477.23 dm³

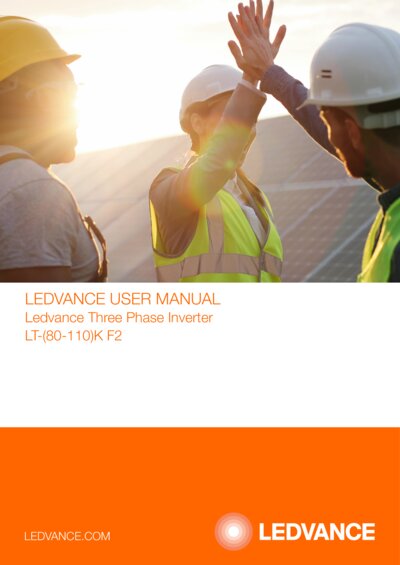

User Instruction
Three Phased String In verter 80-110K F2 PDF (9.35 MB)

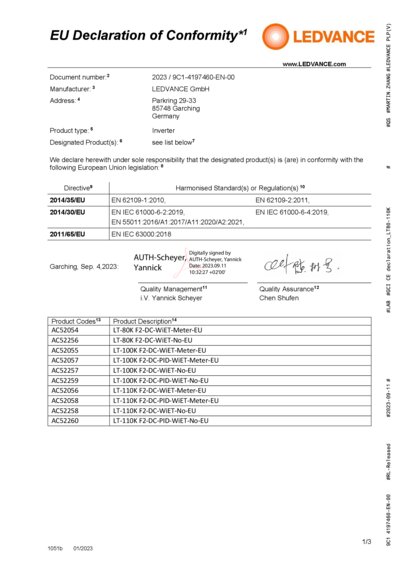

Declarations of conformity
CE declaration_LT80-11 0K PDF (605.3 KB)

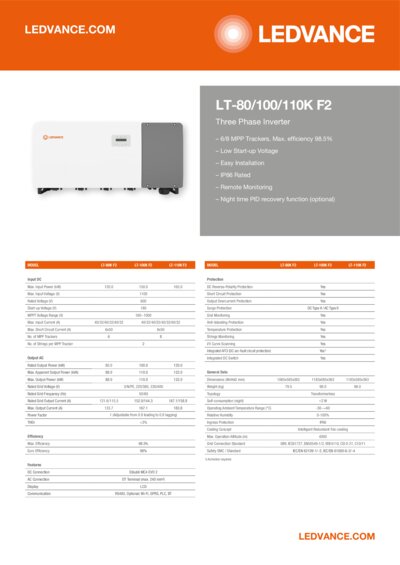

Product Family Datasheet
LT 80-110K F2 PDF (130.88 KB)

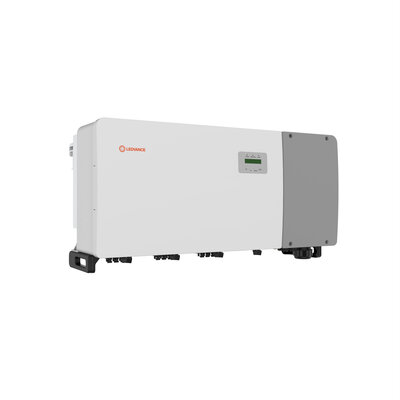

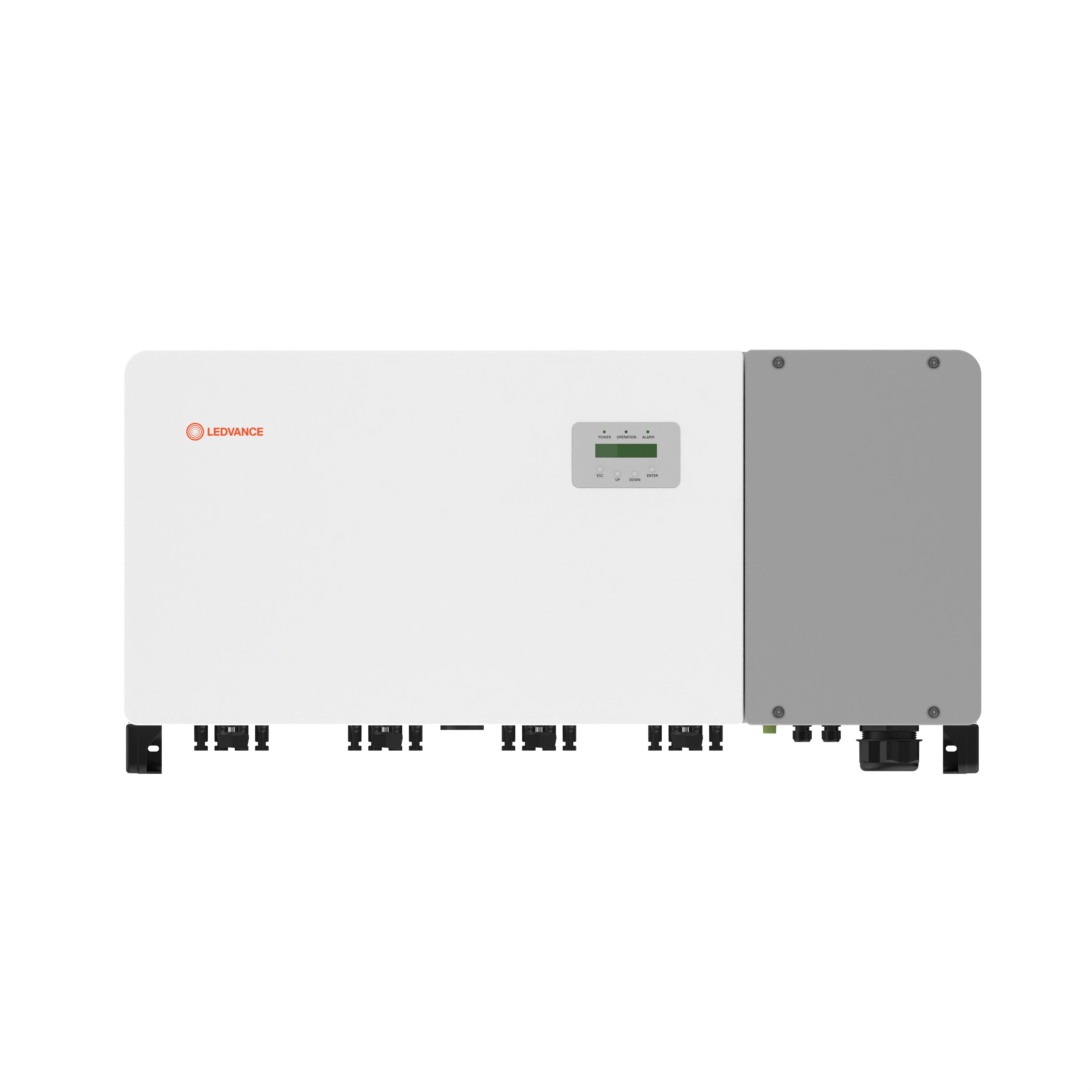

Product Image, Diagonal, White BG
LT-80K F2 JPG (232.98 KB)

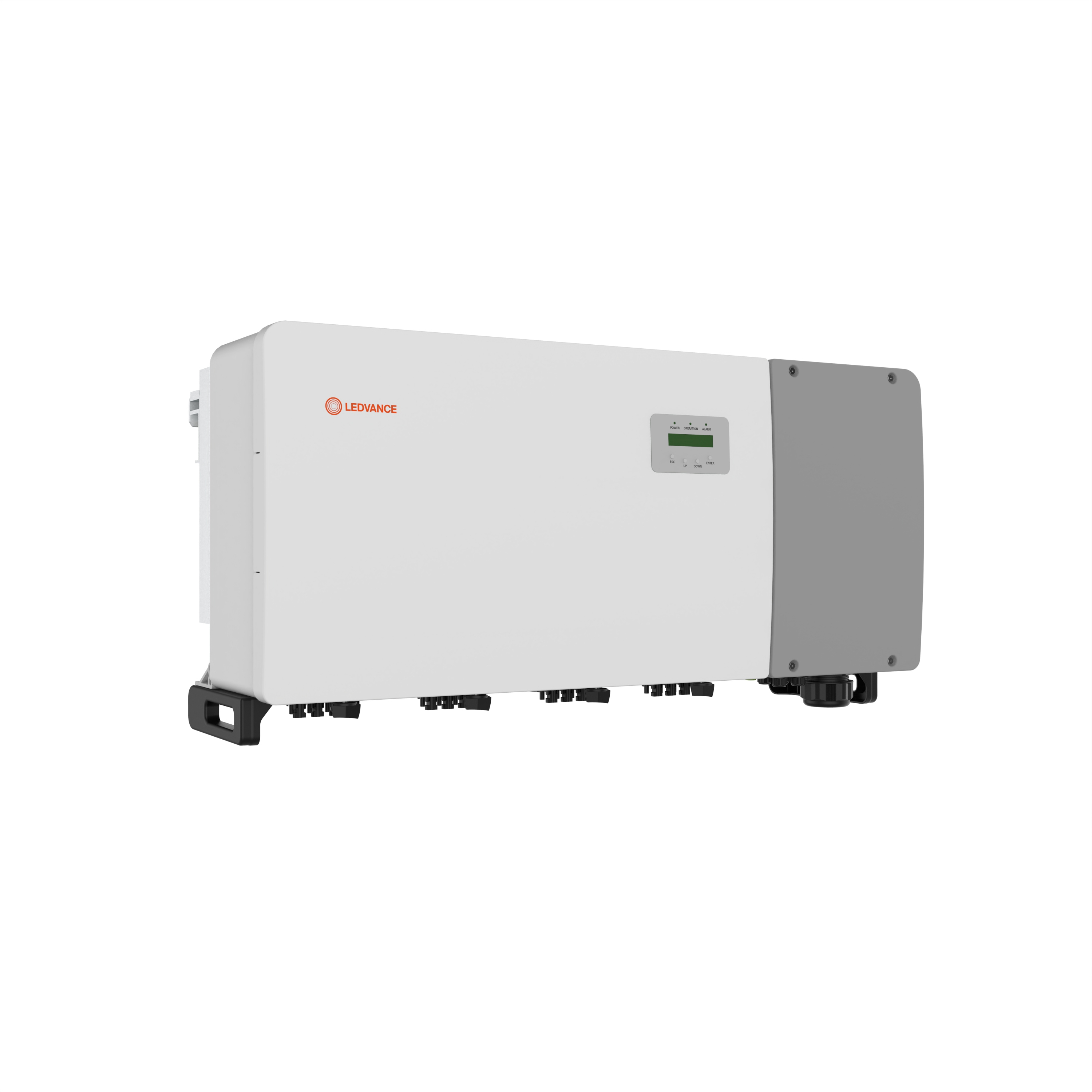

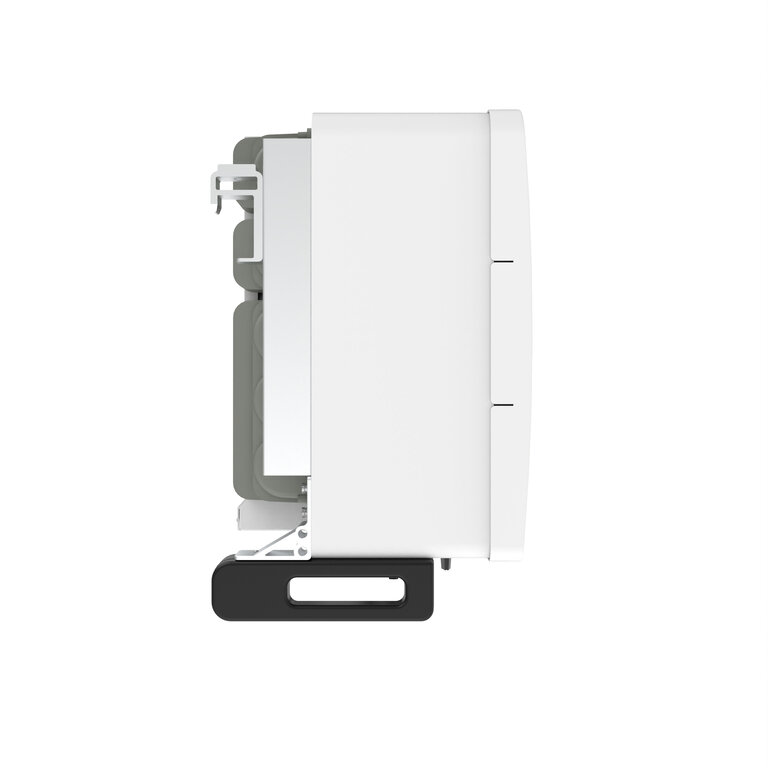

Product Image, Upright, White BG
LT-80K F2 JPG (286.83 KB)
EAN STK number
4099854167904 8010055
