STRING INVERTER THREE PHASE 30 - 36 K

STRING INVERTER THREE PHASE 30 - 36 K

Choose your product version

30K F1-DC-WIET

33K F1-DC-WIET

36K F1-DC-WIET

OVERVIEW

Product description
LT 30K F1-DC-WIET
LT 33K F1-DC-WIET
LT 36K F1-DC-WIET


LT 30K F1-DC-WIET

Product benefits
  • 10 years of product guarantee
  • Built-in LCD display
  • Wide output voltage range
  • Versions with AFCI and PID available
  • Level II surge protection on AC and DC side
  • Automatic voltage stabilization technology in weak grid conditions
  • Compatible with different energy meters
  • Easy installation
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Output phases 3-phase
Max. input power DC 39 kW
Input voltage DC 600 V
MPP voltage 200 - 850 V
Max. input current DC 40 A
Max. input current DC per string input 13.3 A
Max. input current DC per MPP tracker 40 A
Max. short circuit current per MPPT 60 A
Number of independent MPPT inputs 2
String connections per MPPT input 3
Nominal output power AC 30 kW
Power consumption <1 W

Dimensions & Weight

Length 362 mm
Width 215 mm
Height 577 mm
Product weight 25500.000 g

Additional product data

Integrated DC switch Yes
Connection DC for battery No
Suitable for emergency power No
Charging controller integrated No
With data logging Yes
Wireless Yes
Display Standard
Ethernet Yes
Integrated transformer No
Type of connection MC4-Compatible
Temperature range in operation -25…+65 °C 1)
Ambient temperature range -25…+65 °C
Outdoor application No
Type of protection IP65
Product color White

1) > 45℃ derating

Efficiency

Maximum efficiency 98.60 %
European efficiency 97.80 %
Product benefits
  • 10 years of product guarantee
  • Built-in LCD display
  • Wide output voltage range
  • Versions with AFCI and PID available
  • Level II surge protection on AC and DC side
  • Automatic voltage stabilization technology in weak grid conditions
  • Compatible with different energy meters
  • Easy installation
Areas of application
  • Commercial and industrial installations
  • Utility installations
Product features
  • Smart fan cooling
  • Integrated DC switch
  • Offline configuration
  • Remote updates of the software
Equipment / Accessories
  • Mounting bracket included
  • Data logger included
  • Allen key included
  • Supplied with user manual
  • Additional DC connectors for the outlets on the inverter
  • RS485 connector included
  • Mounting stainless steel screws included
  • Stainless steel anti-collision bolts included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075835283 Shipping box
1		 730 mm x 485 mm x 320 mm 28154.00 g 113.30 dm³

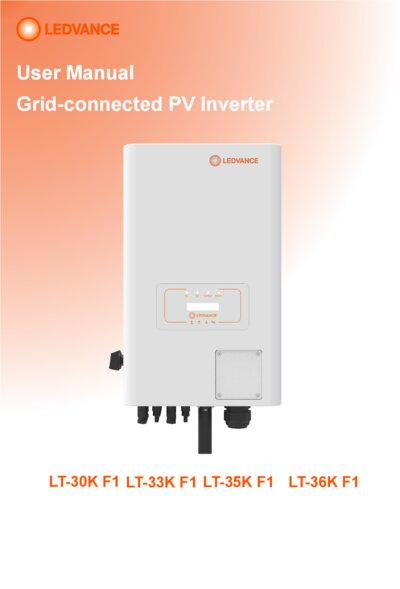

User Instruction
Three Phased String In verter 30-36K F1 User Manual PDF (33.31 MB)

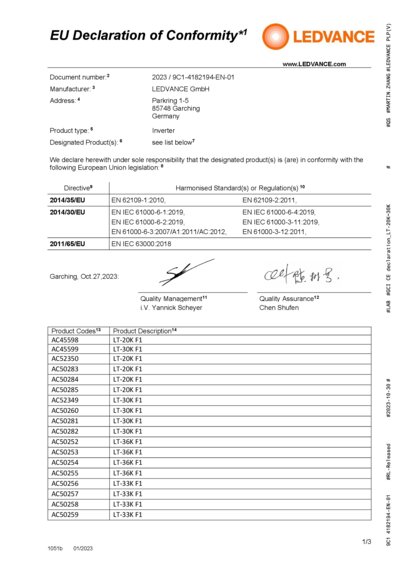

Declarations of conformity
CE declaration_LT-20K- 30K PDF (271.85 KB)

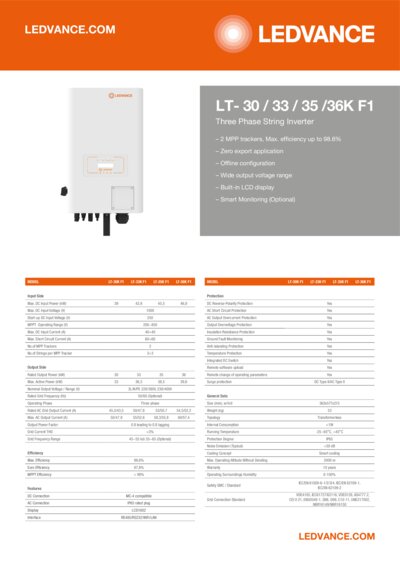

Product Family Datasheet
LT 30-36K F1 PDF (117.1 KB)

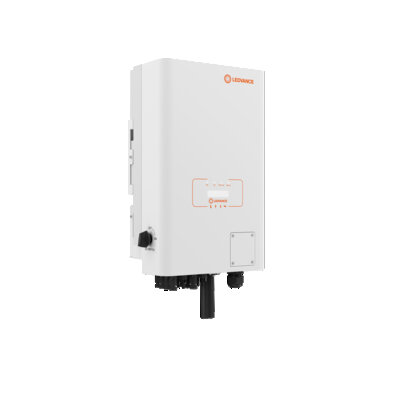

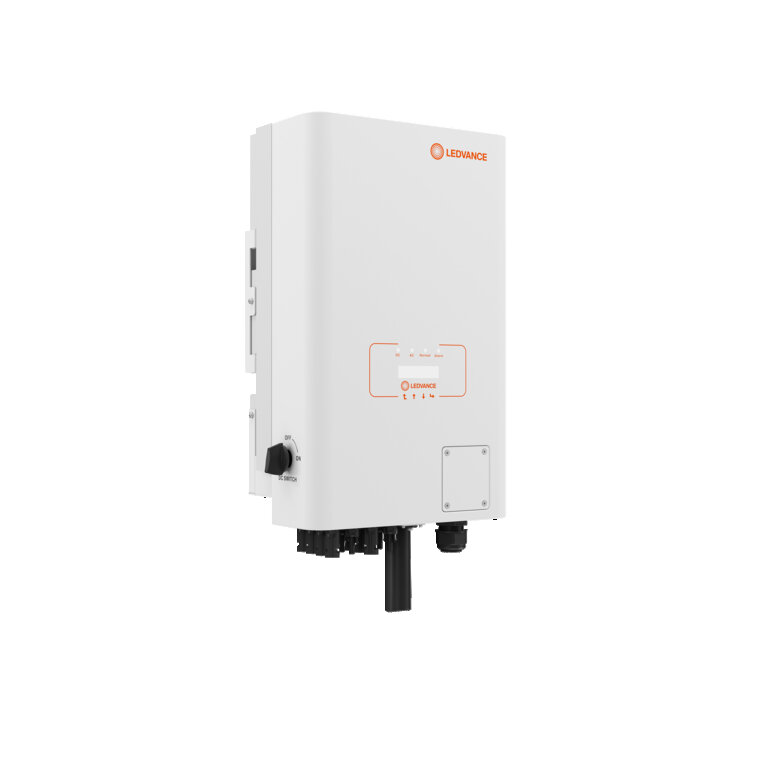

Product Image, Diagonal, White BG
LT 36 K F1 JPG (1.06 MB)

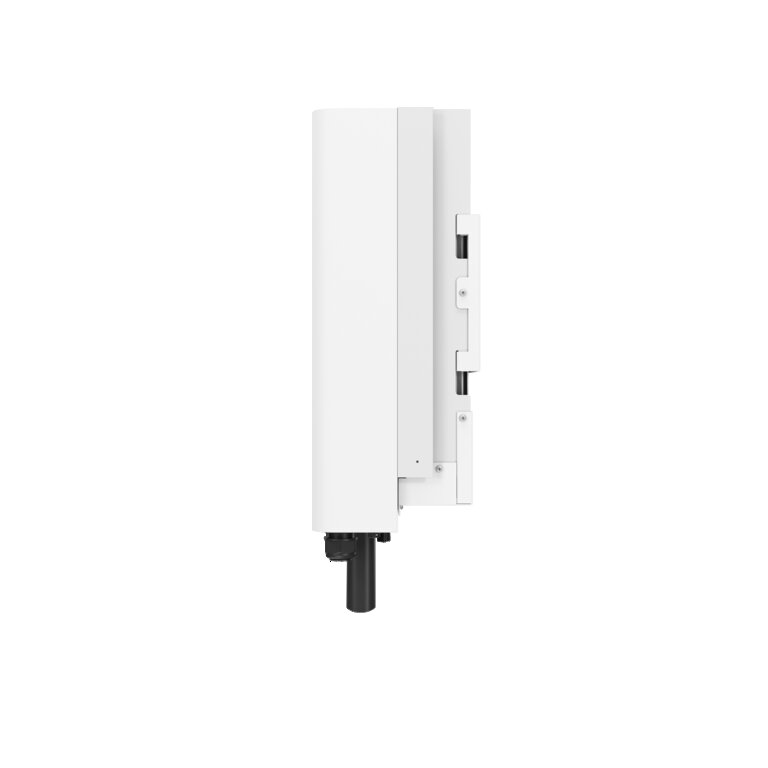

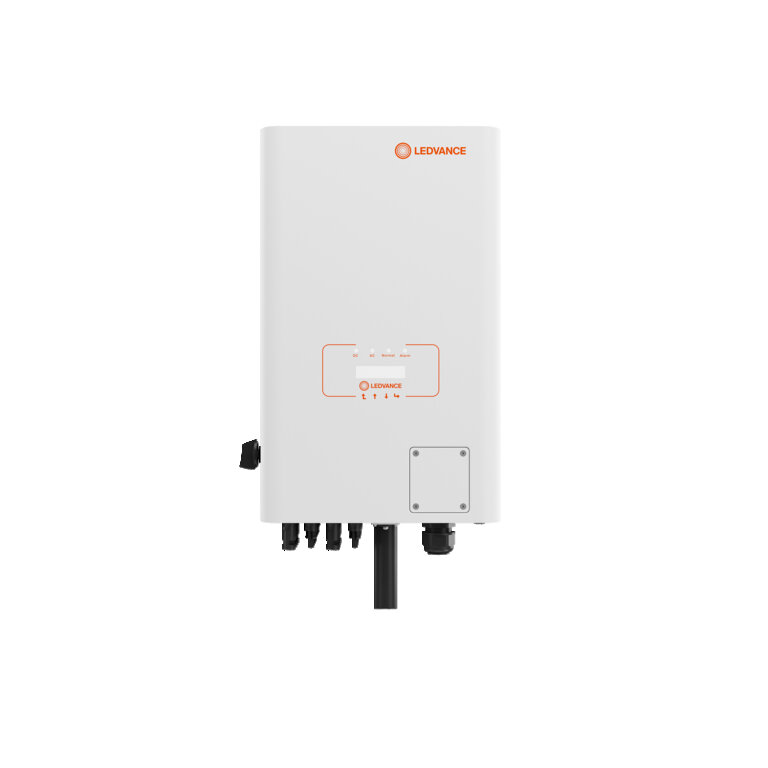

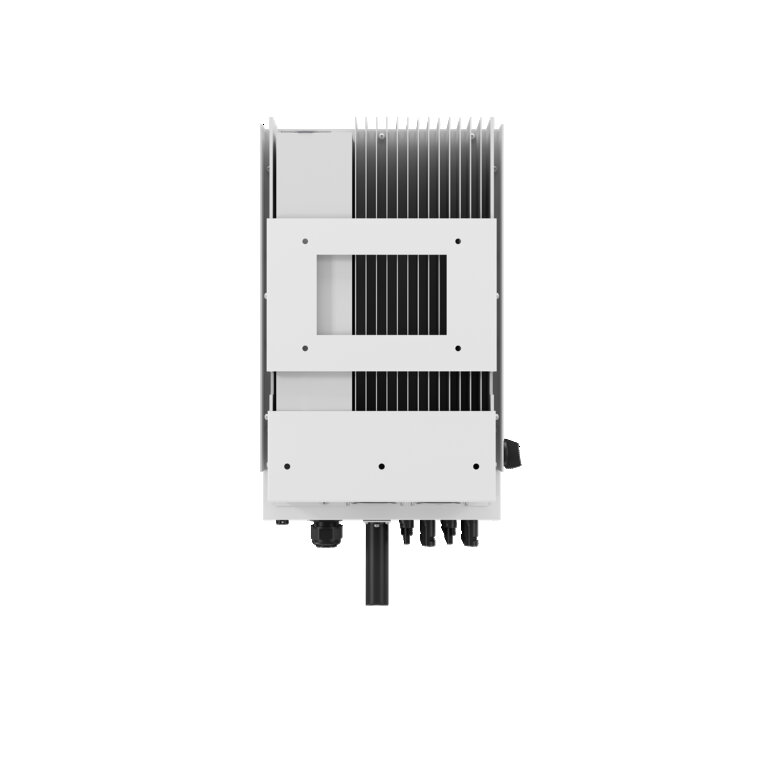

Product Image, Upright, White BG
LT 36 K F1 JPG (1.04 MB)
EAN STK number
4058075835283 8010081
