STRING INVERTER THREE PHASE 60 / 80 K

STRING INVERTER THREE PHASE 60 / 80 K

Choose your product version

60K F1-DC-WIET

80K F1-DC-WIET

OVERVIEW

Product description
LT 60K F1-DC-WIET
LT 80K F1-DC-WIET


LT 60K F1-DC-WIET

Product benefits
  • 10 years of product guarantee
  • Built-in LCD display
  • Wide output voltage range
  • Versions with AFCI and PID available
  • Level II surge protection on AC and DC side
  • Automatic voltage stabilization technology in weak grid conditions
  • Compatible with different energy meters
  • Easy installation
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Output phases 3-phase
Max. input power DC 78 kW
Input voltage DC 600 V
MPP voltage 200 - 850 V
Max. input current DC 40 A
Max. input current DC per string input 13.3 A
Max. input current DC per MPP tracker 40 A
Max. short circuit current per MPPT 60 A
Number of independent MPPT inputs 4
String connections per MPPT input 3
Nominal output power AC 60 kW
Power consumption <1 W

Dimensions & Weight

Length 700 mm
Width 297 mm
Height 575 mm
Product weight 44500.000 g

Additional product data

Integrated DC switch Yes
Connection DC for battery No
Suitable for emergency power No
Charging controller integrated No
With data logging Yes
Wireless Yes
Display Standard
Ethernet Yes
Integrated transformer No
Type of connection MC4-Compatible
Temperature range in operation -25…+65 °C 1)
Ambient temperature range -25…+65 °C
Outdoor application No
Type of protection IP65
Product color White

1) > 45℃ derating

Efficiency

Maximum efficiency 98.70 %
European efficiency 98.30 %
Product benefits
  • 10 years of product guarantee
  • Built-in LCD display
  • Wide output voltage range
  • Versions with AFCI and PID available
  • Level II surge protection on AC and DC side
  • Automatic voltage stabilization technology in weak grid conditions
  • Compatible with different energy meters
  • Easy installation
Areas of application
  • Commercial and industrial installations
  • Utility installations
Product features
  • Smart fan cooling
  • Integrated DC switch
  • Offline configuration
  • Remote updates of the software
Equipment / Accessories
  • Mounting bracket included
  • Data logger included
  • Allen key included
  • Supplied with user manual
  • Additional DC connectors for the outlets on the inverter
  • RS485 connector included
  • Mounting stainless steel screws included
  • Stainless steel anti-collision bolts included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075835313 Shipping box
1		 845 mm x 785 mm x 430 mm 48153.00 g 285.23 dm³

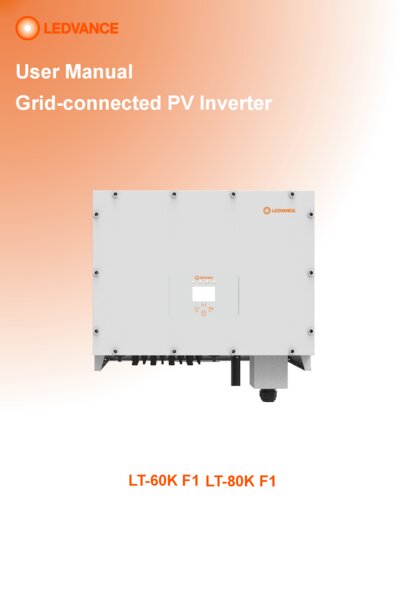

User Instruction
Three Phased String In verter 60-80K F1 User Manual PDF (32.81 MB)
Declarations of conformity
CE declaration_LT-40K- 110K PDF (275.73 KB)

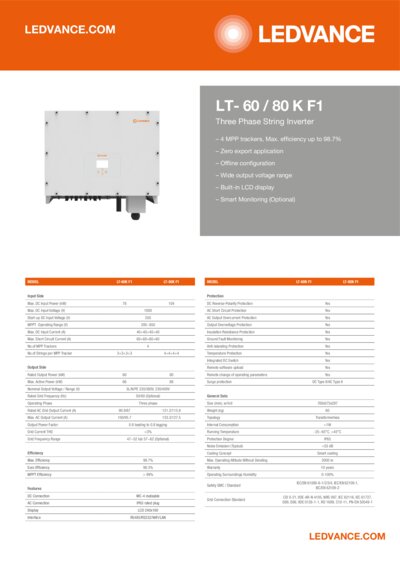

Product Family Datasheet
LT 60-80K F1 PDF (124.78 KB)

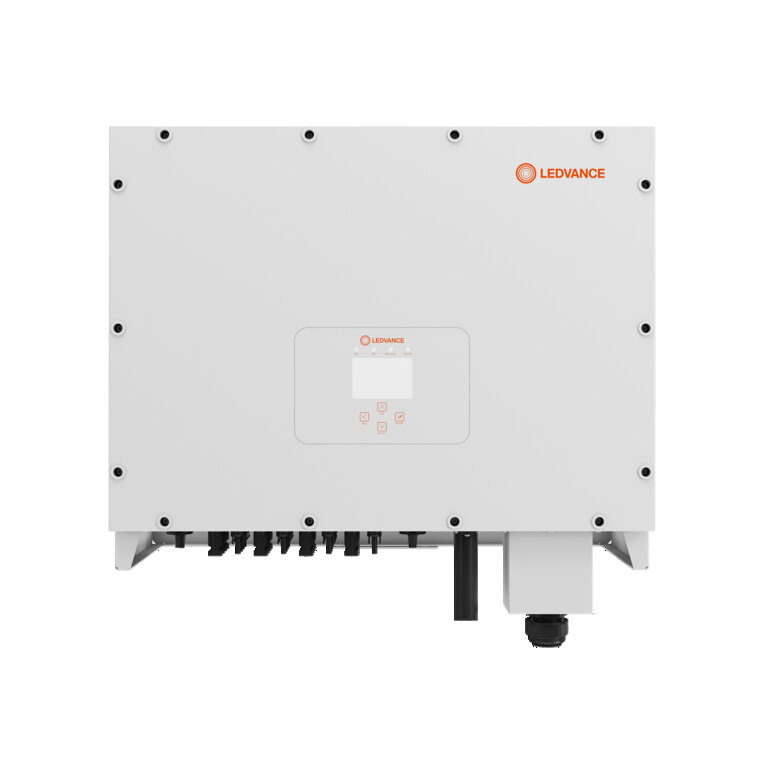

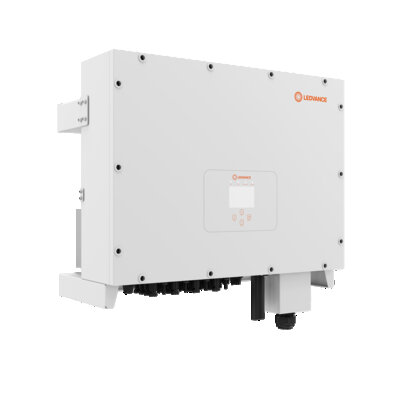

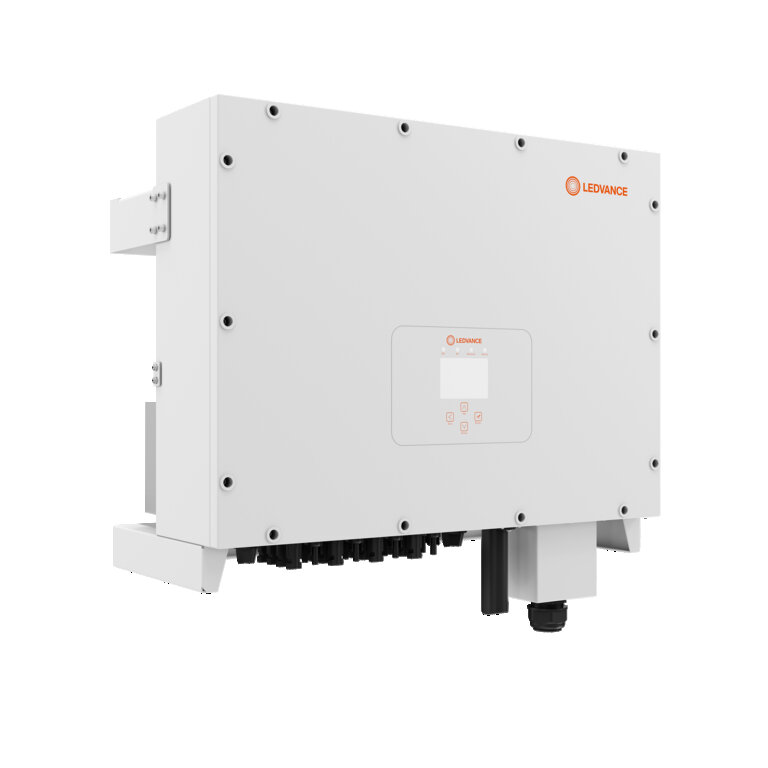

Product Image, Diagonal, White BG
LT 80 K F1 JPG (1.52 MB)

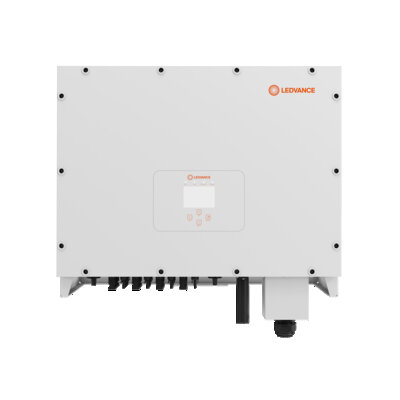

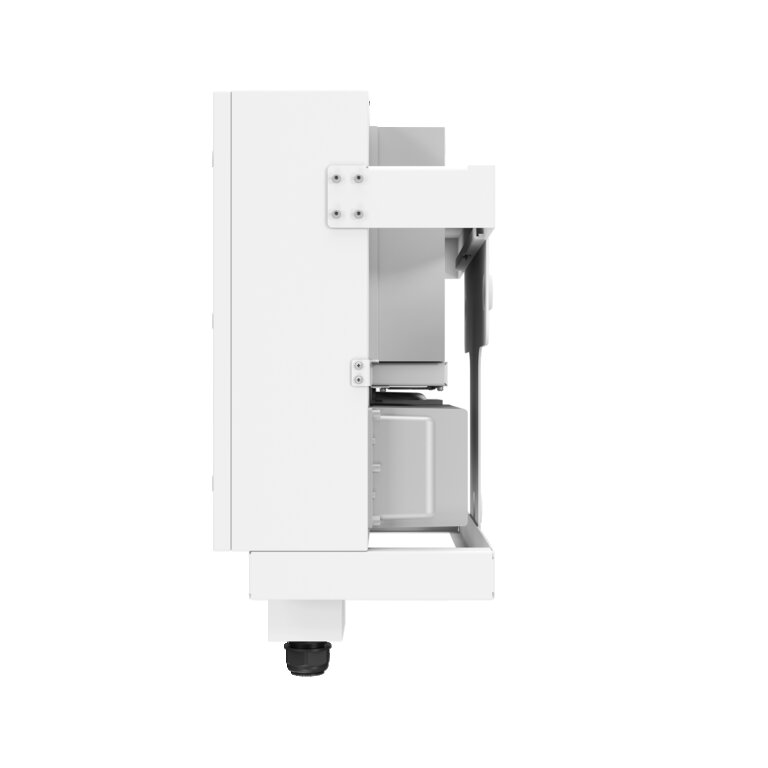

Product Image, Upright, White BG
LT 80 K F1 JPG (1.56 MB)
EAN STK number
4058075835313 8010086
