LED TUBE T8 EM SUPERIOR

Choose your product version

438 mm 5.1W 830

438 mm 5.1W 840

438 mm 5.1W 865

600 mm 6.3W 830

600 mm 6.3W 840

600 mm 6.3W 865

900 mm 9.7W 830

900 mm 9.7W 840

900 mm 9.7W 865

1050 mm 11.4W 830

1050 mm 11.4W 840

1050 mm 11.4W 865

1200 mm 11.3W/14W 830

1200 mm 11.3W/14W 840

1200 mm 11.3W/14W 865

1200 mm 14W 940

1500 mm 16.7W/22.1W 830

1500 mm 16.7W/22.1W 840

1500 mm 16.7W/22.1W 865

1500 mm 22.1W 940

1500 mm 22.1W 965

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Claimed equiv. conventional lamp power Beam angle Dimmable
LED TUBE T8 EM SUPERIOR 438 mm 5.1W 830 G13 5.1 W 220…240 V 100000 h 810 lm 15 W 190 ° No
LED TUBE T8 EM SUPERIOR 438 mm 5.1W 840 G13 5.1 W 220…240 V 100000 h 900 lm 15 W 190 ° No
LED TUBE T8 EM SUPERIOR 438 mm 5.1W 865 G13 5.1 W 220…240 V 100000 h 900 lm 15 W 190 ° No
LED TUBE T8 EM SUPERIOR 600 mm 6.3W 830 G13 6.3 W 220…240 V 100000 h 990 lm 18 W 190 ° No
LED TUBE T8 EM SUPERIOR 600 mm 6.3W 840 G13 6.3 W 220…240 V 100000 h 1100 lm 18 W 190 ° No
LED TUBE T8 EM SUPERIOR 600 mm 6.3W 865 G13 6.3 W 220…240 V 100000 h 1100 lm 18 W 190 ° No
LED TUBE T8 EM SUPERIOR 900 mm 9.7W 830 G13 9.7 W 220…240 V 100000 h 1530 lm 30 W 190 ° No
LED TUBE T8 EM SUPERIOR 900 mm 9.7W 840 G13 9.7 W 220…240 V 100000 h 1700 lm 30 W 190 ° No
LED TUBE T8 EM SUPERIOR 900 mm 9.7W 865 G13 9.7 W 220…240 V 100000 h 1700 lm 30 W 190 ° No
LED TUBE T8 EM SUPERIOR 1050 mm 11.4W 830 G13 11.4 W 220…240 V 100000 h 1800 lm 38 W 190 ° No
LED TUBE T8 EM SUPERIOR 1050 mm 11.4W 840 G13 11.4 W 220…240 V 100000 h 2000 lm 38 W 190 ° No
LED TUBE T8 EM SUPERIOR 1050 mm 11.4W 865 G13 11.4 W 220…240 V 100000 h 2000 lm 38 W 190 ° No
LED TUBE T8 EM SUPERIOR 1200 mm 11.3W/14W 830 G13 14.0 W / 11.3 W 220…240 V 100000 h 36 W 190 ° No
LED TUBE T8 EM SUPERIOR 1200 mm 11.3W/14W 840 G13 14.0 W / 11.3 W 220…240 V 100000 h 36 W 190 ° No
LED TUBE T8 EM SUPERIOR 1200 mm 11.3W/14W 865 G13 14.0 W / 11.3 W 220…240 V 100000 h 36 W 190 ° No
LED TUBE T8 EM SUPERIOR 1200 mm 14W 940 G13 14 W 220…240 V 100000 h 2600 lm 36 W 190 ° No
LED TUBE T8 EM SUPERIOR 1500 mm 16.7W/22.1W 830 G13 22.10 W / 16.7 W 220…240 V 100000 h 58 W 190 ° No
LED TUBE T8 EM SUPERIOR 1500 mm 16.7W/22.1W 840 G13 22.10 W / 16.7 W 220…240 V 100000 h 58 W 190 ° No
LED TUBE T8 EM SUPERIOR 1500 mm 16.7W/22.1W 865 G13 22.10 W / 16.7 W 220…240 V 100000 h 58 W 190 ° No
LED TUBE T8 EM SUPERIOR 1500 mm 22.1W 940 G13 22.1 W 220…240 V 100000 h 4100 lm 58 W 190 ° No
LEDTUBE T8 EM SUPERIOR 1500 mm 22.1W 965 G13 22.1 W 220…240 V 100000 h 4100 lm 58 W 190 ° No


LED TUBE T8 EM SUPERIOR 1200 mm 11.3W/14W 865

Product benefits
  • Energy savings of up to 71 % (compared to T8 fluorescent lamp)
  • Quick, simple and safe replacement with or without rewiring
  • Highly versatile thanks to selectable power/lumen steps (1200 mm, 1500 mm)
  • No bending thanks to glass technology
  • Support the implementation of the HACCP concepts from production through to presentation
  • Very high resistance to switching loads
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 14.0 W / 11.3 W
Construction wattage 14.00 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Nominal current 65mA / 50 mA
Type of current AC
Inrush current 6.52 A
Suitable for DC input Yes
Input voltage DC 186…260 V
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz 1)
Max. lamp number on MCB B10 A 69
Max. lamp number on MCB B10 A - CCG without compensation 30
Max. lamp number on MCB B10 A - CCG with compensation 14
Max. lamp number on MCB B16 A 110
Max. lamp number on MCB B16 A - CCG without compensation 48
Max. lamp number on MCB B16 A - CCG with compensation 23
Total harmonic distortion < 20 %
Power factor λ 0.90

1) DC 0Hz

Photometrical data

Luminous flux 2600 lm / 2100 lm
Luminous efficacy 185 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool Daylight
Color temperature 6500 K
Color rendering index Ra 80
Light color 865
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
14 W 6500 K 2600 lm 185 lm/W
11.3 W 6500 K 2100 lm 185 lm/W

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 1212.00 mm
Length with base excl. base pins/connection 1200.00 mm
Diameter 26.70 mm
Product weight 215.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C 1)
Maximum temperature at tc test point 75 °C
Performance temp. acc. to IEC 62717 46 °C 2)

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) Tp rated. Tp point coincides with Tc point - marked on device

Lifespan

Lifespan L70/B50 at 25 °C 100000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes
Added function MULTI LUMEN

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class B 1)
Energy consumption 14.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC, ENEC, VDE
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T8 EM S

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power <0.5 W
Claim of equivalent power No
Length 1212.00 mm
Height 26.70 mm
Width 26.70 mm
Chromaticity coordinate x 0.3123
Chromaticity coordinate y 0.3283
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 2150933,2340236
Model number AC69454,AC81595

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 71 % (compared to T8 fluorescent lamp)
  • Quick, simple and safe replacement with or without rewiring
  • Highly versatile thanks to selectable power/lumen steps (1200 mm, 1500 mm)
  • No bending thanks to glass technology
  • Support the implementation of the HACCP concepts from production through to presentation
  • Very high resistance to switching loads
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+50 °C
  • Illumination of production areas
  • Traffic zones and corridors
  • Supermarkets and department stores
  • Industry
Product features
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains

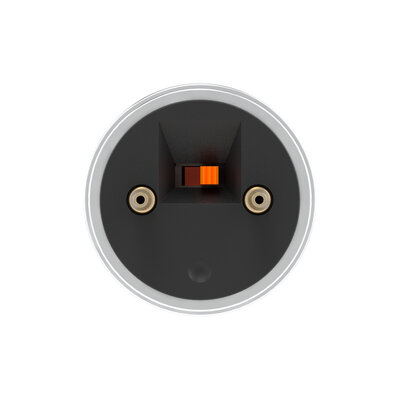

  • Multi Lumen function: 2 power steps selectable (1200 mm, 1500 mm)
  • LED tube made of glass with shatter protection e.g. for food industry applications
  • ENEC 10 VDE mark
  • Single and tandem operation on conventional control gear (≤ 0.9 m versions)
  • Extremely long lifetime: up to 100,000 h
  • Type of protection: IP20
  • Mercury-free and RoHS compliant
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
Equipment / Accessories
  • Suitable for operation with low-loss and conventional control gears
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • Not suitable for emergency lighting.
  • Disconnect mains before installation.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854432781 Sleeve
1		 1,305 mm x 29 mm x 29 mm 240.00 g 1.10 dm³
4099854432798 Shipping box
10		 1,335 mm x 175 mm x 95 mm 3040.00 g 22.19 dm³
User instruction / safety instructions
LED TUBE T8 EM S PDF (2.96 MB)
Extended installation guide
Installation instructi ons LED TUBE T8, T5 un d DULUX LED 2024 10 EN PDF (3.36 MB)
Extended installation guide
Notes on the operation of LEDVANCE LED tubes in compensated lumina ires PDF (551.59 KB)
Extended installation guide
LEDVANCE Luminaire con version checklist PDF (155.99 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

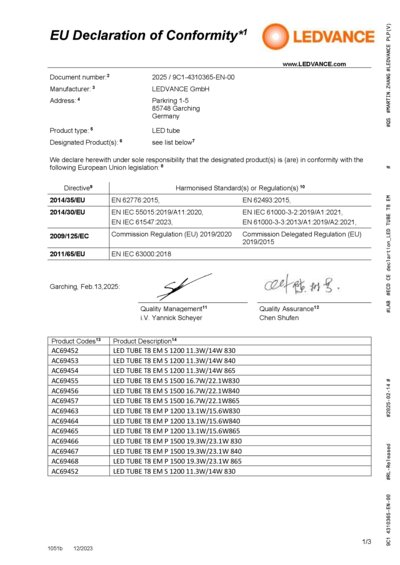

Declarations of conformity
LEDTUBE PDF (264.49 KB)
Declarations of conformity
LED tube PDF (410.19 KB)
Certificates
LEDTUBE T8 EM S 1200 PDF (556.78 KB)
Product image: white background, diagonal with LEDVANCE logo
LEDVANCE LED TUBE T8 E M JPG (862.17 KB)
Product image: white background, diagonal
LED TUBE T8 EM JPG (769.9 KB)
Product image: white background, horizontal
LEDTUBE T8 EM JPG (306.49 KB)
Product image: white background, upright LEDVANCE logo
LEDVANCE LED TUBE T8 E M JPG (657.34 KB)
Product image: white background, upright
LED TUBE T8 EM JPG (650.51 KB)
Product image: white background, spacial
LEDTUBE T8 EM JPG (210.21 KB)
Product line drawing with letters
LEDTUBE T8 EM SVG (9.49 KB)
Product line drawing with numbers
LEDTUBE T8 EM 1200 SVG (15.42 KB)
Product line drawing - technical
638401_Technical drawi ng TC point LED TUBE T 8 EM SVG (22 KB)

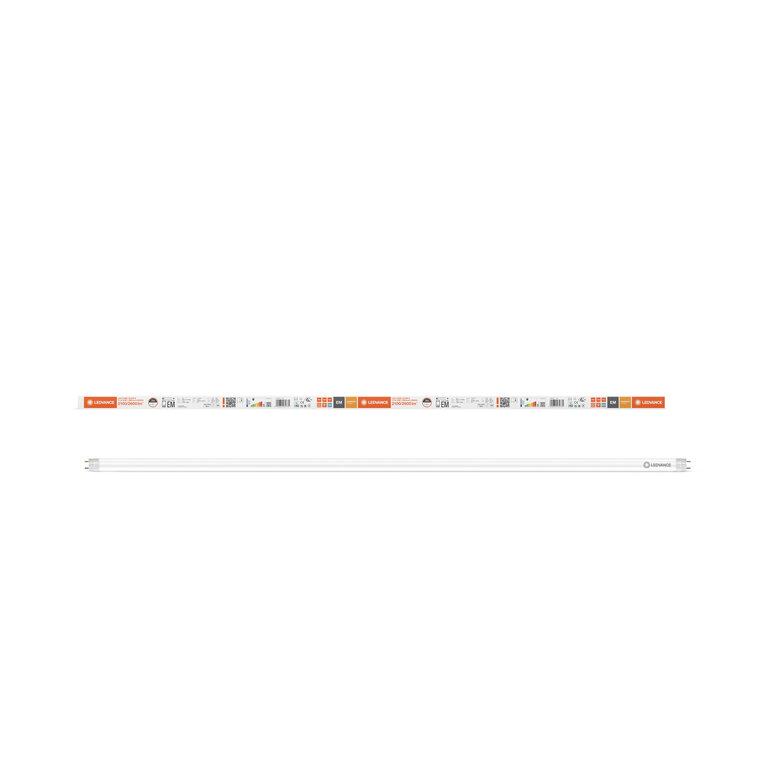

Combo Shot = Product Beauty Shot + Packaging Image
LEDTUBE T8 EM S 1200 1 1.3W 865 G13 JPG (365.55 KB)

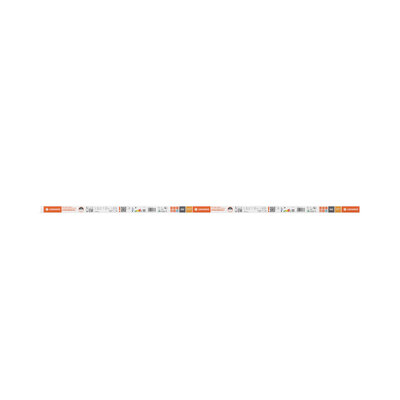

Packaging image, frontal
LEDTUBE T8 EM S 1200 1 1.3W 865 G13 JPG (358.13 KB)

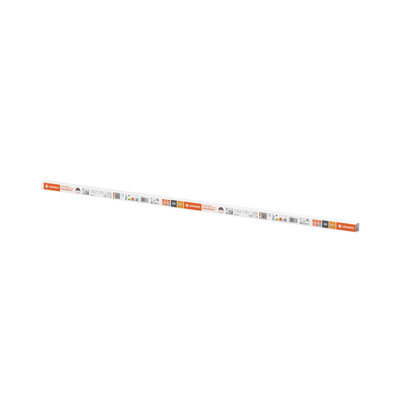

Packaging image, spacial
LEDTUBE T8 EM S 1200 1 1.3W 865 G13 JPG (367.39 KB)
Catalog info 6
Lifetime vs. Tc LED TU BE T8 EM SVG (6.65 KB)
Energy label
EL-4099854432781-AC694 54 PDF (21.44 KB)
Energy label
EL-4099854432781-AC815 95 PDF (21.47 KB)
Logos and pictos
B left SVG (2.27 KB)
Logos and pictos
B left BW SVG (1.07 KB)
Logos and pictos
B right SVG (2.24 KB)
Logos and pictos
B right BW SVG (1.06 KB)
IES file (IES)
LEDTUBE T8 EM S 1200 1 1.3W 865 LEDV IES (14.44 KB)
IES file (IES)
LEDTUBE T8 EM S 1200 1 4W 865 LEDV IES (14.44 KB)
LDT file (Eulumdat)
LEDTUBE T8 EM S 1200 1 1.3W 865 LEDV LDT (10.23 KB)
LDT file (Eulumdat)
LEDTUBE T8 EM S 1200 1 4W 865 LEDV LDT (10.36 KB)
UGR file (UGR table)
LEDTUBE T8 EM S 1200 1 1.3W 865 LEDV PNG (63.97 KB)
UGR file (UGR table)
LEDTUBE T8 EM S 1200 1 4W 865 LEDV PNG (64.24 KB)
Light distribution curve type polar
LEDTUBE T8 EM S 1200 1 1.3W 865 LEDV SVG (19.6 KB)
Light distribution curve type polar
LEDTUBE T8 EM S 1200 1 4W 865 LEDV SVG (19.6 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 6500K PNG (104.93 KB)
Tender documents
LED TUBE T8 EM SUPERIO R 1200 mm 11.3W 14W 86 5-en TXT (3.9 KB)
Video
MULTI LUMEN feature br and sales push LED Tub e MP4 (11.99 MB)
Video
MULTI SELECT feature b rand sales push video long 2025 MP4 (38.23 MB)
EAN SEG number STK number EFO number ELDAS number
4099854432781 8289402 4935333 3771106 941903652
