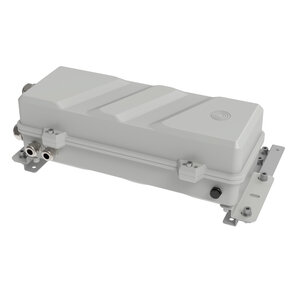

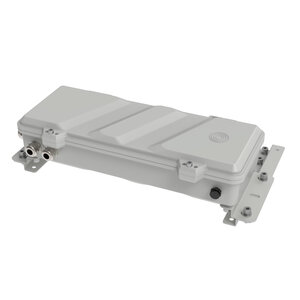

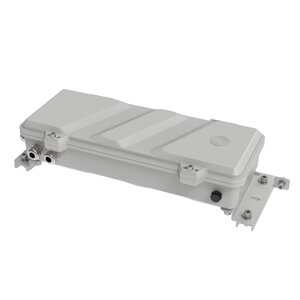

FL MAX PSU DA P 600W WAL

For extreme temperatures: –40 °C to +50 °C (outdoors), up to +40 °C (indoors)
Driver box installable up to 150 m from head, central maintenance, reduced mast weight
Pre-fitted connectors enable quick, waterproof wiring on site (IP66)
Standardized drivers are always easy to replace for simple maintenance
Auxiliary DALI power for sensor and control integration, e.g. Smart City
Optimized logistics: luminaire and driver box can be ordered separately
Future-proof: high efficiency, long life and multiple interfaces
Robust and weatherproof: IP66 / IK08, C5-M corrosion protection for harsh environments

Nominal wattage	600.00 W
Nominal voltage	200…480 V
Mains frequency	0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16	2
Max. number of luminaires per miniature circuit breaker C16	3
Power factor λ	> 0.94
Protection class	I
Surge capability (L-N)	20 kV

Product color	Gray
RAL-Number	RAL 9006
Body material	Aluminum
Glow Wire Test according to IEC 60695-2-12	650 °C

Ambient temperature range	-40…+50 °C
Temperature range at storage	-40…85 °C
Type of protection	IP66
Protection class IK (shock resistance)	IK08
Corrosion resistance class acc. to EN 12944	C5
Dimmable	Yes
Type of dimming	DALI2
IoT ready	Support of DALI data type PART 251, 252, 253 ¹⁾
Replaceable light source	No

¹⁾ Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud

Standards	CE, CB, ENEC, UKCA, EAC, EPD, EL
Ball shot safe	Yes

Product remark	Available from December 2025
Added function	VIVARES

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits

For extreme temperatures: –40 °C to +50 °C (outdoors), up to +40 °C (indoors)
Driver box installable up to 150 m from head, central maintenance, reduced mast weight
Pre-fitted connectors enable quick, waterproof wiring on site (IP66)
Standardized drivers are always easy to replace for simple maintenance
Auxiliary DALI power for sensor and control integration, e.g. Smart City
Optimized logistics: luminaire and driver box can be ordered separately
Future-proof: high efficiency, long life and multiple interfaces
Robust and weatherproof: IP66 / IK08, C5-M corrosion protection for harsh environments

Areas of application

Product features

Equipment / Accessories

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
