LED CLASSIC GLOBE P

LED CLASSIC GLOBE P

Choose your product version

2.5W 827 Clear E27

4W 827 Clear E27

6.5W 827 Frosted E27

7W 827 Clear E27

11W 827 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic Globe 125 25 Filament P 2.5W 827 Clear E27 E27 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED Classic Globe 125 40 Filament P 4W 827 Clear E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Classic Globe 95 60 Filament P 6.5W 827 Frosted E27 E27 6.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Classic Globe 125 60 Filament P 7W 827 Clear E27 E27 7 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Classic Globe 95 100 Filament P 11W 827 Frosted E27 E27 11 W 220…240 V 15000 h 1521 lm 100 W 300 ° No


LED Classic Globe 125 25 Filament P 2.5W 827 Clear E27

Product benefits
  • Lamps with innovative LED "filament" technology
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
View all details
Product data sheet
Go to OSRAM predecessor product

PRODUCT DETAILS

Electrical data

Nominal wattage 2.5 W
Construction wattage 2.50 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 25 W
Nominal current 24 mA
Type of current AC
Inrush current 0.54 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 138
Max. lamp number on MCB B16 A 222
Total harmonic distortion 153 %
Power factor λ > 0.40

Photometrical data

Luminous flux 250 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 178.00 mm
Diameter 125.00 mm
Maximum diameter 125 mm
Product weight 88.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 47.5 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 3.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LED G12525 2.5W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power Yes
Length 178.00 mm
Height 125.00 mm
Width 125.00 mm
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index >0
Beam angle correspondence SPHERE_360
Survival factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 1358113
Model number AC44672

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Lifetime: up to 15,000 h
  • Beam angle: up to 360°
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854054259 Folding box
1		 140 mm x 140 mm x 189 mm 118.00 g 3.68 dm³
4099854054266 Shipping box
10		 710 mm x 290 mm x 203 mm 1551.00 g 41.80 dm³
Declarations of conformity
CLA 60 dim andCLGLOBE1 25 PDF (405.83 KB)

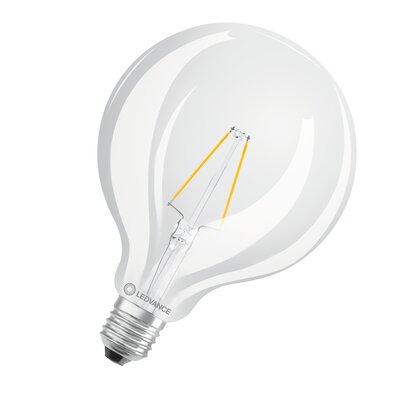

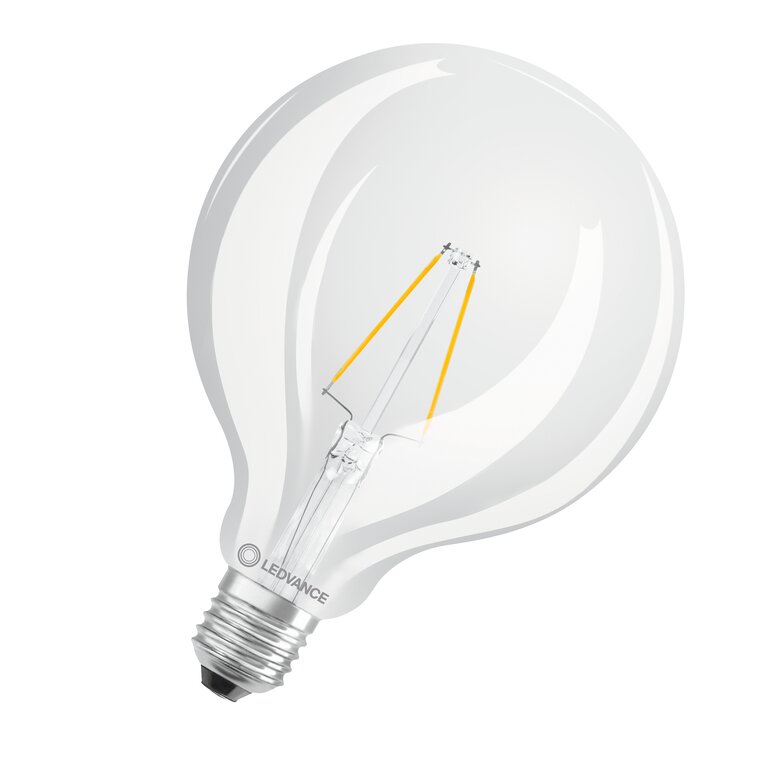

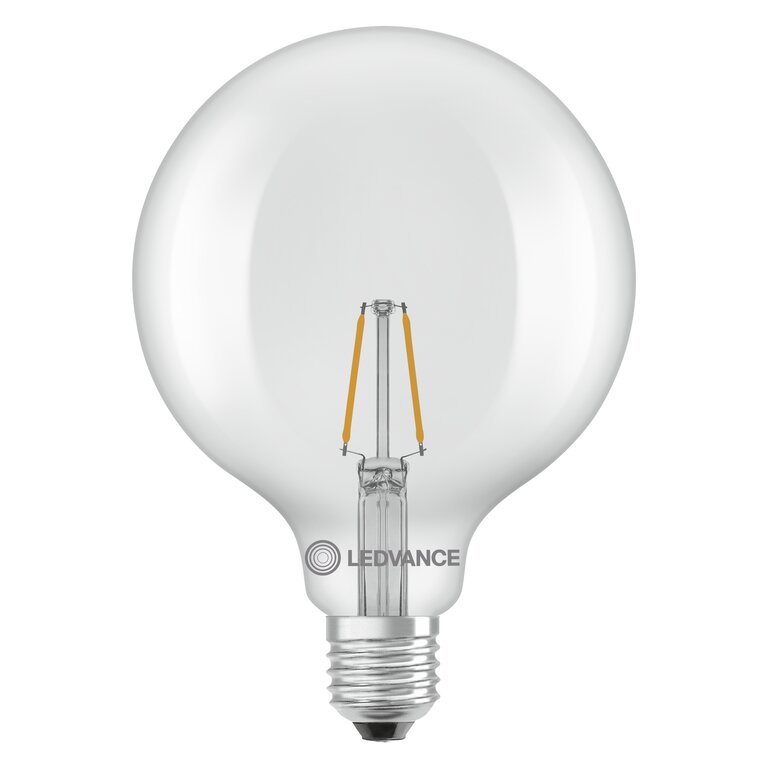

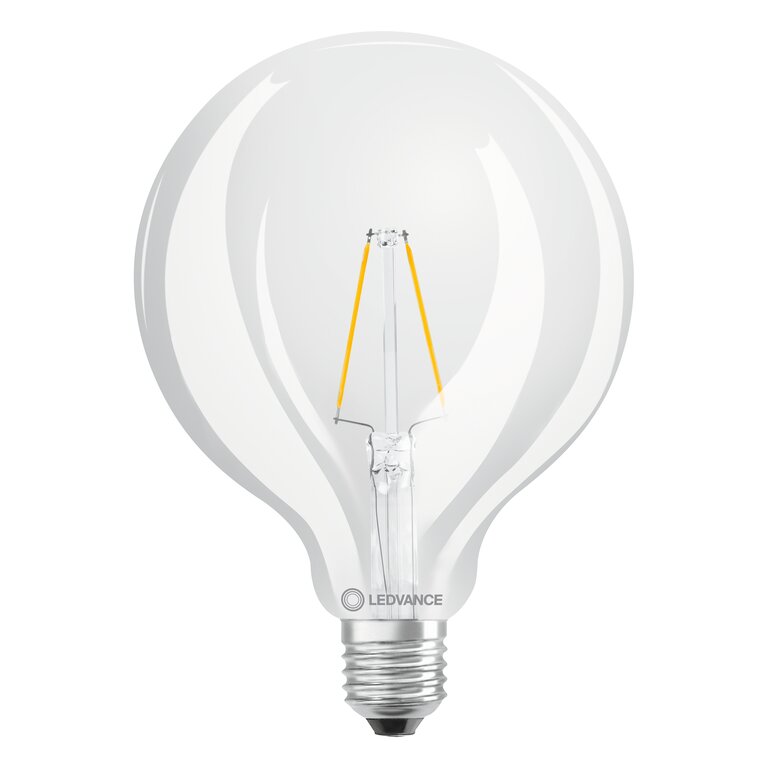

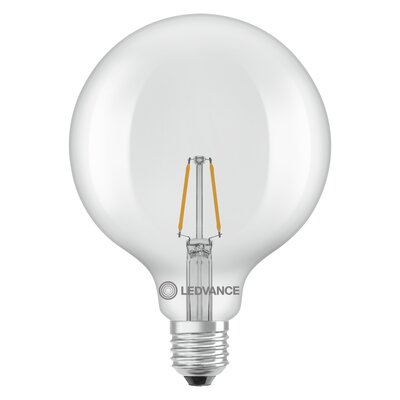

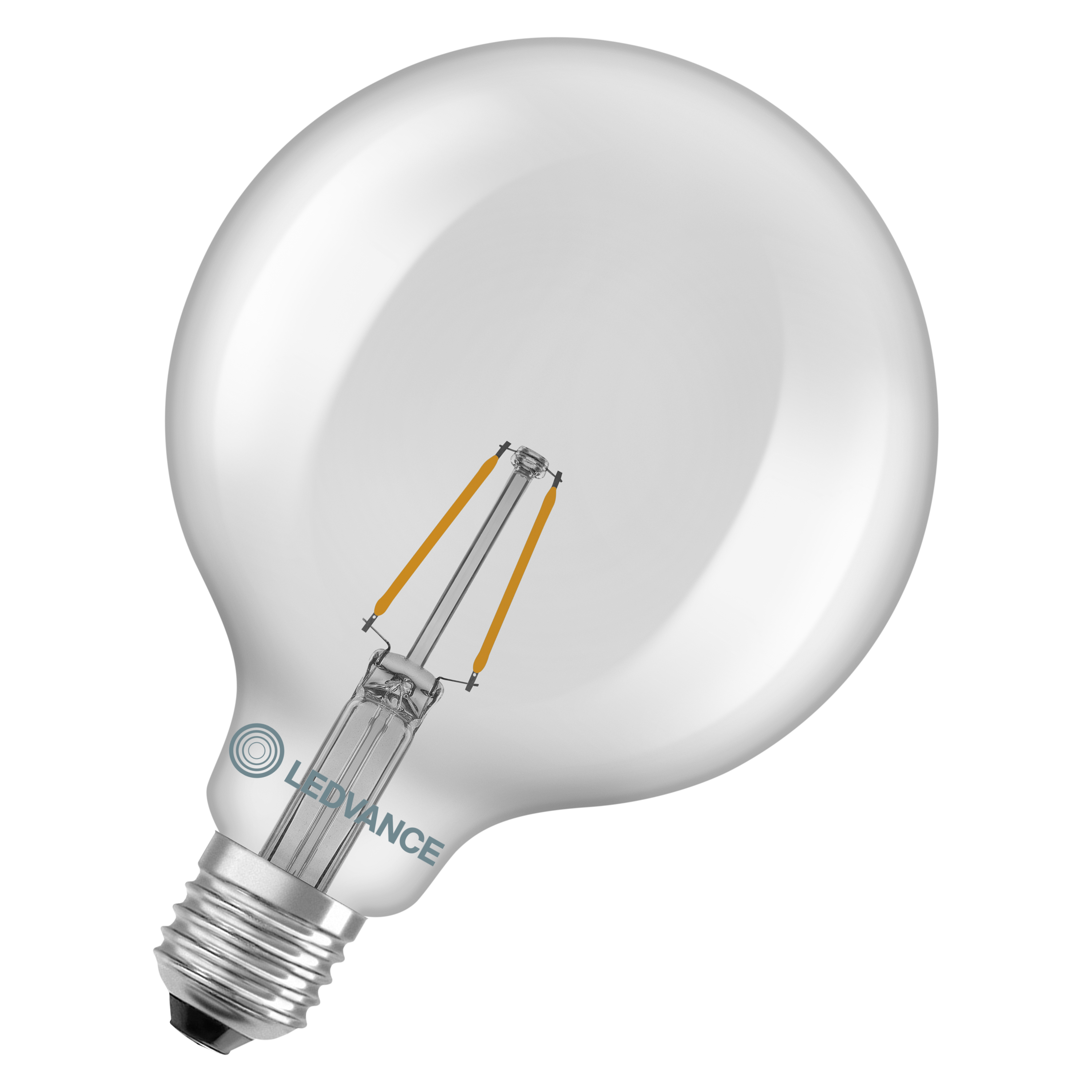

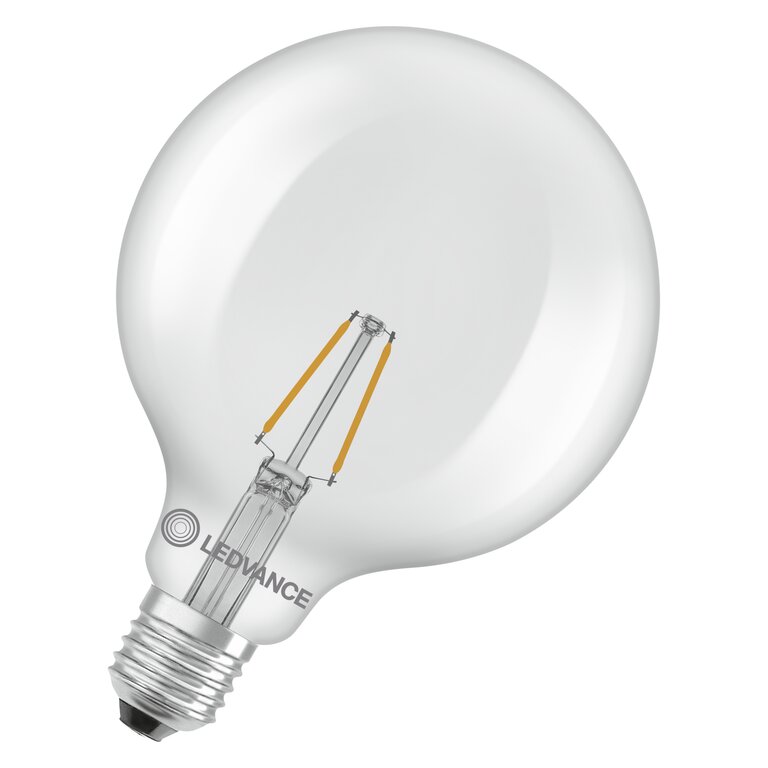

Product image: white background, diagonal with LEDVANCE logo
LED GLOBE125 25 FOL CL E27 JPG (5.48 MB)

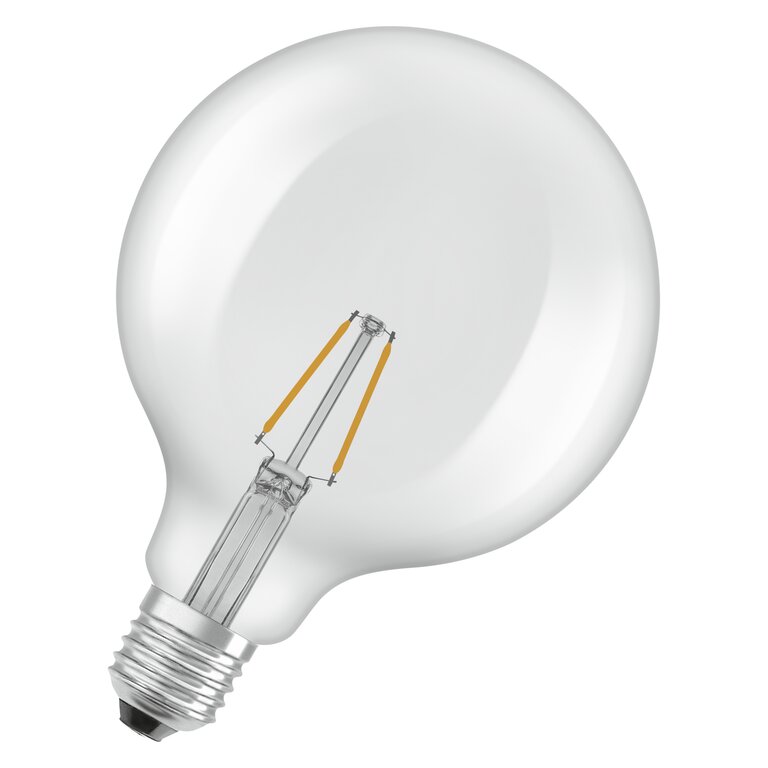

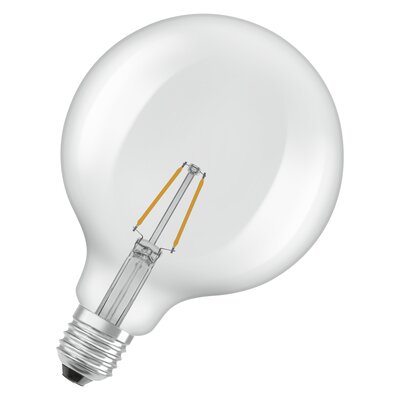

Product image: white background, diagonal
CLG 125 FIL E27 2F JPG (1.14 MB)

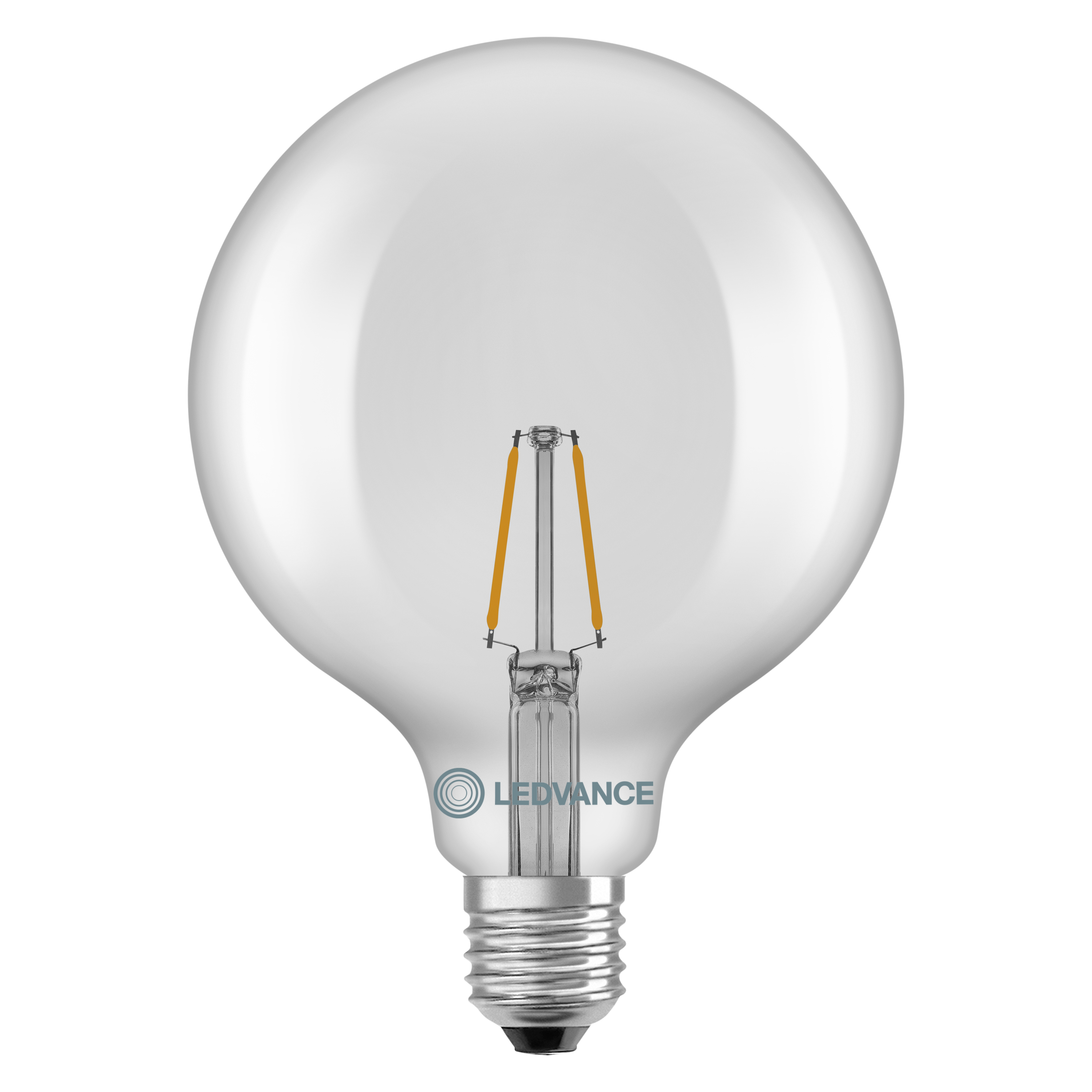

Product image: white background, upright LEDVANCE logo
LED GLOBE125 25 FOL CL E27 JPG (5.46 MB)

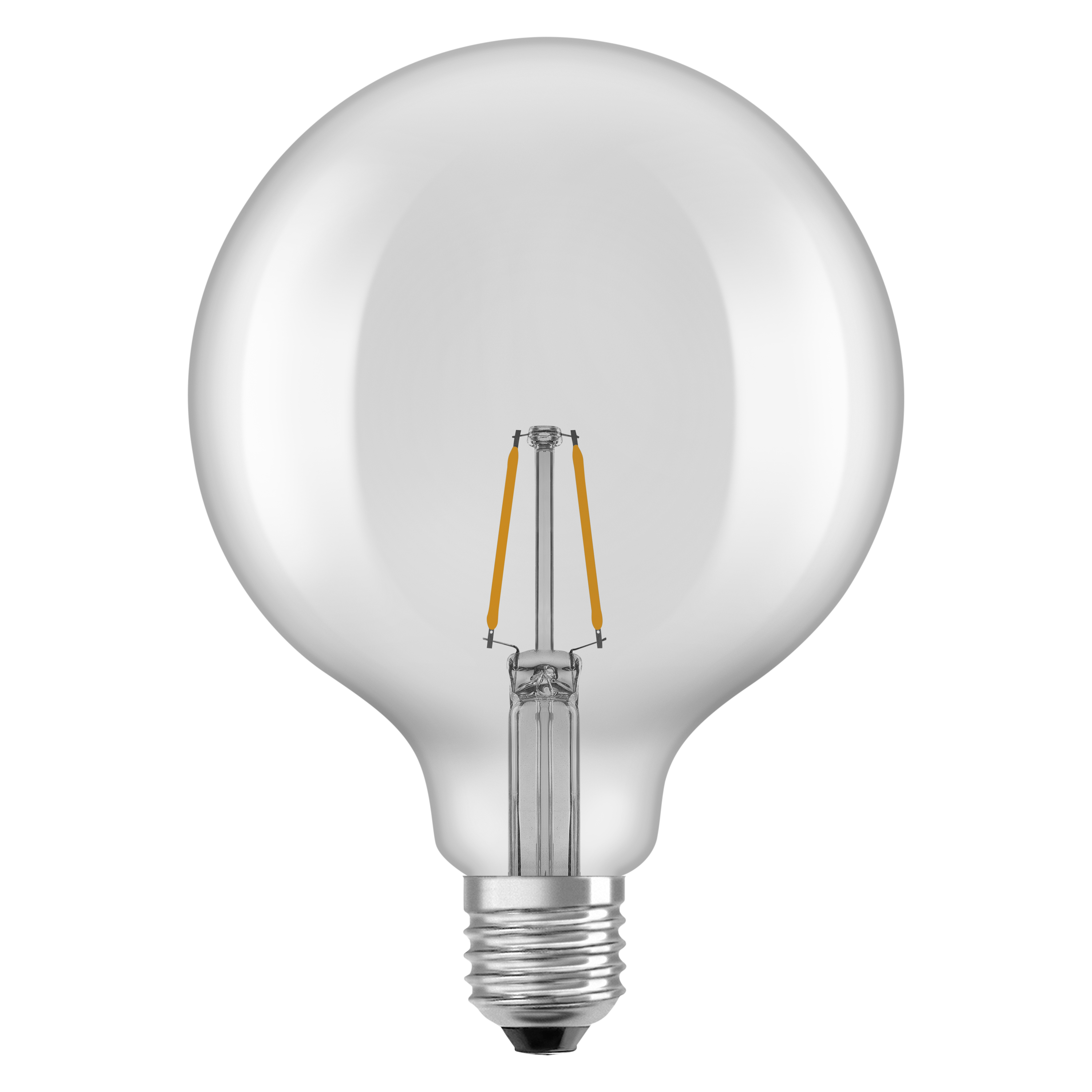

Product image: white background, upright
CLG 125 FIL E27 2F TIF (46.12 MB)
Product line drawing with letters
CLG 125 FIL E27 2F ml SVG (10.83 KB)

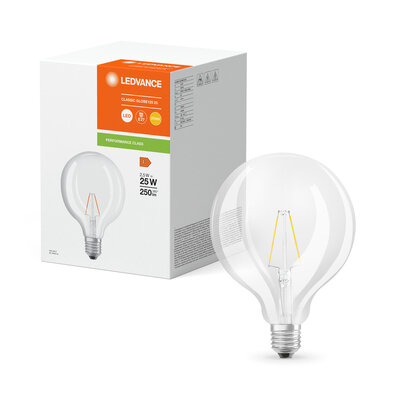

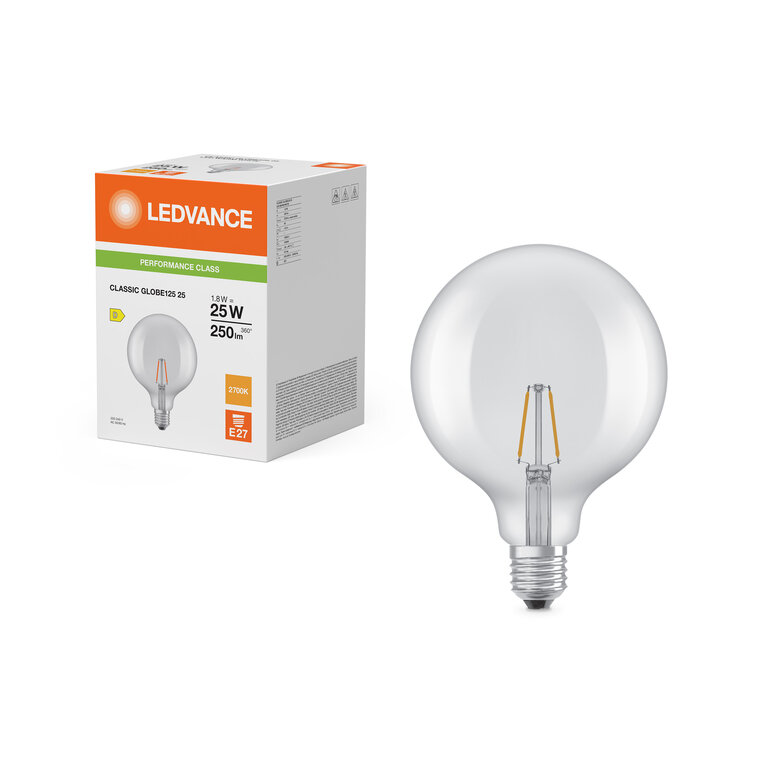

Combo Shot = Product Beauty Shot + Packaging Image
FC1 GLOBE125 25 PFM 2. 5W 827 FIL E27 JPG (604.99 KB)
Packaging image, frontal
FC1 GLOBE125 25 PFM 2. 5W 827 FIL E27 JPG (515.94 KB)

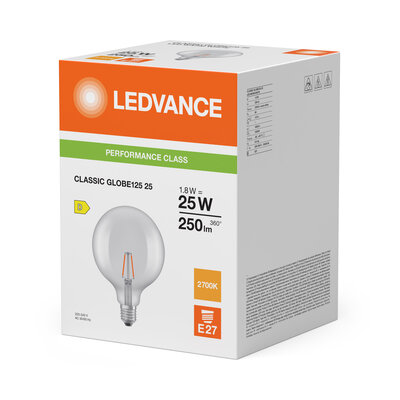

Packaging image, spacial
FC1 GLOBE125 25 PFM 2. 5W 827 FIL E27 JPG (699.91 KB)
Energy label
EL-4099854054259-AC446 72 PDF (21.59 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 2700K PNG (103.24 KB)
EAN SEG number STK number EFO number ELDAS number
4099854054259 8299170 4737059 3763283 941816830
