LED CLASSIC GLOBE P

LED CLASSIC GLOBE P

Choose your product version

2.5W 827 Clear E27

4W 827 Clear E27

6.5W 827 Frosted E27

7W 827 Clear E27

11W 827 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic Globe 125 25 Filament P 2.5W 827 Clear E27 E27 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED Classic Globe 125 40 Filament P 4W 827 Clear E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED Classic Globe 95 60 Filament P 6.5W 827 Frosted E27 E27 6.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Classic Globe 125 60 Filament P 7W 827 Clear E27 E27 7 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED Classic Globe 95 100 Filament P 11W 827 Frosted E27 E27 11 W 220…240 V 15000 h 1521 lm 100 W 300 ° No


LED Classic Globe 95 100 Filament P 11W 827 Frosted E27

Product benefits
  • Lamps with innovative LED "filament" technology
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
View all details

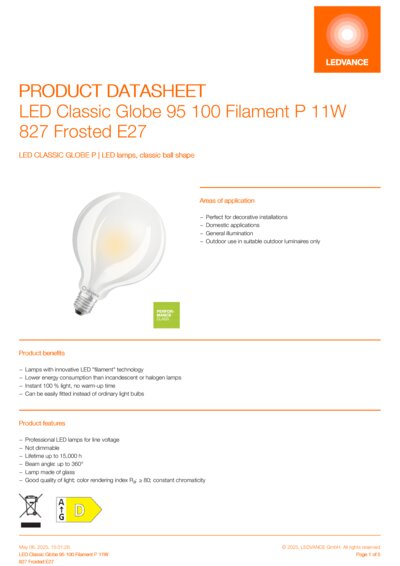

Product data sheet
Go to OSRAM predecessor product

PRODUCT DETAILS

Electrical data

Nominal wattage 11 W
Construction wattage 11.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 100 W
Nominal current 78 mA
Type of current AC
Inrush current 5 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 12
Max. lamp number on MCB B16 A 19
Total harmonic distortion 120 %
Power factor λ > 0.50

Photometrical data

Luminous flux 1521 lm
Luminous efficacy 138 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 135.00 mm
Diameter 95.00 mm
Maximum diameter 95 mm
Product weight 54.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 80 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class D 1)
Energy consumption 11.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LED G95100 11W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 135.00 mm
Height 95.00 mm
Width 95.00 mm
Chromaticity coordinate x 0.4578
Chromaticity coordinate y 0.4101
R9 Colour rendering index 16
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.89
LED light source replaces a fluorescent light source No
EPREL ID 1361332,2180167
Model number AC45214,AC70185

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Lifetime: up to 15,000 h
  • Beam angle: up to 360°
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854062865 Folding box
1		 110 mm x 110 mm x 158 mm 110.00 g 1.91 dm³
4099854062872 Shipping box
6		 342 mm x 231 mm x 175 mm 836.00 g 13.83 dm³
Declarations of conformity
LED CLASSIC PDF (433.11 KB)
Product image: white background, diagonal with LEDVANCE logo
LED GLOBE95 FIL FR E27 JPG (5.15 MB)
Product image: white background, diagonal
CLG 95 GL FR E27 60 TIF (46.12 MB)
Product image: white background, upright LEDVANCE logo
LED GLOBE95 FIL FR E27 JPG (5.16 MB)
Product image: white background, upright
CLG 95 GL FR E27 90 TIF (46.12 MB)
Product line drawing with letters
CLG 95 GL FR E27 SVG (13.18 KB)
Product line drawing with numbers
LED GLOBE95 FILAMNET FROSTED EEA E27 SVG (13.79 KB)
Product line drawing, front, no dimensions
CLG 95 GL FR E27 SVG (10.02 KB)

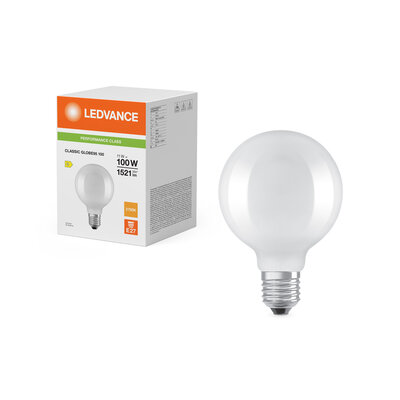

Combo Shot = Product Beauty Shot + Packaging Image
