LED CLASSIC A ENERGY EFFICIENCY A S

LED CLASSIC A ENERGY EFFICIENCY A S

Choose your product version

NEW

2.2W 827 Frosted E27

NEW

2.2W 827 Clear E27

2.2W 830 Clear E27

2.2W 830 Frosted E27

NEW

2.2W 840 Frosted E27

NEW

2.2W 840 Clear E27

2.5W 830 Clear E27

2.5W 830 Frosted E27

NEW

3.8W 827 Frosted E27

NEW

3.8W 827 Clear E27

3.8W 830 Frosted E27

3.8W 830 Clear E27

NEW

3.8W 840 Frosted E27

NEW

3.8W 840 Clear E27

4W 830 Clear E27

NEW

5W 827 Frosted E27

NEW

5W 827 Clear E27

5W 830 Clear E27

5W 830 Clear E27

5W 830 Frosted E27

5W 830 Frosted E27

NEW

5W 840 Clear E27

NEW

5W 840 Frosted E27

NEW

7.2W 827 Frosted E27

NEW

7.2W 827 Clear E27

7.2W 830 Frosted E27

7.2W 830 Clear E27

7.2W 830 Clear E27

7.2W 830 Frosted E27

NEW

7.2W 840 Clear E27

NEW

7.2W 840 Frosted E27

NEW

11.6W 827 Frosted E27

NEW

11.6W 840 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic A 40 Filament Energy efficiency class A S 2.2W 827 Frosted E27 E27 2.2 W 220…240 V 50000 h 470 lm 40 W 300 ° No
LED Classic A 40 Filament Energy efficiency class A S 2.2W 827 Clear E27 E27 2.2 W 220…240 V 50000 h 470 lm 40 W 300 ° No
LED Classic A 40 Filament Energy efficiency class A S 2.2W 830 Clear E27 E27 2.2 W 220…240 V 50000 h 470 lm 40 W 320 ° No
LED Classic A 40 Filament Energy efficiency class A S 2.2W 830 Frosted E27 E27 2.2 W 220…240 V 50000 h 470 lm 40 W 320 ° No
LED Classic A 40 Filament Energy efficiency class A S 2.2W 840 Frosted E27 E27 2.2 W 220…240 V 50000 h 470 lm 40 W 320 ° No
LED Classic A 40 Filament Energy efficiency class A S 2.2W 840 Clear E27 E27 2.2 W 220…240 V 50000 h 470 lm 40 W 320 ° No
LED Classic A 40 Filament Energy efficiency class A S 2.5W 830 Clear E27 E27 2.5 W 220…240 V 50000 h 525 lm 40 W 300 ° No
LED Classic A 40 Energy efficiency class A S 2.5W 830 Frosted E27 E27 2.5 W 220…240 V 50000 h 525 lm 40 W 300 ° No
LED Classic A 60 Filament Energy efficiency class A S 3.8W 827 Frosted E27 E27 3.8 W 220…240 V 50000 h 806 lm 60 W 300 ° No
LED Classic A 60 Filament Energy efficiency class A S 3.8W 827 Clear E27 E27 3.8 W 220…240 V 50000 h 806 lm 60 W 300 ° No
LED Classic A 60 Filament Energy efficiency class A S 3.8W 830 Frosted E27 E27 3.8 W 220…240 V 50000 h 806 lm 60 W 320 ° No
LED Classic A 60 Filament Energy efficiency class A S 3.8W 830 Clear E27 E27 3.8 W 220…240 V 50000 h 806 lm 60 W 320 ° No
LED Classic A 60 Filament Energy efficiency class A S 3.8W 840 Frosted E27 E27 3.8 W 220…240 V 50000 h 806 lm 60 W 320 ° No
LED Classic A 60 Filament Energy efficiency class A S 3.8W 840 Clear E27 E27 3.8 W 220…240 V 50000 h 806 lm 60 W 320 ° No
LED Classic A 60 Filament Energy efficiency class A S 4W 830 Clear E27 E27 4 W 220…240 V 50000 h 840 lm 60 W 300 ° No
LED Classic A 75 Filament Energy efficiency class A S 5W 827 Frosted E27 E27 5 W 220…240 V 50000 h 1055 lm 75 W 300 ° No
LED Classic A 75 Filament Energy efficiency class A S 5W 827 Clear E27 E27 5 W 220…240 V 50000 h 1055 lm 75 W 300 ° No
LED Classic A 75 Filament Energy efficiency class A S 5W 830 Clear E27 E27 5 W 220…240 V 50000 h 1055 lm 75 W 320 ° No
LED Classic A 75 Filament Energy efficiency class A S 5W 830 Clear E27 E27 5 W 220…240 V 50000 h 1055 lm 75 W 300 ° No
LED Classic A 75 Filament Energy efficiency class A S 5W 830 Frosted E27 E27 5 W 220…240 V 50000 h 1055 lm 75 W 320 ° No
LED Classic A 75 Energy efficiency class A S 5W 830 Frosted E27 E27 5 W 220…240 V 50000 h 1055 lm 75 W 300 ° No
LED Classic A 75 Filament Energy efficiency class A S 5W 840 Clear E27 E27 5 W 220…240 V 50000 h 1055 lm 75 W 320 ° No
LED Classic A 75 Filament Energy efficiency class A S 5W 840 Frosted E27 E27 5 W 220…240 V 50000 h 1055 lm 75 W 320 ° No
LED Classic A 100 Filament Energy efficiency class A S 7.2W 827 Frosted E27 E27 7.2 W 220…240 V 50000 h 1521 lm 100 W 300 ° No
LED Classic A 100 Filament Energy efficiency class A S 7.2W 827 Clear E27 E27 7.2 W 220…240 V 50000 h 1521 lm 100 W 300 ° No
LED Classic A 100 Energy efficiency class A S 7.2W 830 Frosted E27 E27 7.2 W 220…240 V 50000 h 1521 lm 100 W 300 ° No
LED Classic A 100 Filament Energy efficiency class A S 7.2W 830 Clear E27 E27 7.2 W 220…240 V 50000 h 1521 lm 100 W 320 ° No
LED Classic A 100 Filament Energy efficiency class A S 7.2W 830 Clear E27 E27 7.2 W 220…240 V 50000 h 1521 lm 100 W 300 ° No
LED Classic A 100 Filament Energy efficiency class A S 7.2W 830 Frosted E27 E27 7.2 W 220…240 V 50000 h 1521 lm 100 W 320 ° No
LED Classic A 100 Filament Energy efficiency class A S 7.2W 840 Clear E27 E27 7.2 W 220…240 V 50000 h 1521 lm 100 W 320 ° No
LED Classic A 100 Filament Energy efficiency class A S 7.2W 840 Frosted E27 E27 7.2 W 220…240 V 50000 h 1521 lm 100 W 320 ° No
LED Classic A 150 Filament Energy efficiency class A S 11.6W 827 Frosted E27 E27 11.6 W 220…240 . V 50000 h 2452 lm 150 W 330 ° No
LED Classic A 150 Filament Energy efficiency class A S 11.6W 840 Frosted E27 E27 11.6 W 220…240 . V 50000 h 2452 lm 150 W 330 ° No


LED Classic A 40 Filament Energy efficiency class A S 2.5W 830 Clear E27

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering
View all details
Product data sheet
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 2.5 W
Construction wattage 2.50 W
Nominal voltage 220…240 V
Operating mode Mains voltage
Claimed equiv. conventional lamp power 40 W
Nominal current 22 mA
Type of current AC
Inrush current 18 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 175
Max. lamp number on MCB B16 A 281
Total harmonic distortion 100 %
Power factor λ > 0.47

Photometrical data

Luminous flux 525 lm
Nominal useful luminous flux 90° 525 lm
Luminous efficacy 210 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra ≥80
Light color 830
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0,90

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 105.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 31.00 g

Temperatures & operating conditions

Ambient temperature range -20…40 °C
Maximum temperature at tc test point 65 °C

Lifespan

Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 500000
Lumen maintenance at end of service lifetime 0.96
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Design / version Clear

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class A
Energy consumption 3.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LED CLA40 2,5W/

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power not applicable
Networked standby power for CLS not applicable
Claim of equivalent power Yes
Length 105.00 mm
Height 60.00 mm
Width 60.00 mm
Chromaticity coordinate x 0,45
Chromaticity coordinate y 0,437
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0,90
Displacement factor 0,474
LED light source replaces a fluorescent light source No
EPREL ID 1191489
Model number AC41193

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Luminous efficacy: up to 210 lm/W
  • Beam angle: up to 300°
  • Very long lifetime of up to 50,000 h
  • Very high number of switching cycles: 500,000
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075747807 Folding box
1		 60 mm x 60 mm x 145 mm 46.00 g 0.52 dm³
4058075747814 Shipping box
6		 202 mm x 134 mm x 130 mm 378.00 g 3.52 dm³

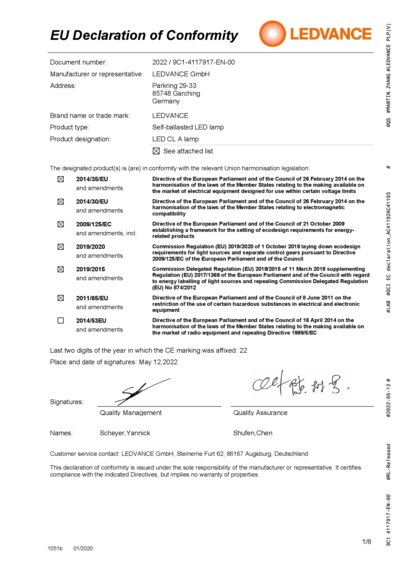

Declarations of conformity
LED CL A lamp PDF (306.33 KB)

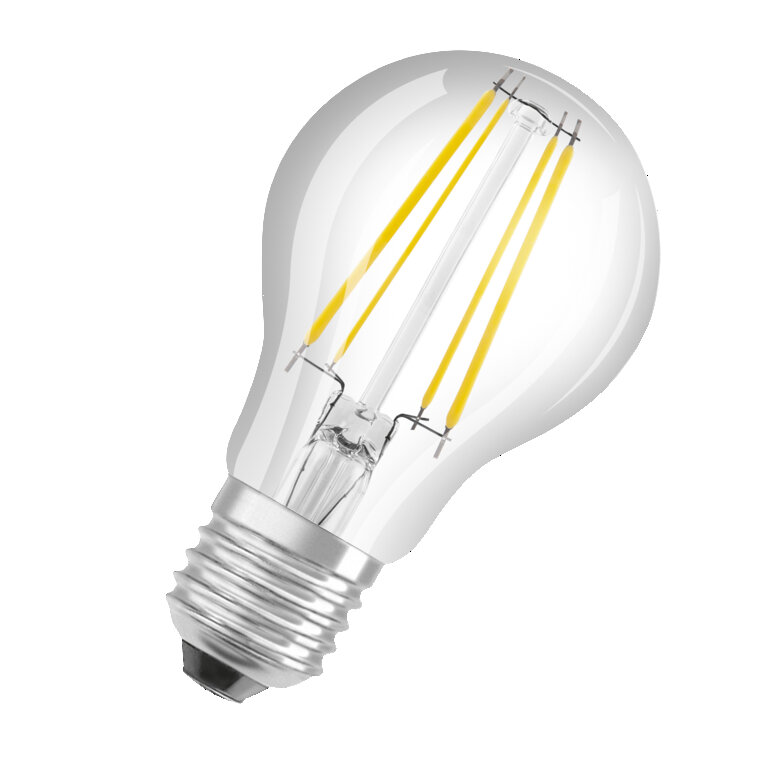

Product image: white background, diagonal
LED CLA45 2,5W/830 230 V FIL E27 6X1LEDV JPG (574.17 KB)

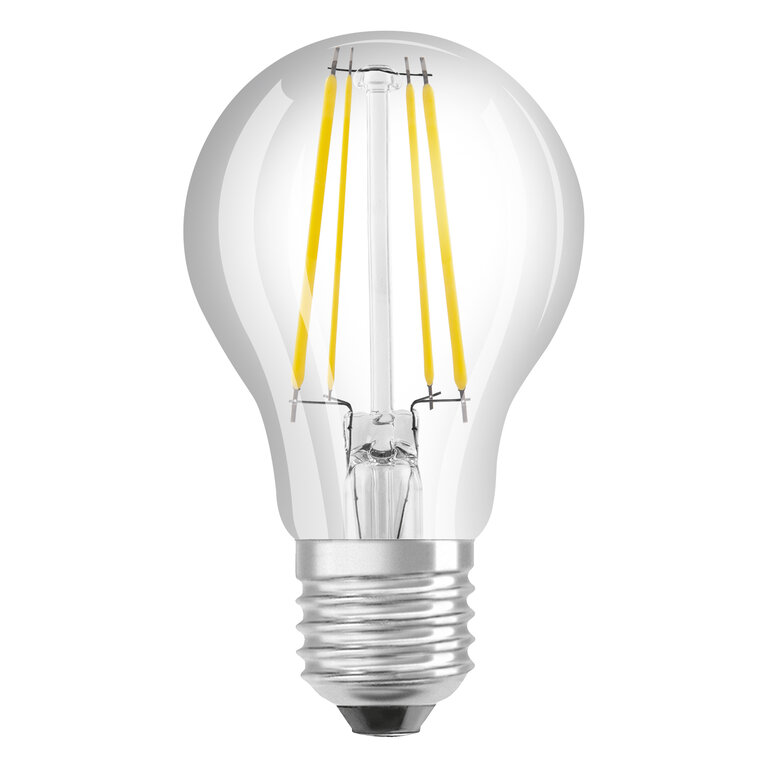

Product image: white background, upright
LED CLA45 2,5W-830 230 V FIL E27 6X1LEDV JPG (1.25 MB)
Product infographic (application image with text and graphic)
Ultra efficient assort ment E-Com-Grafik V2 1 200x1200 2023 EN JPG (727.86 KB)
Product infographic (application image with text and graphic)
Ultra efficient assort ment E-Com-Grafik V1 1 200x1200 2023 EN JPG (1.61 MB)
Product infographic (application image with text and graphic)
Ultra efficient assort ment E-Com-Grafik V3 1 200x1200 2023 EN JPG (629.36 KB)
Product line drawing with letters
LED CLA45 2,5W/830 230 V FIL E27 6X1LEDV SVG (14.33 KB)
Product line drawing with numbers
LED CLA45 2,5W/830 230 V FIL E27 6X1LEDV SVG (16.28 KB)
Product line drawing - technical
LED CLA45 2,5W/830 230 V FIL E27 6X1LEDV SVG (10.69 KB)

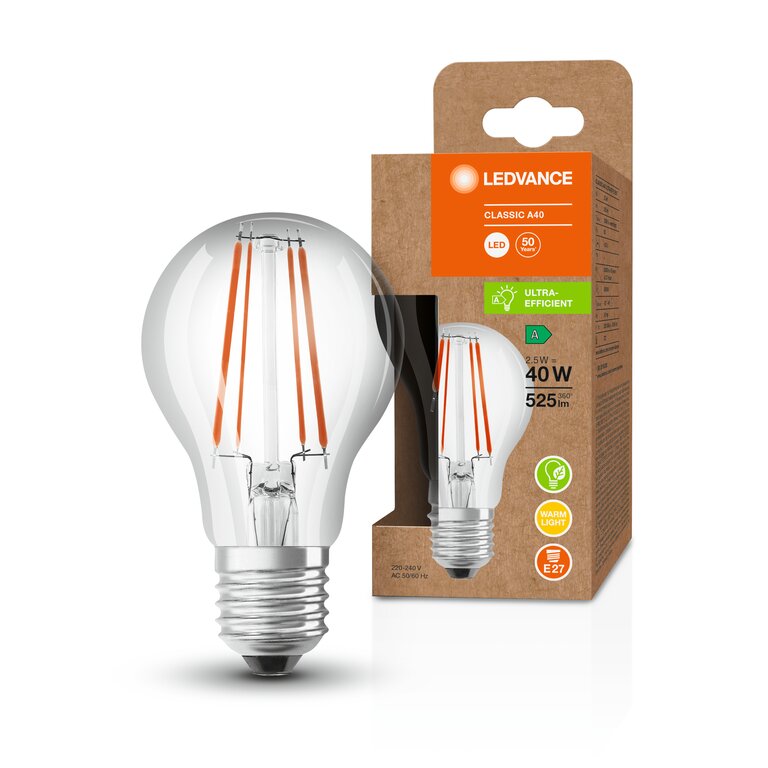

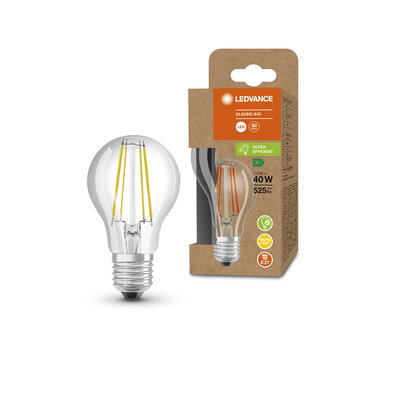

Combo Shot = Product Beauty Shot + Packaging Image
LED CLA 40 2.5W 830 E2 7 MiCh JPG (1.66 MB)

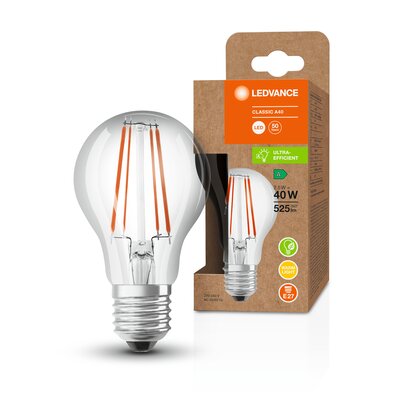

Combo Shot = Product Beauty Shot + Packaging Image
LEDCLA40ULTRAEFFICIENT 2.5W830E27 JPG (2.92 MB)

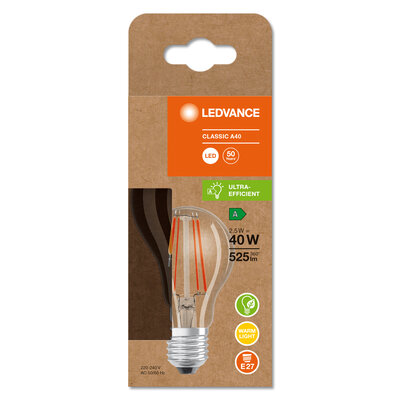

Packaging image, frontal
LED CLA 60 4W 830 E27 MiCh JPG (1.84 MB)

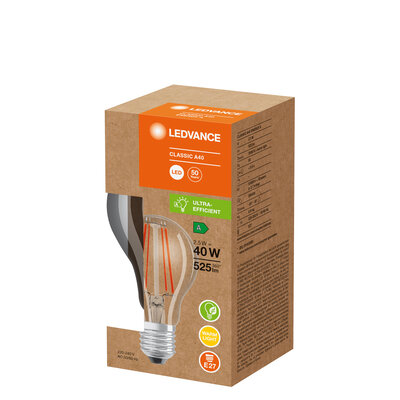

Packaging image, spacial
LED CLA 40 2,5W 830 E2 7 MiCh JPG (2.41 MB)
Energy label
EL-4058075747807-AC411 93 PDF (21.5 KB)
Logos and pictos
A left SVG (1.83 KB)
Logos and pictos
A left BW SVG (1.07 KB)
Logos and pictos
A right SVG (1.8 KB)
Logos and pictos
A right BW SVG (1.07 KB)
Spectral power distribution
EPREL Data Spectral Di agram LEDr _3000K_Ener gy Class A JPG (162.2 KB)
Video

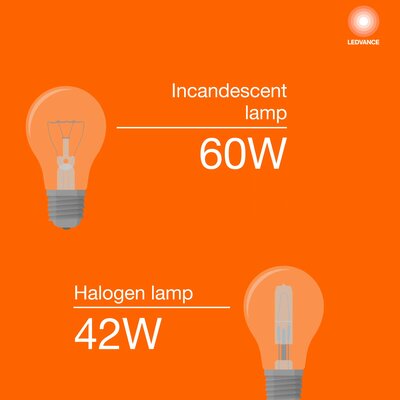

Energy Class A Develop ment of A60 Lamp Forma t- Square EN Version MP4 (4.96 MB)
Video
Energy Class A Reducti on of Energy consumpti on Format- Square EN V ersion MP4 (6.64 MB)
Video
Energy Class A Extensi on of Service Life For mat- Square EN Version MP4 (1.77 MB)
Video

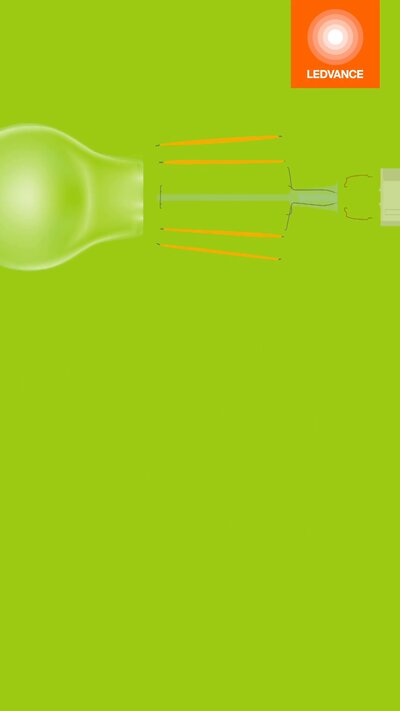

Energy Class A Increas ed Efficiency Format- Square EN Version MP4 (6.33 MB)
Video
Energy Class A Develop ment of A60 Lamp Forma t- 9-16 EN Version MP4 (2.8 MB)
Video
Energy Class A Reducti on of Energy consumpti on Format- 9-16 EN Ver sion MP4 (3.35 MB)
Video
Energy Class A Extensi on of Service Life For mat- 9-16 EN Version MP4 (920.83 KB)
Video
Energy Class A Increas ed Efficiency Format- 9-16 EN Version MP4 (3.9 MB)
EAN SEG number STK number ELDAS number
4058075747807 8297897 4736627 941813580
