LED CLASSIC P ENERGY EFFICIENCY A S

LED CLASSIC P ENERGY EFFICIENCY A S

Choose your product version

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic P 25 Filament Energy efficiency class A S 1.2W 827 Frosted E14 E14 1.2 W 220…240 V 50000 h 255 lm 25 W 330 ° No

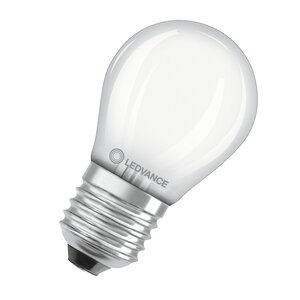

LED Classic P 25 Filament Energy efficiency class A S 1.2W 827 Frosted E27 E27 1.2 W 220…240 V 50000 h 255 lm 25 W 330 ° No
LED Classic P 25 Filament Energy efficiency class A S 1.2W 840 Frosted E14 E14 1.2 W 220…240 V 50000 h 255 lm 25 W 330 ° No
LED Classic P 25 Filament Energy efficiency class A S 1.2W 840 Frosted E27 E27 1.2 W 220…240 V 50000 h 255 lm 25 W 330 ° No
LED Classic P 40 Filament Energy efficiency class A S 2.2W 827 Frosted E14 E14 2.2 W 220…240 V 50000 h 470 lm 40 W 330 ° No

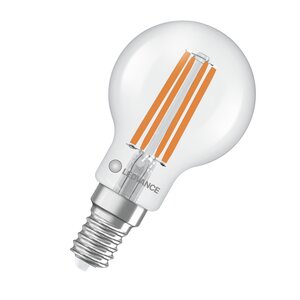

LED Classic P 40 Filament Energy efficiency class A S 2.2W 827 Clear E14 E14 2.2 W 220…240 V 50000 h 470 lm 40 W 320 ° No
LED Classic P 60 Filament Energy efficiency class A S 3.8W 827 Frosted E14 E14 3.8 W 220…240 V 50000 h 806 lm 60 W 330 ° No
LED Classic P 60 Filament Energy efficiency class A S 3.8W 827 Clear E14 E14 3.8 W 220…240 V 50000 h 806 lm 60 W 320 ° No
NEW

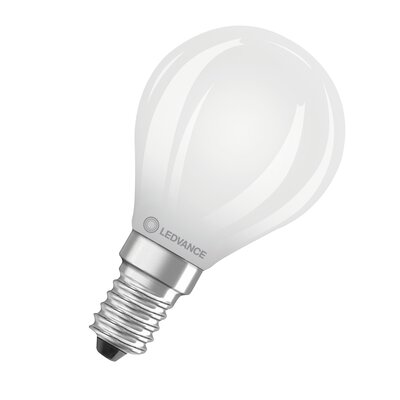

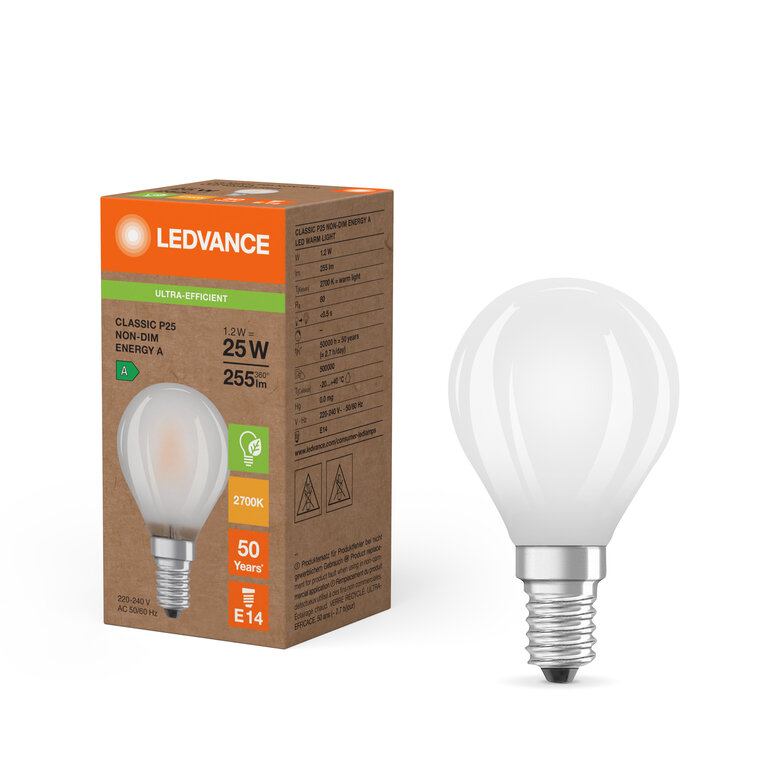

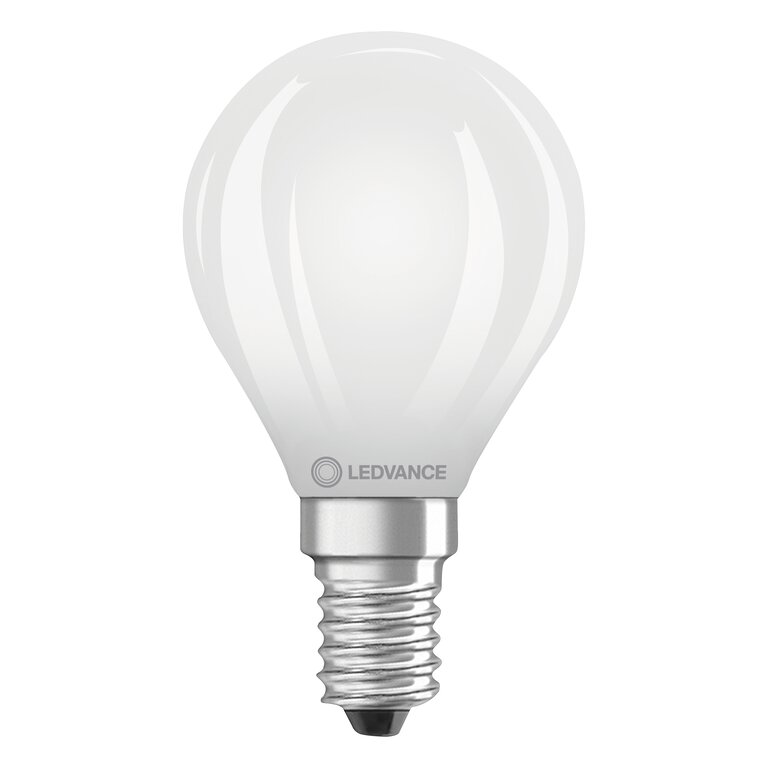

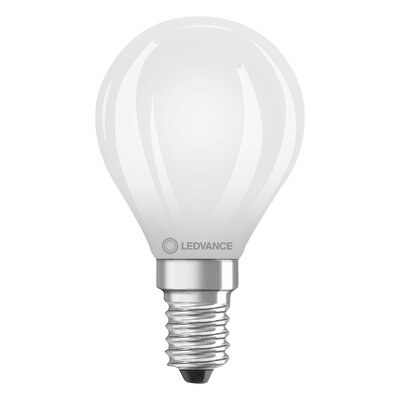

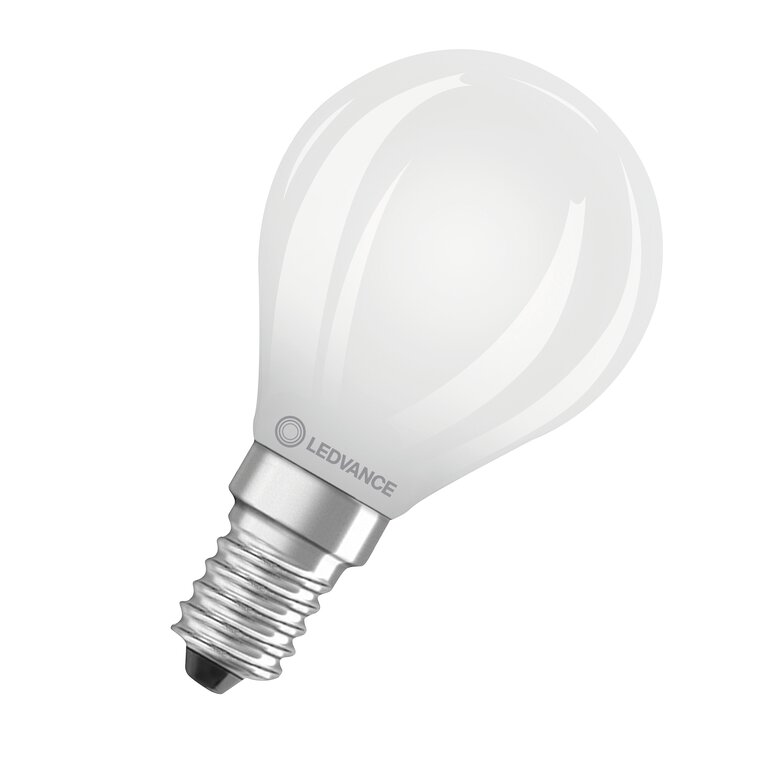

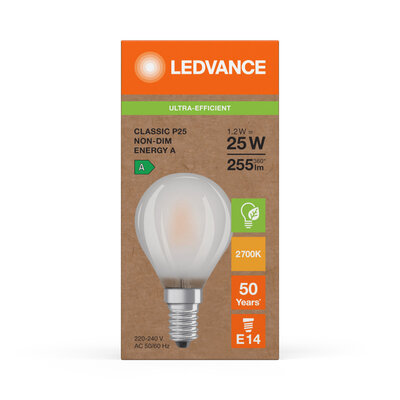

LED Classic P 25 Filament Energy efficiency class A S 1.2W 827 Frosted E14

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering

PRODUCT DETAILS

Electrical data

Nominal wattage 1.2 W
Construction wattage 1.20 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 25 W
Nominal current 12 mA
Type of current AC
Inrush current 2.56 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 175
Max. lamp number on MCB B16 A 281
Total harmonic distortion 102.30 %
Power factor λ 0.41

Photometrical data

Luminous flux 255 lm
Luminous efficacy 212 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Warm white
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 330 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 80.00 mm
Diameter 45.00 mm
Maximum diameter 45 mm
Product weight 16.5 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 65 °C

Lifespan

Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 500000
Lumen maintenance at end of service lifetime 0.96

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class A 1)
Energy consumption 2.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDCLP25EELA 1.

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS Not relevant
Claim of equivalent power Yes
Length 80.00 mm
Height 45.00 mm
Width 45.00 mm
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index 15
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.723
LED light source replaces a fluorescent light source No
EPREL ID 1902968
Model number AC60054

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Luminous efficacy: up to 210 lm/W
  • Beam angle: up to 300°
  • Very long lifetime of up to 50,000 h
  • Very high number of switching cycles: 500,000
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

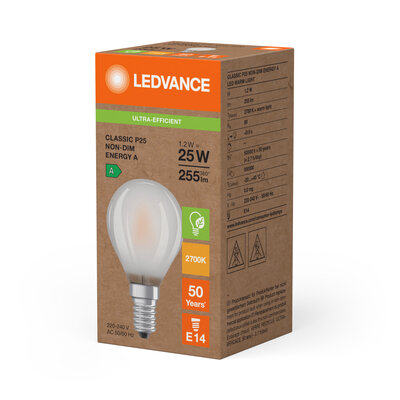

4099854282157 Folding box
1
46 mm x 46 mm x 93 mm 26.00 g 0.20 dm³
4099854282164 Shipping box
10
240 mm x 101 mm x 108 mm 323.00 g 2.62 dm³
EAN SEG number STK number
4099854282157 8299654 4737903
