LED CLASSIC P ENERGY EFFICIENCY A S

LED CLASSIC P ENERGY EFFICIENCY A S

Choose your product version

NEW

1.2W 827 Frosted E14

NEW

1.2W 827 Frosted E27

NEW

1.2W 840 Frosted E14

NEW

1.2W 840 Frosted E27

NEW

2.2W 827 Frosted E14

NEW

2.2W 827 Clear E14

NEW

3.8W 827 Frosted E14

NEW

3.8W 827 Clear E14

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic P 25 Filament Energy efficiency class A S 1.2W 827 Frosted E14 E14 1.2 W 220…240 V 50000 h 255 lm 25 W 330 ° No
LED Classic P 25 Filament Energy efficiency class A S 1.2W 827 Frosted E27 E27 1.2 W 220…240 V 50000 h 255 lm 25 W 330 ° No
LED Classic P 25 Filament Energy efficiency class A S 1.2W 840 Frosted E14 E14 1.2 W 220…240 V 50000 h 255 lm 25 W 330 ° No
LED Classic P 25 Filament Energy efficiency class A S 1.2W 840 Frosted E27 E27 1.2 W 220…240 V 50000 h 255 lm 25 W 330 ° No
LED Classic P 40 Filament Energy efficiency class A S 2.2W 827 Frosted E14 E14 2.2 W 220…240 V 50000 h 470 lm 40 W 330 ° No
LED Classic P 40 Filament Energy efficiency class A S 2.2W 827 Clear E14 E14 2.2 W 220…240 V 50000 h 470 lm 40 W 320 ° No
LED Classic P 60 Filament Energy efficiency class A S 3.8W 827 Frosted E14 E14 3.8 W 220…240 V 50000 h 806 lm 60 W 330 ° No
LED Classic P 60 Filament Energy efficiency class A S 3.8W 827 Clear E14 E14 3.8 W 220…240 V 50000 h 806 lm 60 W 320 ° No
NEW


LED Classic P 60 Filament Energy efficiency class A S 3.8W 827 Clear E14

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 3.8 W
Construction wattage 3.80 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 60 W
Nominal current 38 mA
Type of current AC
Inrush current 3.96 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 113
Max. lamp number on MCB B16 A 181
Total harmonic distortion 134.47 %
Power factor λ ≥ 0.40

Photometrical data

Luminous flux 806 lm
Luminous efficacy 212 lm/W
Lumen main.fact.at end of nom.life time 0.98
Light color (designation) Warm white
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 88.00 mm
Diameter 45.00 mm
Maximum diameter 45 mm
Product weight 17.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 65 °C

Lifespan

Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.98

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class A 1)
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDCLP60EELA 3.

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS Not relevant
Claim of equivalent power Yes
Length 88.00 mm
Height 45.00 mm
Width 45.00 mm
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index 14
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.785
LED light source replaces a fluorescent light source No
EPREL ID 1864217,1902965
Model number AC57860,AC60061

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Low energy consumption
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Instant 100 % light, no warm-up time
  • Low flickering
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Luminous efficacy: up to 210 lm/W
  • Beam angle: up to 300°
  • Very long lifetime of up to 50,000 h
  • Very high number of switching cycles: 500,000
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854255397 Folding box
1		 46 mm x 46 mm x 93 mm 27.00 g 0.20 dm³
4099854255403 Shipping box
10		 240 mm x 101 mm x 108 mm 328.00 g 2.62 dm³
Declarations of conformity
LED lamp PDF (312.17 KB)

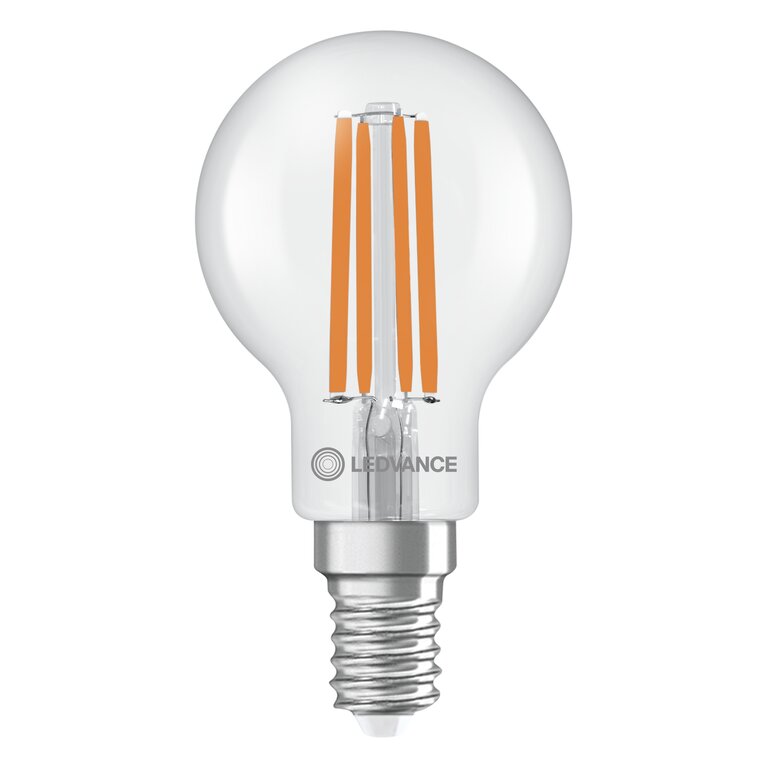

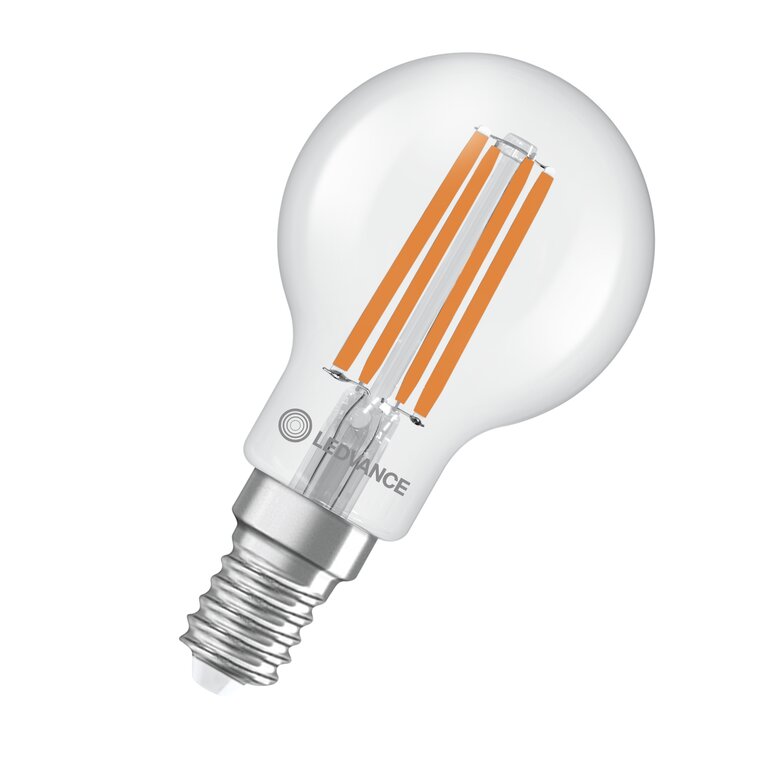

Product image: white background, diagonal with LEDVANCE logo
LED CLASSIC P FILAMENT E14 JPG (2.11 MB)

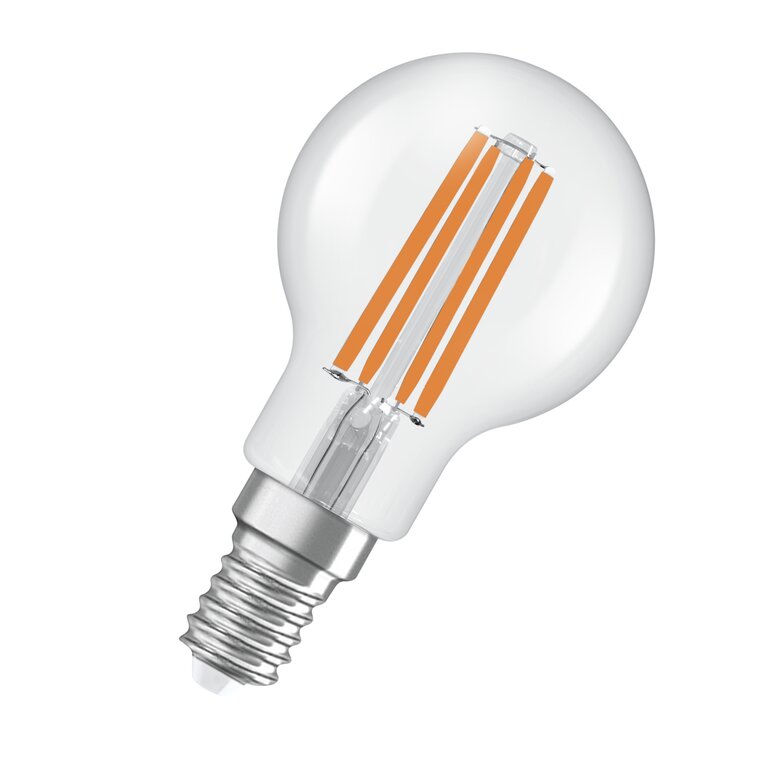

Product image: white background, diagonal
LED CLASSIC P FILAMENT E14 JPG (2.06 MB)
Product image: white background, upright LEDVANCE logo
LED CLASSIC P FILAMENT E14 JPG (1.97 MB)

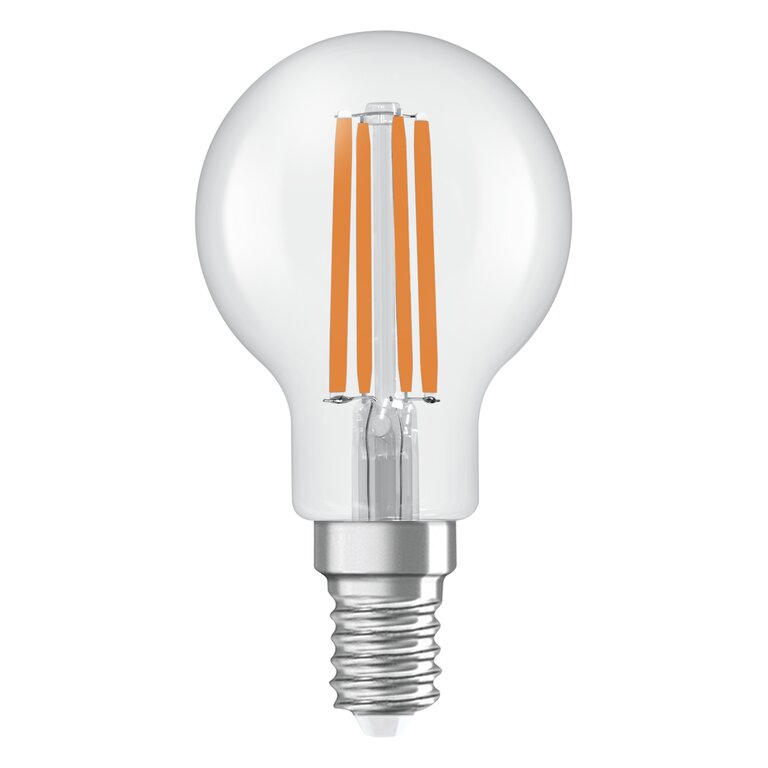

Product image: white background, upright
LED CLASSIC P FILAMENT E14 JPG (1.93 MB)
Product line drawing with letters
LED CLASSIC P FILAMENT E14 SVG (15.32 KB)
Product line drawing with numbers
LED CLASSIC P FILAMENT E14 SVG (14.49 KB)
Product line drawing - technical
LED CLASSIC P FILAMENT E14 SVG (11.42 KB)

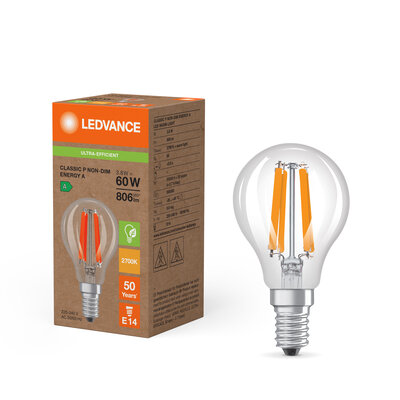

Combo Shot = Product Beauty Shot + Packaging Image
FC1 CLP 60 SUP EELA 3. 8W 827 FIL E14 JPG (1.31 MB)
Packaging image, frontal
FC1 CLP 60 SUP EELA 3. 8W 827 FIL E14 JPG (745.68 KB)
Packaging image, spacial
FC1 CLP 60 SUP EELA 3. 8W 827 FIL E14 JPG (1.11 MB)
Energy label
EL-4099854255397-AC578 60 PDF (21.65 KB)
Energy label
EL-4099854255397-AC600 61 PDF (21.45 KB)
Logos and pictos
A left SVG (1.83 KB)
Logos and pictos
A left BW SVG (1.07 KB)
Logos and pictos
A right SVG (1.8 KB)
Logos and pictos
A right BW SVG (1.07 KB)
Spectral power distribution
EPREL Data Spectral Di agram LEDr _2700K_EELB PNG (88.71 KB)
EAN SEG number STK number
4099854255397 8299653 4737900
