PARATHOM® CLASSIC A DIM

PARATHOM CLASSIC A DIM

Choose your product version

8.8W 827 Frosted E27

60 8.8 W/2700 K E27

60 9 W/2700 K E27

10.5W 827 Frosted E27

75 10.5 W/2700 K E27

100 13 W/2700 K E27

100 FR 14 W/2700 K E27

150 18 W/2700 K E27

20W 827 Frosted E27

150 21 W/2700 K E27

24.9W 827 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic A 60 DIM P 8.8W 827 Frosted E27 E27 8.8 W 220…240 V 25000 h 806 lm 60 W 220 ° Yes
P CLAS A 60 8.8 W/2700 K E27 E27 8.8 W 220…240 V 25000 h 806 lm 60 W 180 ° Yes
P CLAS A 60 9 W/2700 K E27 E27 9 W 220…240 V 25000 h 806 lm 60 W 220 ° Yes
LED Classic A 75 DIM P 10.5W 827 Frosted E27 E27 10.5 W 220…240 V 25000 h 1055 lm 75 W 220 ° Yes
P CLAS A 75 10.5 W/2700 K E27 E27 10.5 W 220…240 V 25000 h 1055 lm 75 W 220 ° Yes
P CLAS A 100 13 W/2700 K E27 E27 13 W 220…240 V 25000 h 1521 lm 100 W 220 ° Yes
P CLAS A 100 FR 14 W/2700 K E27 E27 14 W 220…240 V 25000 h 1521 lm 100 W 220 ° Yes
P CLAS A 150 18 W/2700 K E27 E27 18 W 220…240 V 15000 h 2452 lm 150 W 330 ° Yes
LED Classic A 150 DIM P 20W 827 Frosted E27 E27 20 W 220…240 V 25000 h 2452 lm 150 W 200 ° Yes
P CLAS A 150 21 W/2700 K E27 E27 21 W 220…240 V 25000 h 2452 lm 150 W 200 ° Yes
LED Classic A 200 DIM P 24.9W 827 Frosted E27 E27 24.9 W 220…240 V 25000 h 3452 lm 200 W 200 ° Yes


P CLAS A 75 10.5 W/2700 K E27

Product benefits
  • Low energy consumption
  • High color consistency thanks to narrow binning
  • Easy replacement of classic lamps thanks to compact design
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 10.5 W
Construction wattage 10.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 75 W
Nominal current 70 mA
Type of current AC
Inrush current 5 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 70
Max. lamp number on MCB B16 A 120
Power factor λ > 0.70

Photometrical data

Luminous intensity - cd
Luminous flux 1055 lm
Nominal useful luminous flux 90° 1055 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 220 °
Warm-up time (60 %) ‹ 1.00 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 110.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 43.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 100 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, LED lamps contain several electronic components. Under unfavourable conditions these can lead to acoustic noise. In case of resonance even low noise can cause audible effect. Possible factors influencing this are the installation, the design of the lamp holder and the luminaire (acoustic resonance effect) as well as the dimmer or the transformer (harmonics or electronic resonance)

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 11.00 kWh/1000h
Type of protection IP20
Standards CE, ROHS, ERP
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference LEDPCLA75D 10,5

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Correlated colour temperature type SINGLE_VALUE
Length 110.00 mm
Height 60.00 mm
Width 60.00 mm
EPREL ID 1403220
Model number AC24704

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Low energy consumption
  • High color consistency thanks to narrow binning
  • Easy replacement of classic lamps thanks to compact design
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • Long lifetime: up to 25,000 h
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075462595 Folding box
1		 61 mm x 61 mm x 109 mm 57.00 g 0.41 dm³
4058075462601 Shipping box
10		 318 mm x 133 mm x 124 mm 688.00 g 5.24 dm³

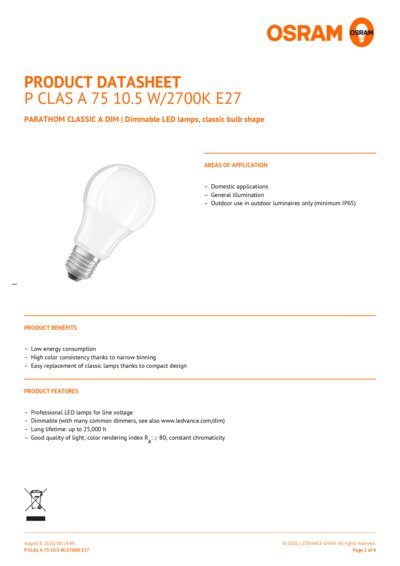

PRODUCT DATASHEET
P CLAS A 75 10.5 W 270 0K E27 PDF (218.01 KB)

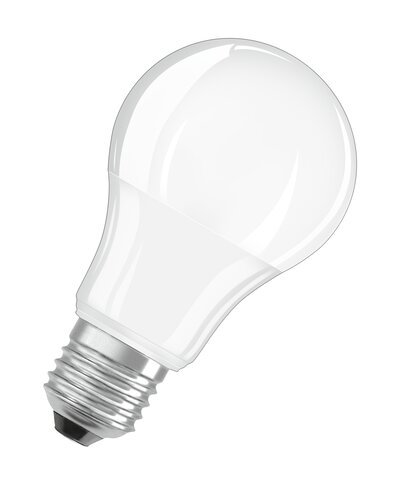

Product image: white background, diagonal
660736_Bargain Classic A60 frosted TIF (34.75 MB)

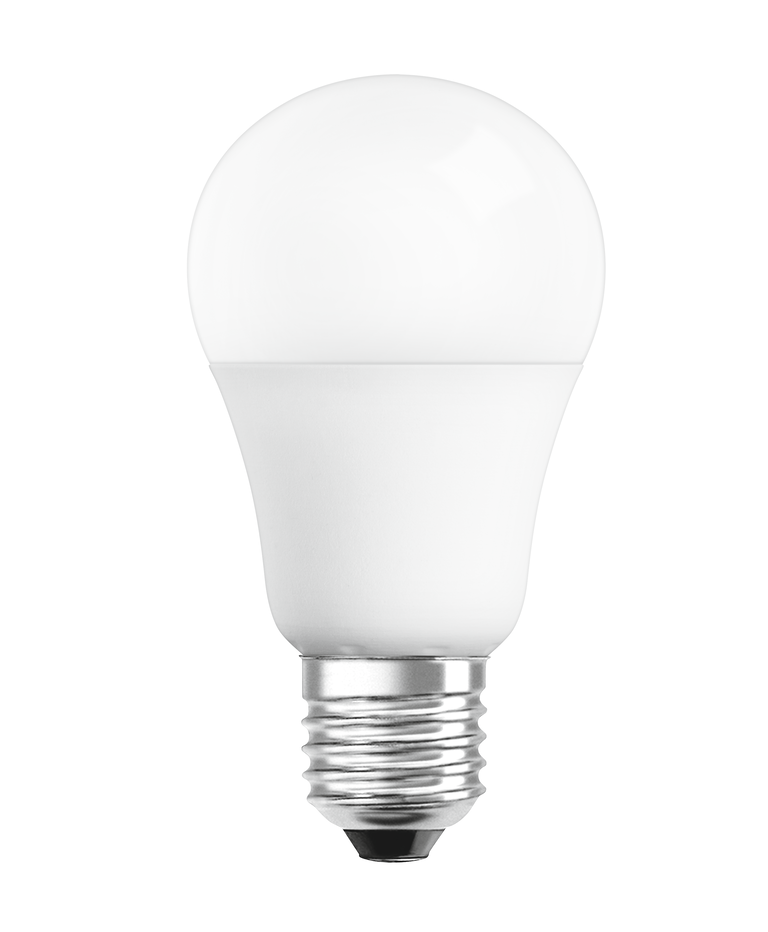

Product image: white background, upright
344043_CLASSIC A 60 AD VANCED FROSTED PLANET TIF (33.98 MB)
Product line drawing with letters
344046_CLASSIC A 60 AD VANCED FROSTED PLANET SVG (9.47 KB)
Product line drawing, front, no dimensions
488813_A60 E27 frosted adv and basic SVG (7.05 KB)
Packaging image, frontal
PARA DIM CLA 75 DIM 10 .5W 827 FR E27 MiCh JPG (2.49 MB)
Packaging image, spacial
PARA DIM CLA 75 DIM 10 .5W 827 FR E27 MiCh JPG (1.99 MB)
Energy label
EL-4058075462595-AC247 04 PDF (21.33 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
EAN SEG number STK number EFO number ELDAS number
4058075462595 8295489 4731446 3734055 941804810
