PARATHOM® CLASSIC A DIM

PARATHOM CLASSIC A DIM

Choose your product version

8.8W 827 Frosted E27

60 8.8 W/2700 K E27

60 9 W/2700 K E27

10.5W 827 Frosted E27

75 10.5 W/2700 K E27

100 13 W/2700 K E27

100 FR 14 W/2700 K E27

150 18 W/2700 K E27

20W 827 Frosted E27

150 21 W/2700 K E27

24.9W 827 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic A 60 DIM P 8.8W 827 Frosted E27 E27 8.8 W 220…240 V 25000 h 806 lm 60 W 220 ° Yes
P CLAS A 60 8.8 W/2700 K E27 E27 8.8 W 220…240 V 25000 h 806 lm 60 W 180 ° Yes
P CLAS A 60 9 W/2700 K E27 E27 9 W 220…240 V 25000 h 806 lm 60 W 220 ° Yes
LED Classic A 75 DIM P 10.5W 827 Frosted E27 E27 10.5 W 220…240 V 25000 h 1055 lm 75 W 220 ° Yes
P CLAS A 75 10.5 W/2700 K E27 E27 10.5 W 220…240 V 25000 h 1055 lm 75 W 220 ° Yes
P CLAS A 100 13 W/2700 K E27 E27 13 W 220…240 V 25000 h 1521 lm 100 W 220 ° Yes
P CLAS A 100 FR 14 W/2700 K E27 E27 14 W 220…240 V 25000 h 1521 lm 100 W 220 ° Yes
P CLAS A 150 18 W/2700 K E27 E27 18 W 220…240 V 15000 h 2452 lm 150 W 330 ° Yes
LED Classic A 150 DIM P 20W 827 Frosted E27 E27 20 W 220…240 V 25000 h 2452 lm 150 W 200 ° Yes
P CLAS A 150 21 W/2700 K E27 E27 21 W 220…240 V 25000 h 2452 lm 150 W 200 ° Yes
LED Classic A 200 DIM P 24.9W 827 Frosted E27 E27 24.9 W 220…240 V 25000 h 3452 lm 200 W 200 ° Yes


LED Classic A 60 DIM P 8.8W 827 Frosted E27

Product benefits
  • Low energy consumption
  • High color consistency thanks to narrow binning
  • Easy replacement of classic lamps thanks to compact design
View all details
Product data sheet
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 8.8 W
Construction wattage 8.80 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 60 W
Nominal current 45 mA
Type of current AC
Inrush current 0.28 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 120
Max. lamp number on MCB B16 A 198
Total harmonic distortion 120 %
Power factor λ > 0.70

Photometrical data

Luminous flux 806 lm
Nominal useful luminous flux 90° 806 lm
Luminous efficacy 91 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 220 °
Warm-up time (60 %) ‹ 1.00 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 105.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 34.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 105 °C

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark Dimmable (with many common dimmers, see also www.ledvance.com/dim)

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 9.00 kWh/1000h
Type of protection IP20
Standards CE, RoHS, REACH, ERP
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDPCLA60D 8,8W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00 W
Claim of equivalent power Yes
Length 105.00 mm
Height 60.00 mm
Width 60.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.70
LED light source replaces a fluorescent light source No
EPREL ID 523285
Model number AC31127

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Low energy consumption
  • High color consistency thanks to narrow binning
  • Easy replacement of classic lamps thanks to compact design
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • Long lifetime: up to 25,000 h
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075594180 Folding box
1		 60 mm x 60 mm x 111 mm 48.00 g 0.40 dm³
4058075594197 Shipping box
10		 325 mm x 136 mm x 126 mm 573.00 g 5.57 dm³

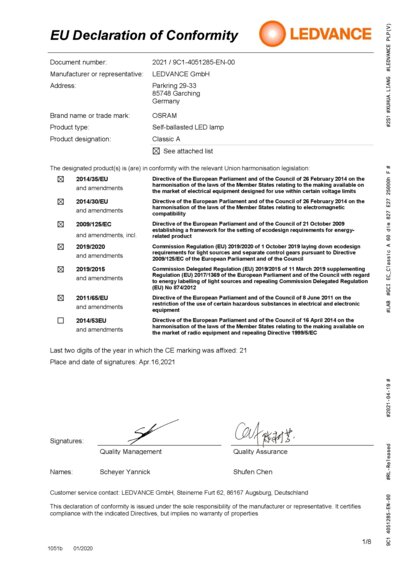

Declarations of conformity
LED Classic A PDF (193.42 KB)
Product image: white background, diagonal
660736_Bargain Classic A60 frosted TIF (34.75 MB)

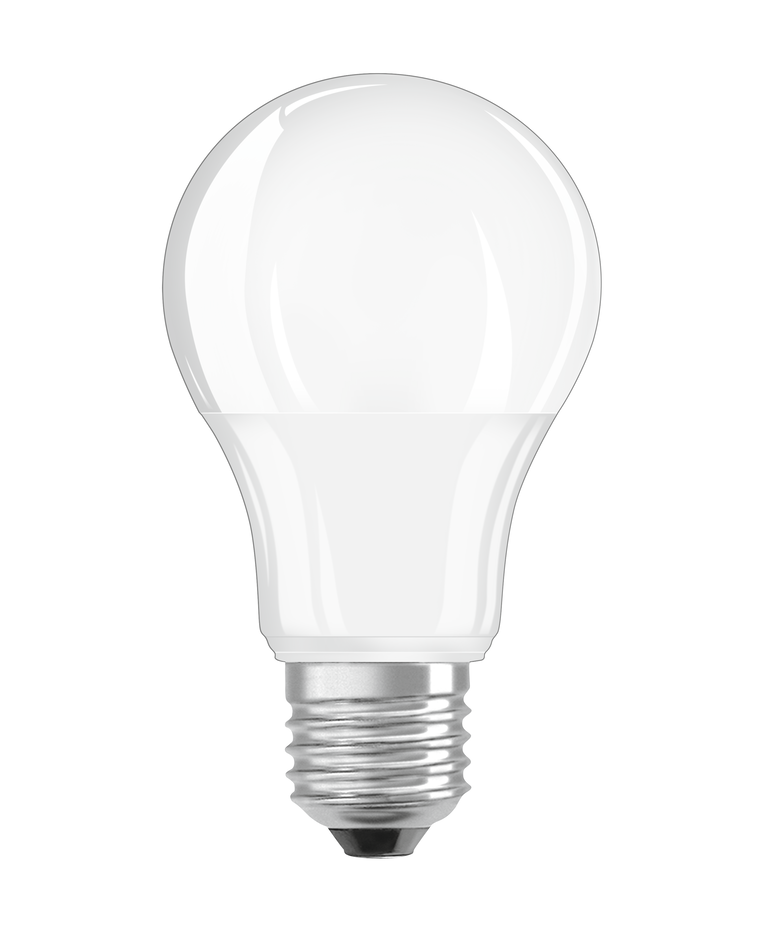

Product image: white background, upright
660747_Bargain Classic A60 frosted TIF (34.75 MB)
Product line drawing with letters
344046_CLASSIC A 60 AD VANCED FROSTED PLANET SVG (9.47 KB)
Product line drawing with numbers
LED CLASSIC A60 E27 SVG (12.14 KB)
Product line drawing, front, no dimensions
344047_CLASSIC A 60 AD VANCED FROSTED PLANET SVG (6.32 KB)
Packaging image, frontal
PARADIM CLA 60 8.8W 82 7 FR E27 MiCh JPG (1.69 MB)
Packaging image, spacial
PARADIM CLA 60 8.8W 82 7 FR E27 MiCh JPG (1.97 MB)
Energy label
EL-4058075594180-AC311 27 PDF (21.39 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
Spectral power distribution
349927_2700K_Evl_5630. eps PNG (83.87 KB)
EAN SEG number STK number EFO number
4058075594180 8296918 4731667 3752152
