Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

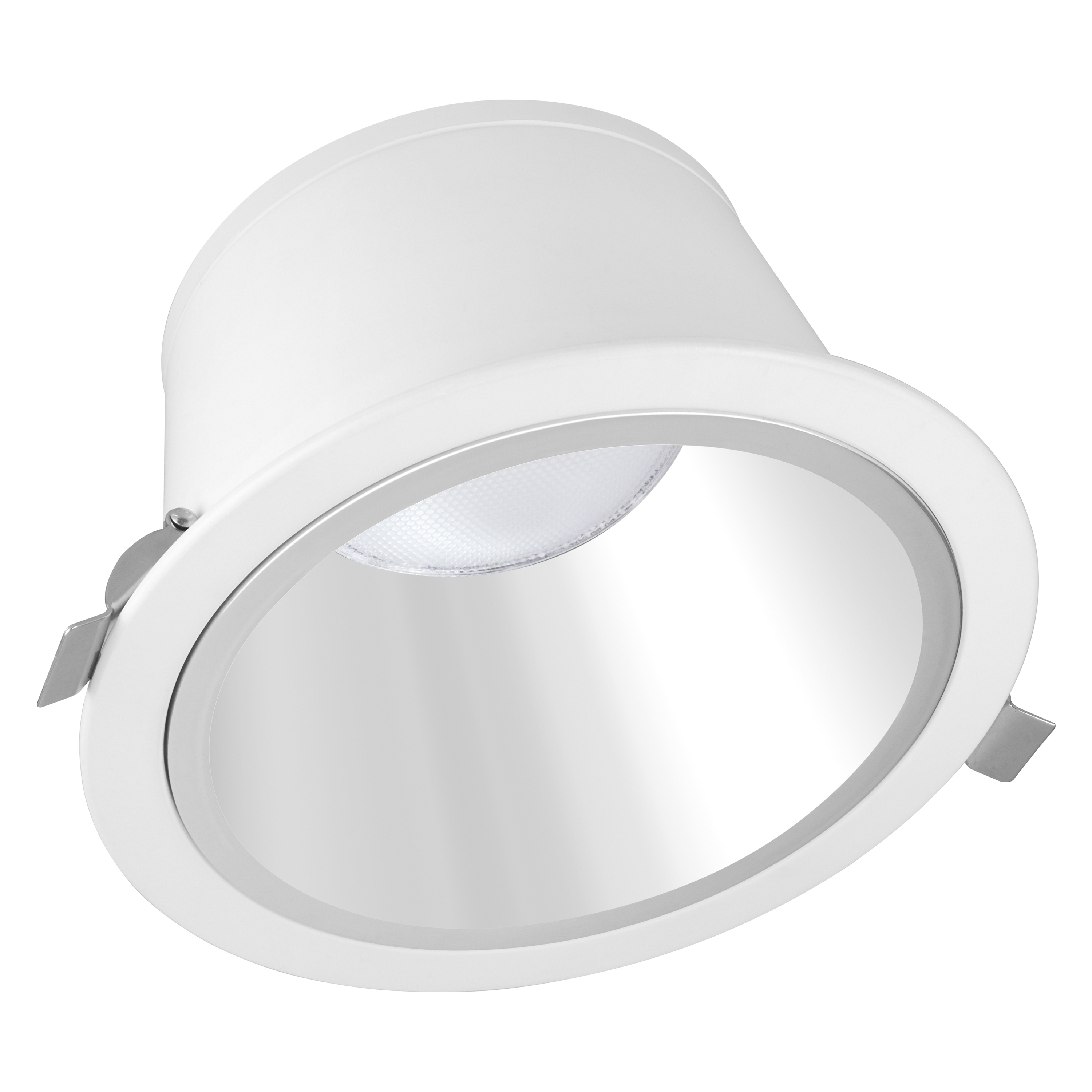

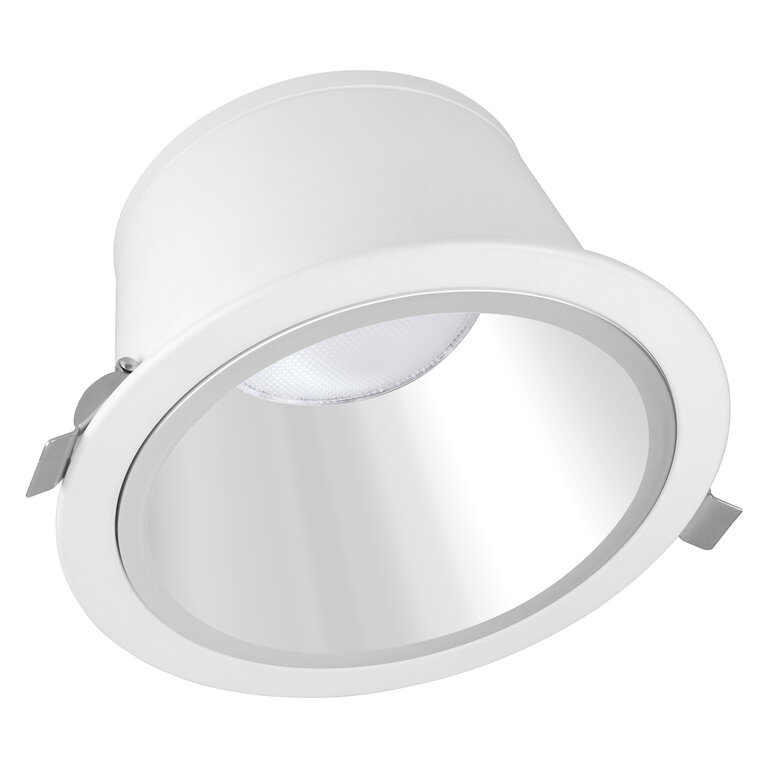

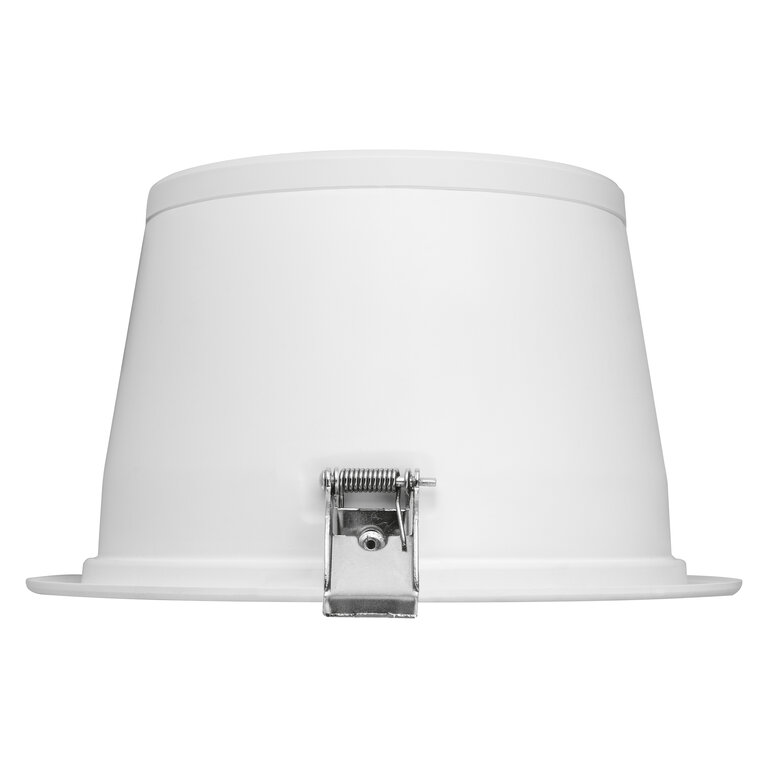

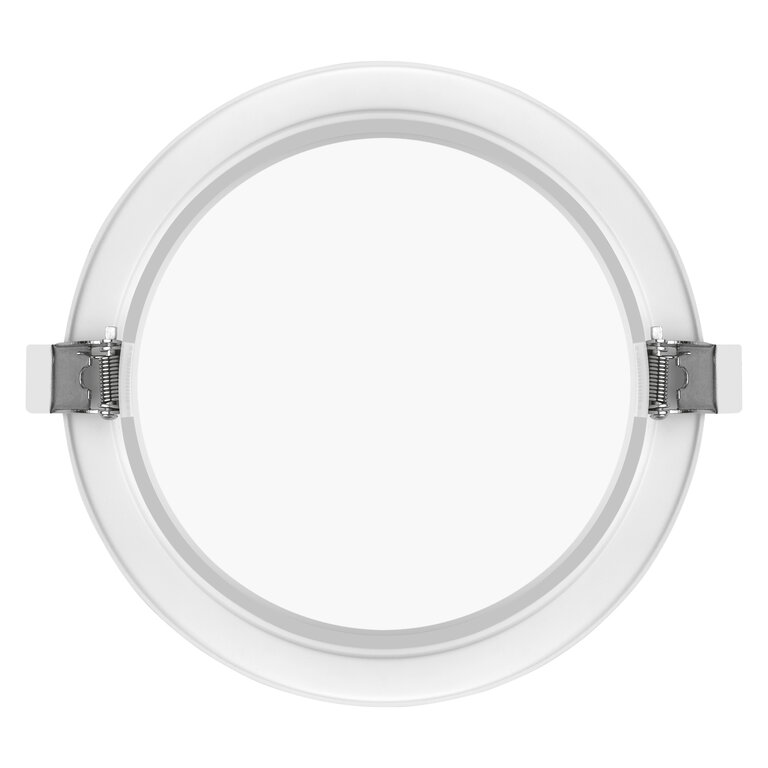

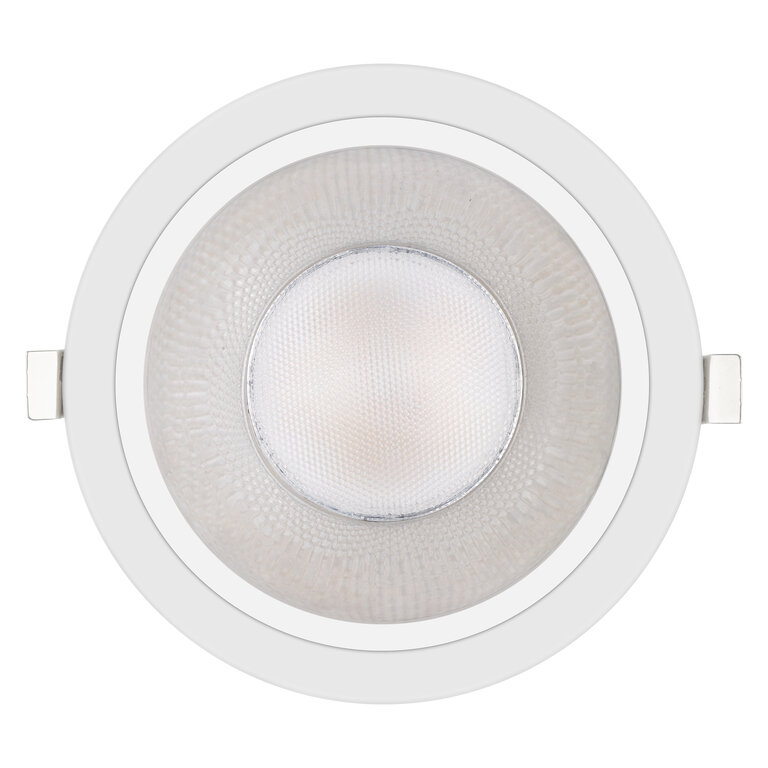

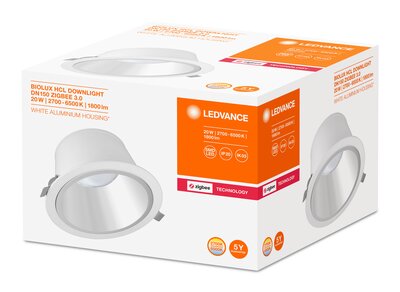

| BIOLUX HCL DL DN150 ZB 20W 2700-6500K | 20.00 W | 50000 | 60 ° | 1800 lm | Yes |
| Nominal wattage | 20.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 93 mA |
| Inrush current | 20 A |
| Inrush current time Th50 | 500 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 128 |
| Max. number of luminaires per miniature circuit breaker C10 | 80 |
| Max. number of luminaires per miniature circuit breaker C16 | 128 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
| Luminous flux | 1800 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 2700…6500 K |
| Light color (designation) | Warm White, Cool White, Cool Daylight |
| Color rendering index Ra | > 90 |
| Standard deviation of color matching | ≤3 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 60 ° |
| UGR | < 19 |
| Diameter | 175.40 mm |
| Height | 98.90 mm |
| Product weight | 550.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | PMMA |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | ZIGBEE |
| IoT ready | Support of DALI data type PART 251, 252, 253 1) |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting depth | 150 mm |
| With light source | Yes |
1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud
| Lifespan L70/B50 at 25 °C | 50000 h |
| Lifespan L80/B10 at 25 °C | 40000 h |
| Lifespan L90/B10 at 25 °C | 25000 h |
| Number of switching cycles | 50000 |

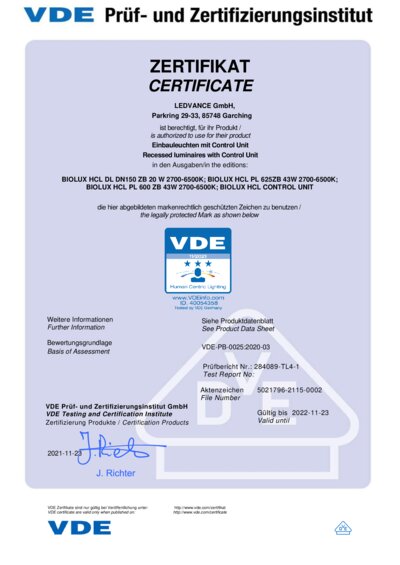

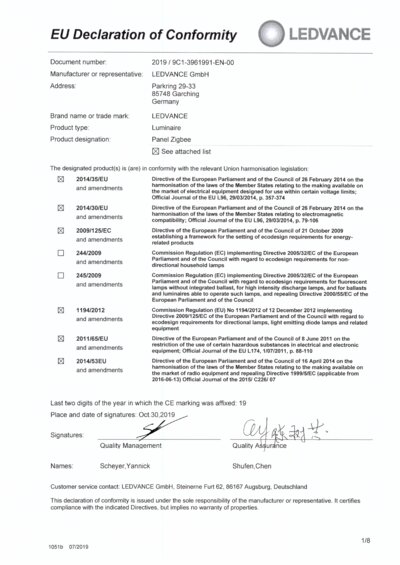

| Standards | CE, CB, ENEC, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075400733 | Folding box 1 |
189 mm x 189 mm x 141 mm | 674.00 g | 5.04 dm³ |
| 4058075400740 | Shipping box 4 |
397 mm x 207 mm x 308 mm | 3175.00 g | 25.31 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
CONNECTOR BOX 5POLE L/N 4x | 4058075473010 |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075400733 | 7474467 | 4125437 | 3202854 | 941402010 |
