FLOODLIGHT AREA GEN 2

Choose your product version

NEW

16W ML 830 A48X85 BK

NEW

16W ML 840 A48X85 BK

NEW

32W ML 830 A48X85 BK

NEW

32W ML 840 A48X85 BK

NEW

50W ML 830 A48X85 BK

NEW

50W ML 840 A48X85 BK

NEW

67W ML 830 A48X85 BK

NEW

67W ML 840 A48X85 BK

NEW

100W ML 830 A48X85 BK

NEW

100W ML 840 A48X85 BK

NEW

133W ML 830 A48X85 BK

NEW

133W ML 840 A48X85 BK

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
FL AREA V 16W ML 830 A48X85 BK 16 W / 11 W 100000 48° x 85 ° 1850 lm / 1300 lm No
FL AREA V 16W ML 840 A48X85 BK 16 W / 11 W 100000 48° x 85 ° 2000 lm / 1400 lm No
FL AREA V 32W ML 830 A48X85 BK 32 W / 22 W 100000 48° x 85 ° 4200 lm / 3000 lm No
FL AREA V 32W ML 840 A48X85 BK 32 W / 22 W 100000 48° x 85 ° 4500 lm / 3250 lm No
FL AREA V 50W ML 830 A48X85 BK 50 W / 36 W 100000 48° x 85 ° 6500 lm / 4900 lm No
FL AREA V 50W ML 840 A48X85 BK 50 W / 36 W 100000 48° x 85 ° 7000 lm / 5250 lm No
FL AREA V 67W ML 830 A48X85 BK 67 W / 54 W 100000 48° x 85 ° 9300 lm / 7700 lm No
FL AREA V 67W ML 840 A48X85 BK 67 W / 54 W 100000 48° x 85 ° 10000 lm / 8250 lm No
FL AREA V 100W ML 830 A48X85 BK 100 W / 81 W 100000 48° x 85 ° 14000 lm / 11600 lm No
FL AREA V 100W ML 840 A48X85 BK 100 W / 81 W 100000 48° x 85 ° 15000 lm / 12500 lm No
FL AREA V 133W ML 830 A48X85 BK 133 W / 115 W 100000 48° x 85 ° 18600 lm / 16250 lm No
FL AREA V 133W ML 840 A48X85 BK 133 W / 115 W 100000 48° x 85 ° 20000 lm / 17500 lm No
NEW


FL AREA V 32W ML 830 A48X85 BK

Product benefits
  • Breather membrane to optimize air exchange, without compromising IP protection
  • Highly versatile due to selectable power steps (Multi Lumen) on the housing
  • Robust cable gland with integrated waterstop function
  • High light uniformity and low glare light thanks to precise lens design
  • Bright, robust and durable
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 32 W / 22 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 160/115 mA
Inrush current 8.1 A
Inrush current time Th50 43.5 µs
Max. number of luminaires per miniature circuit breaker B16 80
Max. number of luminaires per miniature circuit breaker C10 50
Max. number of luminaires per miniature circuit breaker C16 80
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Surge capability (L-N) 2 kV
Surge capability (L/N-Ground) 4 kV
Operating mode Integrated LED driver

Photometrical data

Luminous flux 4200 lm / 3000 lm
Luminous efficacy 131 lm/W / 136 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching 5 sdcm
Low flicker Yes
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) <0.9
Photobiological safety group acc. to EN62778 RG1
Beam angle 48° x 85 °

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
32 W 3000 K 4200 lm 131 lm/W
22 W 3000 K 3000 lm 136 lm/W

Dimensions & Weight

Length 201.00 mm
Height 43.00 mm
Width 179.00 mm
Product weight 850.00 g
Cable length 1000 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Glass
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -40…+80 °C
Type of connection Cable, 3-pole
Type of protection IP66
Protection class IK (shock resistance) IK07
Corrosion resistance class acc. to EN 12944 C4 Medium
Dimmable No
Mounting type Surface
Mounting location Wall, Pole, Floor, Ceiling
Application environment Outdoor
Adjustable Yes
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 75000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 250 mA
ECG - Output ripple current 20 %

Emergency lighting

Type of emergency operation test None

Certificates & Standards

Standards CE, CB, ENEC, Dmark, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
EPD LEDV-00049-V01.01-EN
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from June 2025
Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Breather membrane to optimize air exchange, without compromising IP protection
  • Highly versatile due to selectable power steps (Multi Lumen) on the housing
  • Robust cable gland with integrated waterstop function
  • High light uniformity and low glare light thanks to precise lens design
  • Bright, robust and durable
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
Areas of application
  • Replacement for floodlights with halogen lamps
  • Outdoor use (IP66)
  • D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
  • Public areas
  • Sports facilities
  • Construction areas
  • Parking
  • Logistics areas, transport facilities and corridors
Product features
  • High luminous efficacy: up to 150 lm/W
  • Asymmetric light distribution for various application areas
  • Multi Lumen function to adjust brightness levels to suit specific needs
  • Type of protection: IP66
  • Corrosion resistance C4: suitable for use in environments with moderate salinity
  • Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
  • Mounting bracket with 30° angle and wide rotation area
Safety advice
  • Max. wind load surface 16 W =  0,015 m² / 32 W = 0,025 m² / 50 W = 0,045 m² / 67 W = 0,070 m² / 100 W = 0,085 m² / 133 W = 0,105 m²
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
  • Terminal block not included. Installation must be made by a qualified person.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854427183 Folding box
1		 69 mm x 206 mm x 180 mm 931.00 g 2.56 dm³
4099854427190 Shipping box
8		 426 mm x 292 mm x 205 mm 7999.00 g 25.50 dm³
User instruction / safety instructions
FLOODLIGHT AREA PDF (4.55 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Legal Insert FLOODLIGH T LUMS PDF (3.53 MB)
Legal information
Safety Insert G1120549 5 PDF (158.87 KB)
Legal information
LSI FL AREA Gen2 PDF (2.24 MB)
Declarations of conformity
CE declaration FLOODLI GHT AREA PDF (265.62 KB)
EPD
EPD EN FLOODLIGHT AREA GEN 2 PDF (671.65 KB)

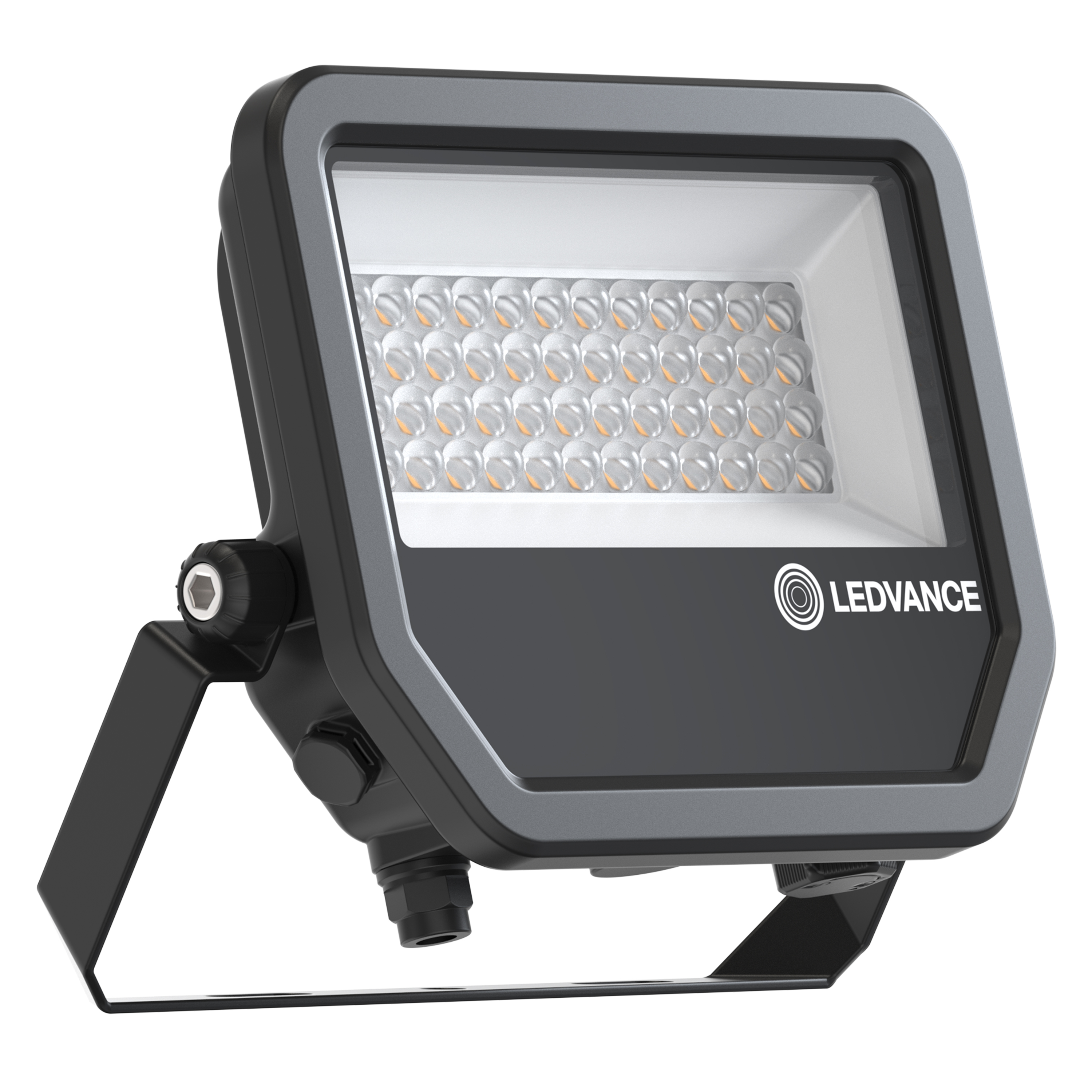

Product image: white background, diagonal
FL AREA 32 W JPG (1.92 MB)

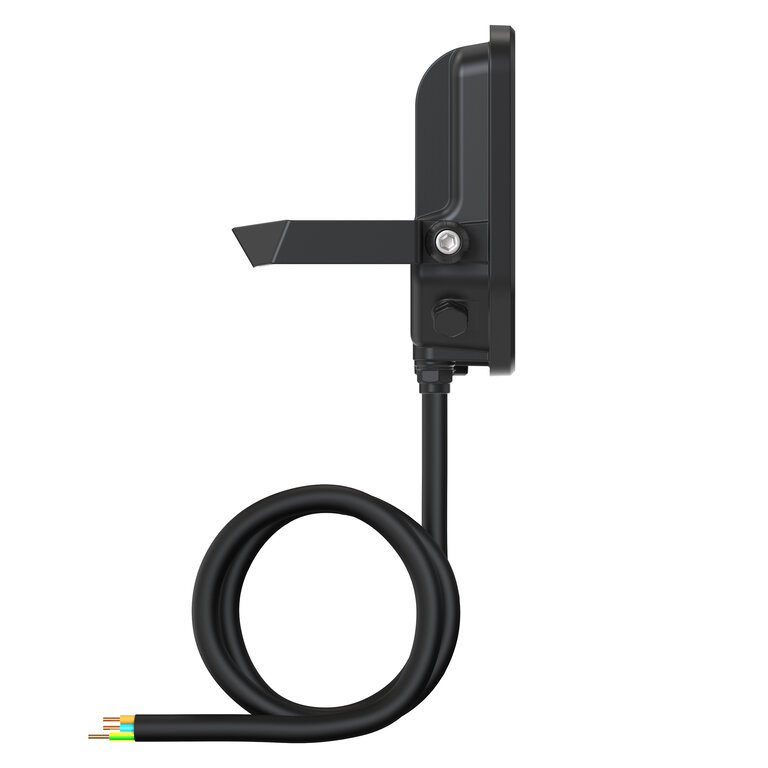

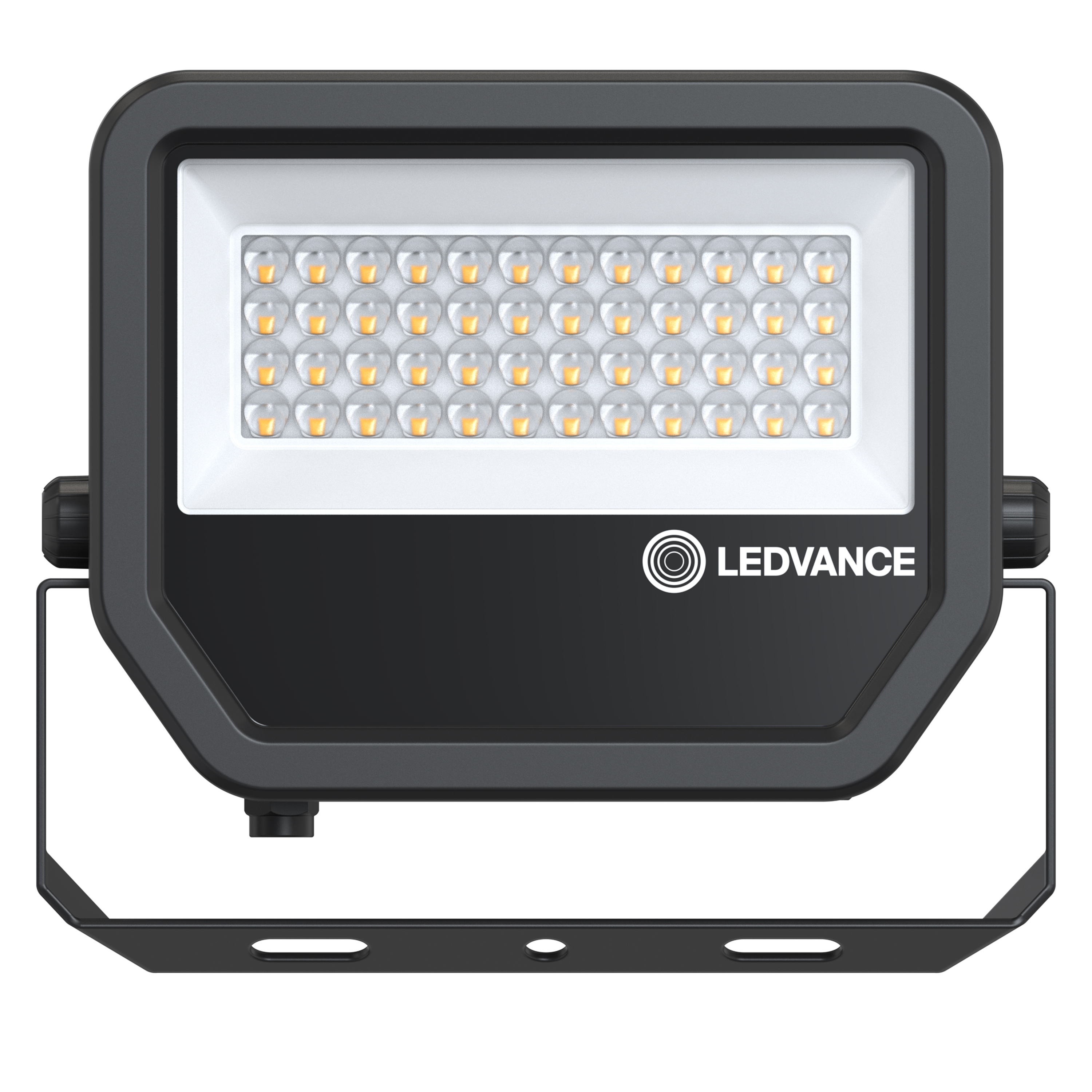

Product image: white background, upright
FL AREA 32 W JPG (2.15 MB)
Product line drawing with letters
FL 50 P SY100 SVG (32.33 KB)
Product line drawing with numbers
FL 50 P SY100 SVG (41.75 KB)
Product line drawing, front, no dimensions
FL 50 P SY100 SVG (29.86 KB)
Catalog info 1
FL AREA V ML A48X85 BK PNG (45.26 KB)
Catalog info 2
FL AREA V ML A48X85 BK PNG (37.42 KB)
Catalog info 3
FL AREA V ML A48X85 BK PNG (29.38 KB)
IES file (IES)
FL AREA V 32W ML 830 A 48x85 BK IES (9.3 KB)
LDT file (Eulumdat)
FL AREA V 32W ML 830 A 48x85 BK LDT (8.31 KB)
Light distribution curve type cone
FL AREA V 32W ML 830 A 48x85 BK SVG (11.42 KB)
Light distribution curve type polar
FL AREA V 32W ML 830 A 48x85 BK SVG (17.79 KB)
BIM Revit 3D
Floodlight Area G2 ZIP (5.39 MB)
CAD STEP 3D
FL AREA V 32W ML STEP (4.34 MB)
Tender documents
FLOODLIGHT AREA GEN 2 32W ML 830 A48X85 BK-e n TXT (2.59 KB)
Application pictures
FLOODLIGHT AREA GEN 2 illuminates delivery a rea in logistics park JPG (27.26 MB)
Application pictures
The Room Product Setup Floodlights JPG (1.24 MB)
EAN STK number
4099854427183 4544109
