LINEAR ULTRA OUTPUT DALI GEN 2

Choose your product version

NEW

DA 600 P 21W CS WT

NEW

DA 1200 P 27W CS WT

NEW

DA 1500 P 48W CS WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN UO DA 600 P 21W CS WT 21.00 W 100000 130 ° 3062 lm / 2979 lm No
LN UO DA 1200 P 27W CS WT 27.00 W 100000 110 ° 4050 lm / 3780 lm Yes
LN UO DA 1500 P 48W CS WT 48.00 W 100000 110 ° 7200 lm / 6720 lm Yes
NEW


LN UO DA 600 P 21W CS WT

Product benefits
  • Highly versatile due to selectable CCT (Multi Color) in 3000K and 4000K
  • DALI based light management system integrable into building management systems
  • Integrated DALI-2 driver for extended functionalities
  • SMD LEDs are moisture-proof and corrosion-proof thanks to tri-proof coating
  • Energy savings up to 70 % (compared to luminaires that use fluorescent lamps)
  • Robust structure with IK08
  • Easy installation and versatile application
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 21.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 100 mA
Inrush current 7.34 A
Inrush current time Th50 190 µs
Max. number of luminaires per miniature circuit breaker B16 52
Max. number of luminaires per miniature circuit breaker C10 44
Max. number of luminaires per miniature circuit breaker C16 70
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 3062 lm / 2979 lm
Luminous efficacy 150 lm/W / 140 lm/W
Color temperature 3000 K / 4000 K
Light color (designation) Warm White, Cool White
Color rendering index Ra > 80
Standard deviation of color matching < 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 130 °

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
21 W 4000 K 3062 lm 150 lm/W
21 W 3000 K 2979 lm 140 lm/W

Dimensions & Weight

Length 595.00 mm
Height 74.00 mm
Width 65.00 mm
Product weight 800.00 g

Materials & Colors

Product color White
Housing color White
RAL Color (most similar) RAL 9003
Body material Steel
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -40…+80 °C
Type of connection Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection IP20
Protection class IK (shock resistance) IK08
Dimmable No
Dimming range 1…100 %
Mounting type Surface
Mounting location Ceiling, Wall
Adjustable No
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 88000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 230 mA
ECG - Output ripple current < 5 %

Emergency lighting

Type of emergency operation test None

Certificates & Standards

Standards CE, CB, ENEC, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00055-V01.01-EN
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from September 2025
Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Highly versatile due to selectable CCT (Multi Color) in 3000K and 4000K
  • DALI based light management system integrable into building management systems
  • Integrated DALI-2 driver for extended functionalities
  • SMD LEDs are moisture-proof and corrosion-proof thanks to tri-proof coating
  • Energy savings up to 70 % (compared to luminaires that use fluorescent lamps)
  • Robust structure with IK08
  • Easy installation and versatile application
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Indoor applications
  • Industrial and commercial halls
  • Public areas
  • Corridors, stairwells, basements
Product features
  • DALI-2 certified
  • DALI/Touch DIM® control signal
  • Three-proof coating to improve the protection of the SMD LEDs
  • Very high luminous efficacy: up to 150 lm/W
  • Robust metal housing and PC diffuser
  • Through wiring possible
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075850378 Folding box
1		 71 mm x 606 mm x 79 mm 902.00 g 3.40 dm³
4058075850385 Shipping box
6		 619 mm x 230 mm x 175 mm 5950.00 g 24.91 dm³

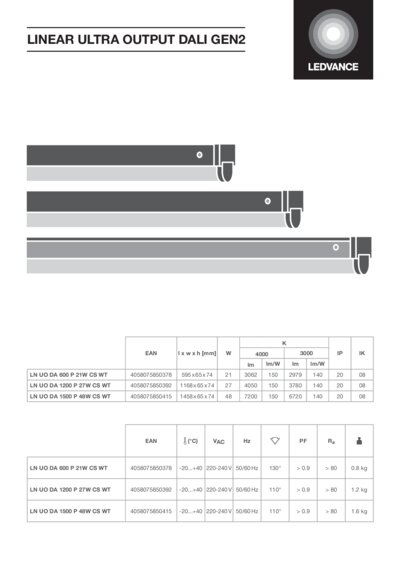

User instruction / safety instructions
LINEAR ULTRA OUTPUT DA LI GEN2 PDF (7.15 MB)
Legal information
Safety Insert G1120549 7 PDF (178.17 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Legal Insert G11231526 PDF (893.85 KB)
Legal information

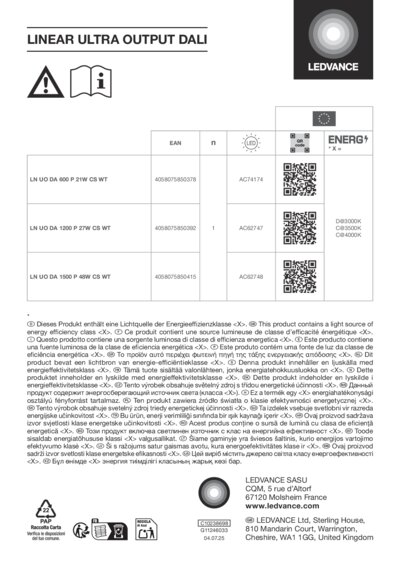

LISO Insert LINEAR ULT RA OUTPUT DALI PDF (2.17 MB)

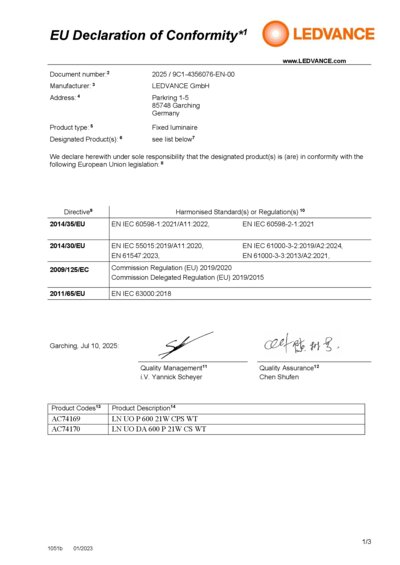

Declarations of conformity
LN UO PDF (392.68 KB)
EPD
ENVIRONMENTAL PRODUCT DECLARATION LINEAR ULT RA OUTPUT GEN 2 PDF (680.04 KB)
EU Data Act
DALI LED Driver and Lu minaires PDF (469.42 KB)

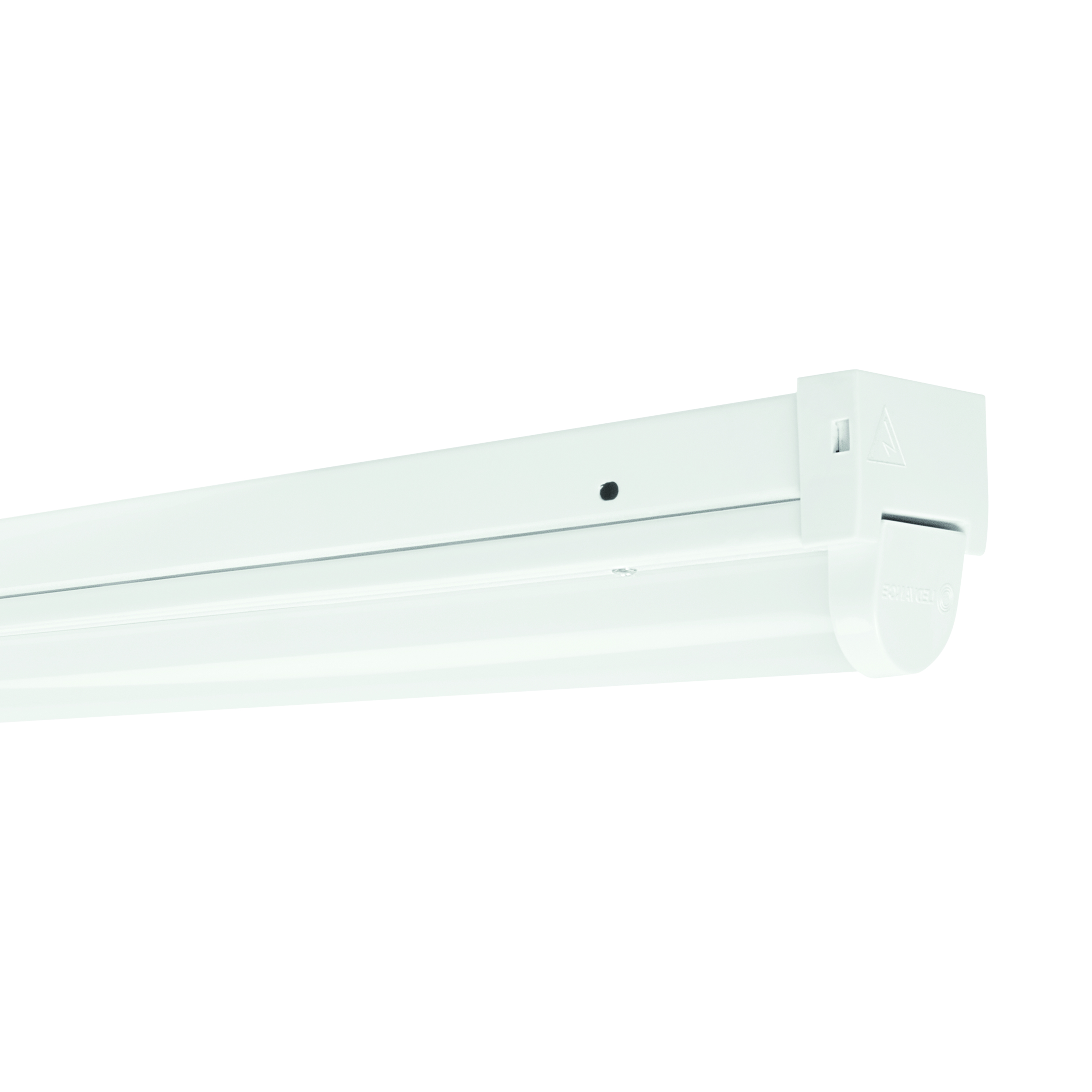

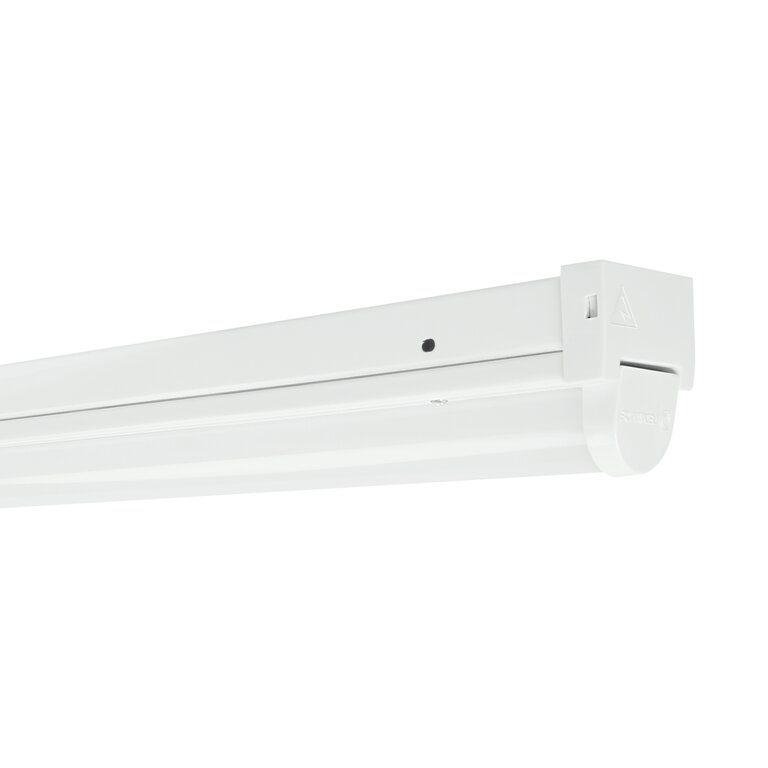

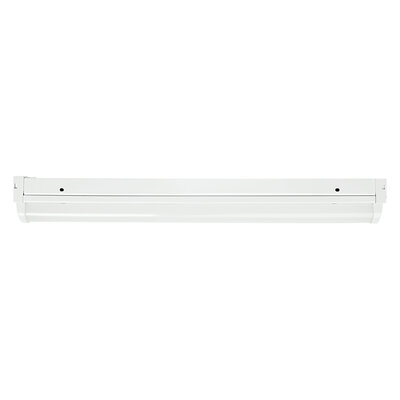

Product image: white background, diagonal
LN UO JPG (872.1 KB)

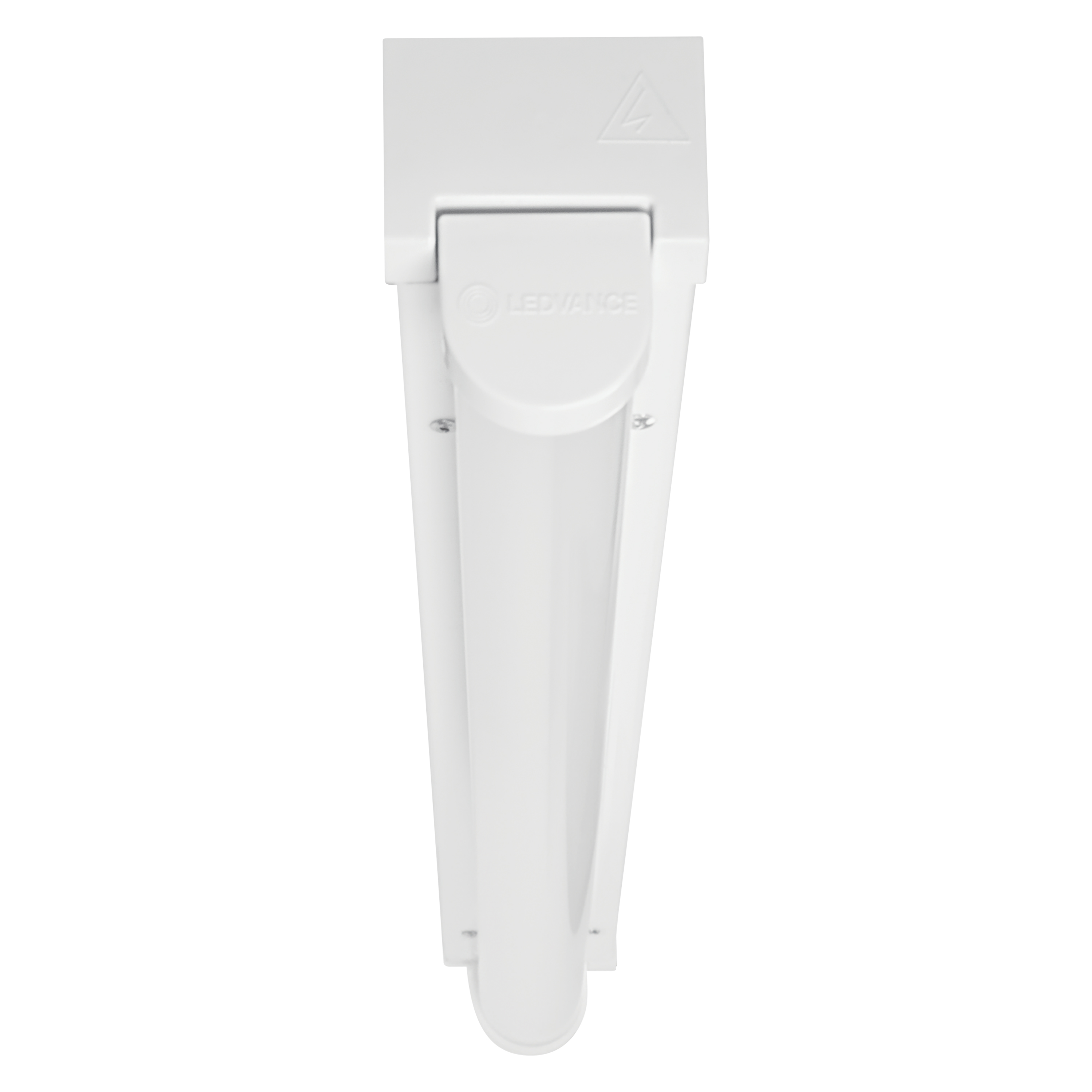

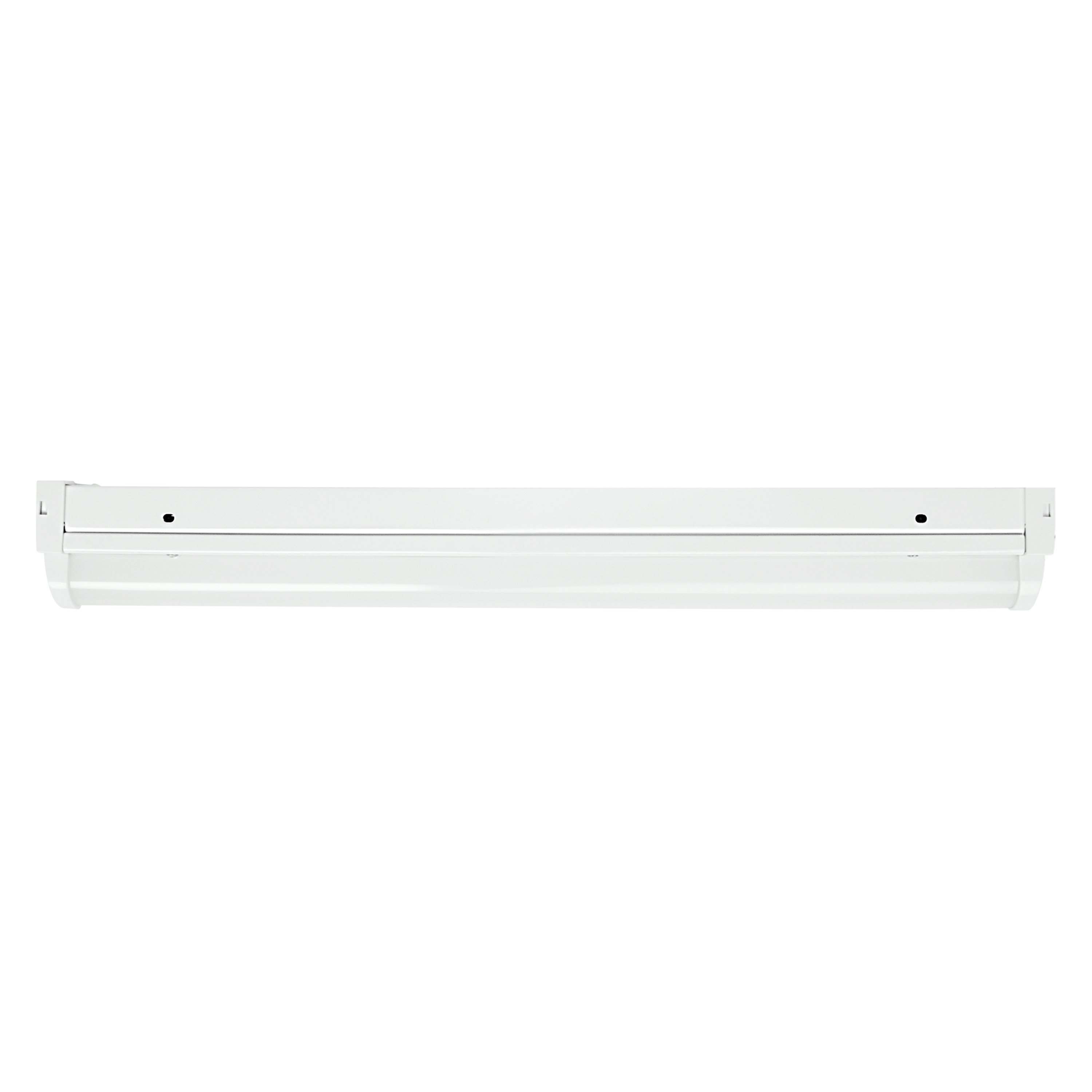

Product image: white background, upright
LN UO JPG (837.01 KB)

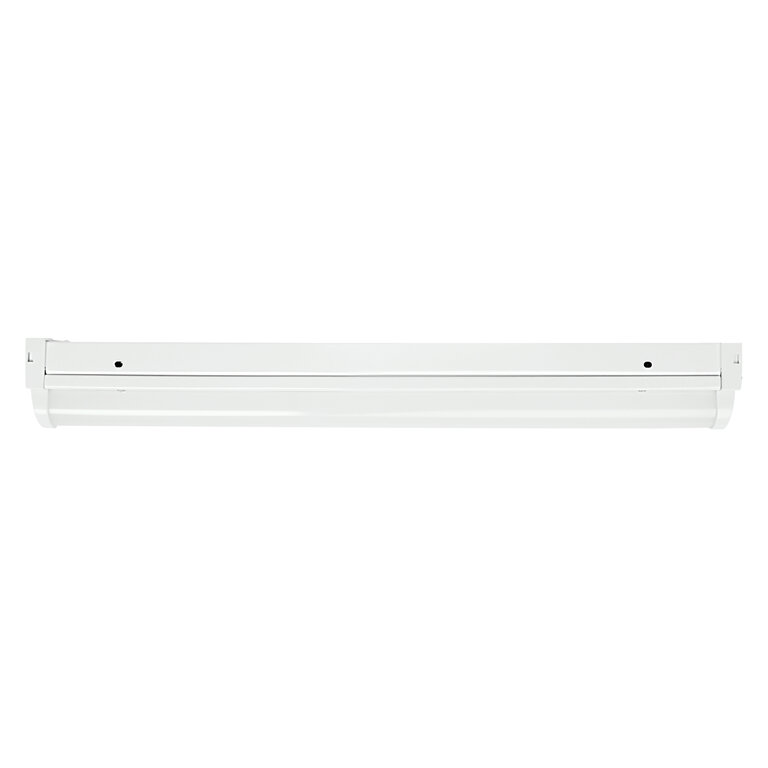

Product image: white background, upright, alternative image
LN UO JPG (1.81 MB)

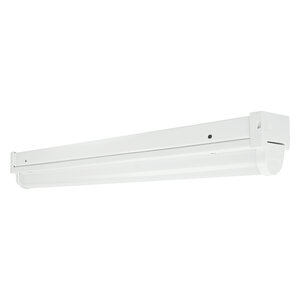

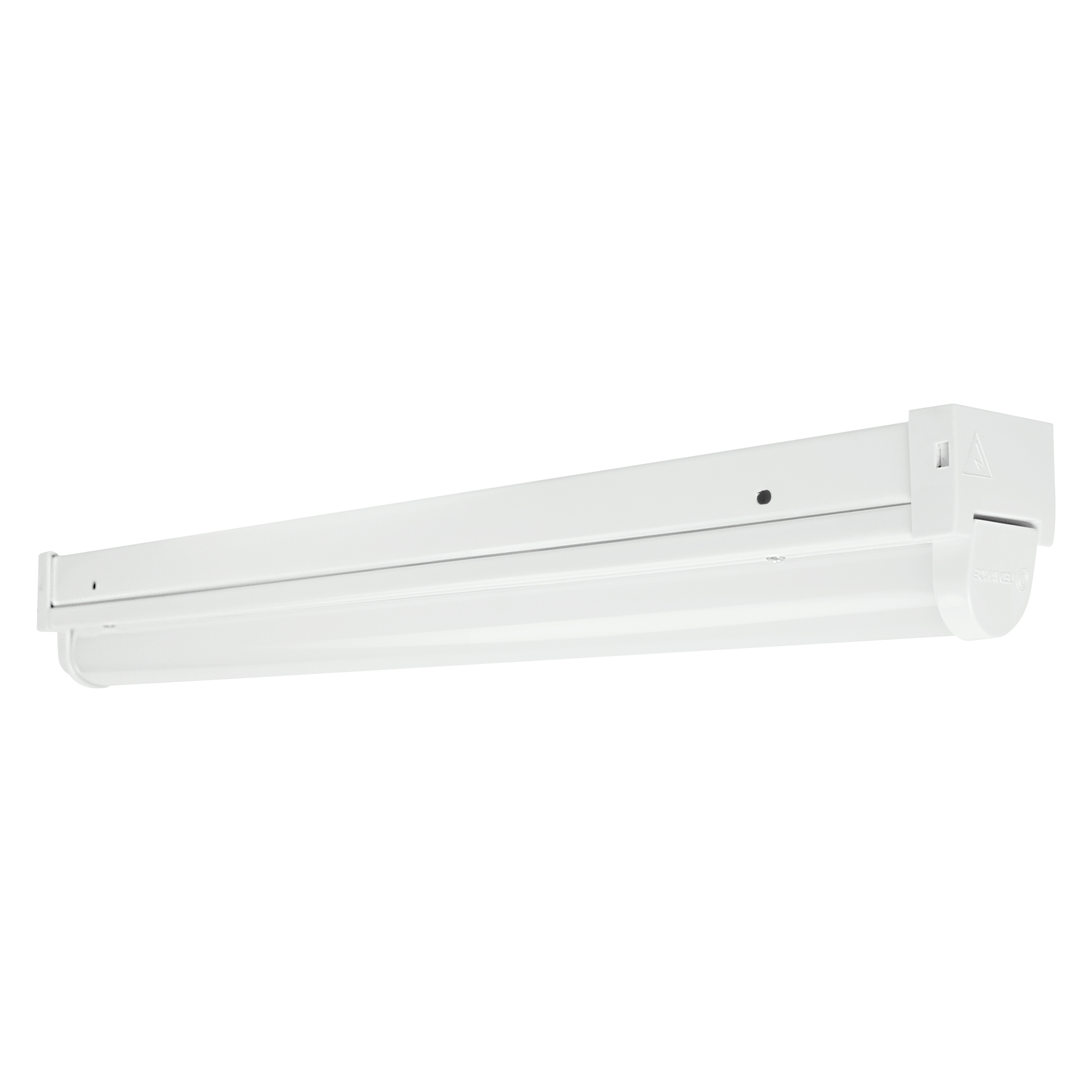

Product image: white background, spacial
LN UO JPG (1.02 MB)
Product line drawing with letters
LN UO SVG (7.5 KB)
Product line drawing with numbers
LN UO SVG (15.36 KB)
Product line drawing - technical
LN UO SVG (3.93 KB)
IES file (IES)
LN UO DA 600 P 21W CS WT IES (72.95 KB)
LDT file (Eulumdat)
LN UO DA 600 P 21W CS WT LDT (57.83 KB)

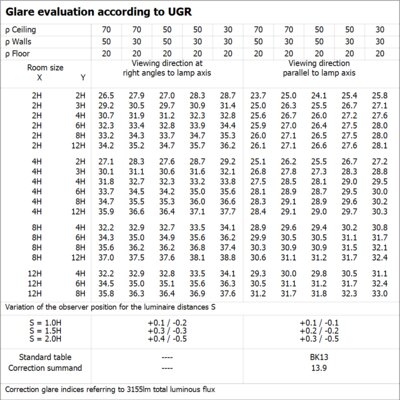

UGR file (UGR table)
LN UO DA 600 P 21W CS WT PNG (63.86 KB)
Light distribution curve type cone
LN UO DA 600 P 21W CS WT SVG (15.41 KB)
Light distribution curve type polar
LN UO DA 600 P 21W CS WT SVG (15.39 KB)
BIM Revit 3D
Linear Ultra Output G2 ZIP (1.45 MB)
CAD STEP 3D
LN UO G2 600 STEP (711.66 KB)
Tender documents
LINEAR ULTRA OUTPUT DA LI GEN 2 DA 600 P 21W CS WT-en TXT (1.78 KB)
EAN SEG number STK number
4058075850378 7028896 4161155
