Choose your product version
| Product description |
|---|

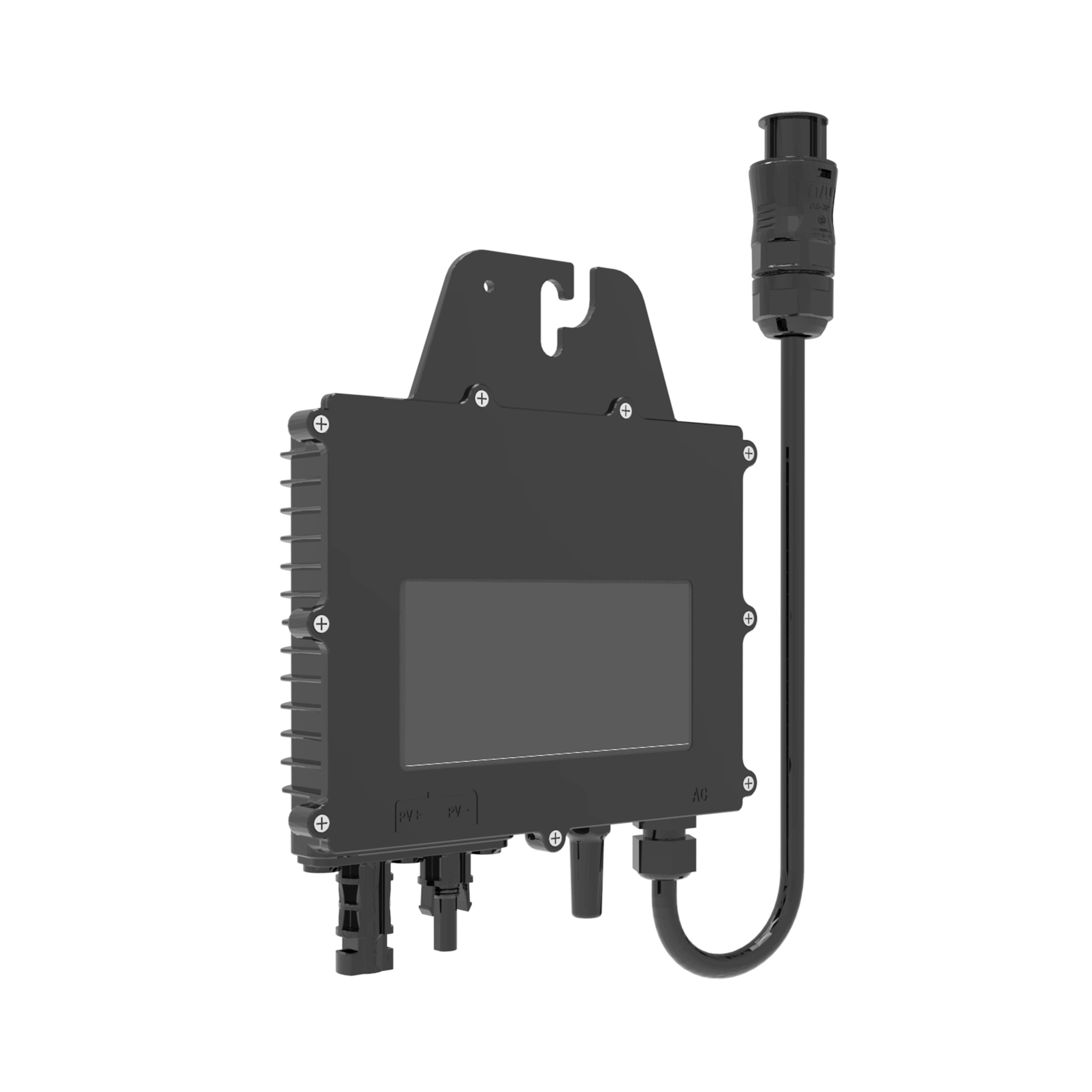

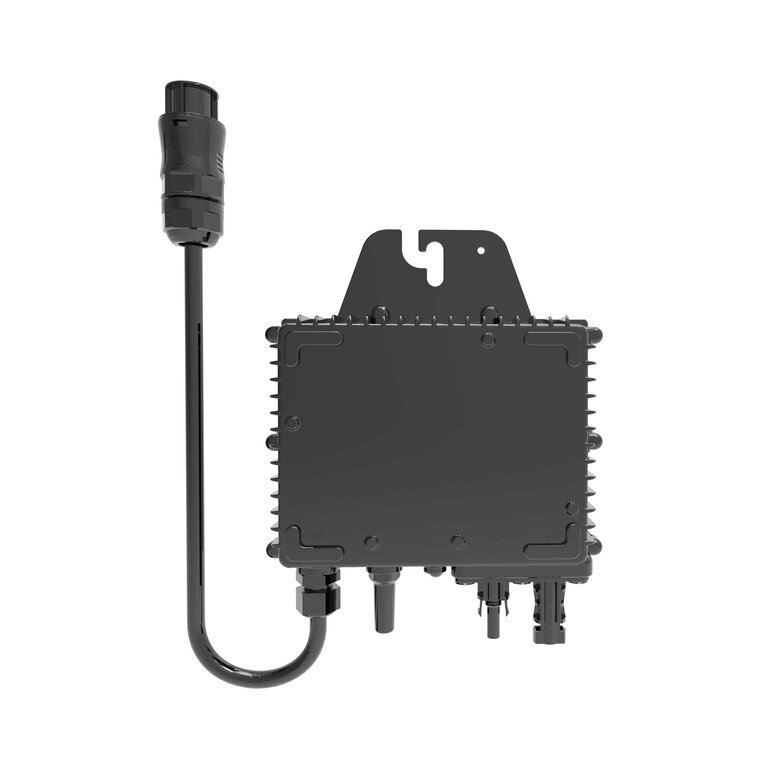

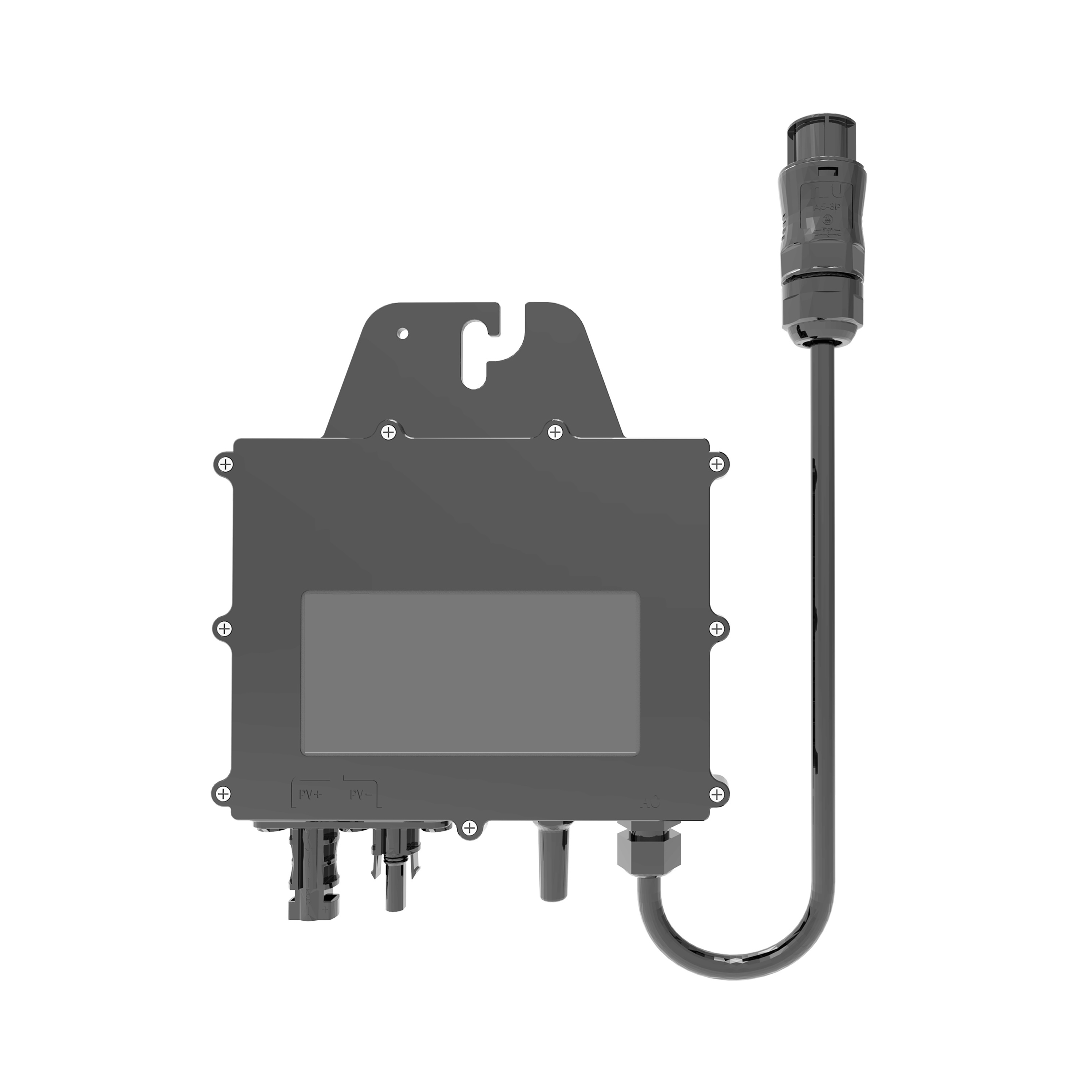

| LMS 0.4K F2 |

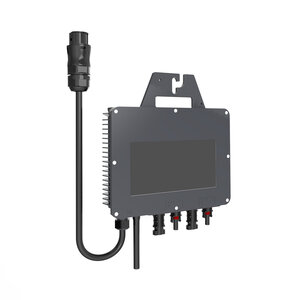

| LMS 0.8K F2 |

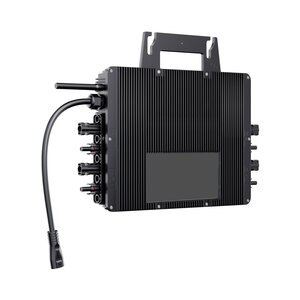

| LMS 2K F2 |
| Output phases | Single phase |
| Max. input power DC | 480 W |
| Input voltage DC | 60 V |
| MPP voltage | 27-45 V |
| Max. input current DC | 16 A |
| Max. input current DC per string input | 16 A |
| Max. input current DC per MPP tracker | 30 A |
| Max. short circuit current per MPPT | 18 A |
| Number of independent MPPT inputs | 1 |
| String connections per MPPT input | 1 |
| Number of string connections | 1 |
| Number of applicable PV modules | 1 |
| Nominal output power AC | 400 W |
| Power consumption | <0.03 W |
| Usable battery capacity | No |
| Length | 197 mm |
| Width | 36 mm |
| Height | 195 mm |
| Product weight | 1600.000 g |
| Integrated DC switch | No |
| Connection DC for battery | No |
| Suitable for emergency power | No |
| Charging controller integrated | No |
| With data logging | Yes |
| Wireless | Yes |
| Ethernet | No |
| Integrated transformer | Yes |
| Type of connection | MC4-Compatible |
| Temperature range in operation | -45…+65 °C |
| Ambient temperature range | -45…+65 °C |
| Outdoor application | Yes |
| Type of protection | IP67 |
| Product color | Black |
| Maximum efficiency | 95 % |
| European efficiency | 94 % |
| CEC efficiency (US products) | 94 % |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854583544 | Folding box 1 |
340 mm x 325 mm x 55 mm | 2400.00 g | 6.08 dm³ |
| 4099854583551 | Shipping box 6 |
355 mm x 345 mm x 350 mm | 15400.00 g | 42.87 dm³ |
