PV PANELS P-TYPE BIFACIAL SILVER

PV PANELS P-TYPE BIFACIAL SILVER

Choose your product version

550 P 72 LB -SF-F3

NEW

550 P 72 LB -SF-F7

605 P 60 UB -SF-F3

660 P 66 UB -SF-F3

NEW

660 P 66 UB -SF-F7

OVERVIEW

Product description
M 550 P 72 LB -SF-F3
M 550 P 72 LB -SF-F7
M 605 P 60 UB -SF-F3
M 660 P 66 UB -SF-F3
M 660 P 66 UB -SF-F7


M 660 P 66 UB -SF-F3

Product benefits
  • 15-years of product guarantee, 30-years of linear power output guarantee
  • Limited PID-effect (potential induced degradation) thanks to strict quality control in production process
  • Very low yearly degradation of the cells thanks to the better resistance to high temperatures
  • Durable design and highest production standards guarantees operational reliability and quality
View all details
Product data sheet

PRODUCT DETAILS

ELECTRICAL DATA STC

Maximum Power Pmax (STC) 660 W
Maximum Power Current Imp (STC) 17.35 A
Short Circuit Current Isc (STC) 18.40 A
Maximum Power Voltage Vmp (STC) 38.04 V
Open Circuit Voltage Voc (STC) 45.85 V
Module efficiency factor (STC) 21.24 %

ELECTRICAL DATA NMOT

Maximum Power Pmax (NMOT) 499 W
Maximum Power Current Imp (NMOT) 14.20 A
Short Circuit Current Isc (NMOT) 15.06 A
Maximum Power Voltage Vmp (NMOT) 35.15 V
Open Circuit Voltage Voc (NMOT) 42.64 V

ELECTRICAL DATA STC and NMOT

Power tolerance 3 %

MECHANICAL DATA

Number of cells 132
Cell material Mono crystalline
Number of bypass diodes 3
With frame Yes
Type of connection Staubli MC4 EVO2
Width 1303 mm
Length 2384 mm
Height 35 mm
Product weight 38000.000 g
Cable length 1.4 m
Glass with anti-reflection coating Yes
Colour backsheet White
Colour cells Dark blue
Colour frame Silver
Front Glass Yes

TEMPERATURE RATINGS

Nominal operating cell temperature 44 °C
Temperature coefficient Isc 0.040 %/K
Temperature coefficient Pmpp -0.340 %/K
Temperature coefficient Uoc -0.250 %/K

OPERATING CONDITIONS

Maximum series fuse rating 30 A
Maximum voltage 1500 V
Temperature range in operation -40…+85 °C
Front Side Maximum Static Loading 5400 Pa
Rear Side Maximum Static Loading 2400 Pa
Reverse current load 30 A
Product benefits
  • 15-years of product guarantee, 30-years of linear power output guarantee
  • Limited PID-effect (potential induced degradation) thanks to strict quality control in production process
  • Very low yearly degradation of the cells thanks to the better resistance to high temperatures
  • Durable design and highest production standards guarantees operational reliability and quality
Areas of application
  • Utility installations
  • Commercial and industrial installations
  • Residential installations
Product features
  • Bifacial - both sides of the panel are absorbing the light
  • Original Stäubli MC4 EVO 2 connectors
  • Available in 2 cable length versions
  • Frame made of anodized aluminum alloy
  • Multi-bus bar (MBB) technology
  • Maximum static load up to 5400 Pa
Equipment / Accessories
  • Product is delivered as a whole, no assembly required from customer
  • MC4 EVO 2 connectors are fitted to the panel
  • 3 bypass diodes are already installed in the panel
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854199929 Shipping box
31		 1,305 mm x 1,085 mm x 2,384 mm 1182252.00 g 3375.58 dm³
User Instruction
PV MODULE PDF (6.34 MB)
Declarations of conformity
CE Certificate PV Pane ls PDF (308.17 KB)

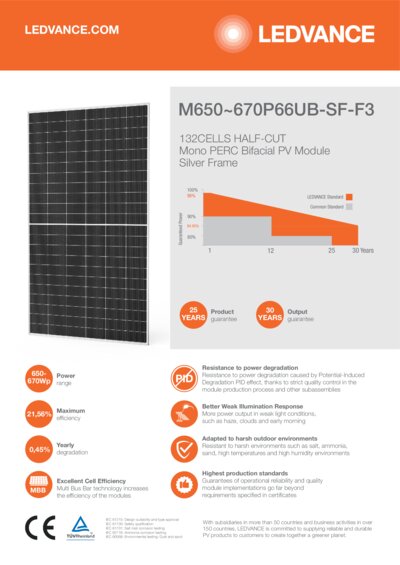

Product Family Datasheet
M650-670P66UB-SF-F3_EN PDF (4.17 MB)

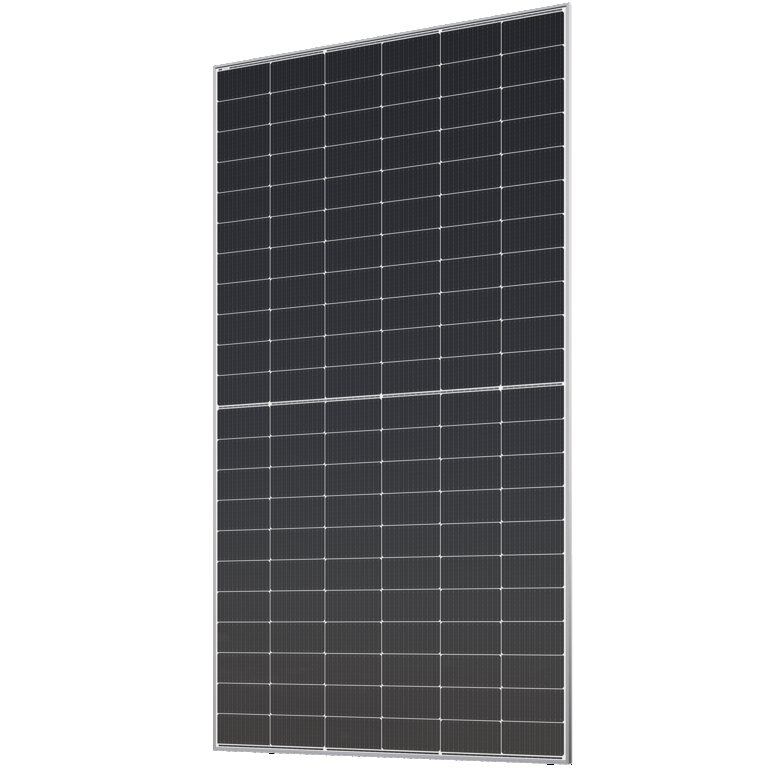

Product Image, Diagonal, White BG
M660P66UB SF F3 JPG (2.8 MB)

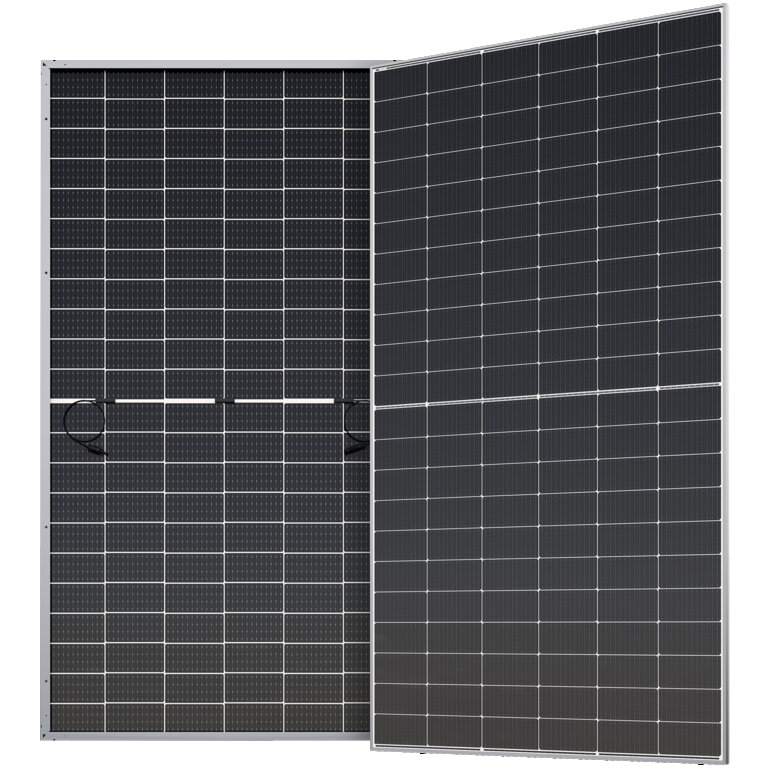

Product Image, Diagonal, White BG, Alternativ Image
M660P66UB SF F3 JPG (4.87 MB)

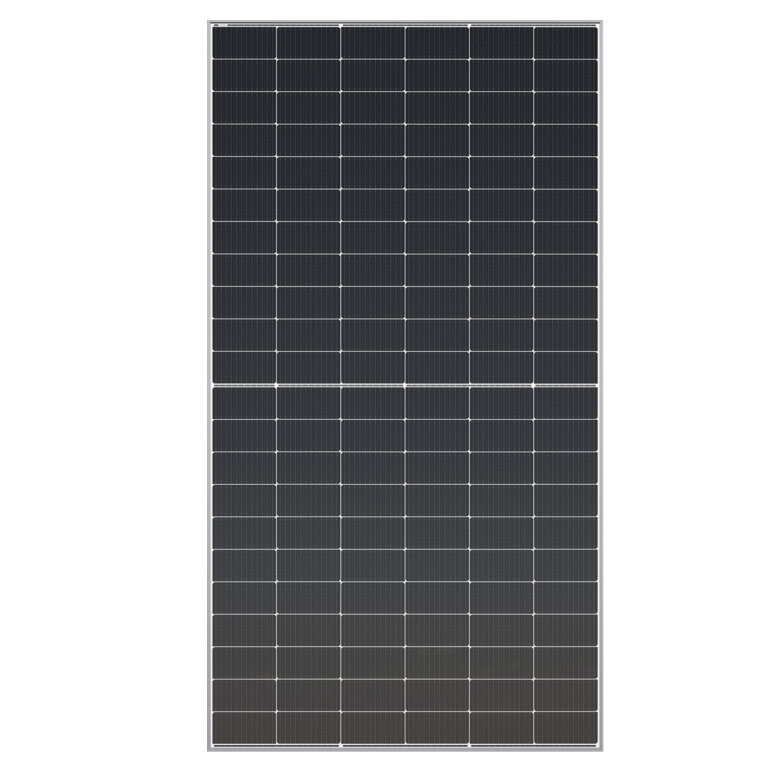

Product Image, Upright, White BG
M660P66UB SF F3 JPG (2.86 MB)

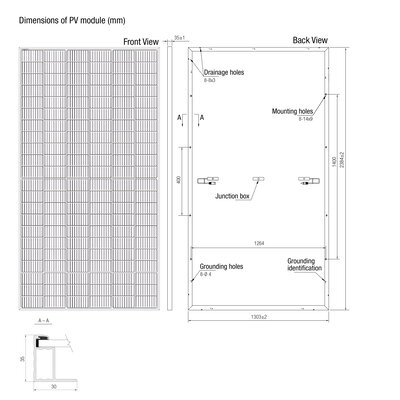

Product line drawing with numbers
PV MODULE M660P66UB-SF -F3 JPG (2.74 MB)

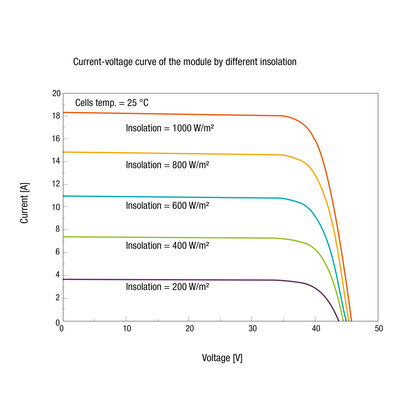

Catalog info 1
Current voltage curve of the module Cell tem perature JPG (1.14 MB)

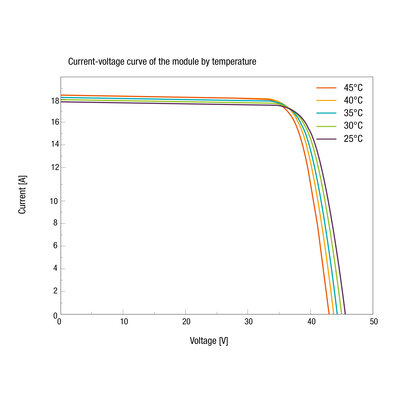

Catalog info 2
Current voltage curve of the module Cell tem perature JPG (1.07 MB)
EAN SEG number STK number
4099854199929 2741213 8010014
