PV PANELS P-TYPE MONOFACIAL FULL BLACK

PV PANELS P-TYPE MONOFACIAL FULL BLACK

Choose your product version

405 P 54 LM -BB-F3

405 P 54 LM -BB-F7

450 P 60 LM -BB-F3

540 P 72 LM -BB-F3

540 P 72 LM -BB-F7

OVERVIEW

Product description
M 405 P 54 LM -BB-F3
M 405 P 54 LM -BB-F7
M 450 P 60 LM -BB-F3
M 540 P 72 LM -BB-F3
M 540 P 72 LM -BB-F7


M 540 P 72 LM -BB-F3

Product benefits
  • 12-years of product guarantee, 25-years of linar power output guarantee
  • Limited PID-effect (potential induced degradation) thanks to strict quality control in production process
  • Very low yearly degradation of the cells thanks to the better resistance to high temperatures
  • Durable design and highest production standards guarantees operational reliability and quality
View all details
Product data sheet

PRODUCT DETAILS

ELECTRICAL DATA STC

Maximum Power Pmax (STC) 540 W
Maximum Power Current Imp (STC) 12.85 A
Short Circuit Current Isc (STC) 13.60 A
Maximum Power Voltage Vmp (STC) 42.03 V
Open Circuit Voltage Voc (STC) 49.89 V
Module efficiency factor (STC) 20.90 %

ELECTRICAL DATA NMOT

Maximum Power Pmax (NMOT) 409 W
Maximum Power Current Imp (NMOT) 10.52 A
Short Circuit Current Isc (NMOT) 11.13 A
Maximum Power Voltage Vmp (NMOT) 38.88 V
Open Circuit Voltage Voc (NMOT) 46.40 V

ELECTRICAL DATA STC and NMOT

Power tolerance 3 %

MECHANICAL DATA

Type of Faciality Monofacial
Cell material Mono crystalline
Number of cells 144
Number of bypass diodes 3
With frame Yes
Type of connection Staubli MC4 EVO2
Width 1134 mm
Length 2278 mm
Height 30 mm
Product weight 27000.000 g
Cable length 1.4 m
Glass with anti-reflection coating Yes
Colour backsheet Black
Colour cells Dark blue
Colour frame Black
Front Glass Yes

TEMPERATURE RATINGS

Nominal operating cell temperature 44 °C
Temperature coefficient Isc 0.050 %/K
Temperature coefficient Pmpp -0.350 %/K
Temperature coefficient Uoc -0.275 %/K

OPERATING CONDITIONS

Maximum series fuse rating 25 A
Maximum voltage 1500 V
Temperature range in operation -40…+85 °C
Front Side Maximum Static Loading 5400 Pa
Rear Side Maximum Static Loading 2400 Pa
Reverse current load 25 A
Product benefits
  • 12-years of product guarantee, 25-years of linar power output guarantee
  • Limited PID-effect (potential induced degradation) thanks to strict quality control in production process
  • Very low yearly degradation of the cells thanks to the better resistance to high temperatures
  • Durable design and highest production standards guarantees operational reliability and quality
Areas of application
  • Commercial and industrial installations
  • Residential installations
Product features
  • Original Stäubli MC4 EVO 2 connectors
  • Available in a long cable version
  • Frame made of anodized aluminum alloy
  • Multi-bus bar (MBB) technology
  • Maximum static load up to 5400 Pa
Equipment / Accessories
  • Product is delivered as a whole, no assembly required from customer
  • MC4 EVO 2 connectors are fitted to the panel
  • 3 bypass diodes are already installed in the panel
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854173356 Shipping box
36		 2,320 mm x 1,135 mm x 1,140 mm 983560.00 g 3001.85 dm³
User Instruction / Safety Instructions
PV MODULE PDF (6.34 MB)
Declarations of conformity
CE Certificate PV Pane ls PDF (308.17 KB)

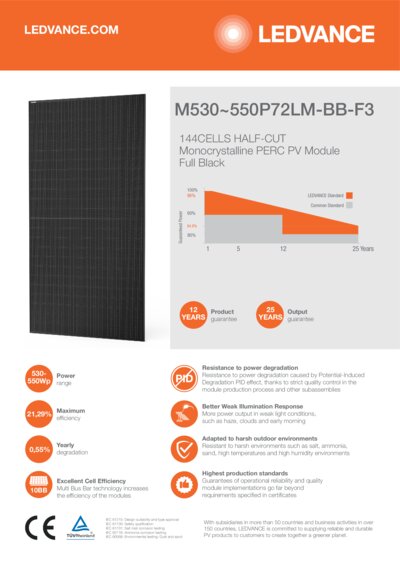

Product Family Datasheet
M530-550P72LM-BB-F3_EN PDF (5.24 MB)

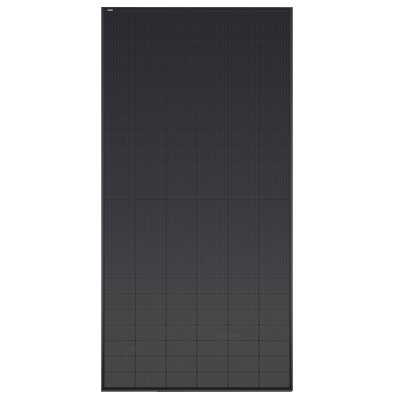

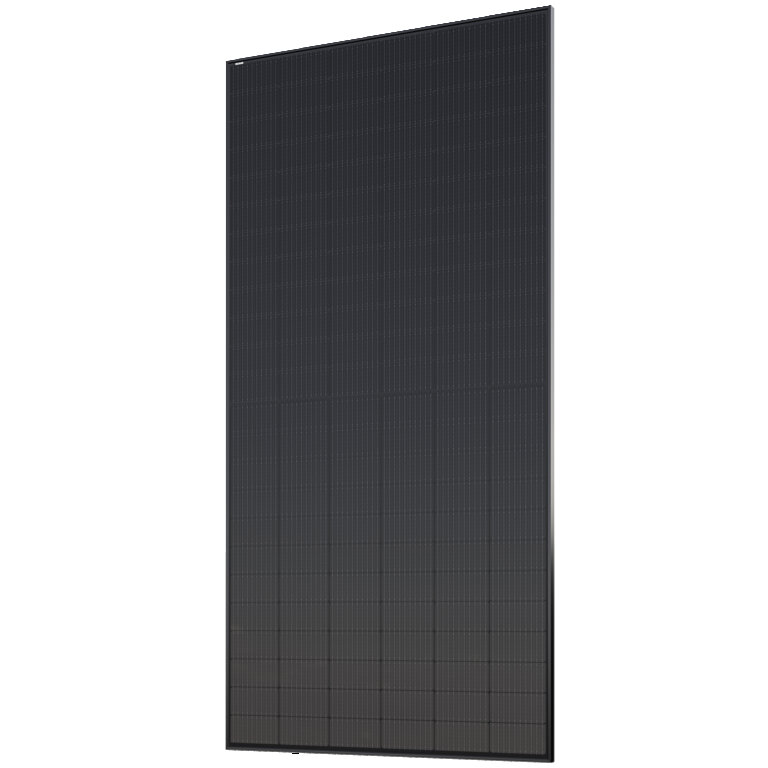

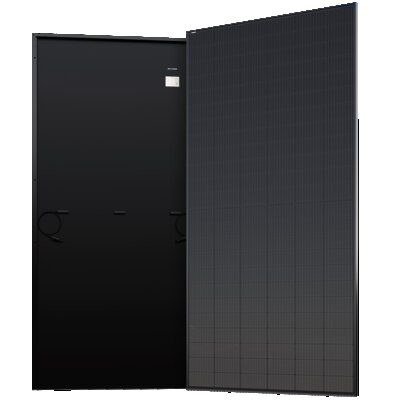

Product Image, Diagonal, White BG
M540P72LM BB F3 JPG (2.41 MB)

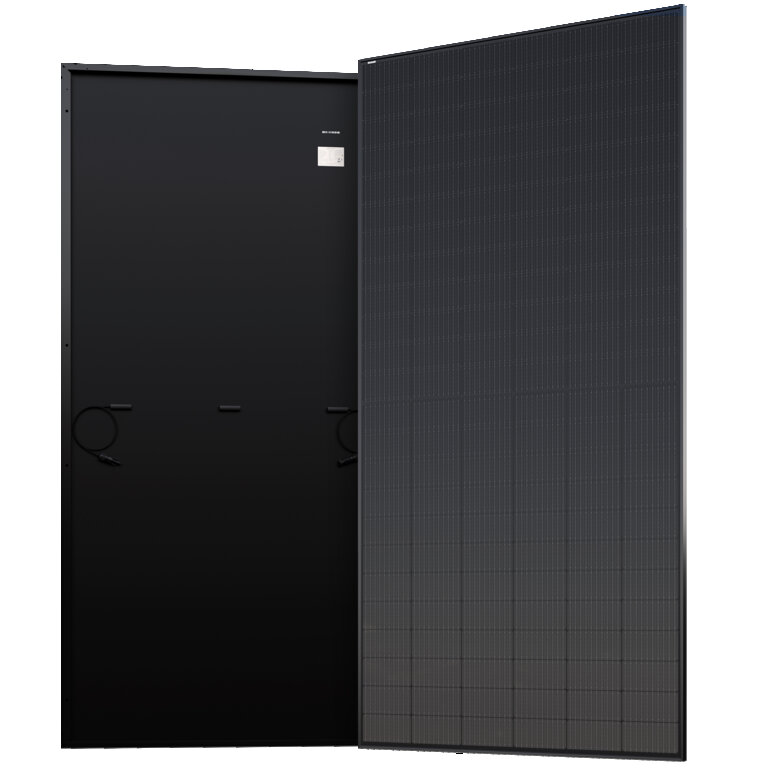

Product Image, Diagonal, White BG, Alternativ Image
M540P72LM BB F3 JPG (3.11 MB)

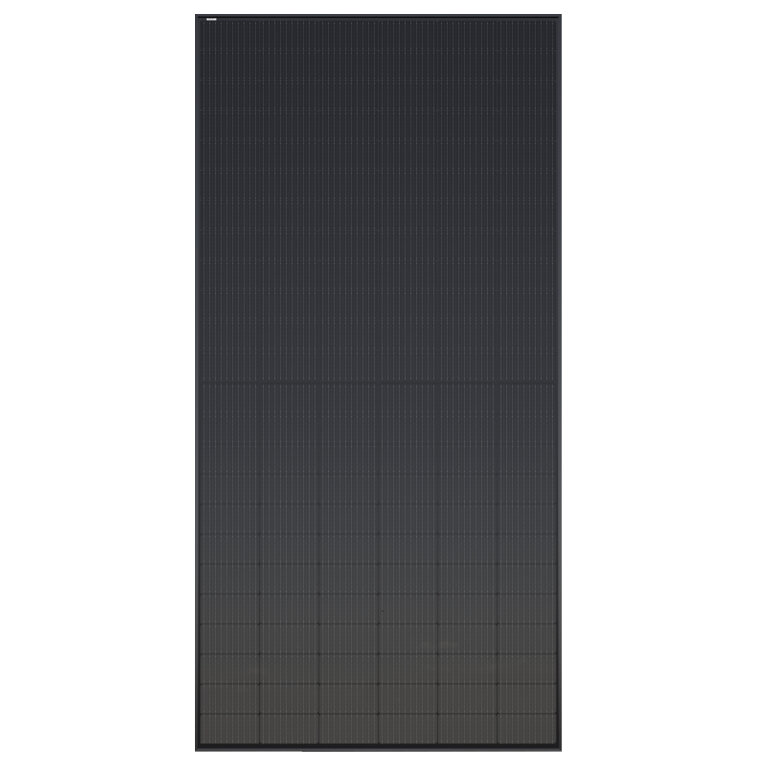

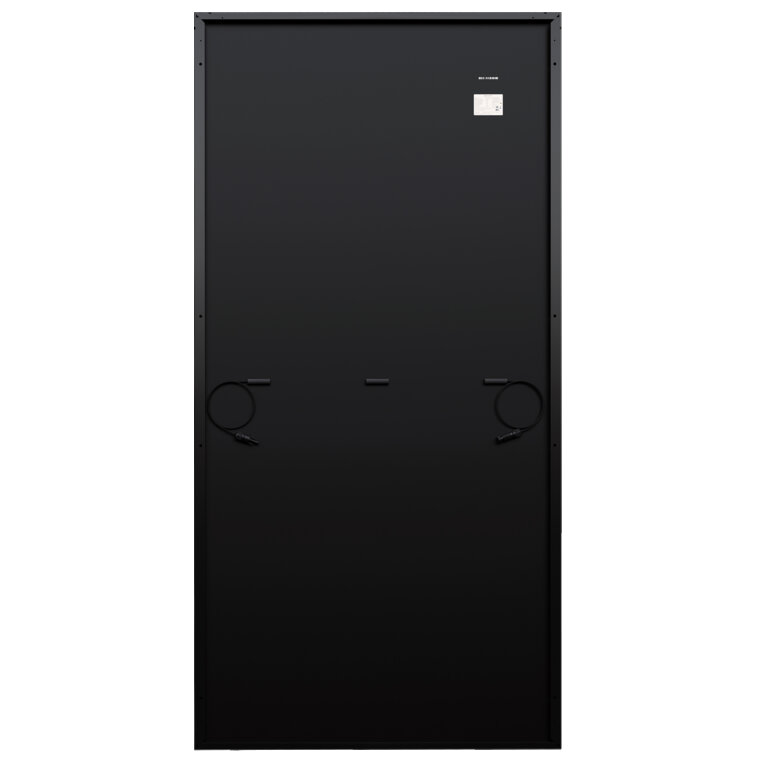

Product Image, Upright, White BG
M540P72LM BB F3 JPG (2.56 MB)
Product line drawing with numbers
PV MODULE M580N72LB-SF -F3 PNG (2.99 MB)

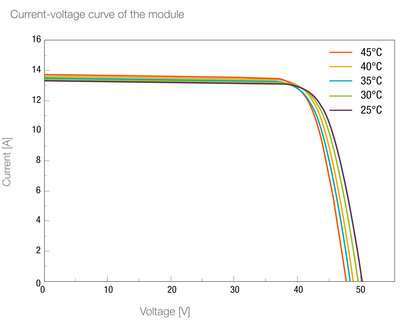

Catalog info 1
Current voltage curve of the module. JPG (325.91 KB)

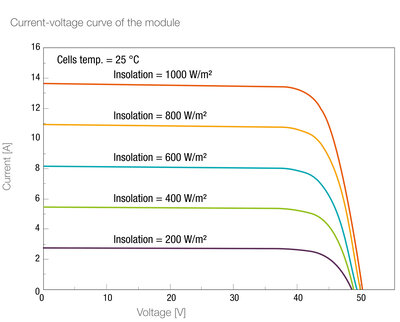

Catalog info 2
Current voltage curve of the module Cell te mperature JPG (400.54 KB)
EAN SEG number STK number
4099854173356 2741220 8010026
