OVERVIEW

Product description
M 410 P 54 LM -BF-F3
M 410 P 54 LM-BF-F7
M 450 P 60 LM-BF-F7
M 455 P 60 LM -BF-F3
M 455 P 60 LM-BF-F7
M 460 P 60 LM -BF-F3
M 550 P 72 LM -BF-F3
M 550 P 72 LM-BF-F7
M 605 P 60 UM -BF-F3
M 660 P 66 UM -BF-F3
M 660 P 66 UM -BF-F7


M 550 P 72 LM -BF-F3

Product benefits
  • 12-years of product guarantee, 25-years of linar power output guarantee
  • Limited PID-effect (potential induced degradation) thanks to strict quality control in production process
  • Very low yearly degradation of the cells thanks to the better resistance to high temperatures
  • Durable design and highest production standards guarantees operational reliability and quality
View all details
Product data sheet

PRODUCT DETAILS

ELECTRICAL DATA STC

Maximum Power Pmax (STC) 550 W
Maximum Power Current Imp (STC) 12.95 A
Short Circuit Current Isc (STC) 13.70 A
Maximum Power Voltage Vmp (STC) 42.48 V
Open Circuit Voltage Voc (STC) 50.32 V
Module efficiency factor (STC) 21.29 %

ELECTRICAL DATA NMOT

Maximum Power Pmax (NMOT) 416 W
Maximum Power Current Imp (NMOT) 10.60 A
Short Circuit Current Isc (NMOT) 11.21 A
Maximum Power Voltage Vmp (NMOT) 39.25 V
Open Circuit Voltage Voc (NMOT) 46.80 V

ELECTRICAL DATA STC and NMOT

Power tolerance 3 %

MECHANICAL DATA

Type of Faciality Monofacial
Cell material Mono crystalline
Number of cells 144
Number of bypass diodes 3
With frame Yes
Type of connection Staubli MC4 EVO2
Width 1134 mm
Length 2278 mm
Height 30 mm
Product weight 27000.000 g
Cable length 1.4 m
Glass with anti-reflection coating Yes
Colour backsheet White
Colour cells Dark blue
Colour frame Black
Front Glass Yes

TEMPERATURE RATINGS

Nominal operating cell temperature 44 °C
Temperature coefficient Isc 0.050 %/K
Temperature coefficient Pmpp -0.350 %/K
Temperature coefficient Uoc -0.275 %/K

OPERATING CONDITIONS

Maximum series fuse rating 25 A
Maximum voltage 1500 V
Temperature range in operation -40…+85 °C
Front Side Maximum Static Loading 5400 Pa
Rear Side Maximum Static Loading 2400 Pa
Reverse current load 25 A
Product benefits
  • 12-years of product guarantee, 25-years of linar power output guarantee
  • Limited PID-effect (potential induced degradation) thanks to strict quality control in production process
  • Very low yearly degradation of the cells thanks to the better resistance to high temperatures
  • Durable design and highest production standards guarantees operational reliability and quality
Areas of application
  • Commercial and industrial installations
  • Residential installations
Product features
  • Original Stäubli MC4 EVO 2 connectors
  • Available in a long cable version
  • Frame made of anodized aluminum alloy
  • Multi-bus bar (MBB) technology
  • Maximum static load up to 5400 Pa
Equipment / Accessories
  • Product is delivered as a whole, no assembly required from customer
  • MC4 EVO 2 connectors are fitted to the panel
  • 3 bypass diodes are already installed in the panel
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854173349 Shipping box
36		 2,320 mm x 1,135 mm x 1,140 mm 983560.00 g 3001.85 dm³
User Instruction / Safety Instructions
PV MODULE PDF (6.34 MB)
Declarations of conformity
CE Certificate PV Pane ls PDF (308.17 KB)
EPD
PV_Panels_EPD_F3 PDF (945.87 KB)

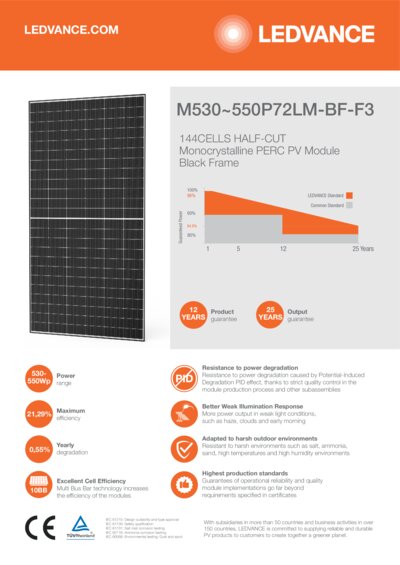

Product Family Datasheet
