Choose your product version
| Maximum Power Pmax (STC) | 455 W |
| Maximum Power Current Imp (STC) | 12.86 A |
| Short Circuit Current Isc (STC) | 13.61 A |
| Maximum Power Voltage Vmp (STC) | 35.39 V |
| Open Circuit Voltage Voc (STC) | 42.19 V |
| Module efficiency factor (STC) | 21.01 % |
| Maximum Power Pmax (NMOT) | 344 W |
| Maximum Power Current Imp (NMOT) | 10.41 A |
| Short Circuit Current Isc (NMOT) | 11.05 A |
| Maximum Power Voltage Vmp (NMOT) | 33.06 V |
| Open Circuit Voltage Voc (NMOT) | 39.41 V |
| Power tolerance | 3 % |
| Type of Faciality | Monofacial |
| Cell material | Mono crystalline |
| Number of cells | 120 |
| Number of bypass diodes | 3 |
| With frame | Yes |
| Type of connection | Staubli MC4 EVO2 |

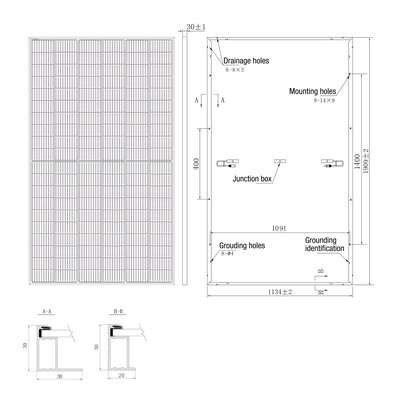

| Width | 1134 mm |
| Length | 1909 mm |
| Height | 30 mm |
| Product weight | 22300.000 g |
| Cable length | 1.2 m |
| Glass with anti-reflection coating | Yes |
| Colour backsheet | White |
| Colour cells | Dark blue |
| Colour frame | Silver |
| Front Glass | Yes |
| Nominal operating cell temperature | 44 °C |
| Temperature coefficient Isc | 0.050 %/K |
| Temperature coefficient Pmpp | -0.350 %/K |
| Temperature coefficient Uoc | -0.275 %/K |
| Maximum series fuse rating | 25 A |
| Maximum voltage | 1500 V |
| Temperature range in operation | -40…+85 °C |
| Front Side Maximum Static Loading | 5400 Pa |
| Rear Side Maximum Static Loading | 2400 Pa |
| Reverse current load | 25 A |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854234262 | Shipping box 36 |
1,918 mm x 1,120 mm x 1,147 mm | 803880.00 g | 2463.94 dm³ |
