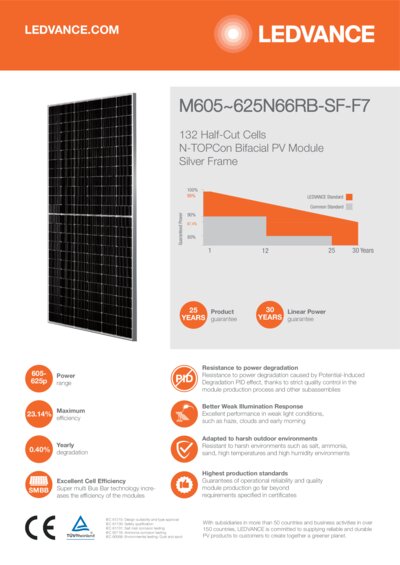

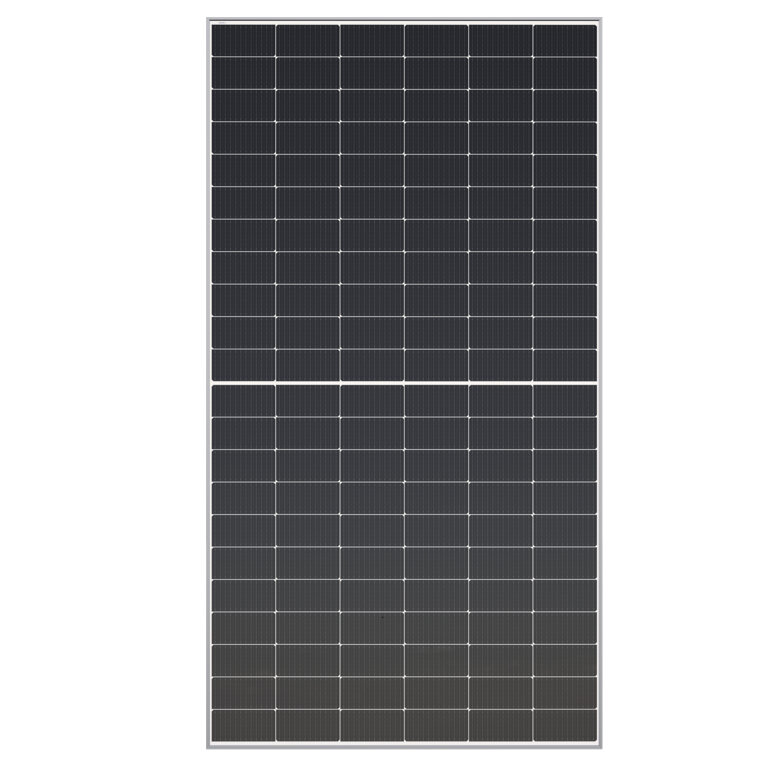

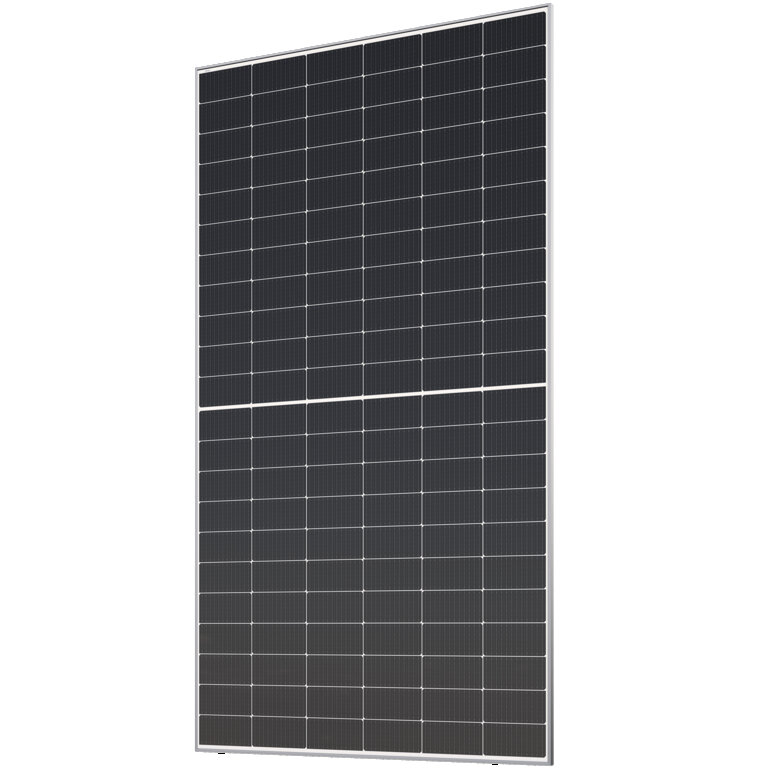

M 620 N 66 RB -SF-F7

TopCon technology provides higher efficiency due to better sunlight conversion than standard panels
Glass-glass modules offer improved protection against moisture, mechanical loads and fire protection
25-years of product guarantee, 30-years of linear power output guarantee
Limited PID-effect (potential induced degradation) thanks to strict quality control in production process
Very low yearly degradation of the cells thanks to the better resistance to high temperatures
Durable design and highest production standards guarantees operational reliability and quality

Maximum Power Pmax (STC)	620 W
Maximum Power Current Imp (STC)	14.52 A
Short Circuit Current Isc (STC)	15.17 A
Maximum Power Voltage Vmp (STC)	42.71 V
Open Circuit Voltage Voc (STC)	52.02 V
Module efficiency factor (STC)	22,95 %

Maximum Power Pmax (NMOT)	469 W
Maximum Power Current Imp (NMOT)	11.69 A
Short Circuit Current Isc (NMOT)	12.29 A
Maximum Power Voltage Vmp (NMOT)	40.13 V
Open Circuit Voltage Voc (NMOT)	49.45 V

Power tolerance

3 %

Type of Faciality	Bifacial
Cell material	Mono crystalline
Number of cells	132
Number of bypass diodes	3
With frame	Yes
Type of connection	Staubli MC4 EVO2
Width	1134 mm
Length	2382 mm
Height	30 mm
Product weight	32500.000 g
Cable length	1.4 m
Glass with anti-reflection coating	Yes
Colour cells	Dark blue
Colour frame	Silver
Front Glass	2.0 mm coated semi-tempered glass
Back Glass	2.0 mm glazed semi-tempered glass

Nominal operating cell temperature	45 °C
Temperature coefficient Isc	0.045 %/K
Temperature coefficient Pmpp	-0.290 %/K
Temperature coefficient Uoc	-0.260 %/K

Maximum series fuse rating	30 A
Maximum voltage	1500 V
Temperature range in operation	-40…+85 °C
Front Side Maximum Static Loading	5400 Pa
Rear Side Maximum Static Loading	2400 Pa
Reverse current load	30 A

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits

TopCon technology provides higher efficiency due to better sunlight conversion than standard panels
Glass-glass modules offer improved protection against moisture, mechanical loads and fire protection
25-years of product guarantee, 30-years of linear power output guarantee
Limited PID-effect (potential induced degradation) thanks to strict quality control in production process
Very low yearly degradation of the cells thanks to the better resistance to high temperatures
Durable design and highest production standards guarantees operational reliability and quality

Areas of application

Product features

Equipment / Accessories

References / Links

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075850255	Unpacked 1	2,382 mm x 1,134 mm x 30 mm	32500.00 g	81.04 dm³
4058075850262	Shipping box 36	2,384 mm x 1,100 mm x 1,130 mm	1192000.00 g	2963.31 dm³
