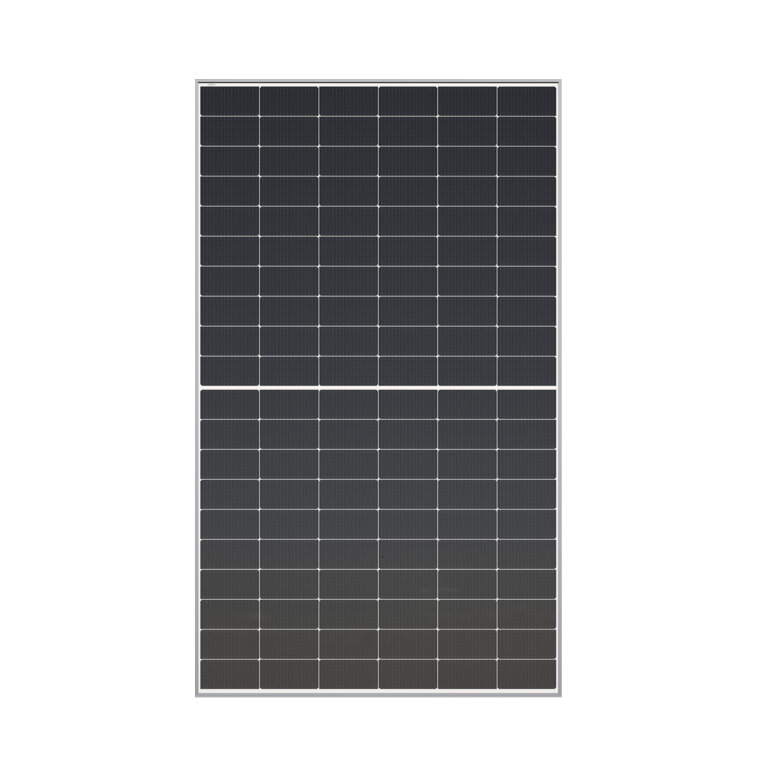

M 470 N 60 LM -SF-F3

TopCon technology provides higher efficiency due to better sunlight conversion than standard panels
Glass-glass modules offer improved protection against moisture, mechanical loads and fire protection
15-years of product guarantee, 30-years of linear power output guarantee
Limited PID-effect (potential induced degradation) thanks to strict quality control in production process
Very low yearly degradation of the cells thanks to the better resistance to high temperatures
Durable design and highest production standards guarantees operational reliability and quality

Maximum Power Pmax (STC)	470 W
Maximum Power Current Imp (STC)	13.44 A
Short Circuit Current Isc (STC)	14.16 A
Maximum Power Voltage Vmp (STC)	34.98 V
Open Circuit Voltage Voc (STC)	42.63 V
Module efficiency factor (STC)	21.71 %

Maximum Power Pmax (NMOT)	353 W
Maximum Power Current Imp (NMOT)	10.73 A
Short Circuit Current Isc (NMOT)	11.43 A
Maximum Power Voltage Vmp (NMOT)	32.90 V
Open Circuit Voltage Voc (NMOT)	40.23 V

Power tolerance

3 %

Type of Faciality	Monofacial
Cell material	Mono crystalline
Number of cells	120
Number of bypass diodes	3
With frame	Yes
Type of connection	Staubli MC4 EVO2

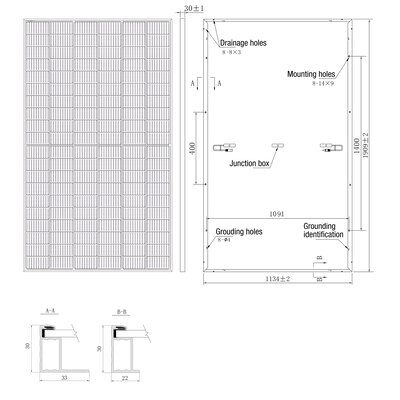

Width	1134 mm
Length	1909 mm
Height	30 mm
Product weight	22300.000 g
Cable length	1.2 m
Glass with anti-reflection coating	Yes
Colour backsheet	White
Colour cells	Dark blue
Colour frame	Silver
Front Glass	Yes

Nominal operating cell temperature	44 °C
Temperature coefficient Isc	0.046 %/K
Temperature coefficient Pmpp	-0.300 %/K
Temperature coefficient Uoc	-0.250 %/K

Maximum series fuse rating	25 A
Maximum voltage	1500 V
Temperature range in operation	-40…+85 °C
Front Side Maximum Static Loading	5400 Pa
Rear Side Maximum Static Loading	2400 Pa
Reverse current load	25 A

Product benefits

TopCon technology provides higher efficiency due to better sunlight conversion than standard panels
Glass-glass modules offer improved protection against moisture, mechanical loads and fire protection
15-years of product guarantee, 30-years of linear power output guarantee
Limited PID-effect (potential induced degradation) thanks to strict quality control in production process
Very low yearly degradation of the cells thanks to the better resistance to high temperatures
Durable design and highest production standards guarantees operational reliability and quality
