PARATHOM® CLASSIC A DIM

PARATHOM CLASSIC A DIM

Choose your product version

8.8W 827 Frosted E27

60 8.8 W/2700 K E27

60 9 W/2700 K E27

10.5W 827 Frosted E27

75 10.5 W/2700 K E27

100 13 W/2700 K E27

100 FR 14 W/2700 K E27

150 18 W/2700 K E27

20W 827 Frosted E27

150 21 W/2700 K E27

24.9W 827 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic A 60 DIM P 8.8W 827 Frosted E27 E27 8.8 W 220…240 V 25000 h 806 lm 60 W 220 ° Yes
P CLAS A 60 8.8 W/2700 K E27 E27 8.8 W 220…240 V 25000 h 806 lm 60 W 180 ° Yes
P CLAS A 60 9 W/2700 K E27 E27 9 W 220…240 V 25000 h 806 lm 60 W 220 ° Yes
LED Classic A 75 DIM P 10.5W 827 Frosted E27 E27 10.5 W 220…240 V 25000 h 1055 lm 75 W 220 ° Yes
P CLAS A 75 10.5 W/2700 K E27 E27 10.5 W 220…240 V 25000 h 1055 lm 75 W 220 ° Yes
P CLAS A 100 13 W/2700 K E27 E27 13 W 220…240 V 25000 h 1521 lm 100 W 220 ° Yes
P CLAS A 100 FR 14 W/2700 K E27 E27 14 W 220…240 V 25000 h 1521 lm 100 W 220 ° Yes
P CLAS A 150 18 W/2700 K E27 E27 18 W 220…240 V 15000 h 2452 lm 150 W 330 ° Yes
LED Classic A 150 DIM P 20W 827 Frosted E27 E27 20 W 220…240 V 25000 h 2452 lm 150 W 200 ° Yes
P CLAS A 150 21 W/2700 K E27 E27 21 W 220…240 V 25000 h 2452 lm 150 W 200 ° Yes
LED Classic A 200 DIM P 24.9W 827 Frosted E27 E27 24.9 W 220…240 V 25000 h 3452 lm 200 W 200 ° Yes


LED Classic A 200 DIM P 24.9W 827 Frosted E27

Product benefits
  • Low energy consumption
  • High color consistency thanks to narrow binning
  • Easy replacement of classic lamps thanks to compact design
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 24.9 W
Construction wattage 24.90 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 200 W
Nominal current 120 mA
Type of current AC
Inrush current 5.4 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 8
Max. lamp number on MCB B16 A 13
Total harmonic distortion 23 %
Power factor λ > 0.70

Photometrical data

Luminous flux 3452 lm
Nominal useful luminous flux 90° 3452 lm
Luminous efficacy 138 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.9

Light technical data

Beam angle 200 °
Warm-up time (60 %) 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 184.00 mm
Diameter 90.00 mm
Maximum diameter 90 mm
Product weight 118.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 79 °C

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Product remark Dimmable (with many common dimmers, see also www.ledvance.com/dim)

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 25.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDPCLA200D 24,

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00
Networked standby power for CLS 0.0
Claim of equivalent power Yes
Length 184.00 mm
Height 90.00 mm
Width 90.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.70
LED light source replaces a fluorescent light source No
EPREL ID 671016
Model number AC36027

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Low energy consumption
  • High color consistency thanks to narrow binning
  • Easy replacement of classic lamps thanks to compact design
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • Long lifetime: up to 25,000 h
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075659704 Folding box
1		 93 mm x 93 mm x 188 mm 269.00 g 1.63 dm³
4058075659711 Shipping box
10		 475 mm x 196 mm x 202 mm 2877.00 g 18.81 dm³

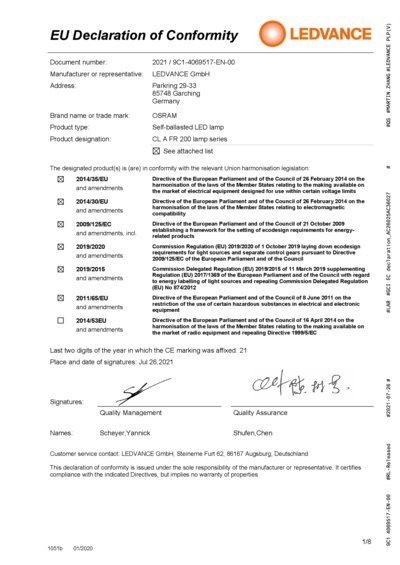

Declarations of conformity
LED CL A FR 200 lamp s eries PDF (200.28 KB)

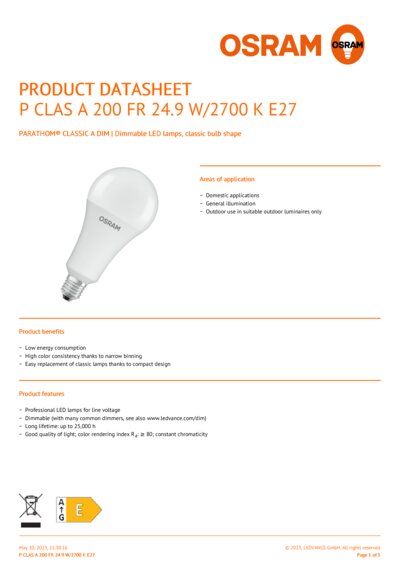

PRODUCT DATASHEET
PCLASA200FR24.9W2700KE 27en PDF (235.76 KB)

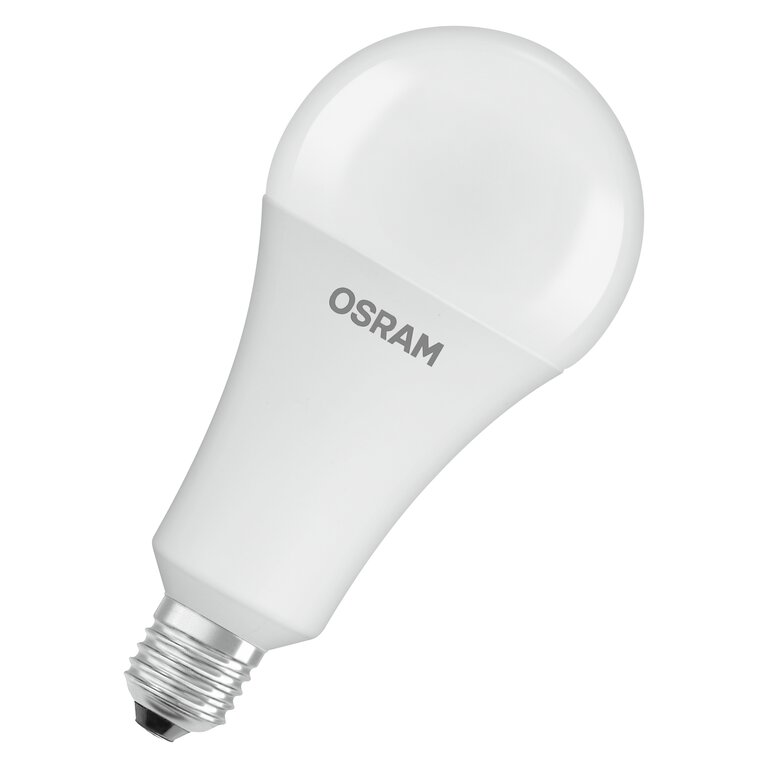

Product image: white background, diagonal with OSRAM logo
LED CLA200 24,9W 230VF R E27 JPG (3.47 MB)

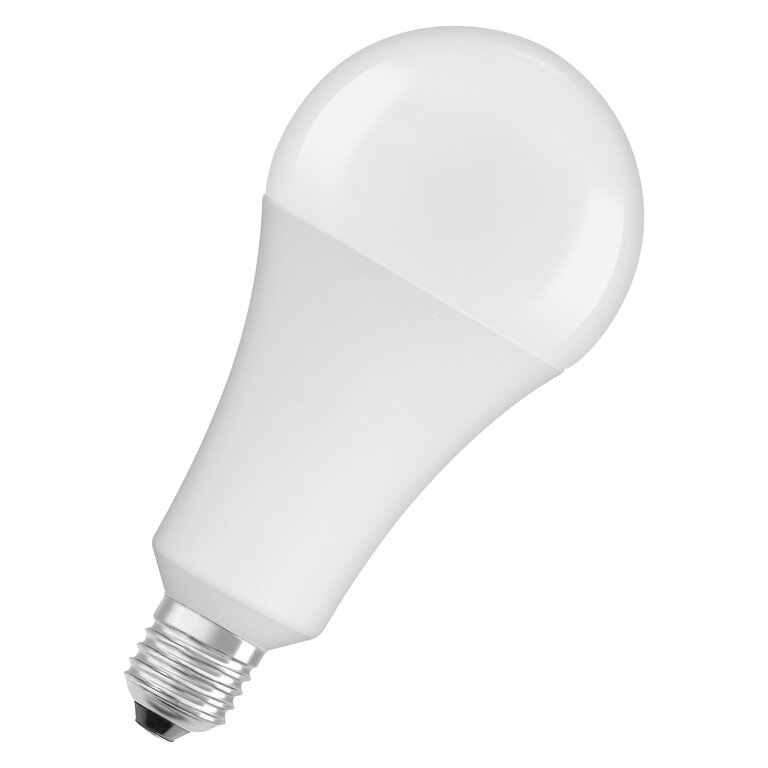

Product image: white background, diagonal
LED CLA200 24,9W 230VF R E27 JPG (3.46 MB)

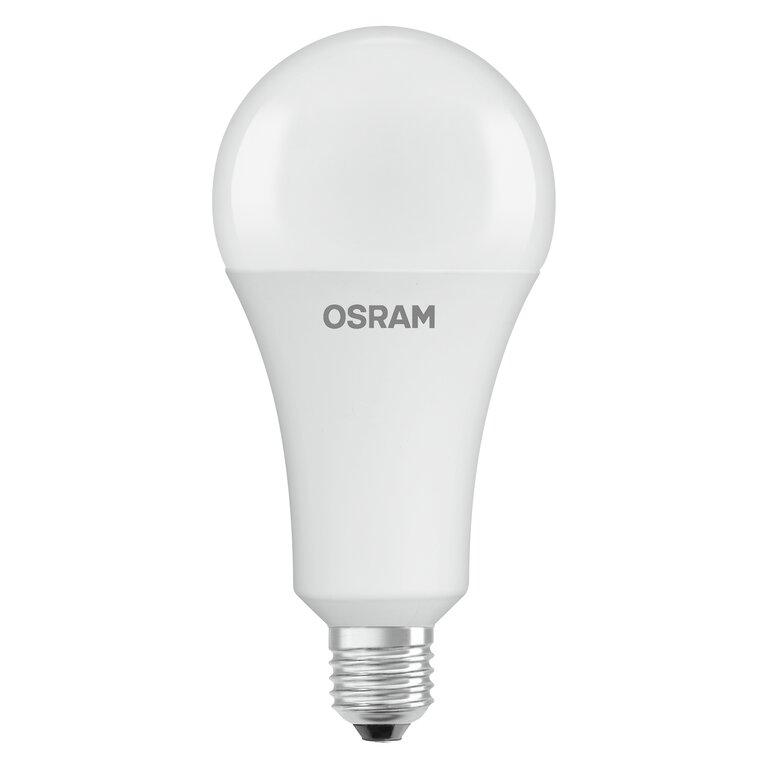

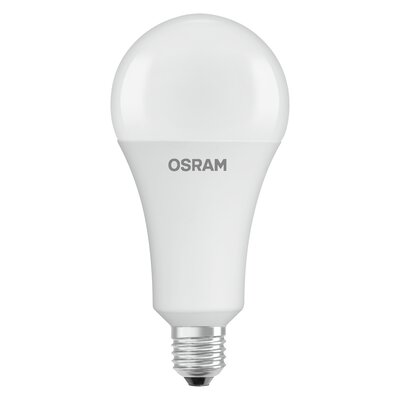

Product image: white background, upright, OSRAM logo
LED CLA200 24,9W 230VF R E27 JPG (3.32 MB)

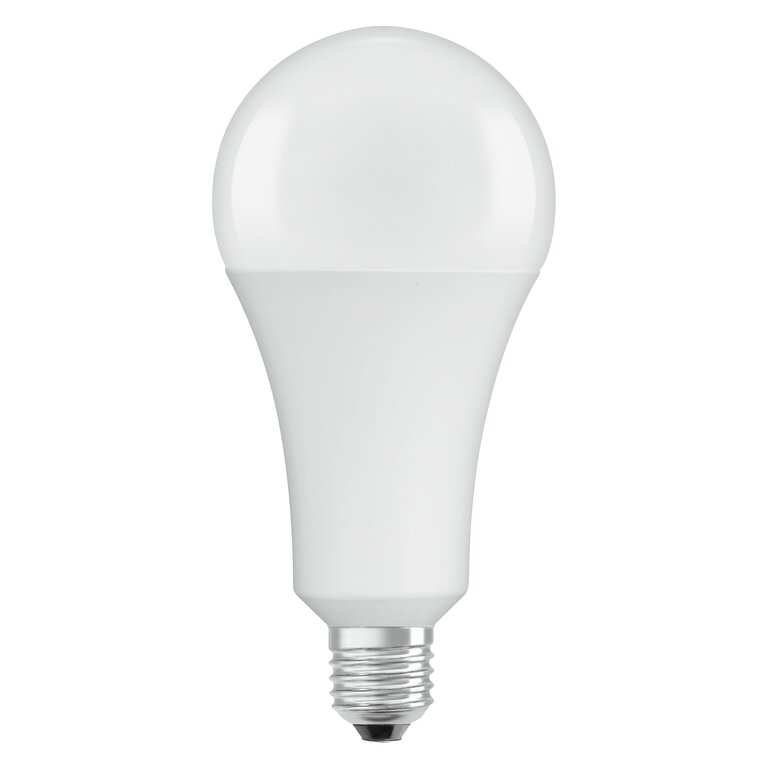

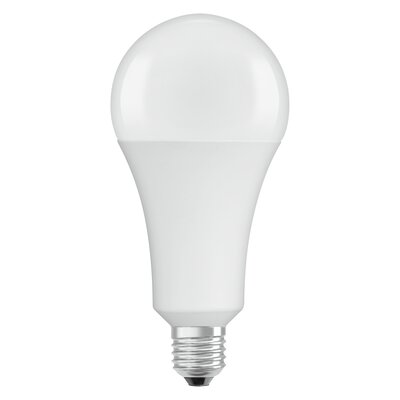

Product image: white background, upright
LED CLA200 24,9W 230VF R E27 JPG (3.31 MB)
Product line drawing with letters
LED CLA200 24,9W 230VF R E27 SVG (82.16 KB)
Product line drawing with numbers
LED CLA200 24,9W 230VF R E27 SVG (83.3 KB)
Product line drawing - technical
LED CLA200 24,9W 230VF R E27 SVG (80.56 KB)

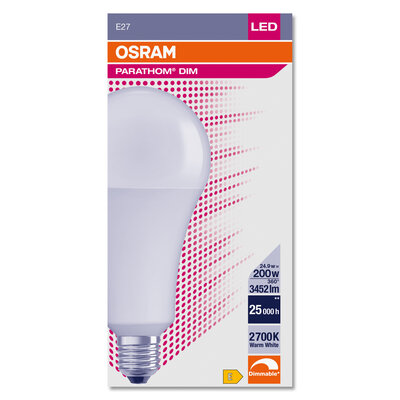

Packaging image, frontal
PARA CLA 200D 24.9W 82 7 230V FR E27 MiCh JPG (1.84 MB)

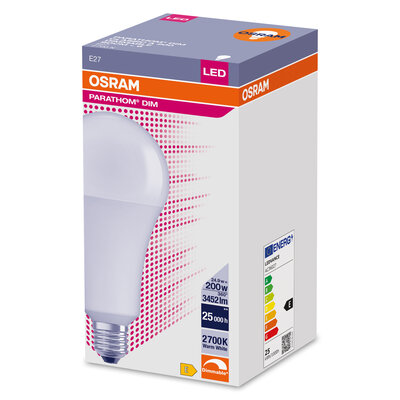

Packaging image, spacial
PARA CLA 200D 24.9W 82 7 230V FR E27 MiCh JPG (1.88 MB)
Energy label
EL-4058075659704-AC360 27 PDF (21.66 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
Spectral power distribution
349927_2700K_Evl_5630. eps PNG (83.87 KB)
EAN SEG number STK number EFO number ELDAS number
4058075659704 8296922 4731824 3755158 941812020
