PARATHOM® CLASSIC A DIM

PARATHOM CLASSIC A DIM

Choose your product version

8.8W 827 Frosted E27

60 8.8 W/2700 K E27

60 9 W/2700 K E27

10.5W 827 Frosted E27

75 10.5 W/2700 K E27

100 13 W/2700 K E27

100 FR 14 W/2700 K E27

150 18 W/2700 K E27

20W 827 Frosted E27

150 21 W/2700 K E27

24.9W 827 Frosted E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Classic A 60 DIM P 8.8W 827 Frosted E27 E27 8.8 W 220…240 V 25000 h 806 lm 60 W 220 ° Yes
P CLAS A 60 8.8 W/2700 K E27 E27 8.8 W 220…240 V 25000 h 806 lm 60 W 180 ° Yes
P CLAS A 60 9 W/2700 K E27 E27 9 W 220…240 V 25000 h 806 lm 60 W 220 ° Yes
LED Classic A 75 DIM P 10.5W 827 Frosted E27 E27 10.5 W 220…240 V 25000 h 1055 lm 75 W 220 ° Yes
P CLAS A 75 10.5 W/2700 K E27 E27 10.5 W 220…240 V 25000 h 1055 lm 75 W 220 ° Yes
P CLAS A 100 13 W/2700 K E27 E27 13 W 220…240 V 25000 h 1521 lm 100 W 220 ° Yes
P CLAS A 100 FR 14 W/2700 K E27 E27 14 W 220…240 V 25000 h 1521 lm 100 W 220 ° Yes
P CLAS A 150 18 W/2700 K E27 E27 18 W 220…240 V 15000 h 2452 lm 150 W 330 ° Yes
LED Classic A 150 DIM P 20W 827 Frosted E27 E27 20 W 220…240 V 25000 h 2452 lm 150 W 200 ° Yes
P CLAS A 150 21 W/2700 K E27 E27 21 W 220…240 V 25000 h 2452 lm 150 W 200 ° Yes
LED Classic A 200 DIM P 24.9W 827 Frosted E27 E27 24.9 W 220…240 V 25000 h 3452 lm 200 W 200 ° Yes


P CLAS A 150 18 W/2700 K E27

Product benefits
  • Low energy consumption
  • High color consistency thanks to narrow binning
  • Easy replacement of classic lamps thanks to compact design
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 18 W
Construction wattage 18.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 150 W
Nominal current 86 mA
Type of current AC
Inrush current 2.9 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 26
Max. lamp number on MCB B16 A 44
Power factor λ > 0.90

Photometrical data

Luminous flux 2452 lm
Nominal useful luminous flux 90° 2452 lm
Luminous efficacy 136 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 330 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 141.00 mm
Diameter 70.00 mm
Maximum diameter 70 mm
Product weight 71.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 84 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, LED lamps contain several electronic components. Under unfavourable conditions these can lead to acoustic noise. In case of resonance even low noise can cause audible effect. Possible factors influencing this are the installation, the design of the lamp holder and the luminaire (acoustic resonance effect) as well as the dimmer or the transformer (harmonics or electronic resonance)

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class D 1)
Energy consumption 18.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference LEDPCLA150D 18W

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Correlated colour temperature type SINGLE_VALUE
Length 141.00 mm
Height 70.00 mm
Width 70.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Low energy consumption
  • High color consistency thanks to narrow binning
  • Easy replacement of classic lamps thanks to compact design
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • Long lifetime: up to 25,000 h
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075439917 Folding box
1		 70 mm x 70 mm x 143 mm 54.00 g 0.70 dm³
4058075439924 Shipping box
10		 364 mm x 150 mm x 157 mm 680.00 g 8.57 dm³

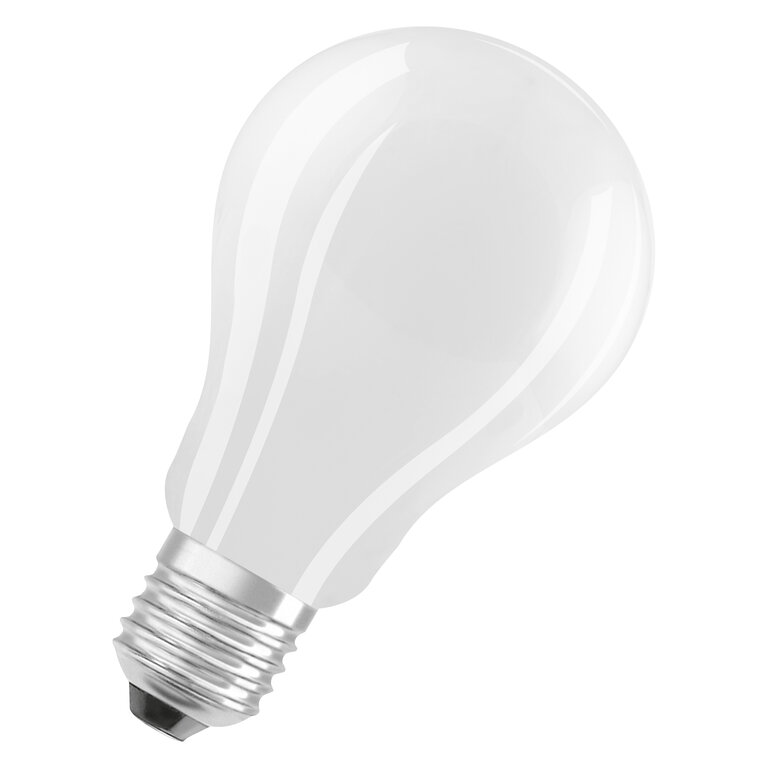

Product image: white background, diagonal
CL A GL FR 150 non-di m E27 JPG (1.08 MB)

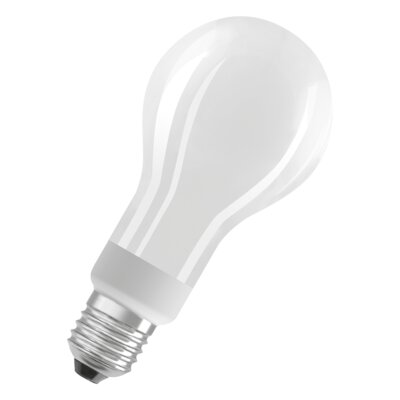

Product image: white background, diagonal
LED CLA GL FR 150 dim E27 JPG (1.13 MB)

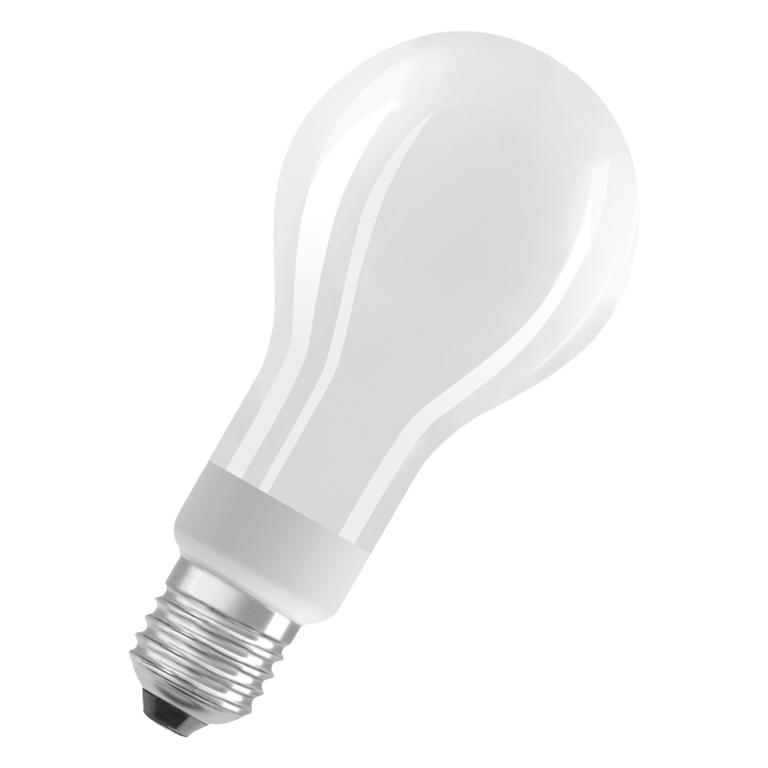

Product image: white background, diagonal
LED CLA GL FR 150 dim E27 PSD (13.98 MB)

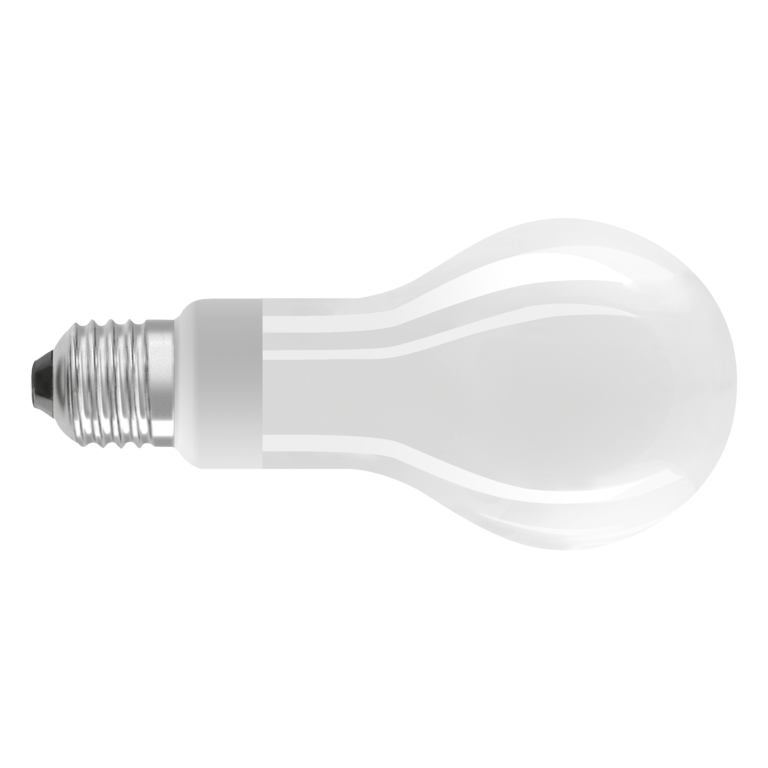

Product image: white background, horizontal
LED CLA GL FR 150 dim E27 PSD (12.5 MB)

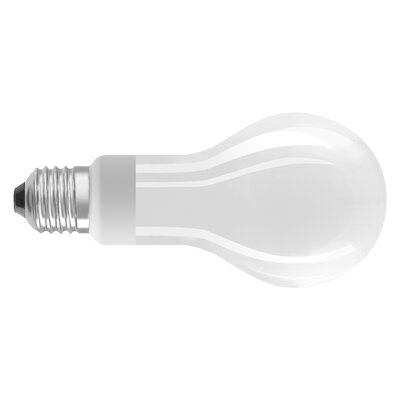

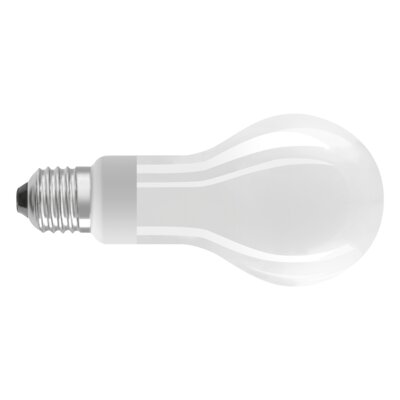

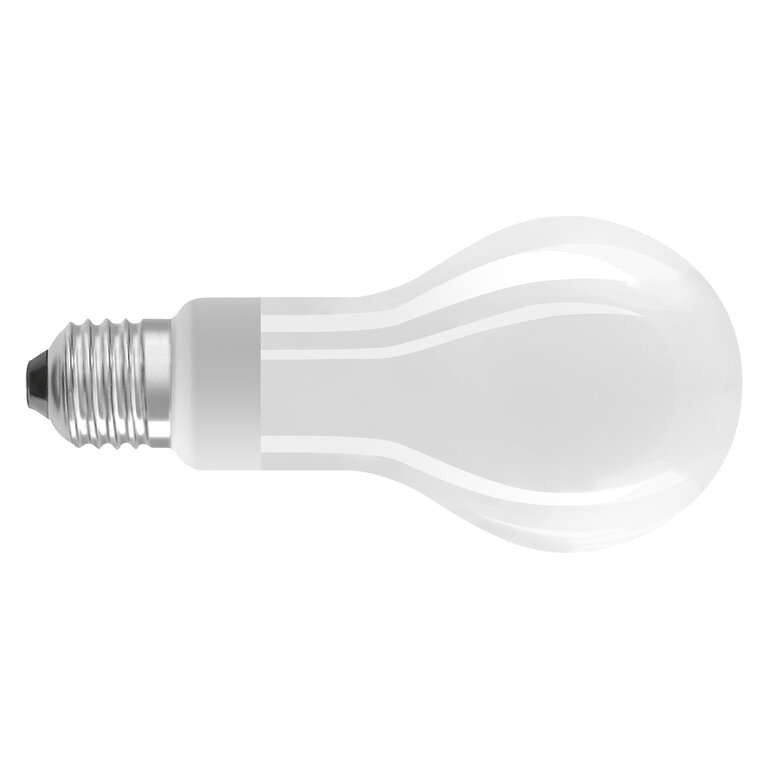

Product image: white background, horizontal
LED CLA GL FR 150 dim E27 JPG (1.07 MB)
Product image: white background, upright
LED CLA GL FR 150 dim E27 JPG (1.03 MB)
Product line drawing with letters
LED CLA GL FR 150 dim E27 SVG (7.61 KB)
Product line drawing with numbers
LED CLA GL FR 150 dim E27 SVG (8.36 KB)
Product line drawing - technical
CL A GL FR 150 non-di m E27 SVG (4.27 KB)
Product line drawing - technical
LED CLA GL FR 150 dim E27 SVG (4.7 KB)
Packaging image, frontal
PARA DIM CLA 150 18W 8 27 GLFR E27 MiCh TIF (7.55 MB)

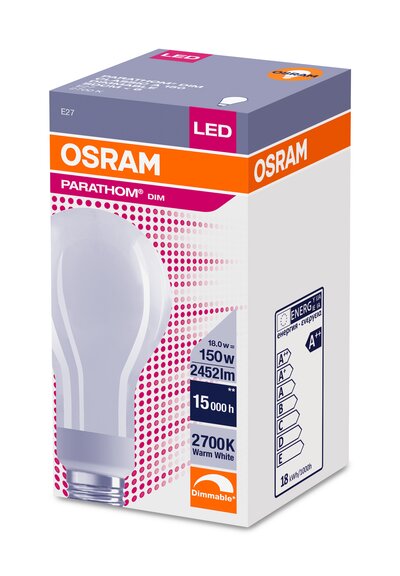

Packaging image, spacial
PARA DIM CLA 150 18W 8 27 GLFR E27 MiCh TIF (11.68 MB)
Logos and pictos
D left SVG (1.8 KB)
Logos and pictos
D left BW SVG (1.07 KB)
Logos and pictos
D right SVG (1.77 KB)
Logos and pictos
D right BW SVG (1.07 KB)
EAN SEG number STK number EFO number ELDAS number
4058075439917 8295361 4731384 3766298 941805550
